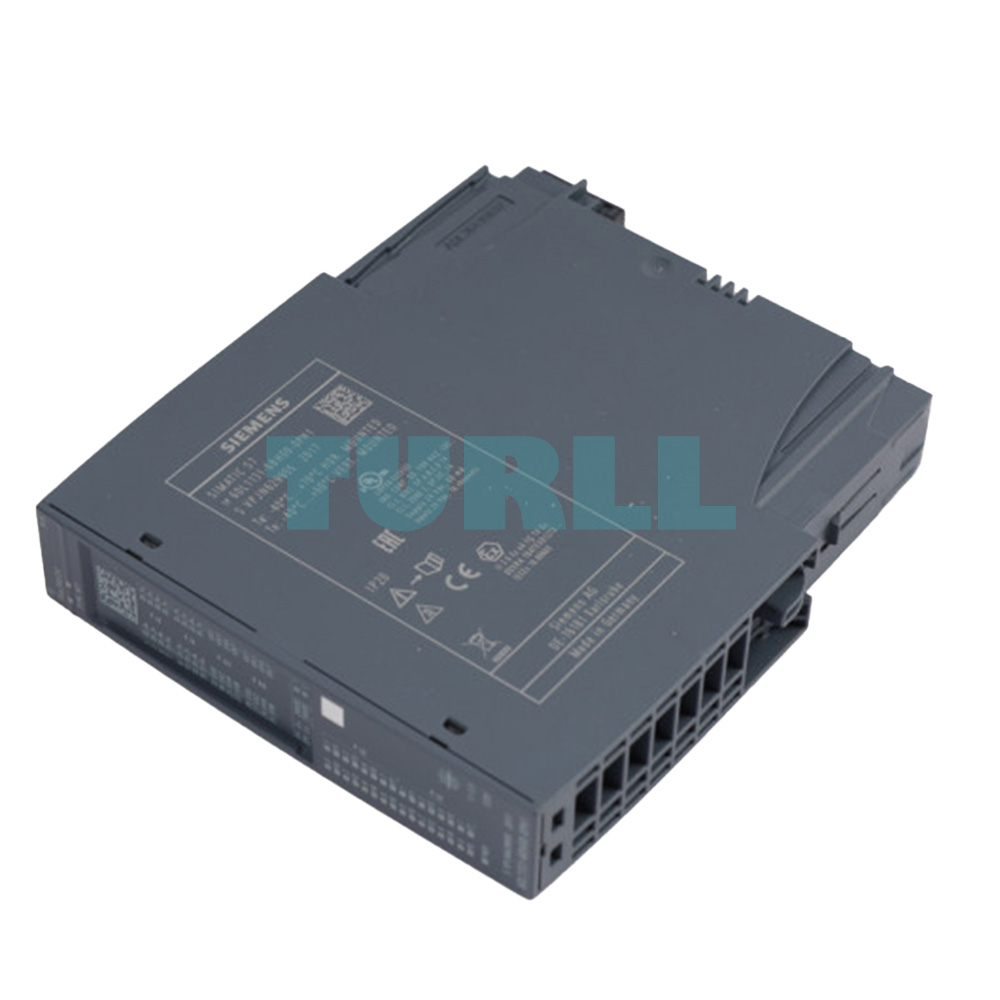

6DL1131-6BH00-0PH1 SIEMENS Exclusive SIMATIC ET 200SP HA AI 4XI HART Input Module Original Brand New

6DL1131-6BH00-0PH1 SIEMENS Exclusive SIMATIC ET 200SP HA AI 4XI HART Input Module Original Brand New

For price details, please contact our customer service

The SIEMENS 6DL1131-6BH00-0PH1 is an advanced SIMATIC ET 200SP HA analog input module designed for high-availability applications. With 4 galvanically isolated analog inputs supporting both 2-wire and 4-wire configurations, this module provides precise data acquisition in demanding industrial environments. Supporting HART communication protocol, it ensures seamless integration with a wide range of intelligent field devices while delivering robust diagnostics and channel monitoring capabilities.

Overview

Engineered for critical process automation, the AI 4XI 2-/4-wire HART isol module features a 16-bit resolution with an impressive accuracy of ±0.1%, making it ideal for high-precision measurement tasks. It supports multiple signal types including voltage, current, thermocouples, RTDs, and resistance measurements. Its compatibility with the color-coded terminal block K0, L0 (color code CC01), and advanced channel diagnostics further enhance its reliability in safety-critical systems. Operating within the SIMATIC ET 200SP HA system, this module guarantees uninterrupted performance, even under harsh industrial conditions, backed by comprehensive HART communication capabilities for advanced device management.

• 4 galvanically isolated analog inputs for 2-wire and 4-wire applications
• HART communication protocol supported for intelligent field device integration
• High precision 16-bit resolution with ±0.1% accuracy
• Supports terminal block K0, L0 with color code CC01
• Advanced channel diagnostics and monitoring functions
• Wide range of supported input signals including voltage, current, TC, RTD, and resistance
• Part of the high-availability SIMATIC ET 200SP HA system

Design

• Measuring range includes various voltage and current ranges (±50 mV, ±80 mV, ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 4–20 mA, 0–20 mA)
• Supports a variety of thermocouple and RTD elements
• Galvanic isolation for enhanced operational safety
• Suitable for process industries with demanding requirements

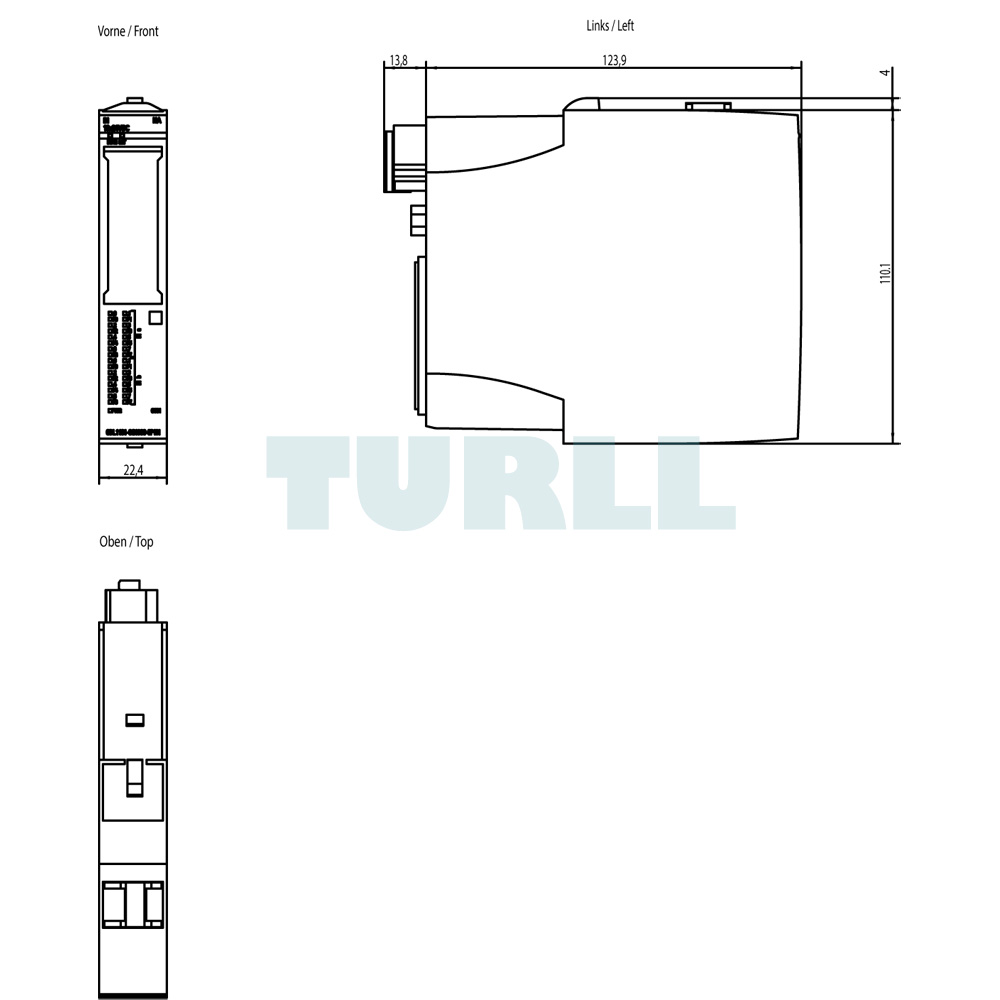

• Compact design for seamless integration within ET 200SP HA racks

Download

Data Sheet (PDF)

Product Link: 6DL1131-6BH00-0PH1
