6DR7101-1AN01-1AA0 SIEMENS Exclusive SIPART PS100 Electropneumatic Positioner Original Brand New

6DR7101-1AN01-1AA0 SIEMENS Exclusive SIPART PS100 Electropneumatic Positioner Original Brand New

The 6DR7101-1AN01-1AA0 is an advanced electropneumatic positioner from the SIEMENS SIPART PS100 series, designed to provide efficient and precise control for valves and actuators. With support for both linear and part-turn actuators, this unit delivers consistent performance without requiring prior configuration expertise. The commissioning process is made simple with a single push of a button.

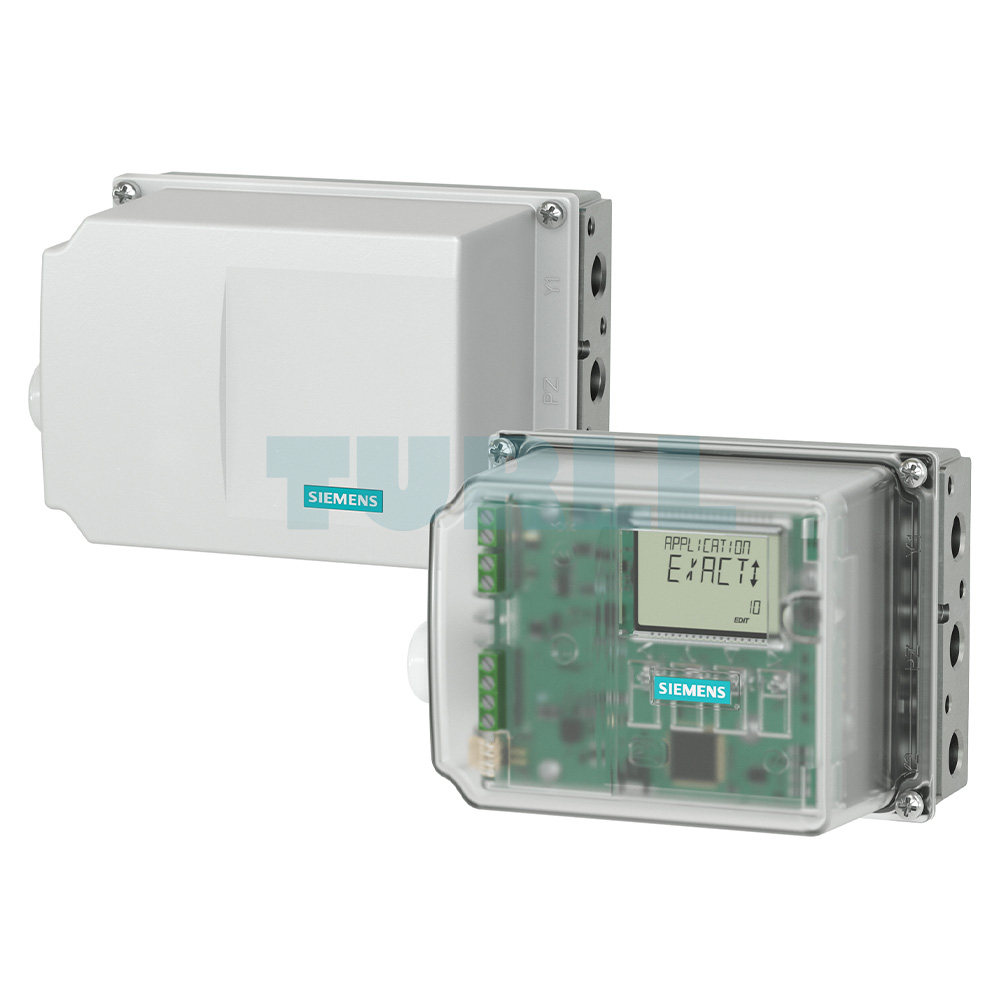

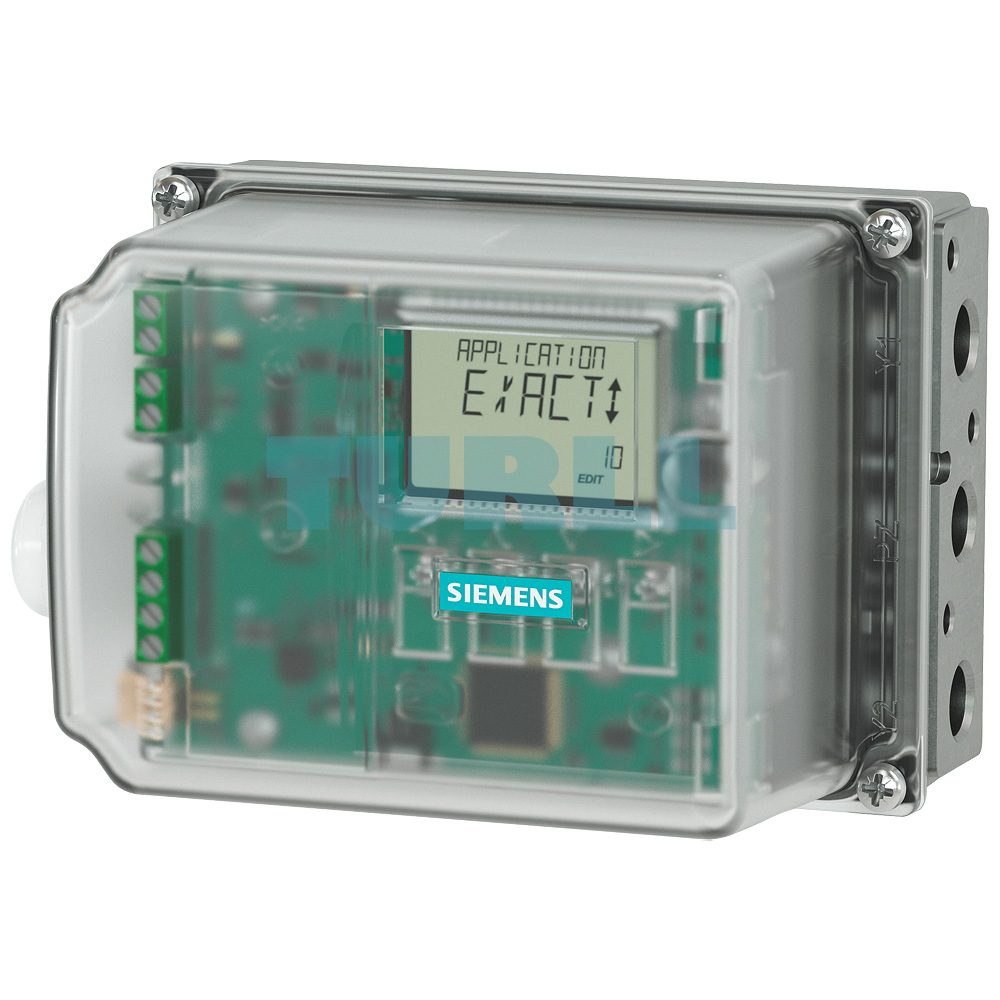

Its robust design features a polycarbonate enclosure lid with a clear viewing window, offering practical usability in industrial environments. Built for reliability, the unit accepts a 4 to 20 mA input signal, with HART communication capability, making it ideal for modern process automation needs. It is engineered for easy installation with single-acting Ex i (IS) 2-wire configurations and features cable entries with M20 x 1.5 threads, complete with plastic glands.

Overview

The SIPART PS100 positioner is designed to modulate the position of pneumatic valves or dampers with exceptional precision. Whether used with linear or part-turn actuators, it ensures that valve movement corresponds accurately to the setpoint input, improving control stability and responsiveness.

Design

The structure of the positioner integrates multiple functional components:

• Durable enclosure with base plate and transparent lid
• Contact-free, wear-resistant position detection system
• Pneumatic block located within the housing for compact installation
• Right-side pneumatic connectors and left-side electrical terminals
• Mountable via actuator-specific kits with direct coupling to actuator shafts

Optional electronic features include:

• Analog output (4–20 mA) for real-time valve position feedback
• Digital input/output functions for alarm reporting and process interlocking
• HART protocol support for configuration and diagnostics

Product Code: 6DR7101-1AN01-1AA0
