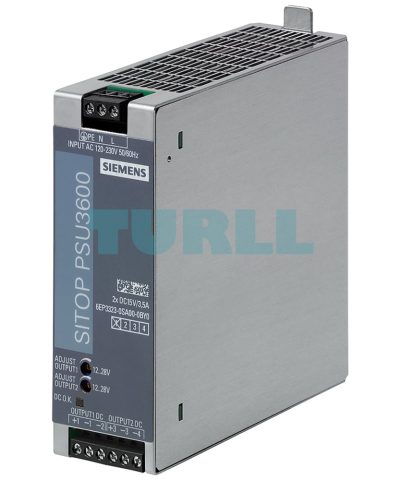

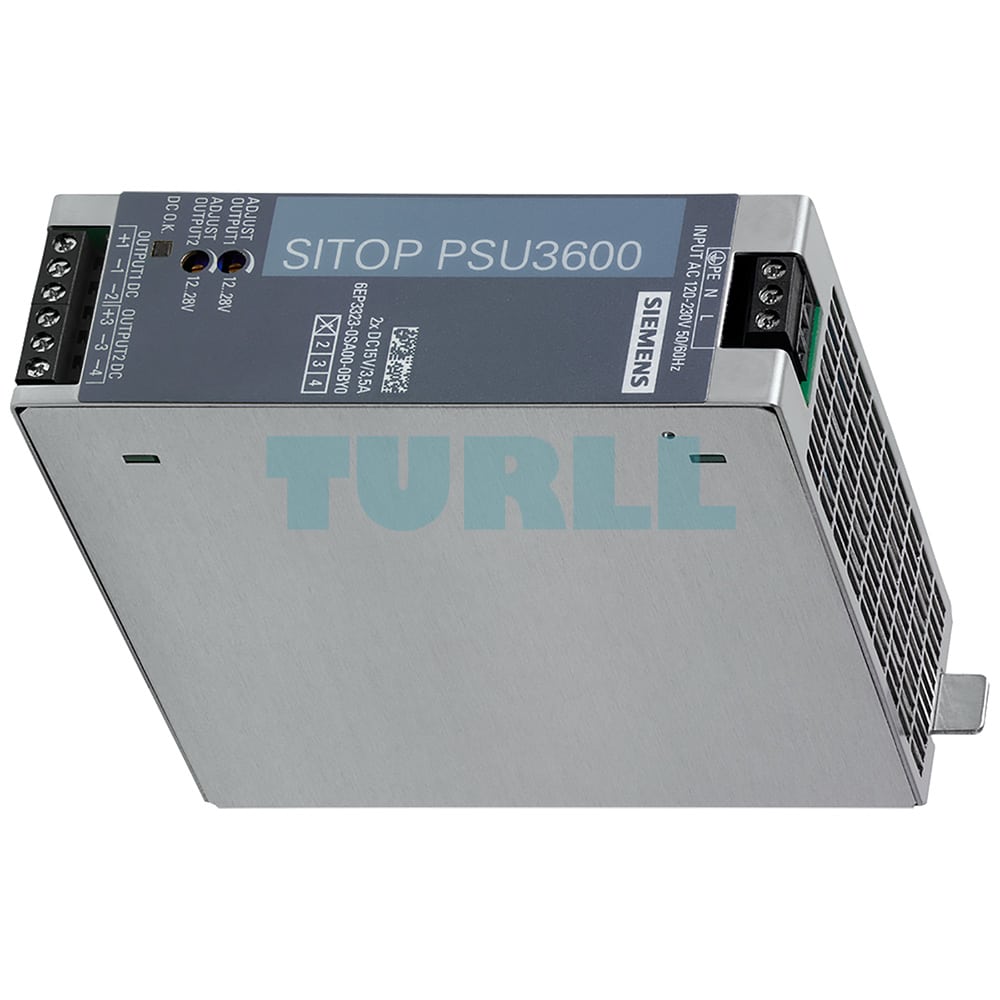

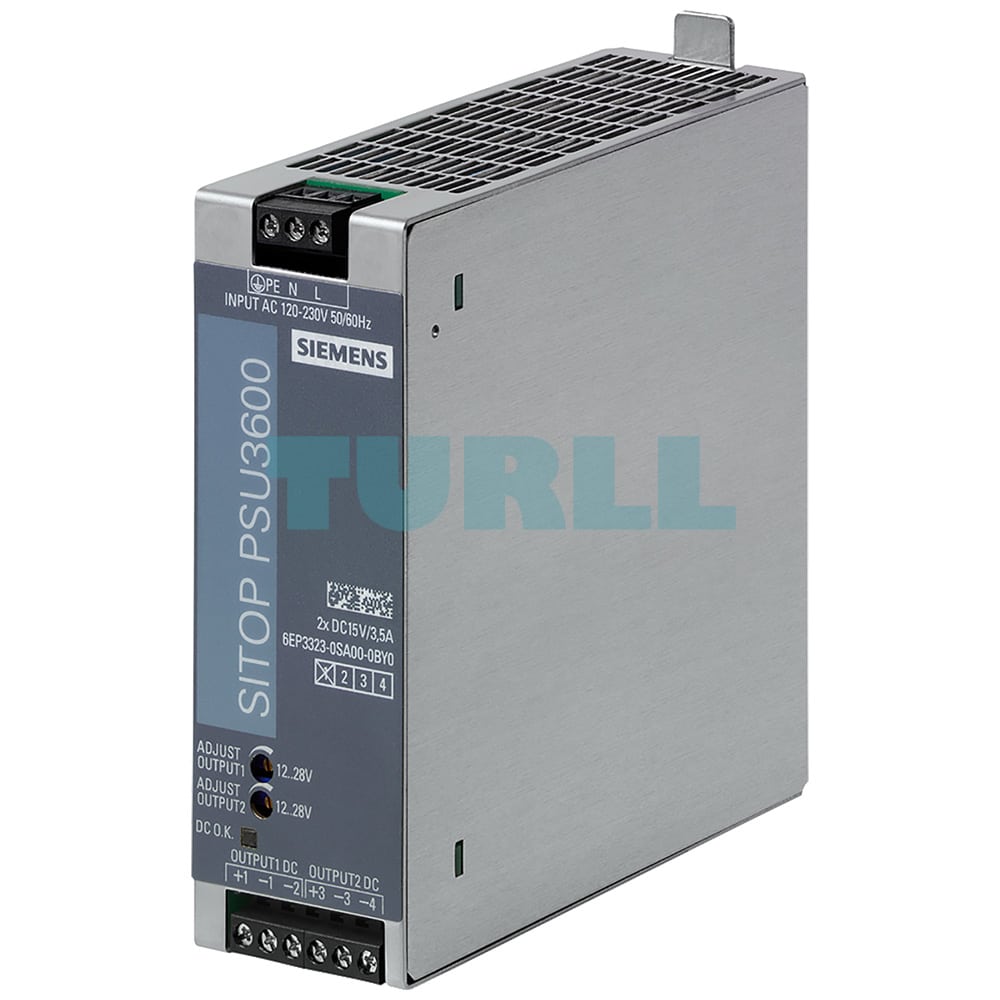

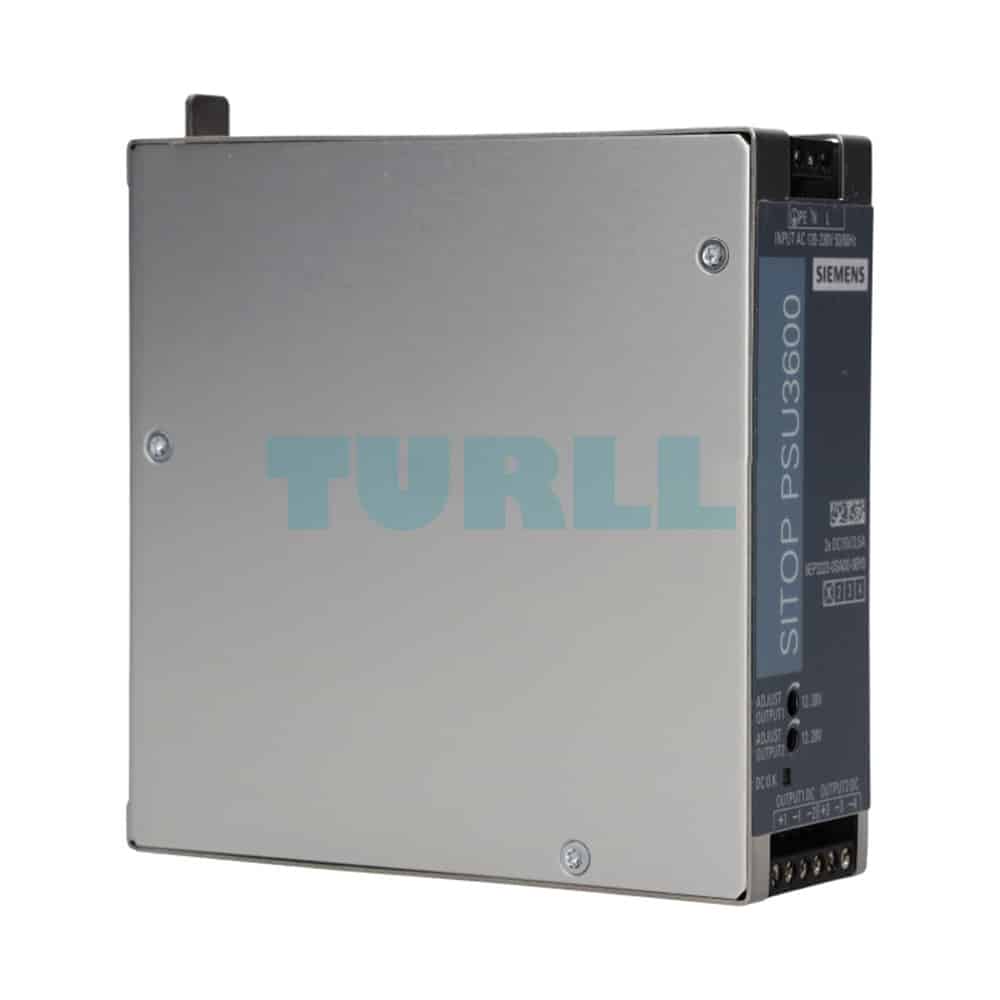

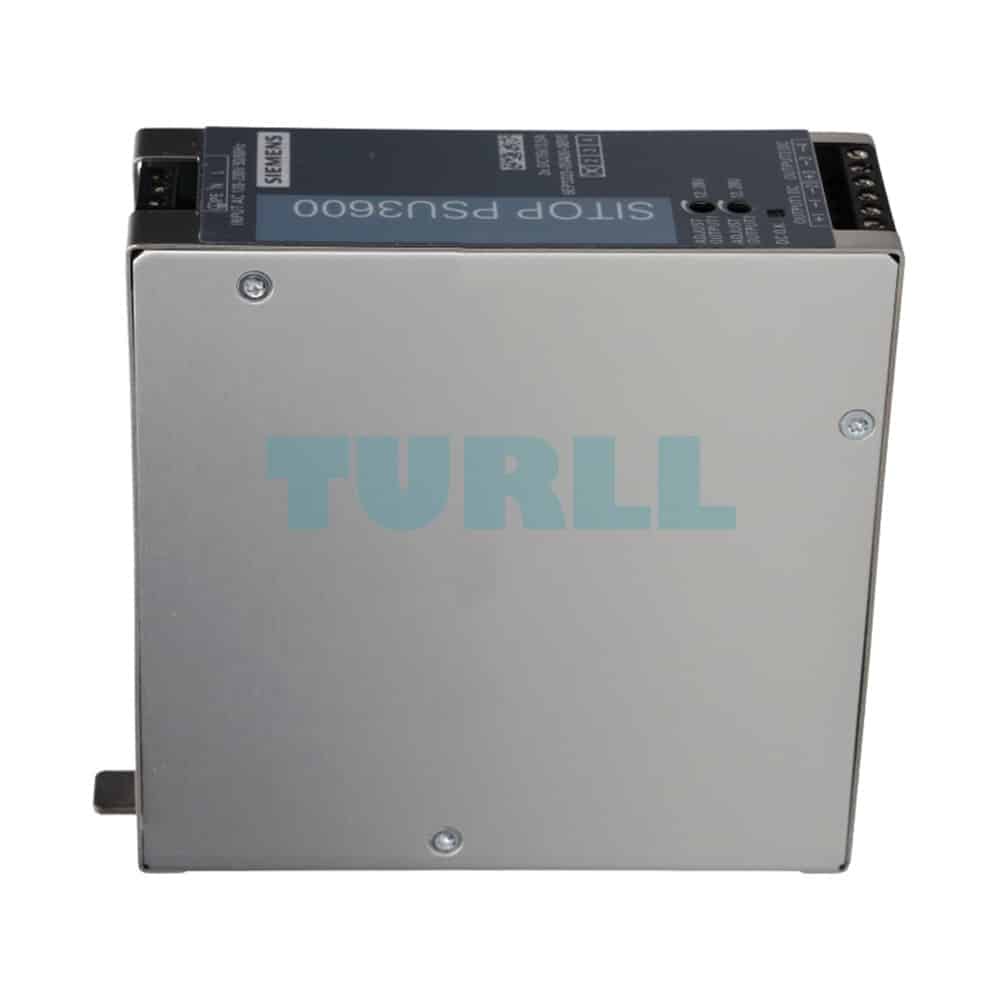

6EP3323-0SA00-0BY0 SIEMENS SITOP PSU3600 dual stabilized power supply Original Brand New

Two power supplies in one compact device

The SITOP PSU3600 single-phase power supply dual was designed as a two-voltage power supply with two independent outputs in order to allow electronic loads to be supplied with both a positive and negative voltage at the same time. If the two potential-free outputs are connected in series, a positive and negative supply voltage of e.g. ±15 V can be generated.

Or you can leave the independent outputs separate and supply different loads with different nominal voltages, e.g. 24 V and 15 V, with only a single power supply unit due to the wide adjustment range of the output voltage from 12 V to 28 V for each output.

In addition, each of the two outputs is limited in performance according to NEC Class 2, which opens up further application options.
