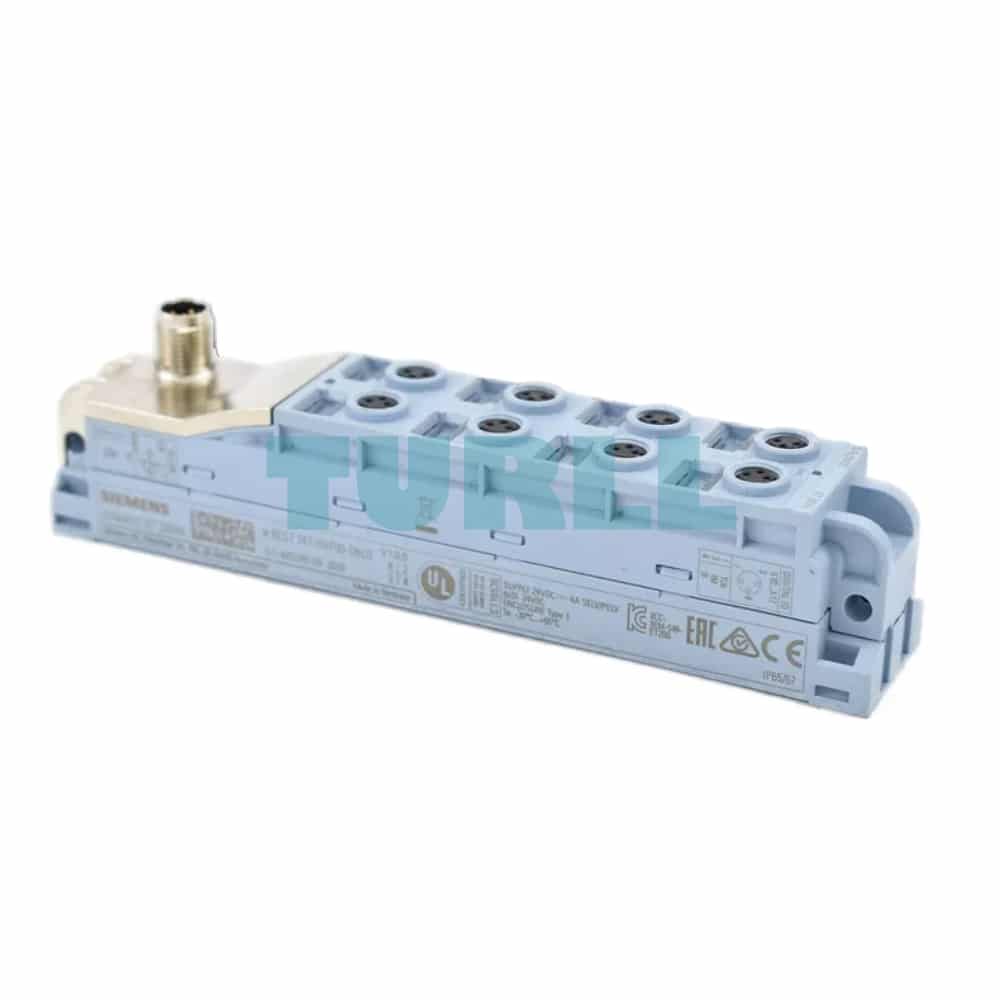

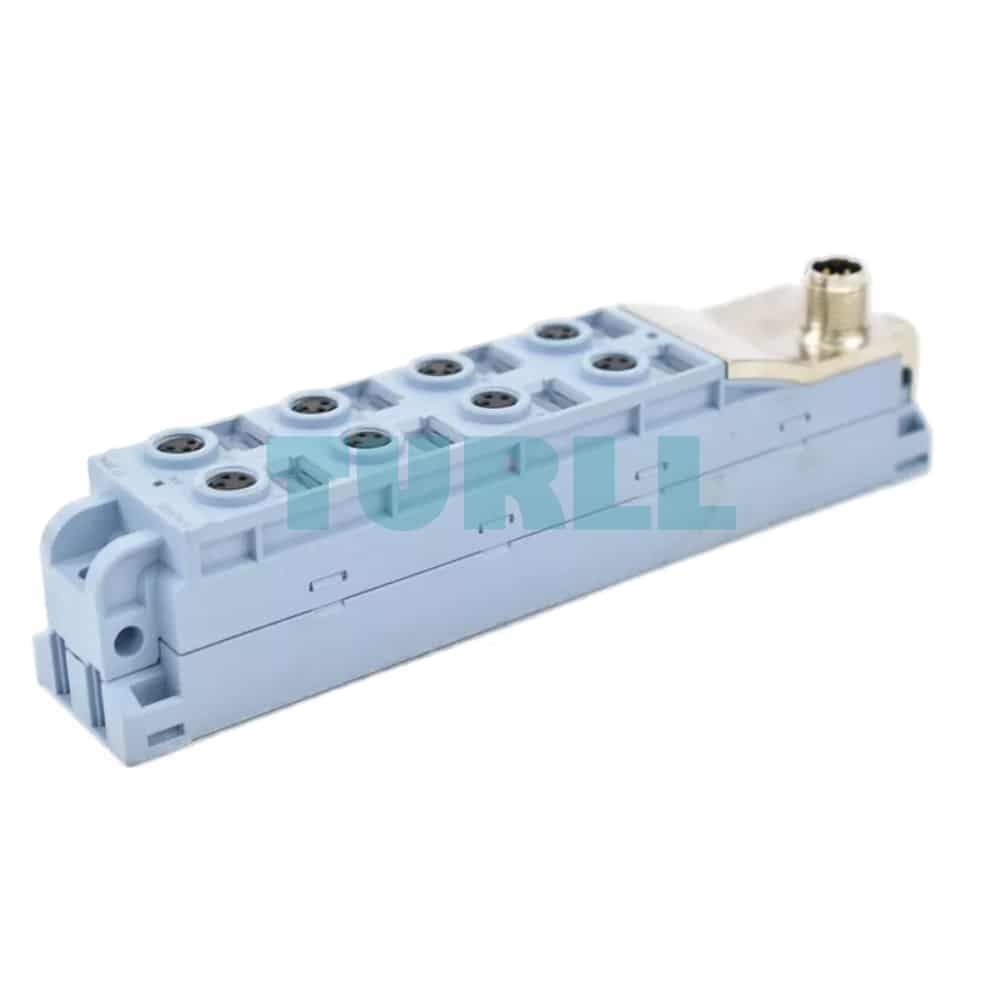

6ES7141-5BF00-0BL0 Siemens SIMATIC ET 200AL IO-Link Original Brand New

Due to the point-to-point connections with IO-Link, a star topology occurs with the connection of the IO-Link I/O modules to an IO-Link master. This can be combined in any way with other ET 200 I/O modules with the fieldbus line topology. In this way, a topology that is ideally adapted to the requirements of machines and plants can be realized.

The IO-Link I/O modules can be connected both to any IO-Link masters with IP20 degree of protection and to IO-Link masters with IP67 degree of protection.

The IO-Link I/O modules and the respective IO-Link master are connected via the unshielded M12 connection cable. The signals and the energy are transferred via this cable. This saves work and costs for the connection technology. The range of the point-to-point connection is 20 m in line with the IO-Link specification.

The ET 200AL IO-Link I/O modules allow very flexible installation (screw fastening through the front or side, any mounting positions) either on a level surface or on aluminum support profiles using sliding blocks.

The IO-Link I/O modules have:

• M12 interface for IO-Link and power supply
• LED display for the channel status
• LED display for the module status (DIAG)
• LED display for load voltage 2L+ (PWR, only modules with outputs)
• Labels for the identification of channels, modules and slots
• Integrated cable tie opening

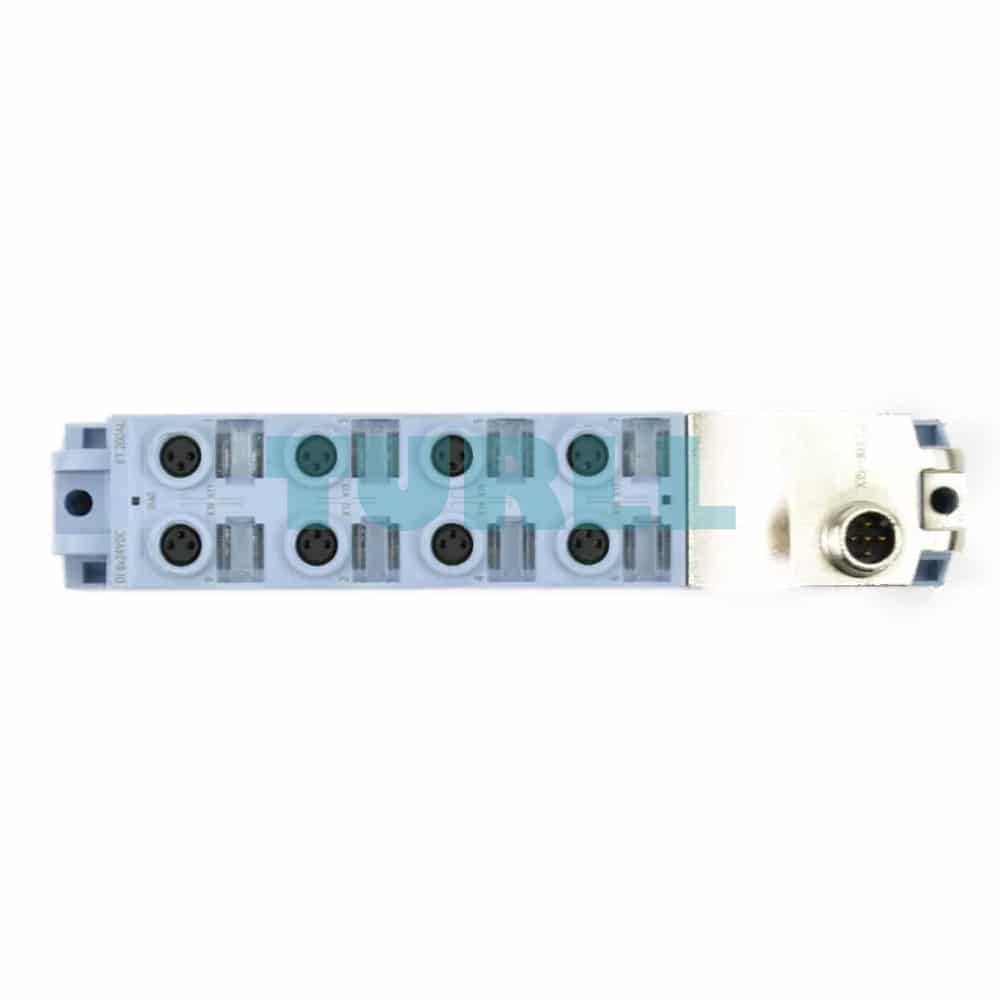

• Clear labeling on front of module:
  • Plain text identification of the module type
  • Channel number labeling
  • Interface designation

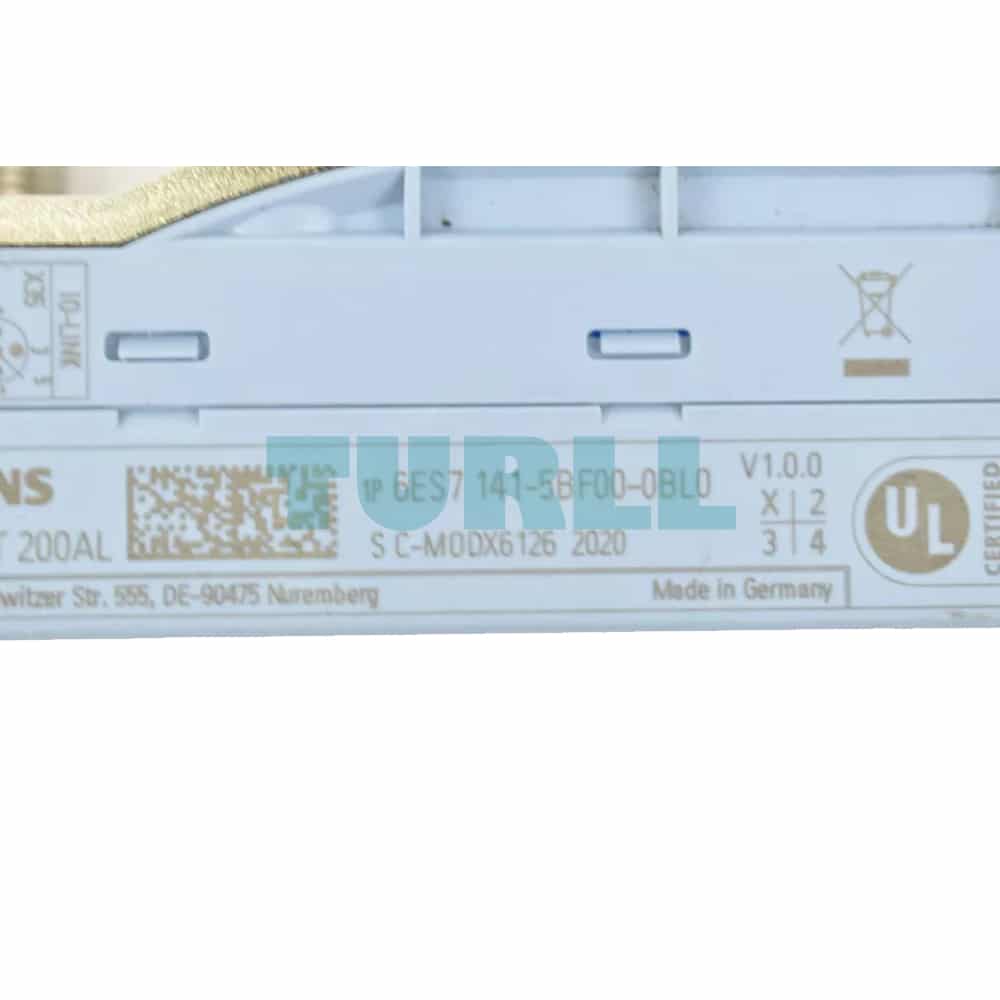

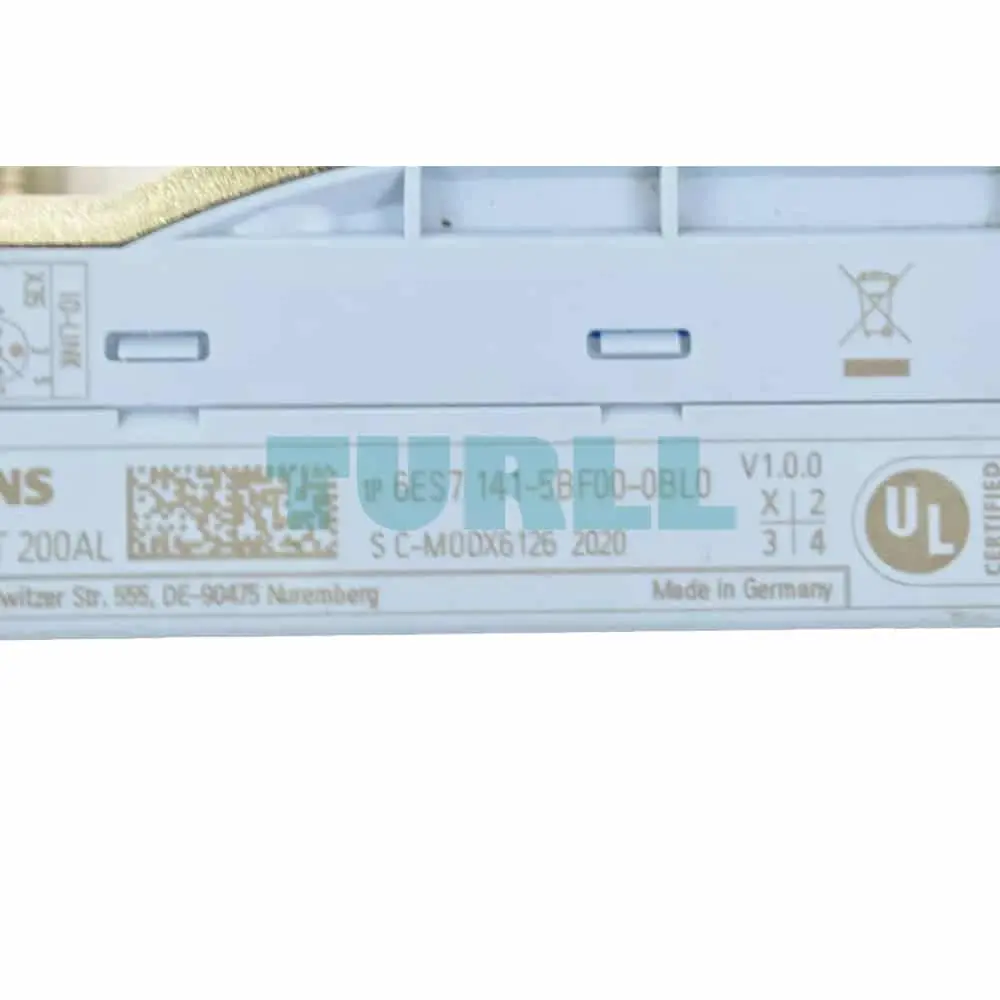

• Clear labeling on side of module:
  • Article No., functional status and FW version
  • 2D matrix code (article and serial number)
  • Pin assignment of all interfaces

The modules are supplied with labels for the identification of channels, modules and slots. The labels can be mechanically inscribed using commercially available labeling systems.

• Uniform display and diagnostics concept:
  • Channel status display for signal state log. “0” and log. “1” (green LED)
  • Module status display (DIAG, red/green LED)
  • Display for monitoring the load voltage 2L+ (PWR, green LED, only modules with outputs)
• Supported functions:
  • Channel-specific parameter assignment
  • Module-granular diagnostics and diagnostic interrupt
  • Safety-related switch-off of digital outputs according to IEC 62061 (SILCL2) and ISO 13849-1 (Cat 3/PL d)
  • IO-Link V1.1
  • Support of the IO-Link “general profile”
  • Firmware update

Engineering

Engineering of the IO-Link I/O modules takes place via the IO-Link engineering of the respective IO-Link master. For this purpose, a device description file (IODD) is made available for each IO-Link I/O module.
