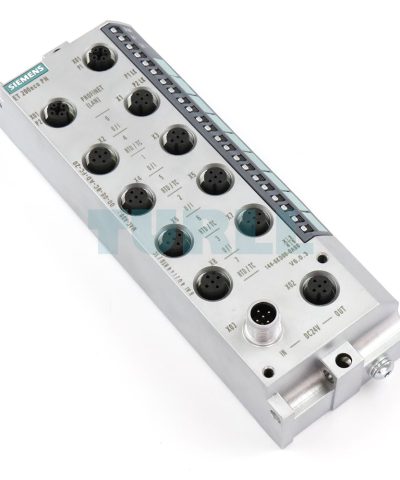

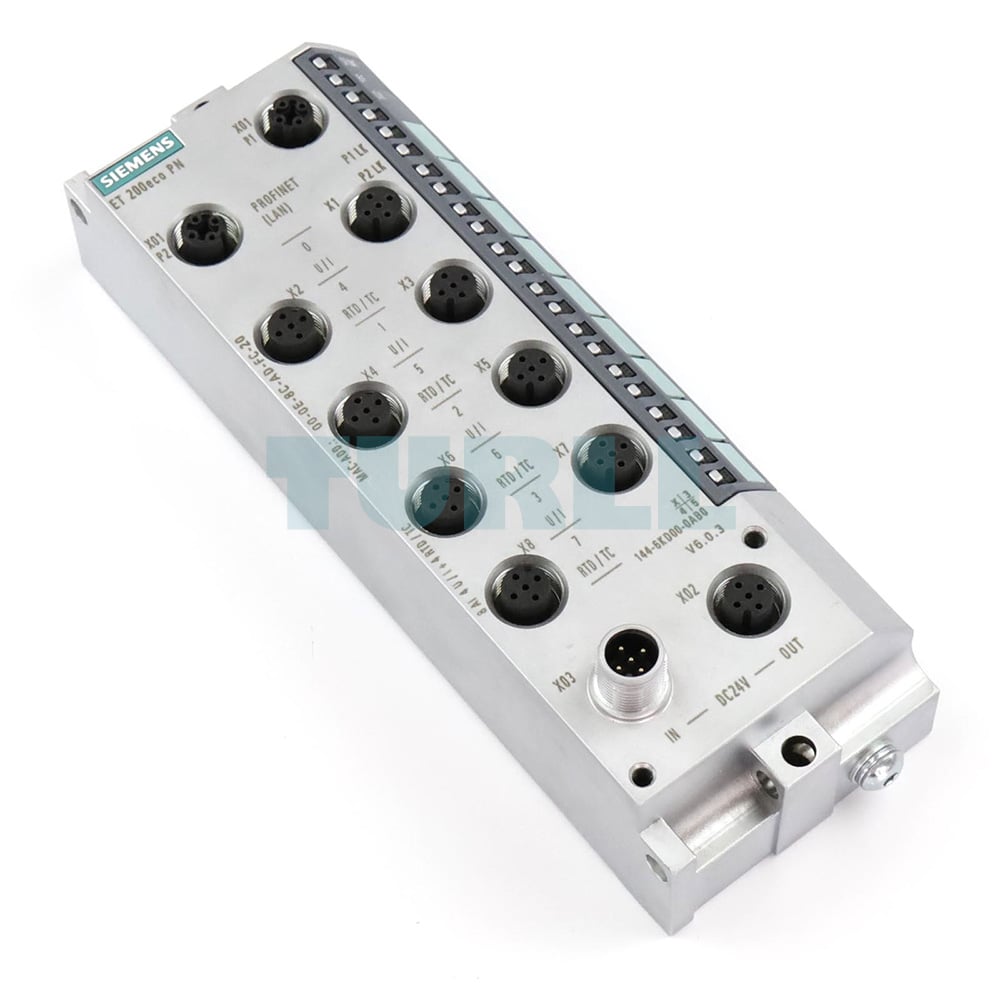

6ES7144-6KD00-0AB0 Siemens SIMATIC DP ET 200ECO PN Original Brand New
$845.15
6ES7144-6KD00-0AB0
Siemens SIMATIC DP, ET 200ECO PN, 8 AI (4 U/I+4 RTD/TC); 8x M12, Degree of protection IP67
6ES7144-6KD00-0AB0
Siemens SIMATIC DP, ET 200ECO PN, 8 AI (4 U/I+4 RTD/TC); 8x M12, Degree of protection IP67
Overview
Analog distributed I/O devices with 2x M12 L-coded power connectors and 45 mm width
- 8 analog input signals RTD/TC with 8xM12 connection
- 6 analog input signals U/I and 2 analog input or output signals U/I with 8xM12 connection
Analog I/O devices with 2x M12 A-coded power connectors and 60 mm width
- 8 analog input signals U/I/RTD/TC with 8xM12 connection
- 8 analog input signals RTD/TC with 8xM12 connection
- 4 analog output signals U/I with 4xM12 connection
Application
Analog inputs record process signals such as pressure or temperature and forward them in digitalized format (16-bit format) to the PLC. They are suitable for measuring voltage, current (2-wire and 4-wire transmitters), resistance, resistance thermometers and the connection of thermocouples.
Analog outputs convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable, for example, for controlling proportional valves or small servo drives.
All I/O devices have configurable parameters and diagnostic functions and can thus be freely adapted to the respective process requirements.
Download
Visit 6ES7144-6KD00-0AB0
For more our products visit turll.com
| Weight | 0.961 kg |
|---|---|
| Dimensions | 73.00 × 203.00 × 58.00 mm |
