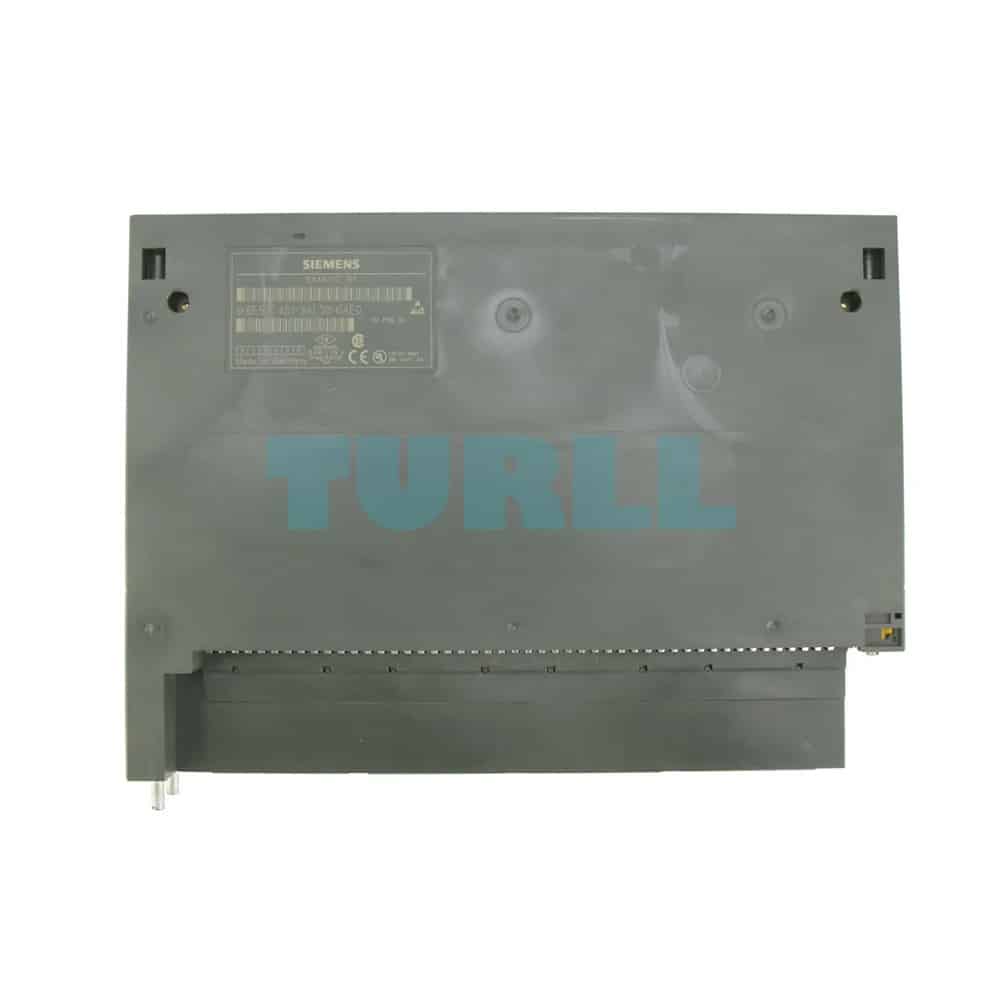

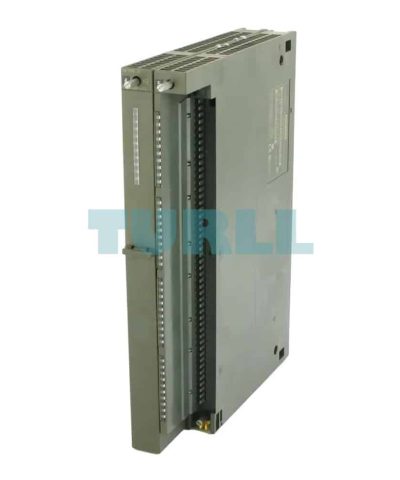

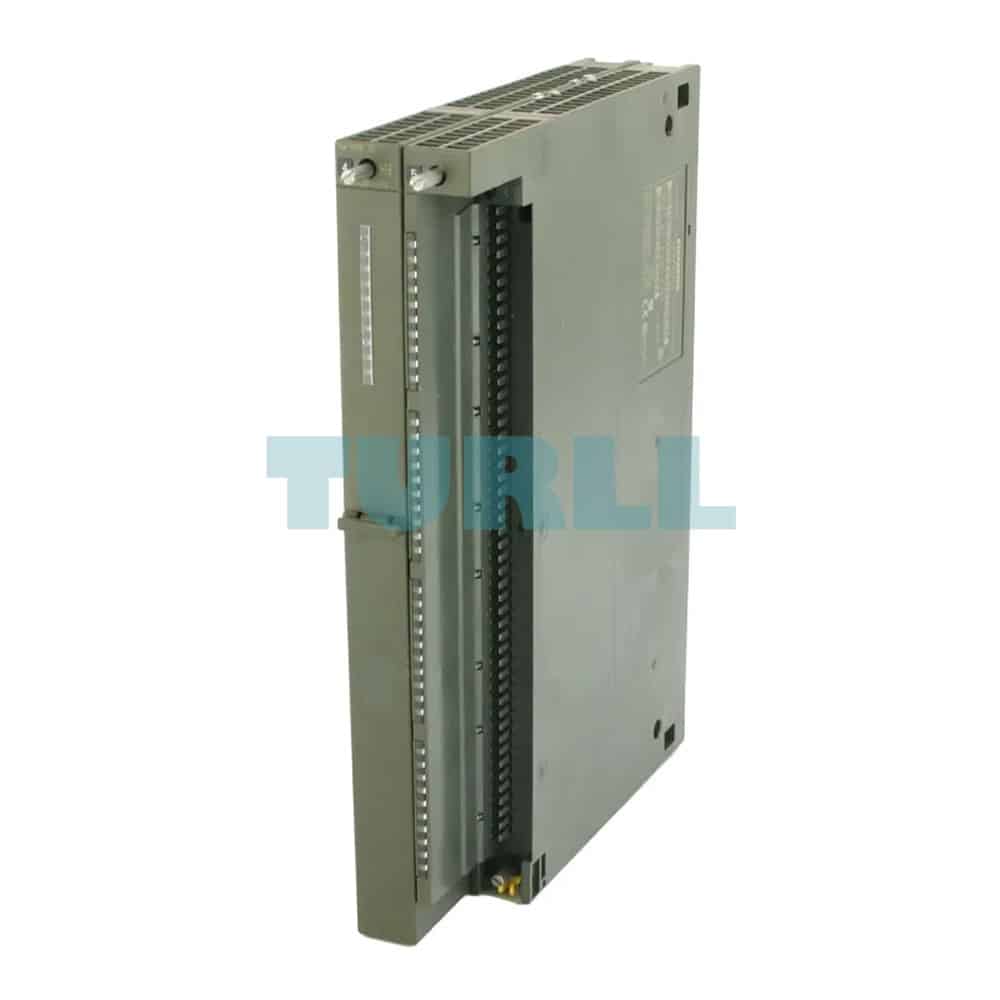

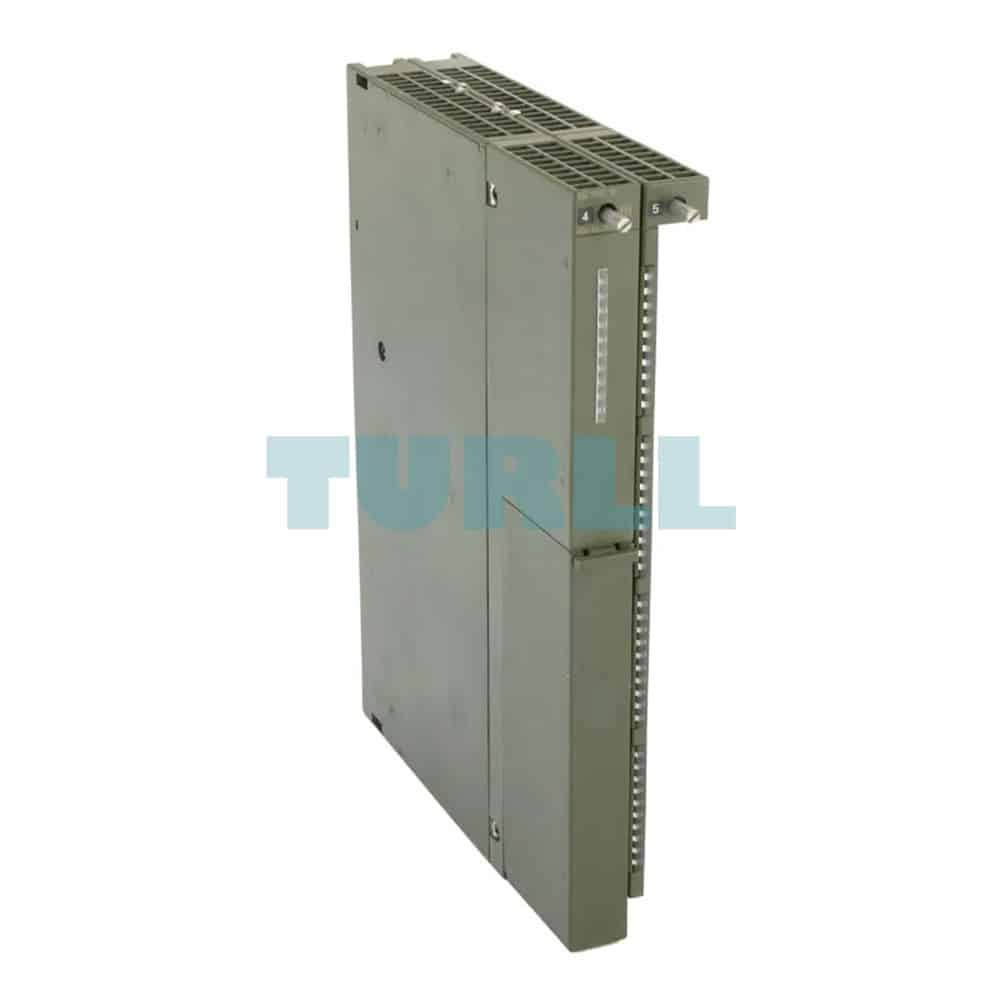

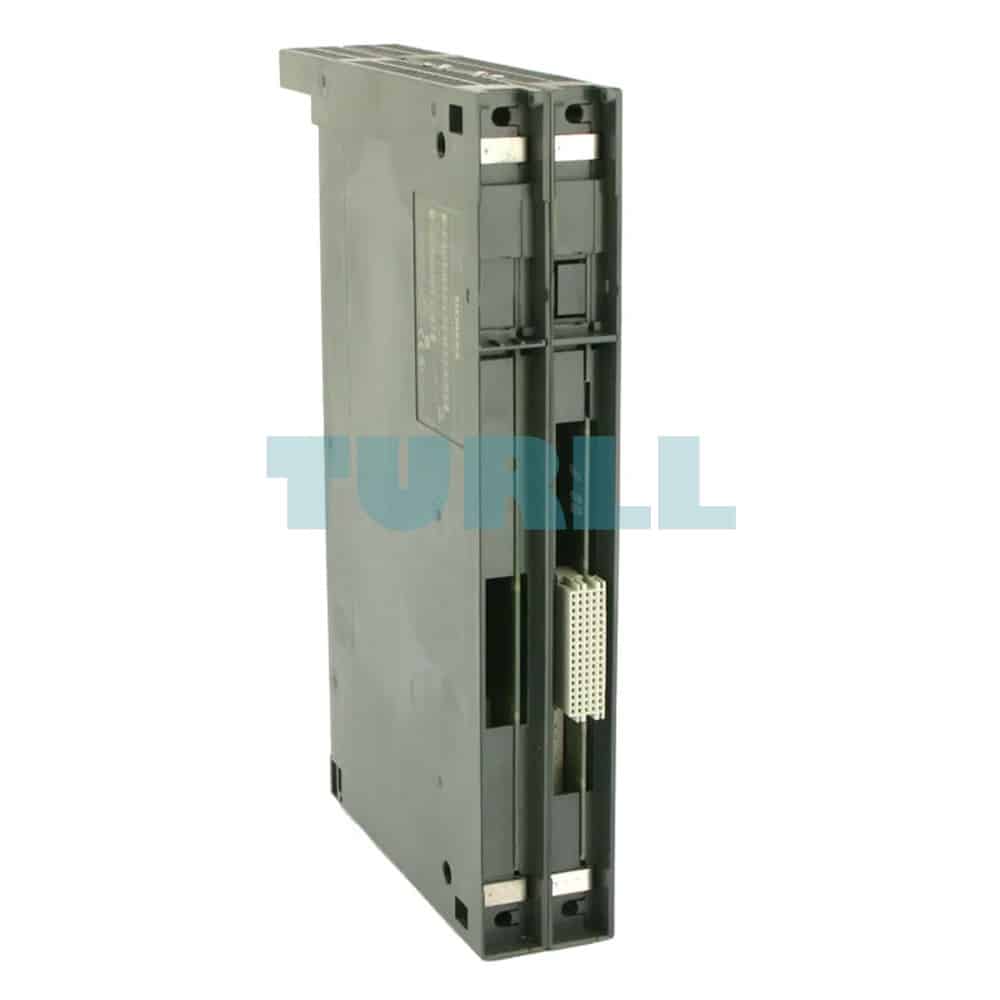

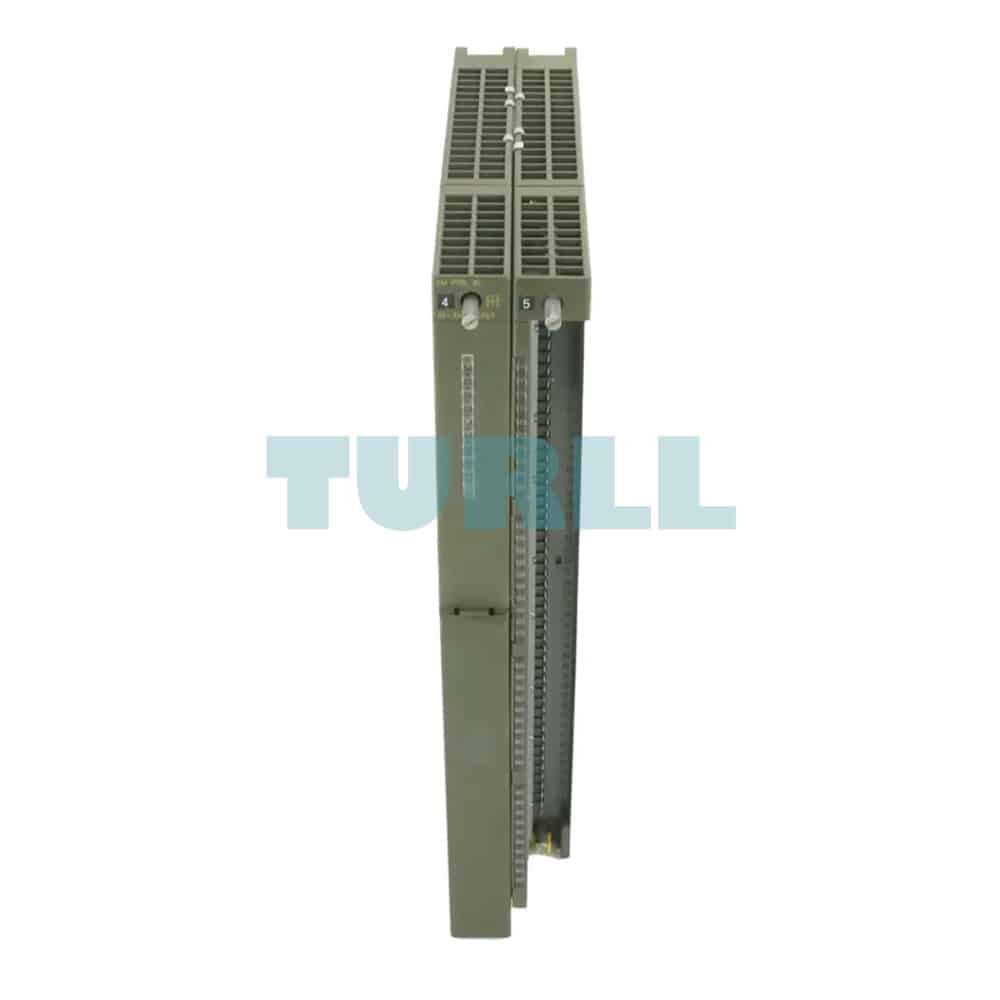

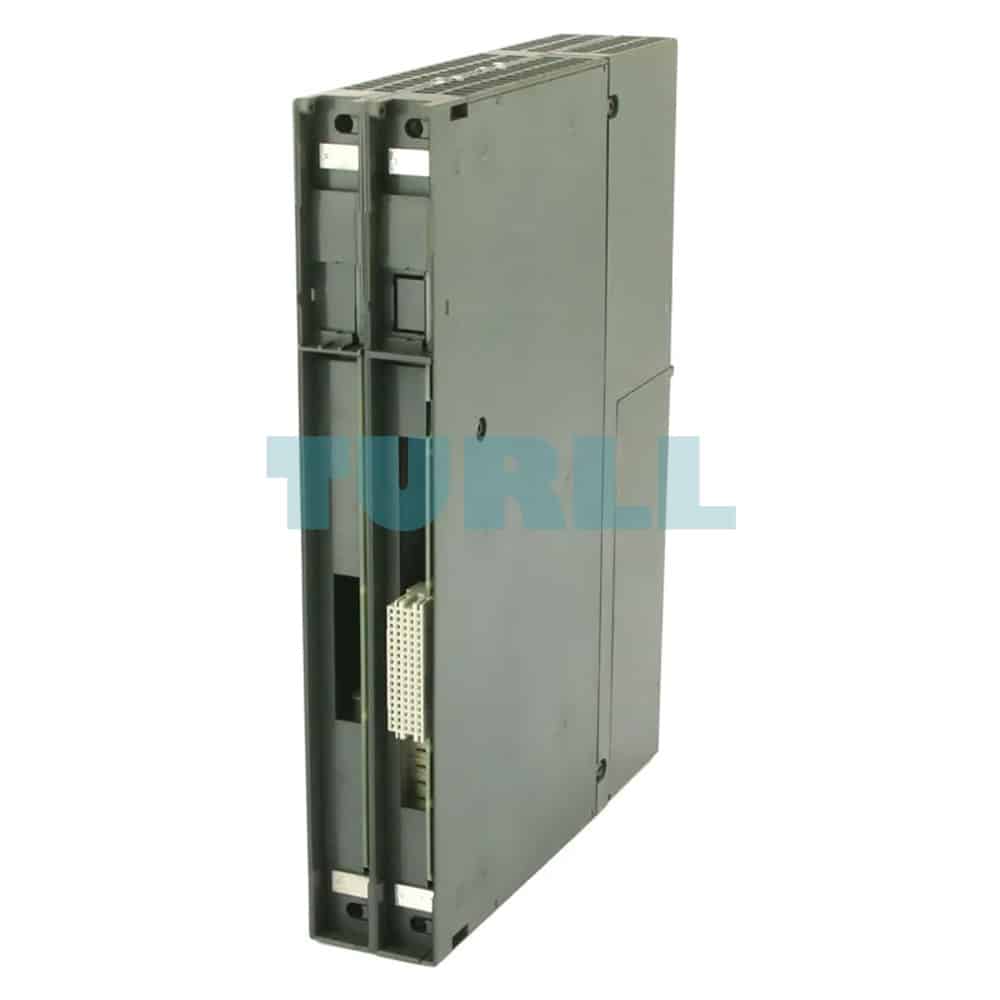

6ES7451-3AL00-0AE0 SIEMENS Exclusive SIMATIC S7-400 Positioning Module FM 451 Original Brand New

6ES7451-3AL00-0AE0 SIEMENS Exclusive SIMATIC S7-400 Positioning Module FM 451 Original Brand New

The SIEMENS 6ES7451-3AL00-0AE0 SIMATIC S7-400 FM 451 is a powerful and reliable positioning module designed for rapid and slow traverse drives. This original brand new module supports three independent positioning channels and is supplied with a comprehensive configuration package on CD for fast and effective deployment.

Equipped with 4 digital outputs per channel, the FM 451 enables direct control of motor movement while ensuring precision feedback through incremental or synchronous-serial encoders. This module is ideal for applications requiring dynamic, multi-axis motion control with integrated automation compatibility.

Overview

The FM 451 provides three-channel positioning functionality for rapid or slow-action drives, offering accurate motor control via four digital outputs per channel. Feedback is supported through incremental or synchronous-serial systems, making it suitable for diverse motion applications. It is specifically built for integration with the SIMATIC S7-400 system platform.

Design

The positioning controller setup with FM 451 consists of multiple components designed to work seamlessly together:

• FM 451 Module: Controls three independent motion axes
• S7-400 CPU: Manages sequencing and control of positioning operations
• Programming Device: Used for STEP 7 programming and parameterization of FM 451
• Operator Panel: Facilitates machine monitoring and error diagnostics

Communication between the FM 451 and S7-400 CPU is managed using Siemens’ integrated technology blocks, allowing smooth synchronization between control logic and motion execution.

Product Code: 6ES7451-3AL00-0AE0
