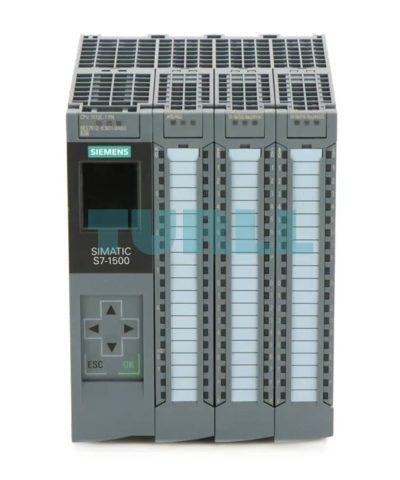

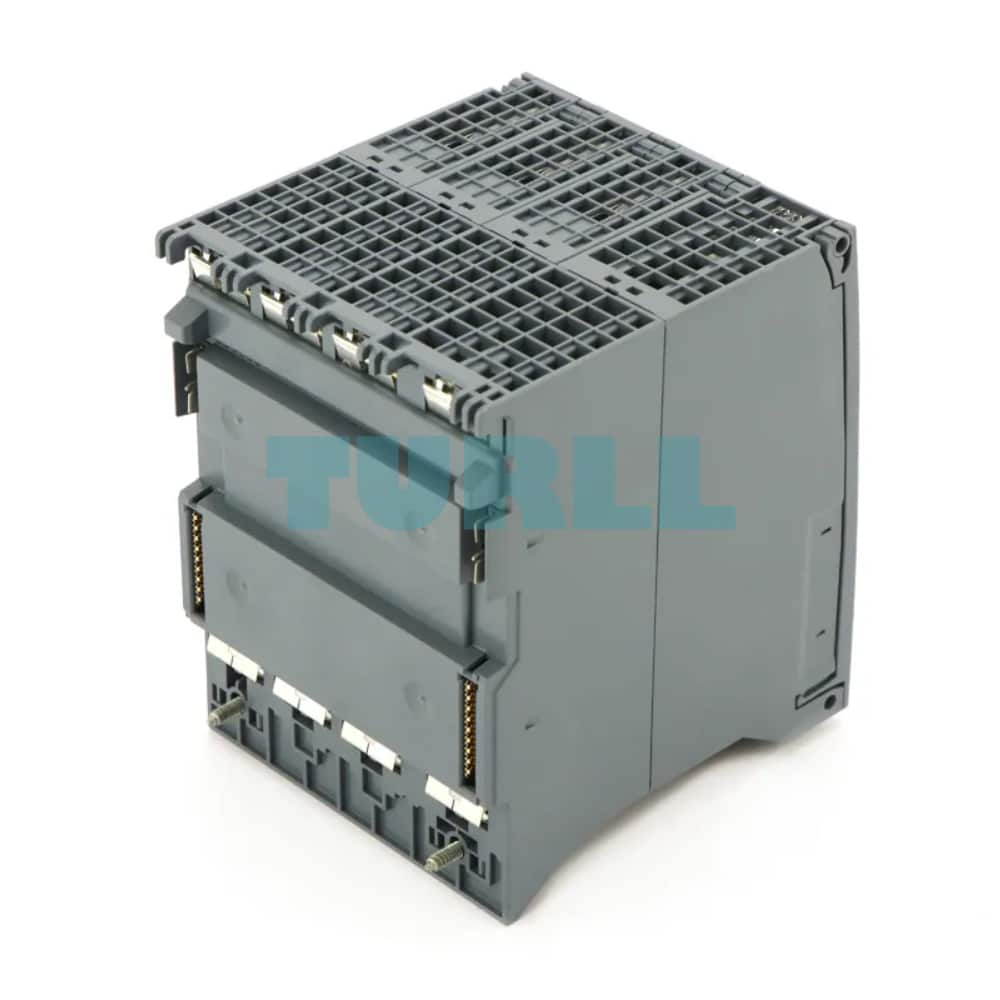

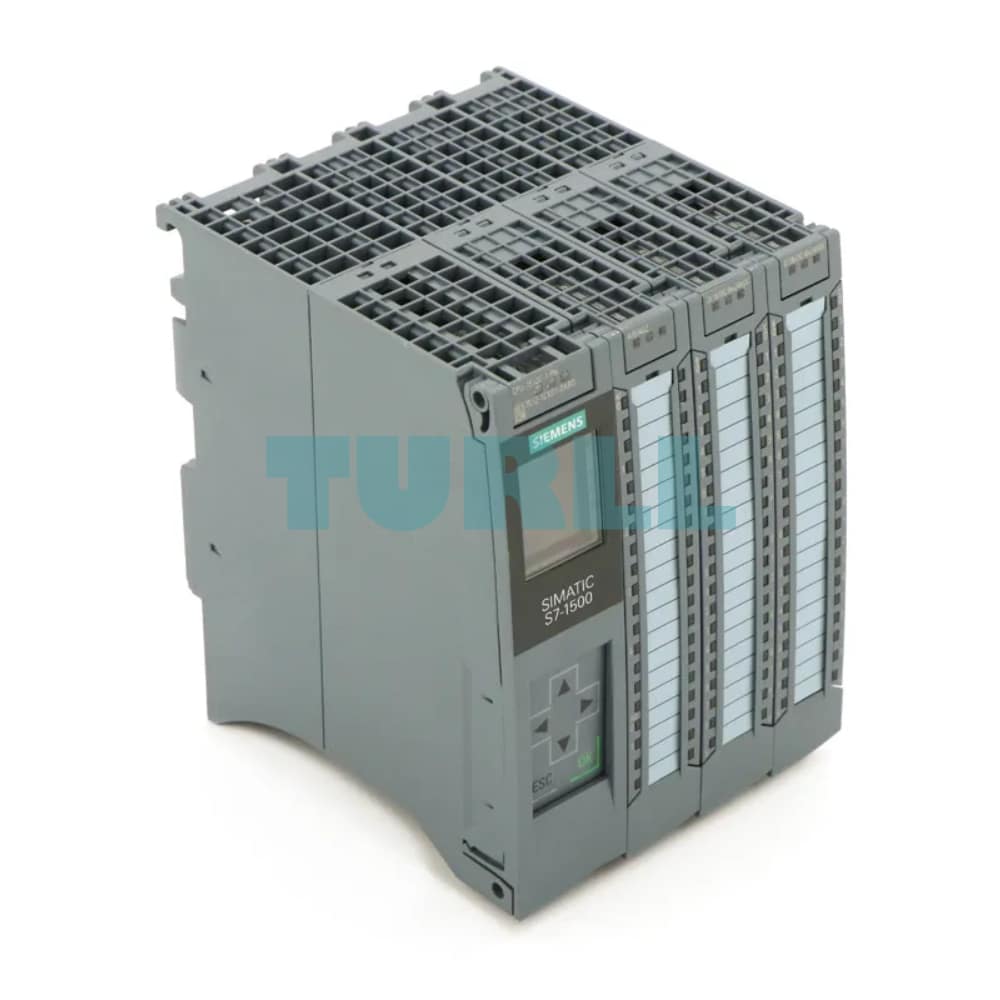

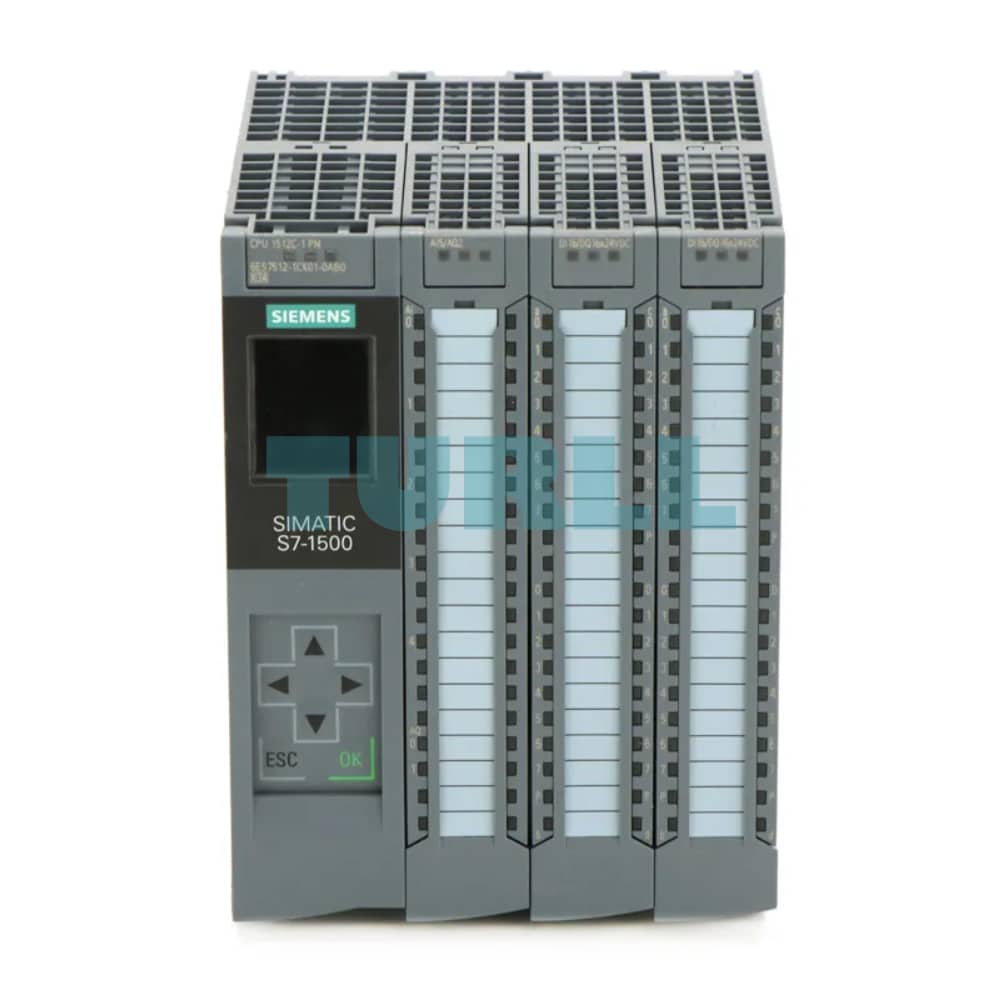

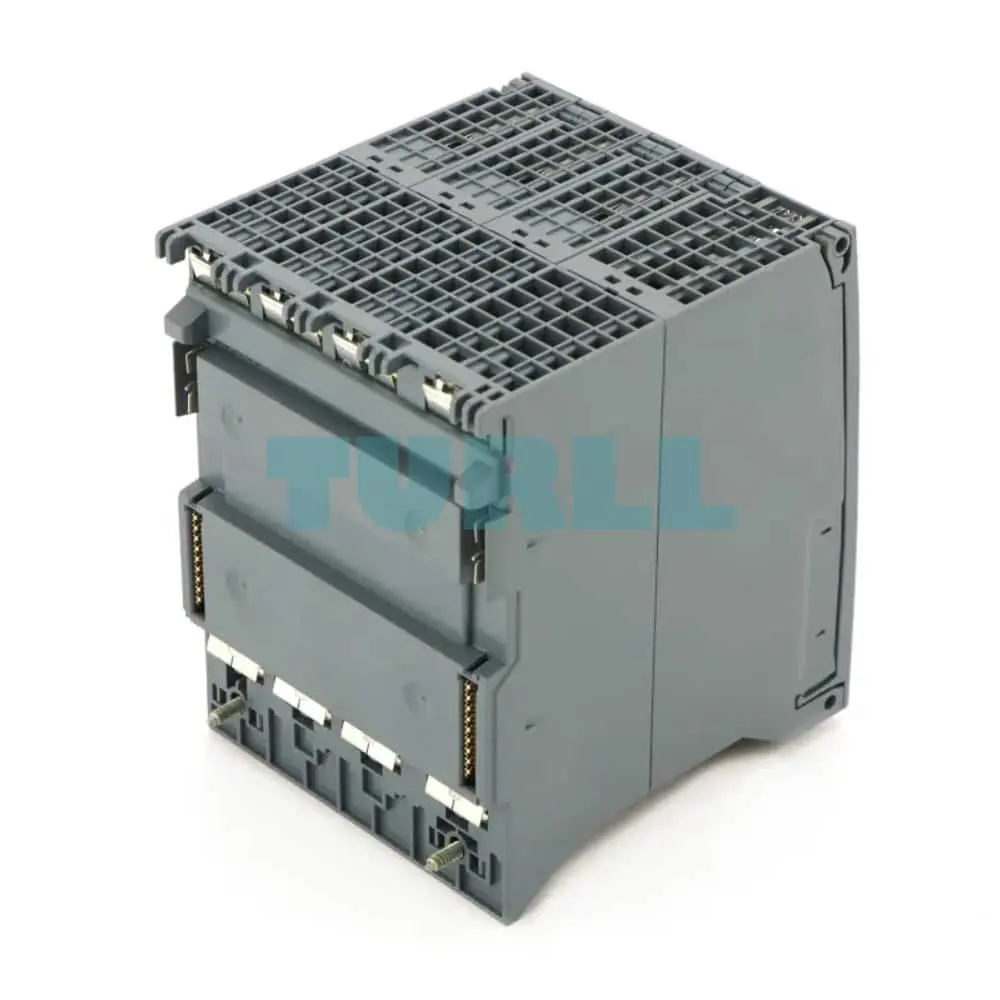

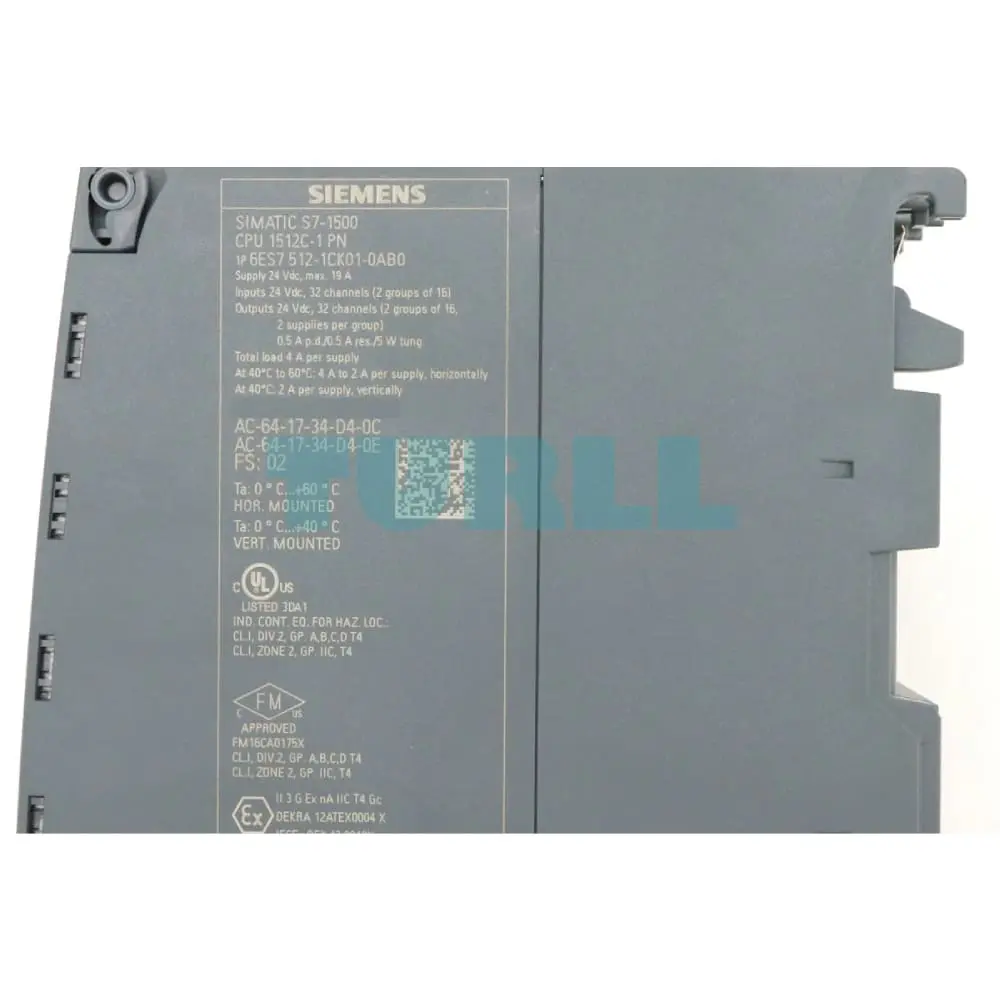

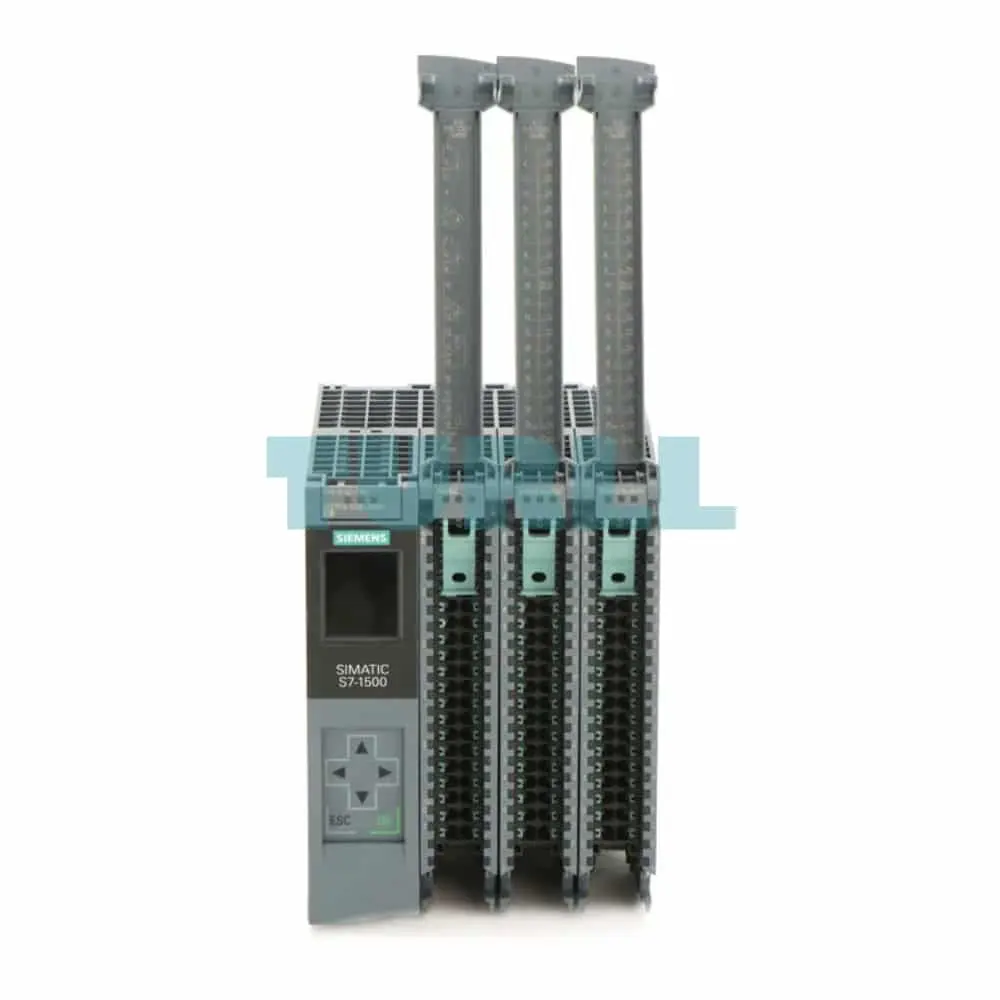

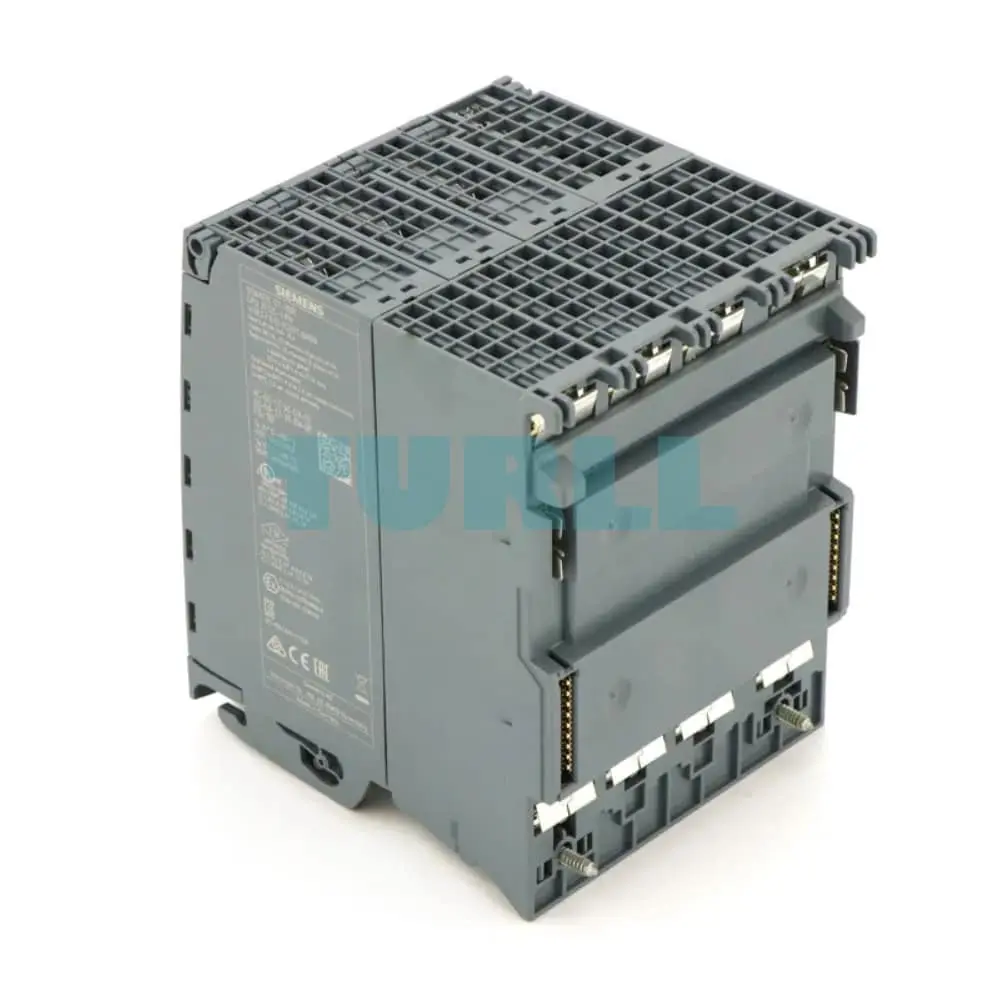

6ES7512-1CK01-0AB0 Siemens SIMATIC S7-1500 CPU 1512C-1 PN Original Brand New
$1,573.00
6ES7512-1CK01-0AB0 SiemensĀ
SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary
[ez-toc]
Overview
- The compact CPU with integral digital and analog inputs and outputs in the product spectrum of the S7-1500 Controllers
- With integrated technological functions, e.g. high-speed counter (HSC), frequency measurement, period duration measurement or stepper motor control, pulse width modulation, frequency output
- Suitable for applications with medium requirements for program scope and processing speed
- Used as central PLC in production lines with central and distributed I/O
- PROFINET IO IRT interface with 2-port switch
- PROFINET IO controller for operating distributed I/O on PROFINET
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device under a SIMATIC or non-Siemens PROFINET IO controller
- OPC UA Server and Client as runtime option for the easy connection of SIMATIC S7-1500 to non-Siemens devices/systems with the functions:
- OPC UA Data Access
- OPC UA Security
- OPC UA Methods Call
- Support of OPC UA Companion specifications
- OPC UA Alarms & Conditions
- Isochronous mode (distributed)
- Integrated Motion Control functionalities for controlling speed-controlled and positioning axes, support for external encoders, output cams/cam tracks and probes
- Integrated web server for diagnostics with the option of creating user-defined web pages
Note
SIMATIC Memory Card required for operation of the CPU
Application
The CPU 1512C-1 PN is the compact CPU for applications with medium requirements for processing speed and speed of response in discrete production technology.
The CPU 1512C-1 PN has 5 analog inputs, via which the analog process signals, such as pressure or temperature, can be acquired. Of these, four inputs can be used for current or voltage measurement and one input for resistance test.
The analog outputs integrated directly on the CPU convert a 16-bit digital value into a current or a voltage and output this to the process. They are suitable for controlling proportional valves, for example.
By means of the 32 integrated digital inputs, 24Ā VĀ DC signals from plant that can be recorded directly on the controller.
The 32 integrated digital outputs switch 24Ā VĀ DC voltages and thus transfer internal signals from the controller to the plant.
The integrated counters offer the possibility of recording signals as fast as 100Ā kHz and evaluating the counter status or the current speed directly in the controller without the need for additional modules. The speed can be output as a frequency or period, or as a user-normalized speed.
The Motion Control functions of the CPU can use the counters as an actual position value and the analog outputs as a speed setpoint output. The 4 to 100Ā kHz outputs can be used to:
- Directly control stepper motors
- Output frequencies
or, via the PWM function:
- Directly control valves or,
- Digitally transmit analog signals
In addition, the CPU offers comprehensive control functionalities via easy-to-configure blocks as well as the ability to connect drives via standardized PLC-open blocks.
The CPU 1512C-1Ā PN can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 2-port switch so that a linear topology can be set up in the system.
Design
The CPU 1512C-1Ā PN features:
- A powerful processor:
The CPU achieves command execution times as low as 25 ns per binary instruction. - Large work memory:
400 KB for program, 2 MB for data. - Integrated inputs/outputs;
32 digital inputs and 32 digital outputs as well as 5 analog inputs and 2 analog outputs for current/voltage signals and an additional input for measuring temperature on the CPU. - SIMATIC Memory Cards as load memory:
permit additional functions such as data log and archives - Flexible expansion capability:
single-tier configuration with max. 32 modules (CPU + 31 modules) - Display with functions for:
- Displaying overview information such as IP address of the integrated interface, station name, plant designation, location identifier, etc.
- Display and acknowledgment of diagnostic and user messages
- Display of module information
- Display of a user-definable logo
- Showing display settings
- Setting IP addresses
- Setting the date and time
- Selecting the operating mode
- Resetting the CPU to factory settings
- Backup and restoring of the project
- Disabling/enabling the display
- Enabling of protection levels
- PROFINET IO IRT interface:
For connecting distributed I/O via PROFINET.
Function
Performance
- Faster command processing, depending on the CPU type, language extensions and new data types.
- Even shorter response times of the CPUs due to considerably faster backplane bus.
- Powerful network connection:
each CPU is equipped with PROFINET IO IRT (2-port switch) as standard interface. - Integrated technology
- Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen).
- Support of speed-controlled and positioning axes as well as external encoders, precise position gearing between axes, cams/cam tracks and probes.
- Integrated I/O, e.g. for the direct operation of stepper motors and analog axes or for the direct recording of HTL encoders.
- Design of the counter functions in the configuration and programming compatible with the TM Count 2x24V module.
- Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection.
- Comprehensive control functionalities, e.g. easy to configure blocks for automatic optimization of the control parameters for maximum control performance.
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks.
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
- 4-level authorization concept:
Communication to the HMI devices can also be restricted. - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data.
- Design and handling
- Display of overview information:
E.g. Station name, plant identifier, location designation, etc., diagnostic information, module information, display settings. - Possible operations on the display:
Set addresses of the CPU or connected Ethernet communications processors, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels, acknowledge messages, backup and restoring of the project.
- Display of overview information:
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal, HMI devices and Web server, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated into the firmware of the CPU, no special configuration is required
- SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Creation of data blocks for storage/reading of data via SFCs of the user program
- Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools or via a Web server - Easy access to machine configuration data by means of a Web browser or SD card reader (two-way data exchange from and to the controller)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming
- Programming with STEPĀ 7Ā Professional, V13 SP 1 UPD 4 or higher
- Migration tool for upgrading from SIMATICĀ S7-300/S7-400 to S7-1500, converts the program code largely automatically. Non-convertible code is logged and can be manually adapted.
- S7-1200 basic programs can be transferred to S7-1500 by copy-paste.
6ES7512-1CK01-0AB0 Siemens
SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN, central processing unit with working memory 250 KB for program and 1 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 48 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary
| Weight | 1.551 kg |
|---|---|
| Dimensions | 189 × 238 × 170 mm |
