6ES7661-0PC46-1RB3 SIEMENS Exclusive SIMATIC IPC647E PCS 7 OS Server Original Brand New

6ES7661-0PC46-1RB3 SIEMENS Exclusive SIMATIC IPC647E PCS 7 OS Server Original Brand New

For price details, please contact our customer service

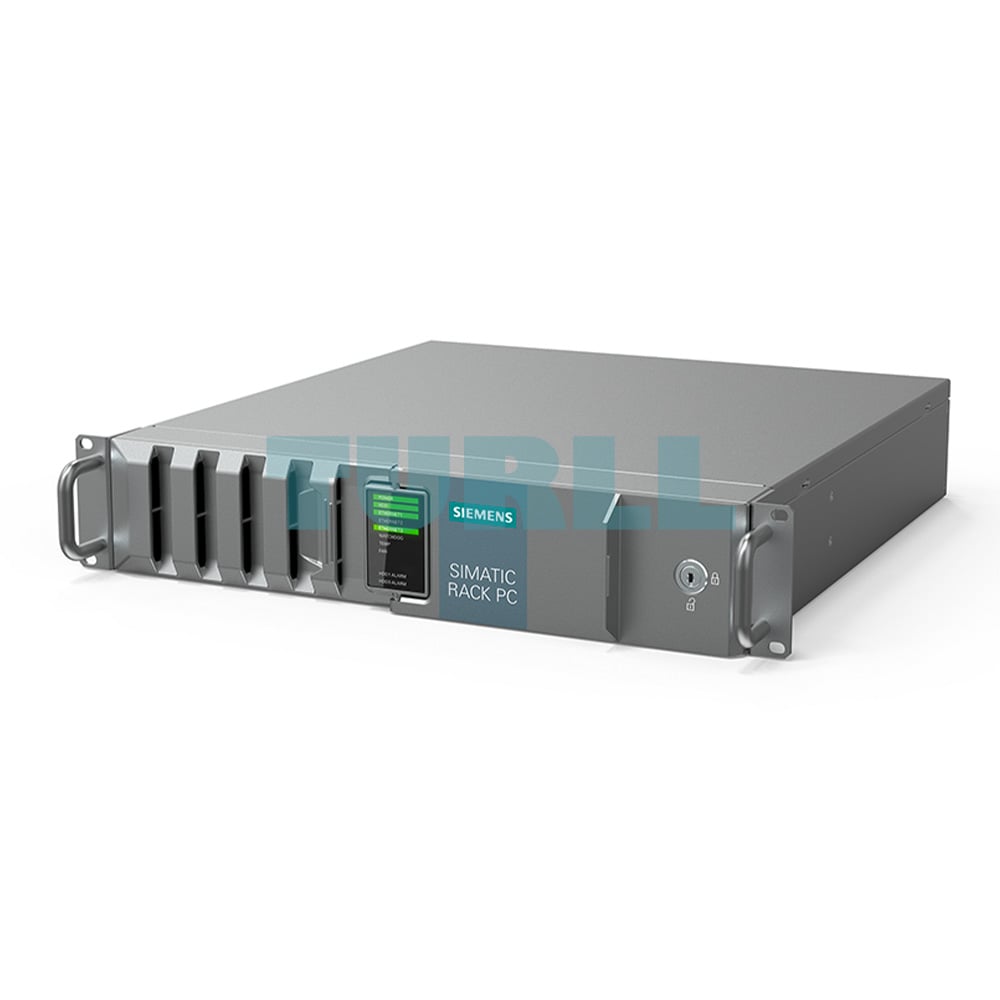

The SIEMENS 6ES7661-0PC46-1RB3 is a powerful SIMATIC IPC647E rack PC designed for demanding PCS 7 process control system applications. Featuring Intel Xeon E-2278GE processor with 8 cores and 16 threads, this 19-inch, 2U rack-mountable industrial server provides high-performance computing in a compact, rugged enclosure. Preinstalled with PCS 7 V9.1 SP2 and Windows Server 2019 Standard Edition, it is engineered for roles such as OS server, engineering server, or web server in industrial automation environments. Equipped with RAID1 for enhanced data reliability, dual 2 TB Enterprise-grade HDDs, and 32 GB ECC DDR4 RAM, this system supports critical process applications with maximum uptime and robust security.

Overview

Built on the reliable SIMATIC IPC647E platform, the 6ES7661-0PC46-1RB3 offers advanced connectivity and system protection for industrial control applications. With a low-profile 2U design, it ensures high packing density in control cabinets and is optimized for continuous 24-hour operation in harsh industrial environments. The integrated temperature and fan monitoring, along with watchdog functionality, provide system reliability and operational security. Thanks to its comprehensive interface options, including multiple Gbit LAN ports, USB 3.1 connections, and Display Ports, this industrial PC meets the requirements of high-availability PCS 7 infrastructures.

• 19″ Rack PC (2U) with Intel Xeon E-2278GE (8C/16T, 3.3/4.7 GHz, 16 MB cache)
• 3x Gbit LAN (RJ45), M.2 PCIe x4, 2x Display Port, 1x DVI-D, multiple USB 3.1 ports
• PCS 7 OS server, engineering server, web server roles supported
• Preinstalled PCS 7 V9.1 SP2 and Windows Server 2019 Standard Edition (16 cores, 5 clients)
• RAID1 with dual 2 TB Enterprise-grade SATA HDDs
• 32 GB DDR4 ECC RAM (2×16 GB), dual channel
• Temperature and fan monitoring, watchdog function, card retainer
• 100/240 V AC industrial power supply with China power cord
• Certified for industrial, residential, business, and commercial environments
• Designed for continuous operation at 5–50 °C with vibration and shock resistance

Design

• Rugged all-metal 19″ rack-mount enclosure (2U) with dust protection
• Optimized for compact mounting in 500-mm deep control cabinets
• Supports horizontal installation and positioning
• Multi-monitor capability (4-5 screens combined)
• Onboard interfaces with PCIe x16 graphics card (3x mini DisplayPort adapters)
• Service-friendly access and modular design
