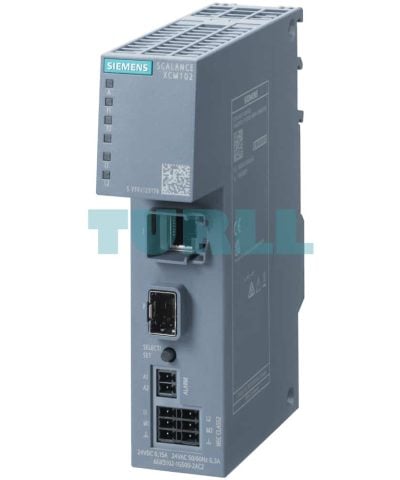

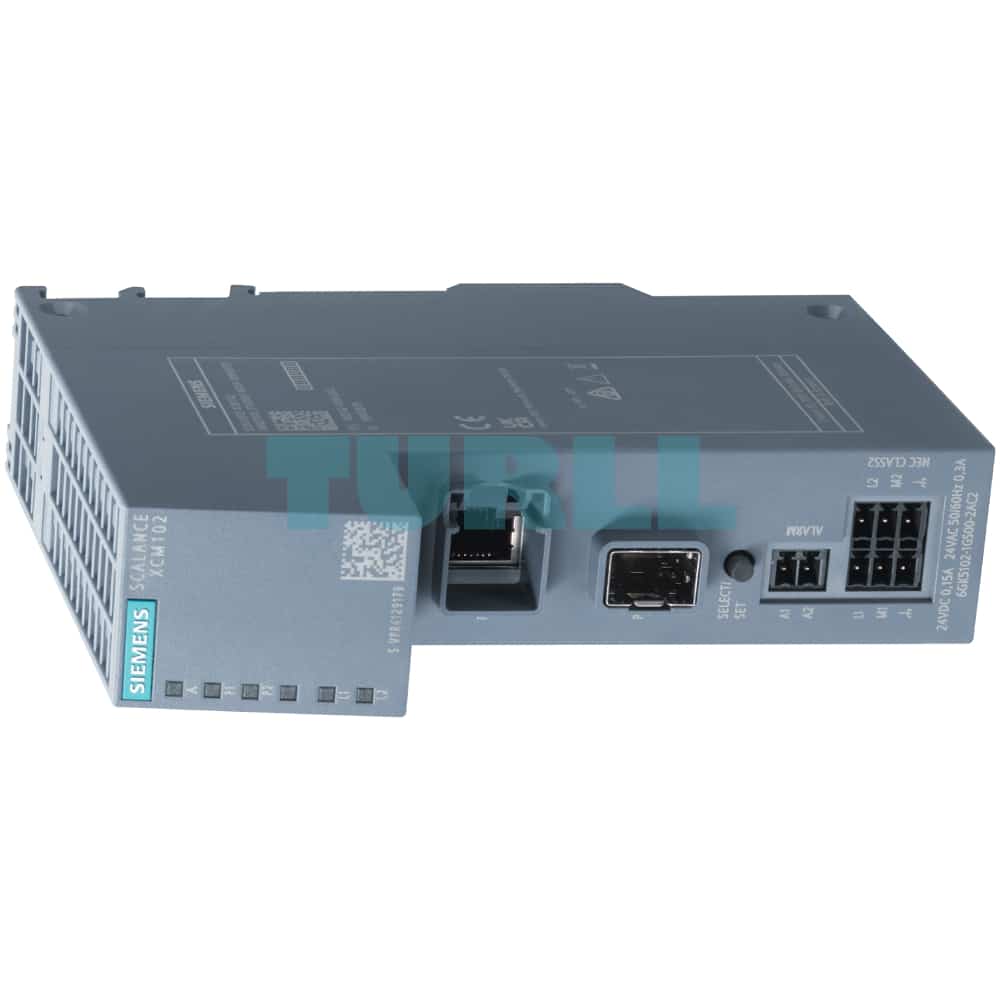

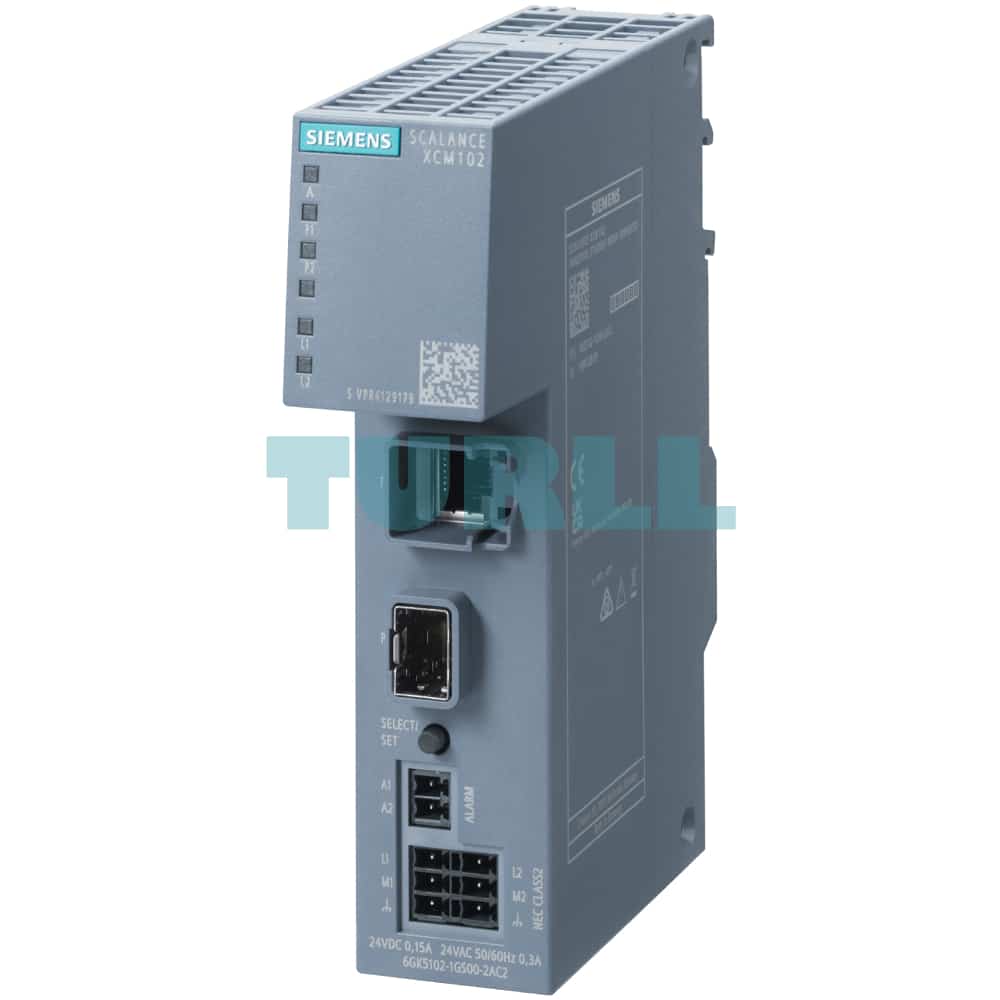

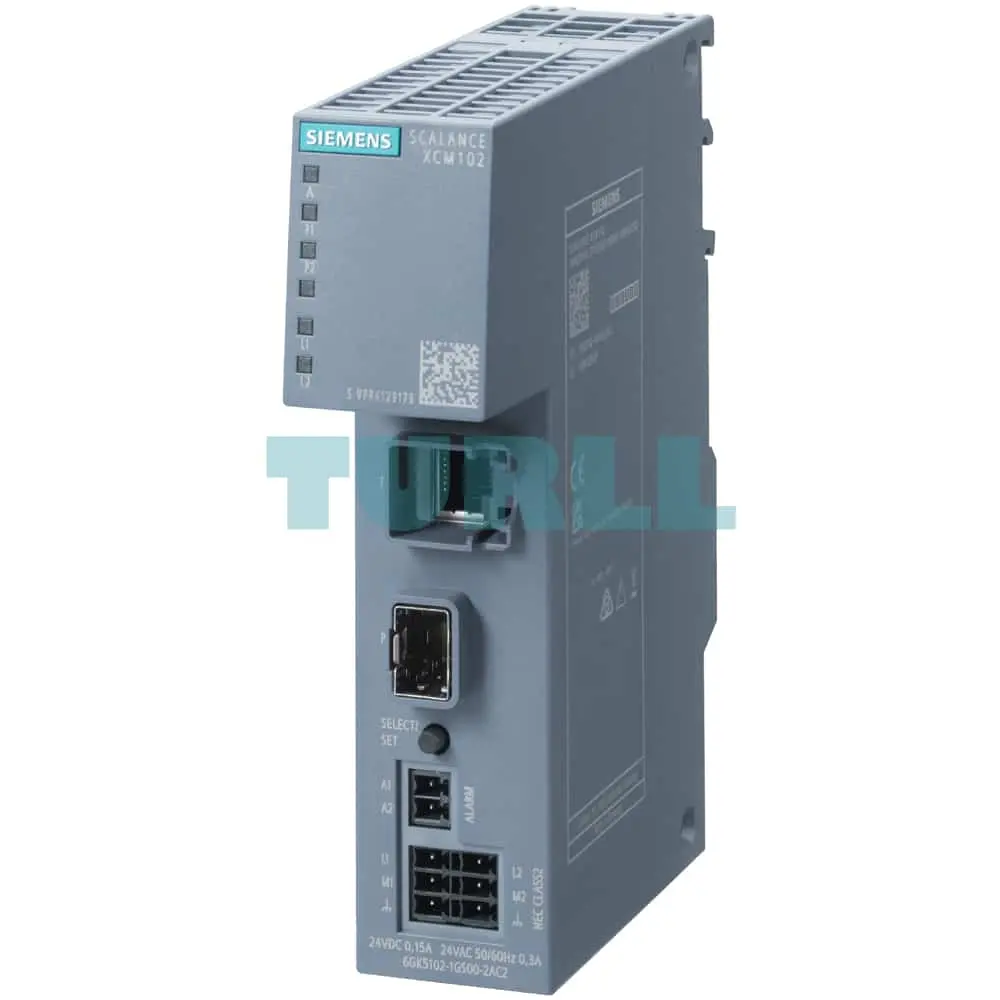

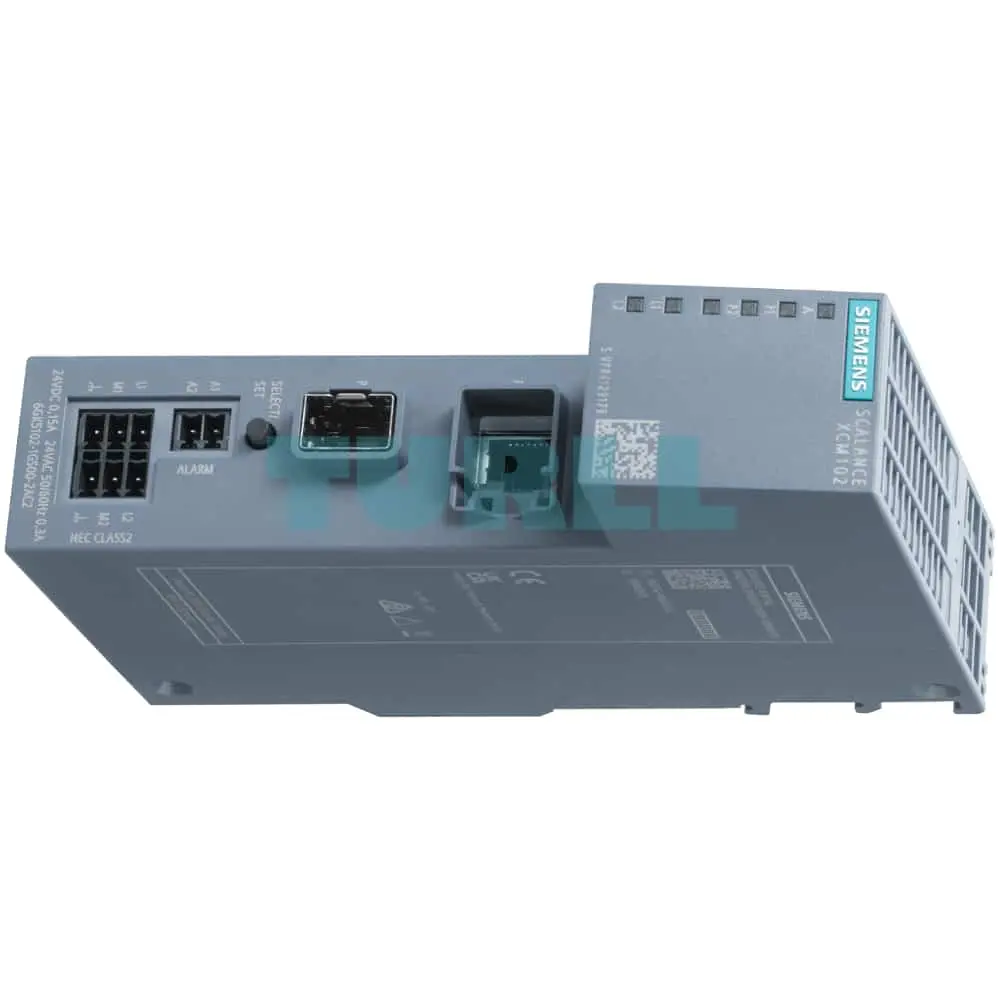

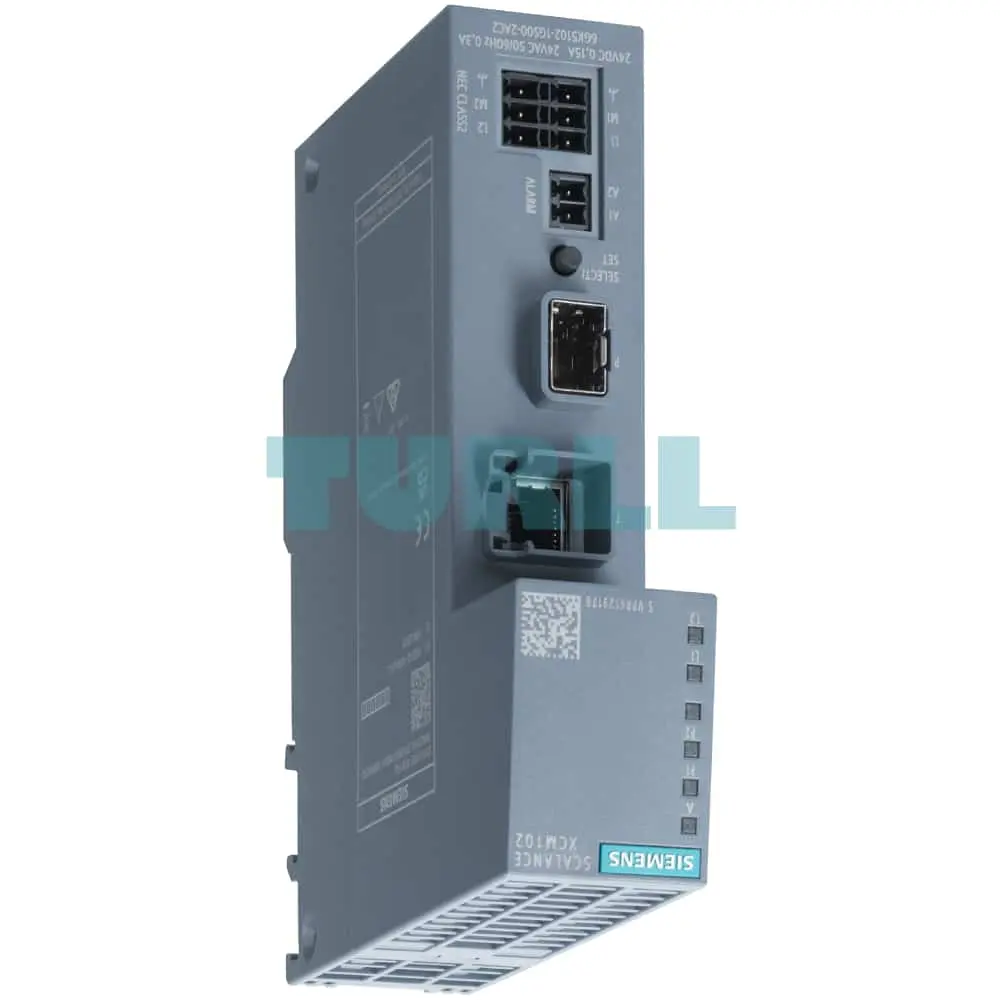

6GK5102-1GS00-2AC2 Siemens SCALANCE XCM102 Original Brand New
$315.61
6GK5102-1GS00-2AC2
Siemens SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download .
[ez-toc]
Overview
The unmanaged SCALANCE XCM-100 Industrial Ethernet media converters of the SCALANCE X-100 product line are ideally suited to converting electrical signals into optical signals in Industrial Ethernet networks at transfer rates of 100/1000 Mbps in line and star topologies.
- Electrical or optical connection to stations or networks according to port characteristics of the devices
- Rugged industrial enclosure for space-saving control cabinet installation on standard DIN rails, SIMATIC S7-300 DIN rails, or for wall mounting
- Rugged station connections with industry-standard RJ45 plug-in connectors with securing collar that offers additional strain and bending strain relief thanks to latching on the enclosure
- Redundant power supply
- Diagnostics on the device by means of LEDs (power, link status, data communication)
- Fault signaling contact
Product variants
SCALANCE XCM102
- For converting electrical signals into optical signals in Industrial Ethernet line, star and ring topologies
- The new Industrial Ethernet media converter has an electrical 100/1000 Mbps RJ45 port and an SFP transceiver connector
- Redundant power supply with 2 x 24 V DC
- Device diagnostics using LEDs (power, link status, data traffic) and signaling contact (signal mask can be set using a button on the device)
- The electric RJ45 port is industry standard and features an additional securing collar for optimal connection of the IE FC RJ45 plugs
Benefits
- Ideal solution for converting electrical signals into optical signals in Industrial Ethernet line, star and ring topologies
- Space-saving installation in the cabinet thanks to compact design in SIMATIC S7-300 format
- Reliable plug-in connection thanks to rugged device connection with industry-standard FastConnect plugs
- Cost savings, since installation is possible without a patch field by means of IE FC RJ45 plugs and IE FC standard cables
Application
The unmanaged media converters of the SCALANCE XCM-100 product line permit low-cost conversion of electrical signals into optical signals in Industrial Ethernet line, star and ring topologies. They are designed for use in the control cabinet.
Single, remote terminal devices or network segments can be linked via the optical path of the SCALANCE XCM-100 media converters. Integration of an optical path into a redundant ring is also possible, as well as installation of the SCALANCE XCM-100 media converters into a standby link.
Design
The Industrial Ethernet media converters with a rugged metal enclosure are optimized for mounting on a DIN rail and a SIMATIC S7-300 DIN rail. Direct wall mounting in various positions is also possible. Thanks to the dimensions of the enclosure that correspond to those of the SIMATIC S7-300, the devices are ideally suited for integration in an automation solution with SIMATIC S7-300 components.
The SCALANCE XCM102 media converters feature:
- 2x 3-pin terminal block for connecting the redundant supply voltage (2 x 24 V DC/AC)
- An LED display for status information (power, link status, data communication, signaling contact)
- A 2-pin terminal block for connecting the floating signaling contact
- A SET button for on-site configuration of the signaling contact
- 1x SFP connector to select between single-mode and multimode and between the data transfer rate of 100 Mbps or 1000 Mbps, depending on which SFP transceiver is used
Function
- Setup of electrical and optical Industrial Ethernet line, star and ring topologies
- Uncrossed connecting cables can be used due to autocrossover function integrated in the TP ports
- Easy configuration and extension of the network;
no limits to network extension when switches or media converters of the SCALANCE XCM-100 family are cascaded.
Network topology and network configuration
The SCALANCE XCM-100 media converters are typically accommodated in one control cabinet together with the nodes to be connected. They can be installed in line, star and ring topologies.
When configuring the network, it is necessary to observe the following boundary conditions:
- Length of the TP cable between two SCALANCE X media converters:
- Max. 100 m with Industrial Ethernet FastConnect products
- Length of the optical cables:
- Max. 5 km with Industrial Ethernet multimode fiber-optic cables
- Max. 26 km with Industrial Ethernet single-mode fiber-optic cables
6GK5102-1GS00-2AC2
Siemens SCALANCE XCM102, IE media converter unmanaged 1x 100/1000 Mbps RJ45 port, 1x 100/1000 Mbps SFP port, LED diagnostics, error signaling contact with set pushbutton redundant power supply, securing collar, manual available as a download.
Visit 6GK5102-1GS00-2AC2
For more our products visit turll.com
| Weight | 0.52 kg |
|---|---|
| Dimensions | 60.00 × 124.00 × 125.00 mm |
