6GK5324-4GG10-2JR2 SIEMENS SCALANCE XR324-4M EEC Exclusive Managed IE Switch Brand New Original

6GK5324-4GG10-2JR2 SIEMENS SCALANCE XR324-4M EEC Exclusive Managed IE Switch Brand New Original

SCALANCE XR324-4M EEC managed IE switch; 19″ rack-mountable; 16x 10/100/1000 Mbit/s RJ45 electrical ports; 4x 100/1000 Mbit/s 2-port media modules (electrical or optical); LED diagnostics; error signaling contact; select/set pushbutton; PROFINET IO device; integrated redundancy manager; network management; dual 24 V DC power supply; rear-facing ports

Overview

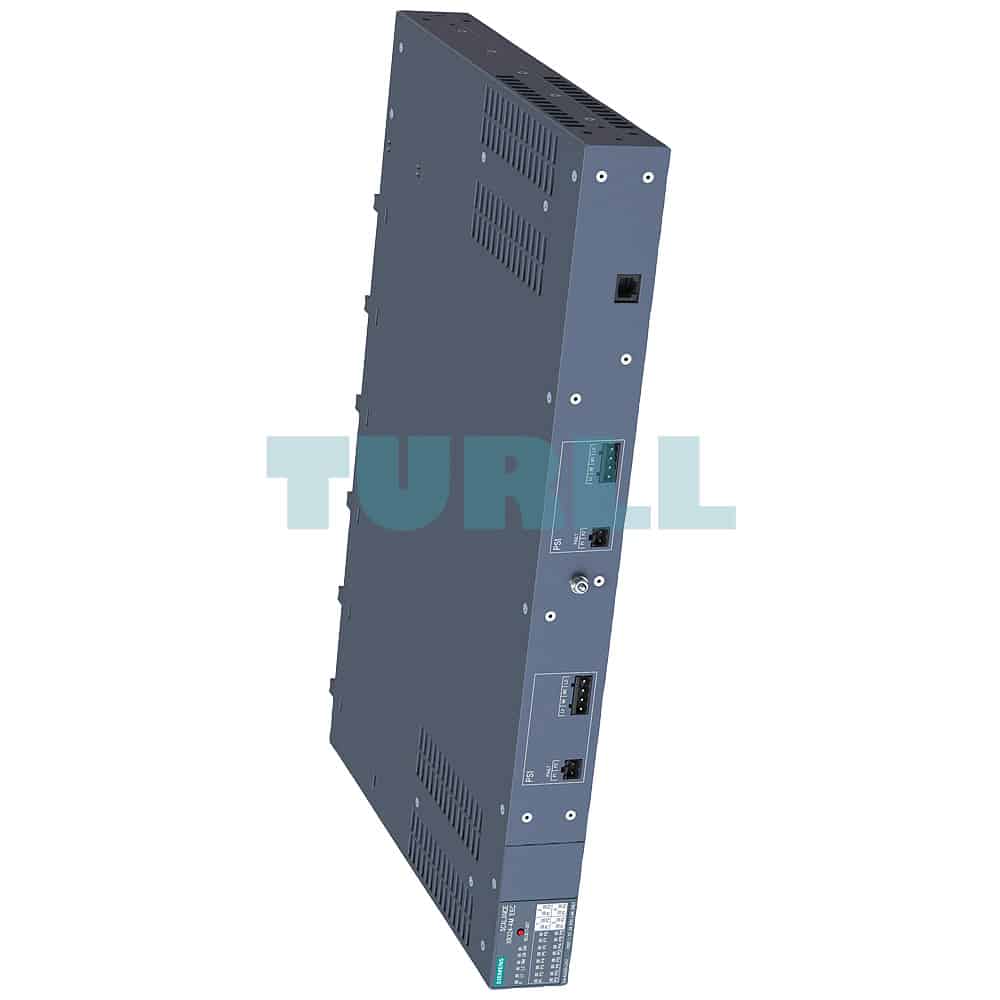

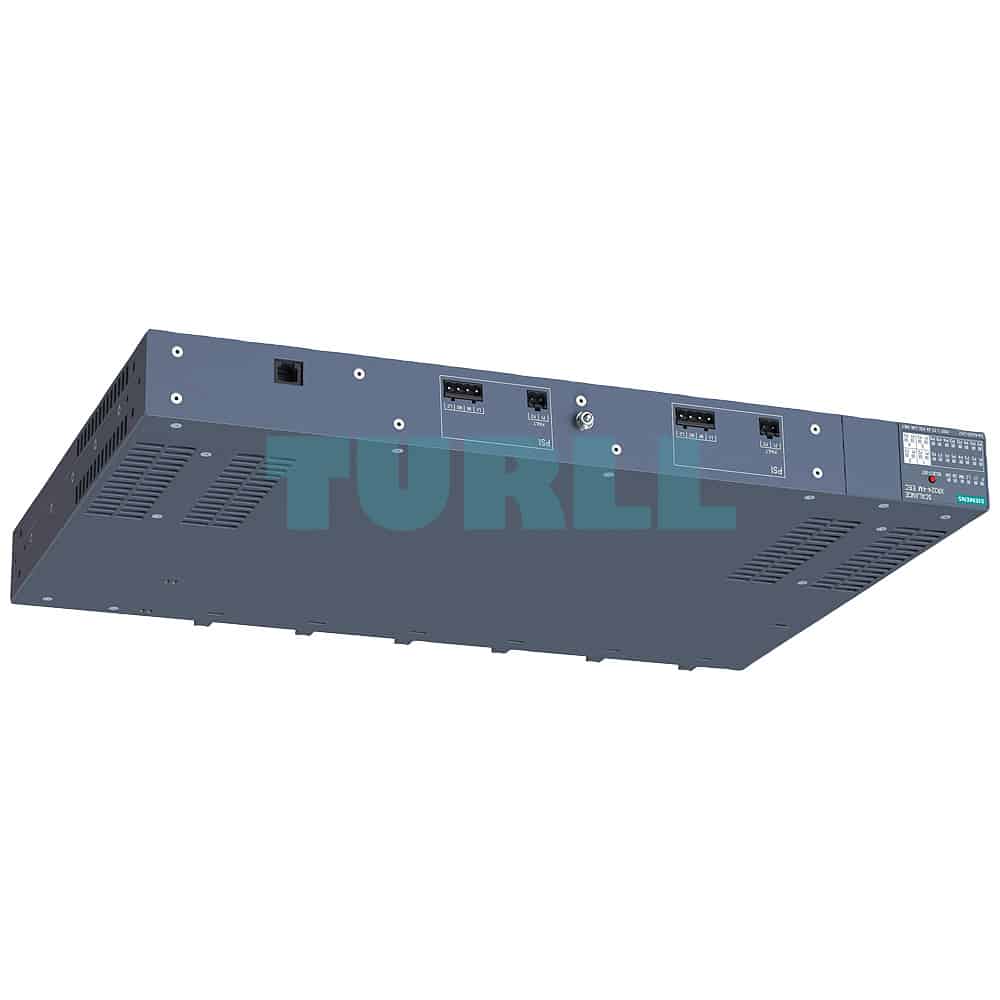

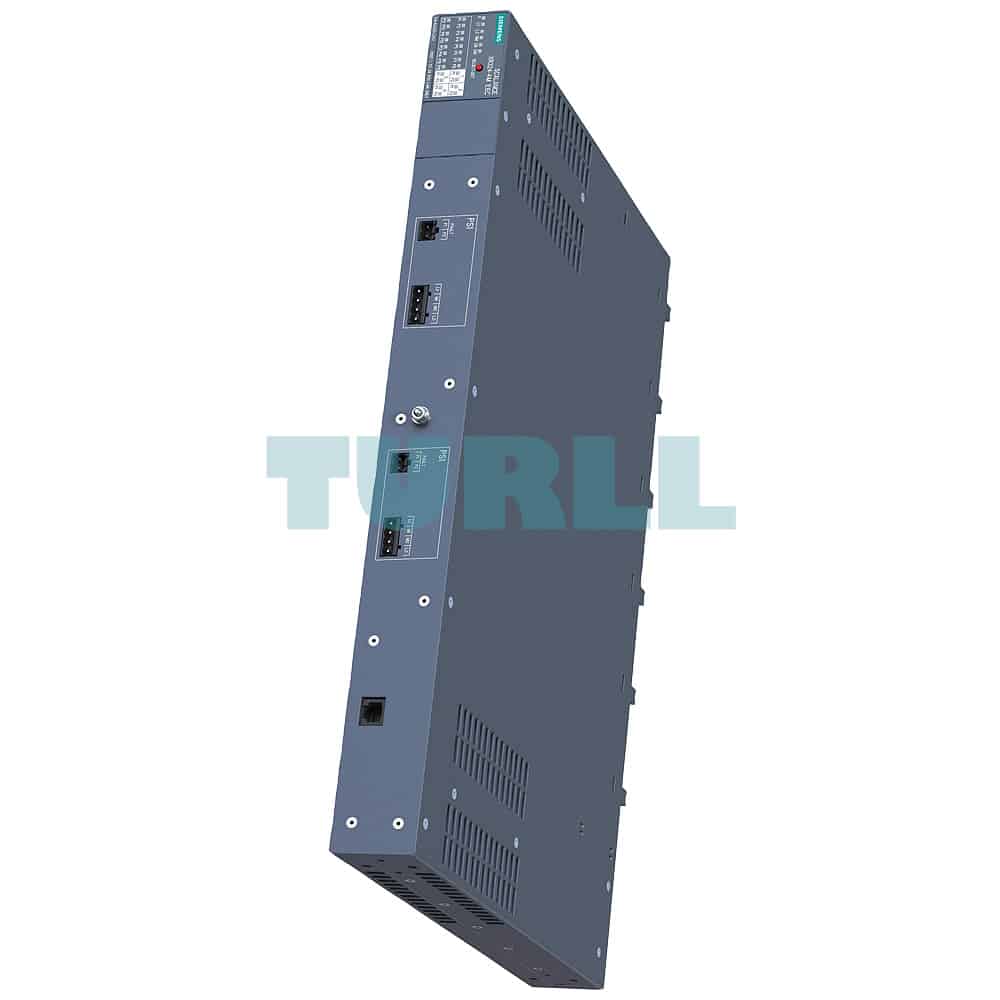

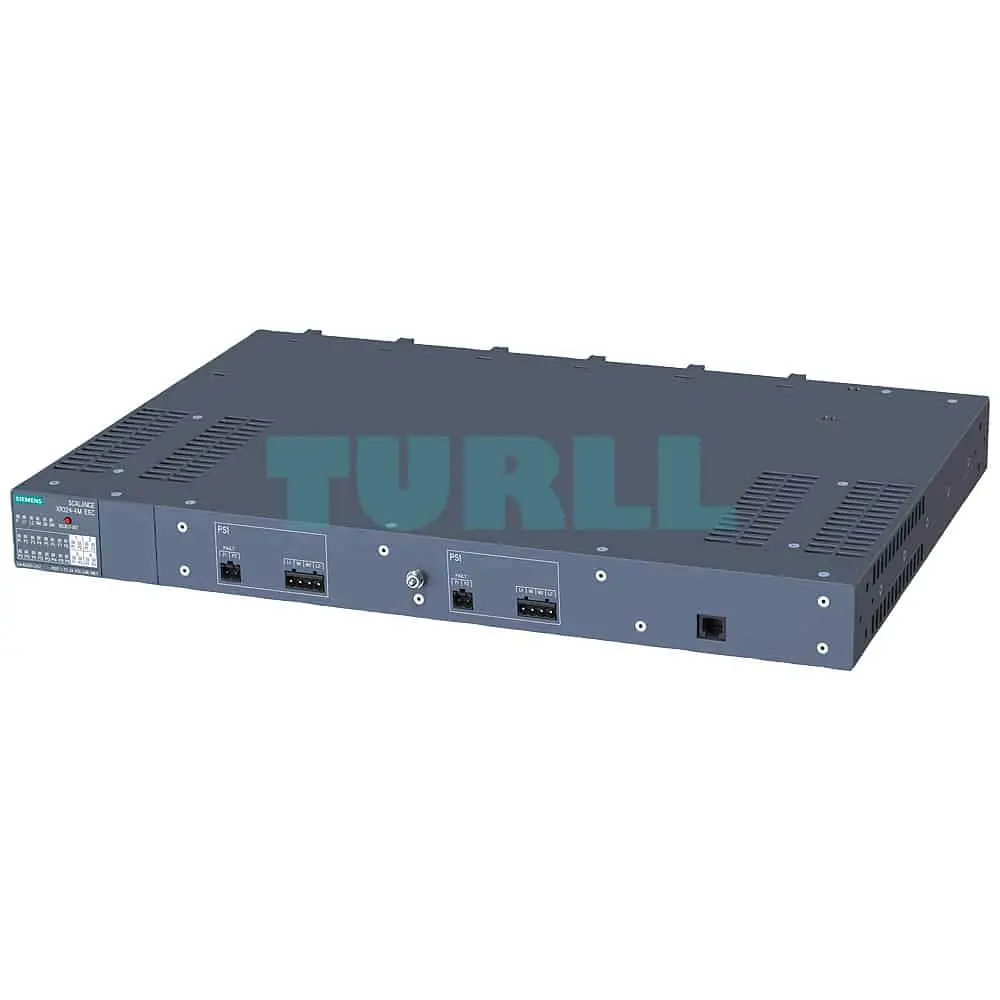

The Siemens SCALANCE XR324-4M EEC (6GK5324-4GG10-2JR2) is an exclusive 19-inch rack-mounted managed Layer 2 Industrial Ethernet switch engineered for high-performance modular networking in harsh industrial environments. It features 16 full-gigabit RJ45 ports and 4 additional ports via 2-port media modules, configurable as electrical or optical interfaces.

This variant supports dual 24 V DC power inputs for enhanced redundancy and features rear-facing ports for optimized cable routing in rack installations. With LED diagnostics, integrated redundancy manager, and PROFINET IO support, the XR324-4M EEC is an exclusive solution for secure, scalable, and resilient industrial networks.

Key Features

• 16 x 10/100/1000 Mbps RJ45 electrical ports
• 4 x 100/1000 Mbps via 2-port media modules (electrical or optical)
• IEC 62443-4-2 certified for industrial cybersecurity
• Dual 24 V DC power supply for redundancy
• Rear-facing ports for optimized rack integration
• Integrated redundancy manager and diagnostics
• PROFINET IO device; EtherNet/IP compatible
• LED diagnostics and select/set pushbutton
• Console port and signaling contact
• VLAN, RSTP, IGMP snooping, ACL, IEEE 802.1X
• Operating temperature: –40 °C to +70 °C
• 19″ rack-mountable with rugged enclosure

Product Code: 6GK5324-4GG10-2JR2
