6GK5334-5TS00-4AR3 SIEMENS SCALANCE XR302-32 Exclusive Managed IE Switch Brand New Original

6GK5334-5TS00-4AR3 SIEMENS SCALANCE XR302-32 Exclusive Managed IE Switch Brand New Original

SCALANCE XR302-32 managed Layer 2 IE switch; 19″ rack-mountable; 2x 1G/2.5G/5G/10G RJ45 ports; 24x 100M/1G SFP ports; 8x 1G/10G SFP+ ports; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP); CLP included; dual 230 V AC power supply

Overview

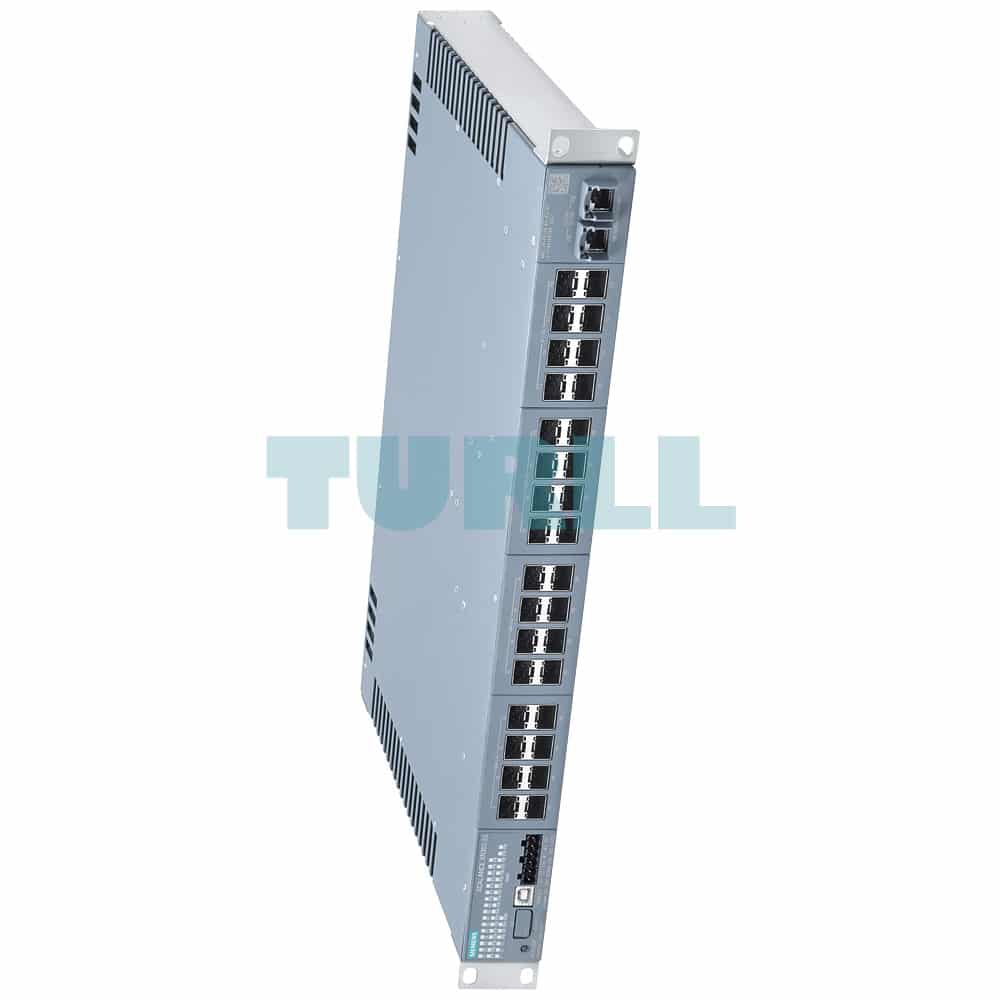

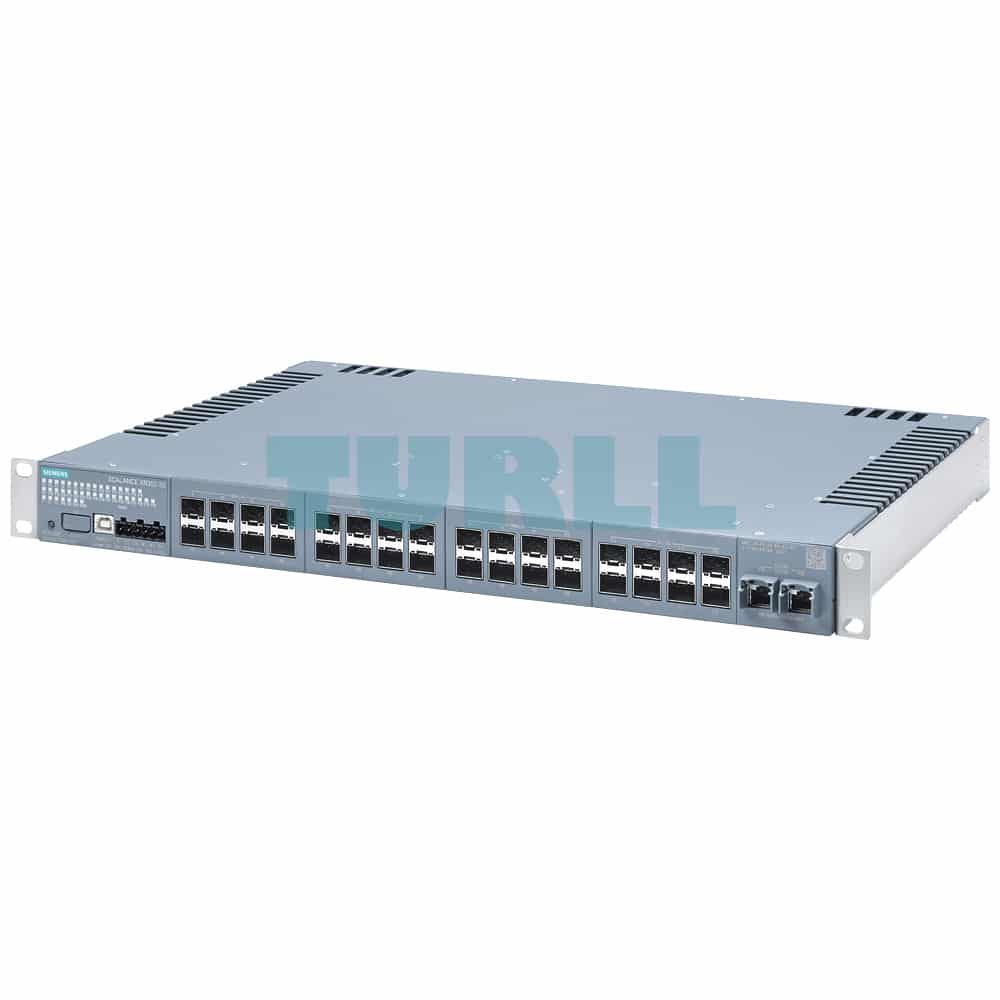

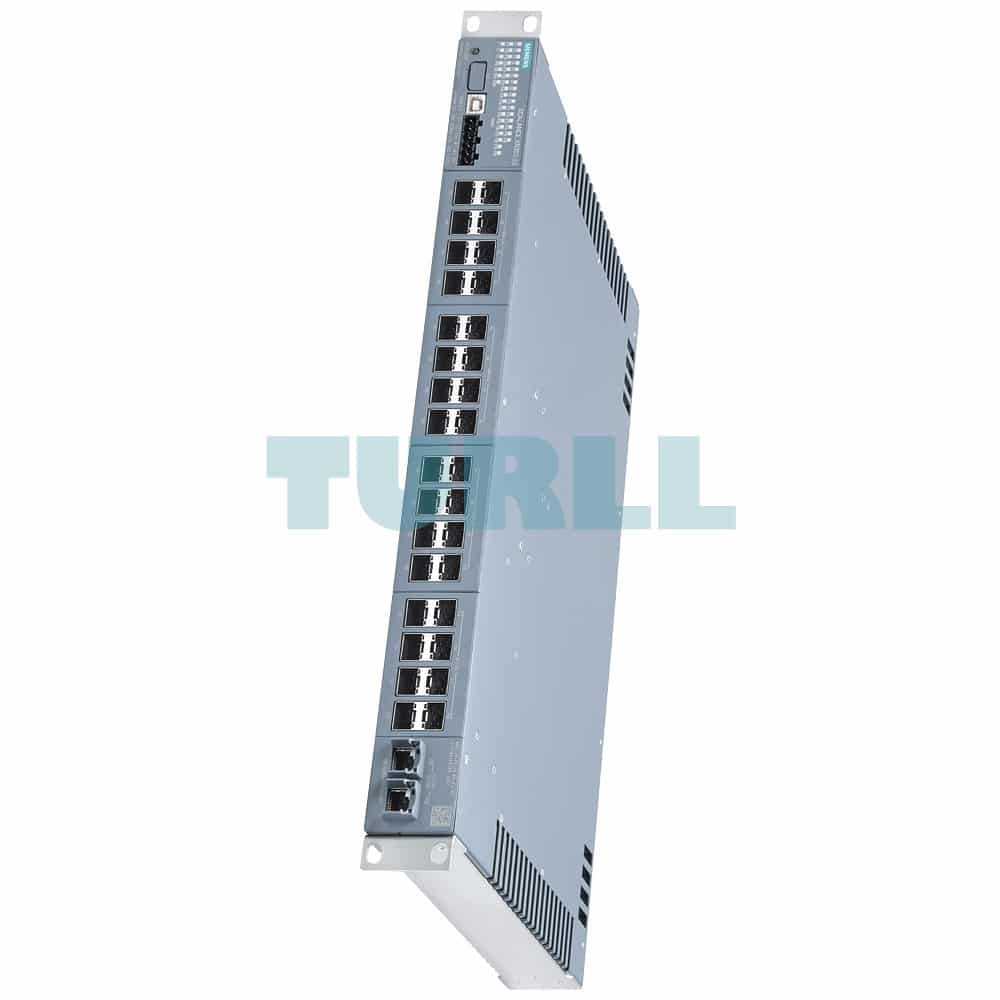

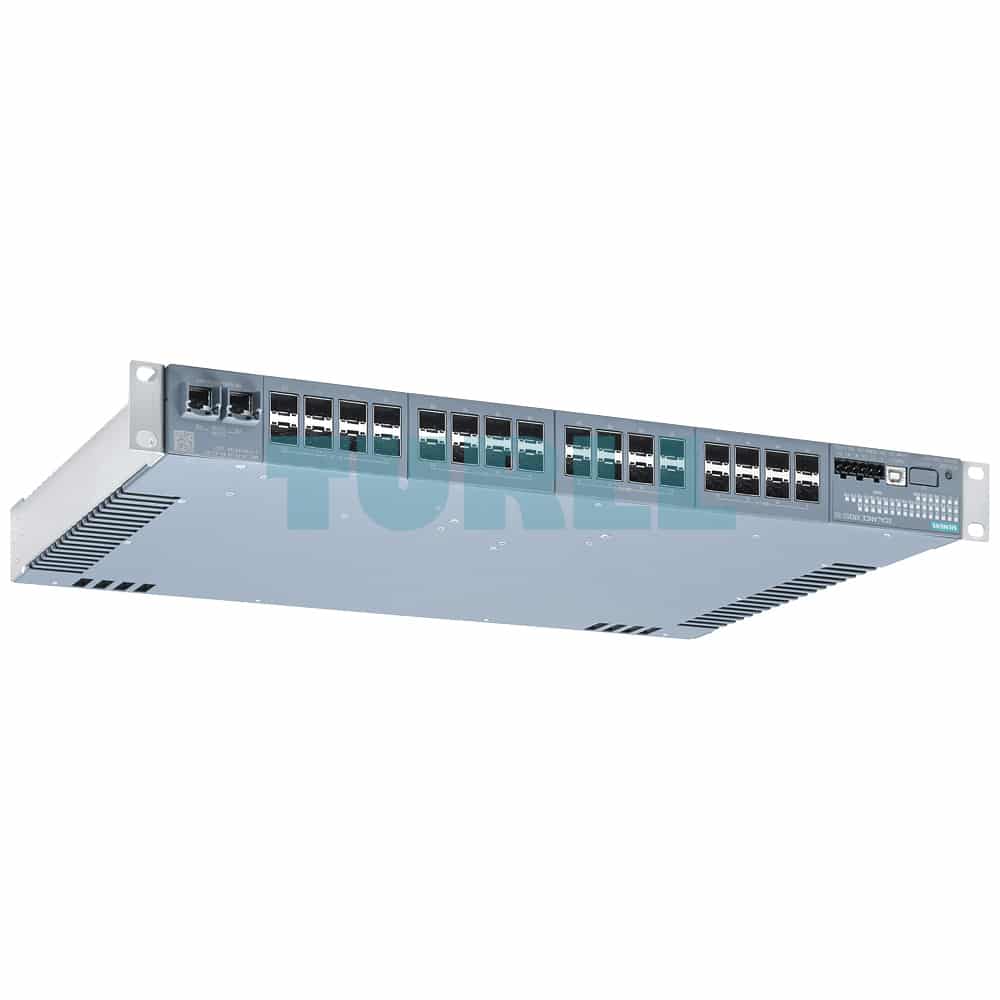

The Siemens SCALANCE XR302-32 (6GK5334-5TS00-4AR3) is an exclusive 19-inch rack-mounted managed Layer 2 Industrial Ethernet switch from the XR-300 series, designed for high-performance industrial networks with data rates up to 10 Gbps. It features 24 SFP ports for 100M/1G optical links, 8 SFP+ ports for 1G/10G uplinks, and 2 multi-rate RJ45 uplinks supporting up to 10 Gbps.

This variant includes dual 230 V AC power inputs for redundant operation and supports PROFINET IO diagnostics, integrated redundancy protocols, and advanced VLAN segmentation. With LED diagnostics, CLP configuration memory, and rugged IP20 housing, the XR302-32 is an exclusive solution for scalable, secure, and resilient industrial automation infrastructure.

Key Features

• 2 x 1G/2.5G/5G/10G RJ45 multi-rate uplink ports
• 24 x 100M/1G SFP ports
• 8 x 1G/10G SFP+ ports for high-speed uplinks
• IEC 62443-4-2 certified; PROFINET IO and EtherNet/IP compatible
• Integrated redundancy manager (MRP, HRP, RSTP, PRP, HSR)
• LED diagnostics and select/set pushbutton
• Console port and signaling contact
• VLAN, IGMP snooping, ACL, IEEE 802.1X
• Dual 230 V AC power supply via IEC plug
• IP20 metal enclosure; fanless design
• Operating temperature: –25 °C to +60 °C
• 19″ rack-mountable; low installation depth

Product Code: 6GK5334-5TS00-4AR3 More Siemens products at Turll.com
