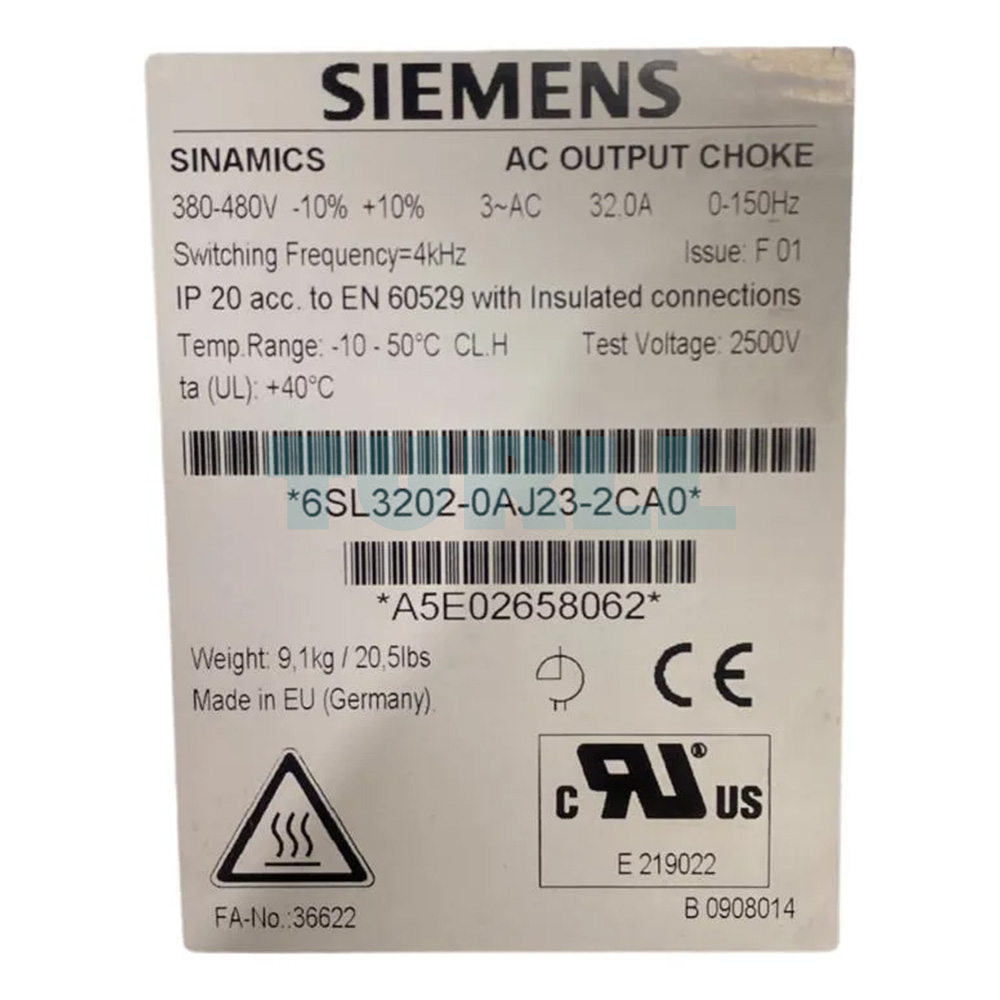

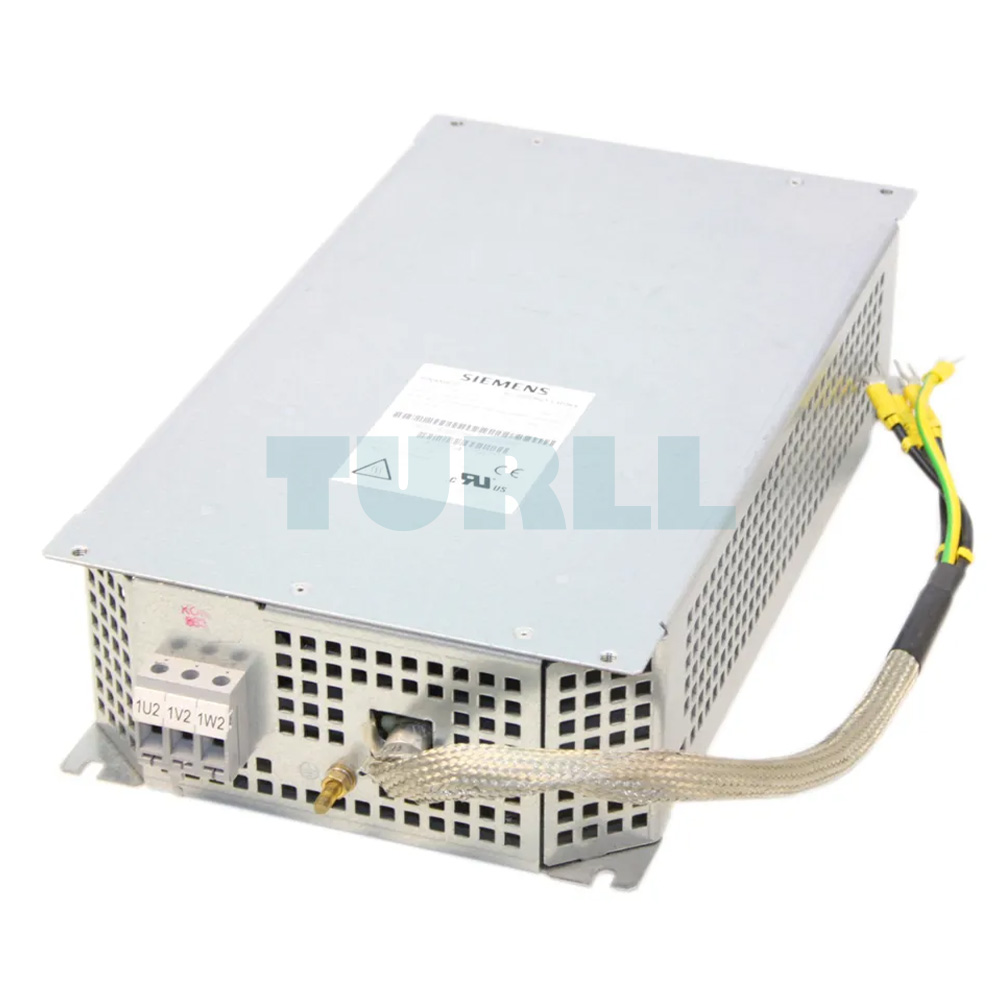

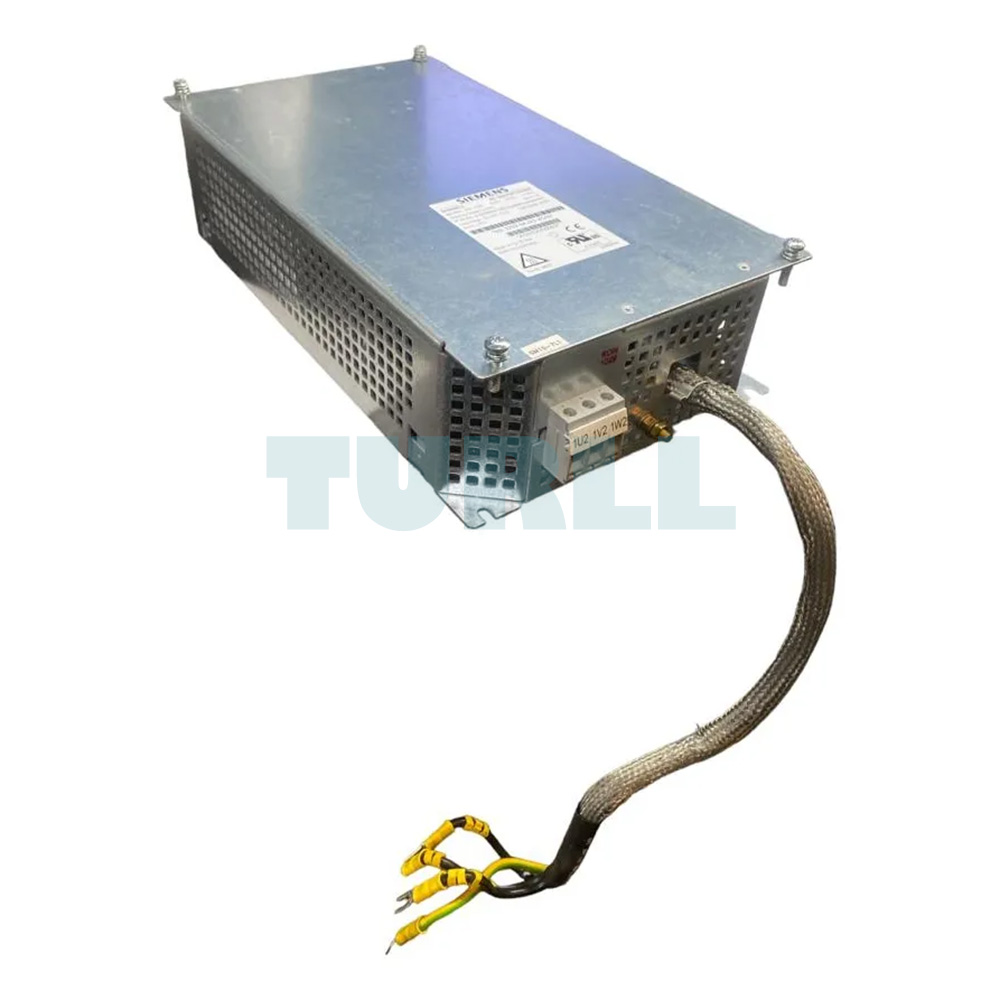

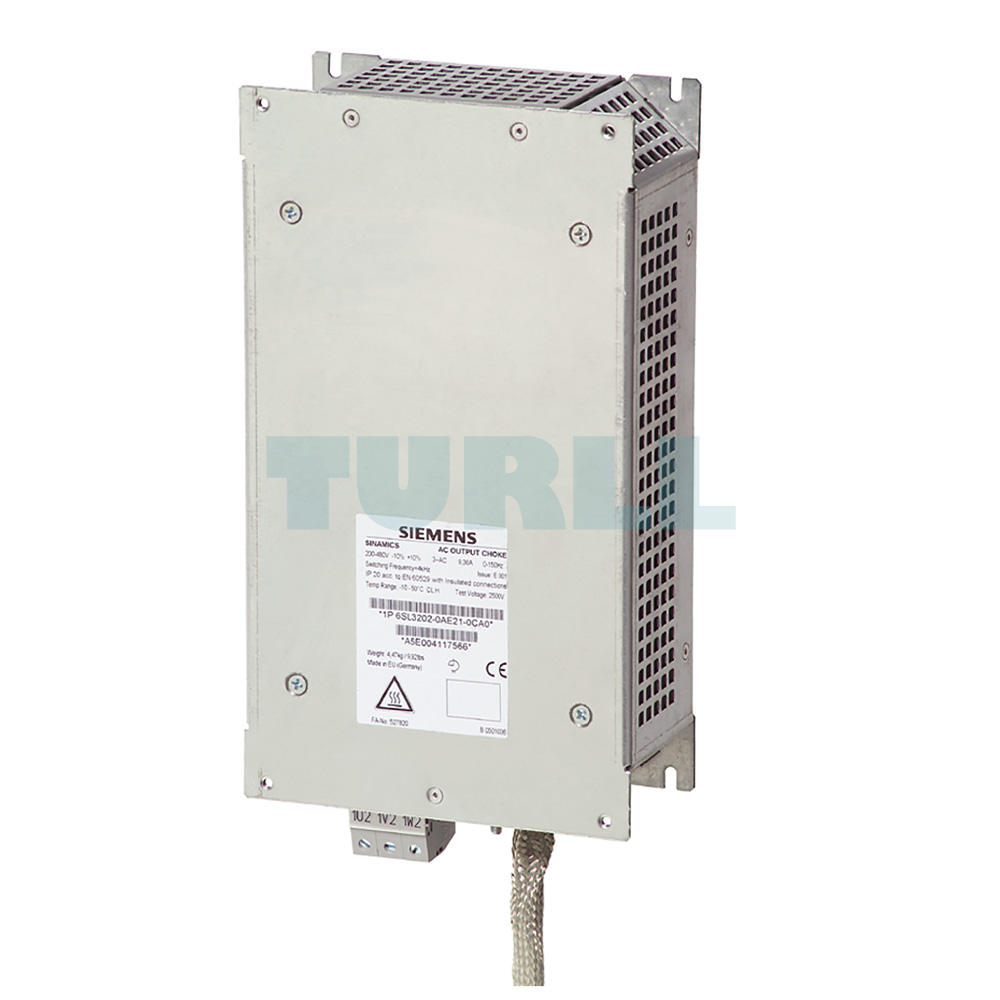

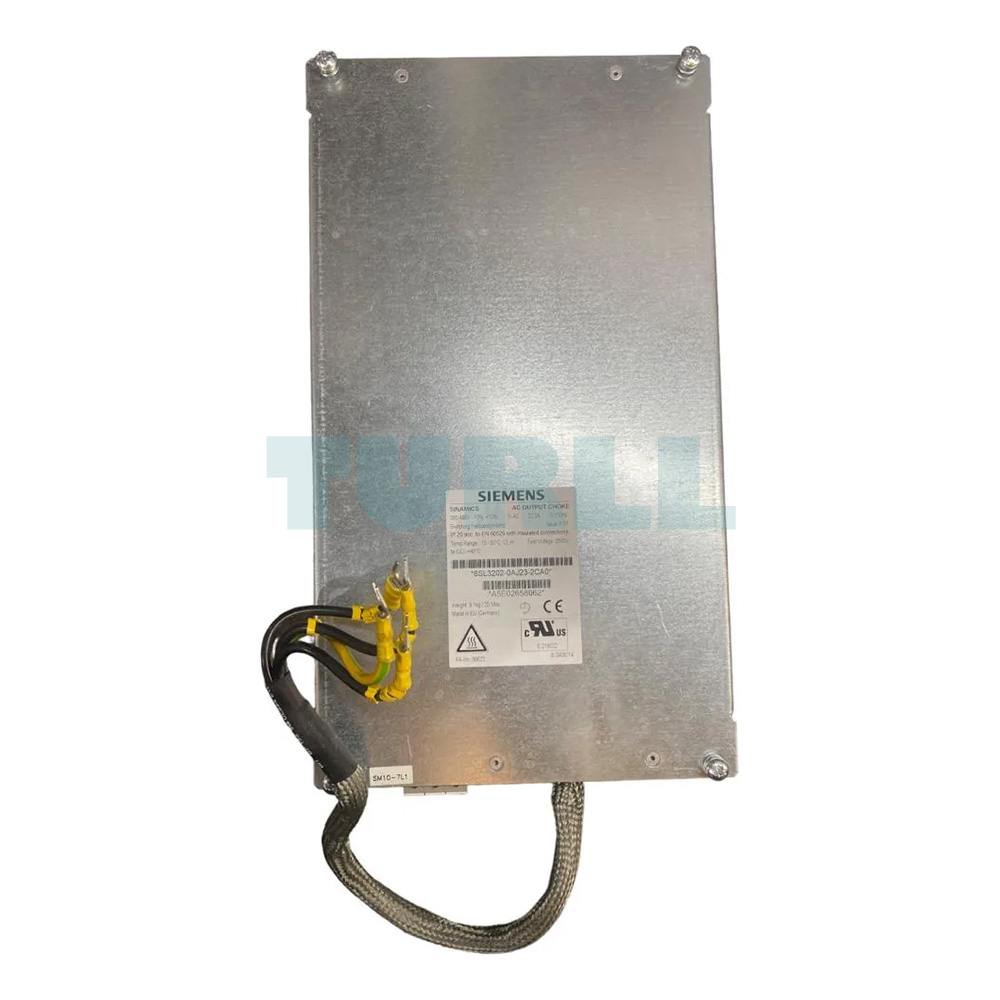

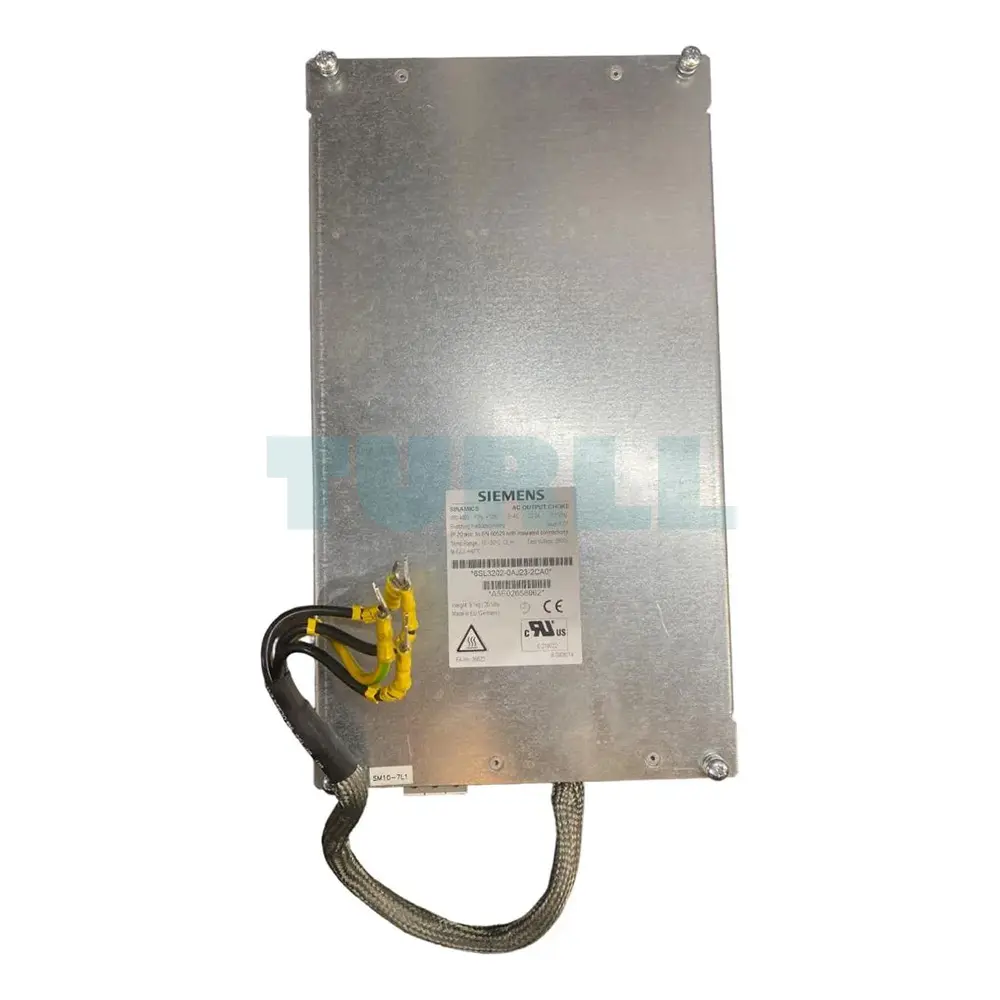

The 6SL3202-0AJ23-2CA0 SIEMENS output reactor is an essential component engineered to support the stability and performance of SINAMICS Power Modules. This model is specifically designed for PM240-2 units in frame size FSG, offering dependable electrical conditioning for a wide range of industrial environments. It is built to enhance protection for power electronics, improve motor cable compatibility, and reduce stress on drive components during continuous operation. Its robust construction ensures reliable service within systems that operate under demanding switching frequencies and varying load profiles.

Fast-switching IGBT technology, while highly efficient, can create high voltage rise rates and sharp current peaks. These effects become more noticeable when long motor cables are installed. The 6SL3202-0AJ23-2CA0 addresses these challenges by introducing inductance into the output path, allowing the cable capacitance to reverse polarity more gradually. This reduces the magnitude of transient peaks, minimizes electrical stress, and enhances the lifetime of connected components. As a result, the overall drive system experiences smoother electrical behavior, contributing to stable motor operation and reduced interference.

The unit supports a maximum output frequency of 150 Hz and a maximum pulse frequency of 4 kHz. To ensure optimal performance, it must be mounted as close to the Power Module as possible. This placement minimizes stray inductance and ensures consistent filtering characteristics. The output reactor enables the use of extended motor cable lengths without compromising operational integrity, making it valuable for installations where drives and motors cannot be positioned near each other.

Overview

Output reactors for PM240-2 Power Modules enhance electrical stability by reducing dv/dt rates and attenuating current peaks generated during inverter switching. Their inductive design slows the polarity reversal of long motor cables, contributing to improved drive reliability and smoother operating conditions.

Key Features

• Designed for SINAMICS PM240-2 Power Modules, frame size FSG
• Reduces voltage rise and current peak magnitudes
• Enables longer motor cable installations
• Protects inverter components from transient electrical stress
• Supports stable operation under fast-switching IGBT conditions

Product Code: 6SL3202-0AJ23-2CA0
