7MF1572-1EA10 SIEMENS Exclusive SITRANS LH100 Hydrostatic Level Transmitter Original Brand New

7MF1572-1EA10 SIEMENS Exclusive SITRANS LH100 Hydrostatic Level Transmitter Original Brand New

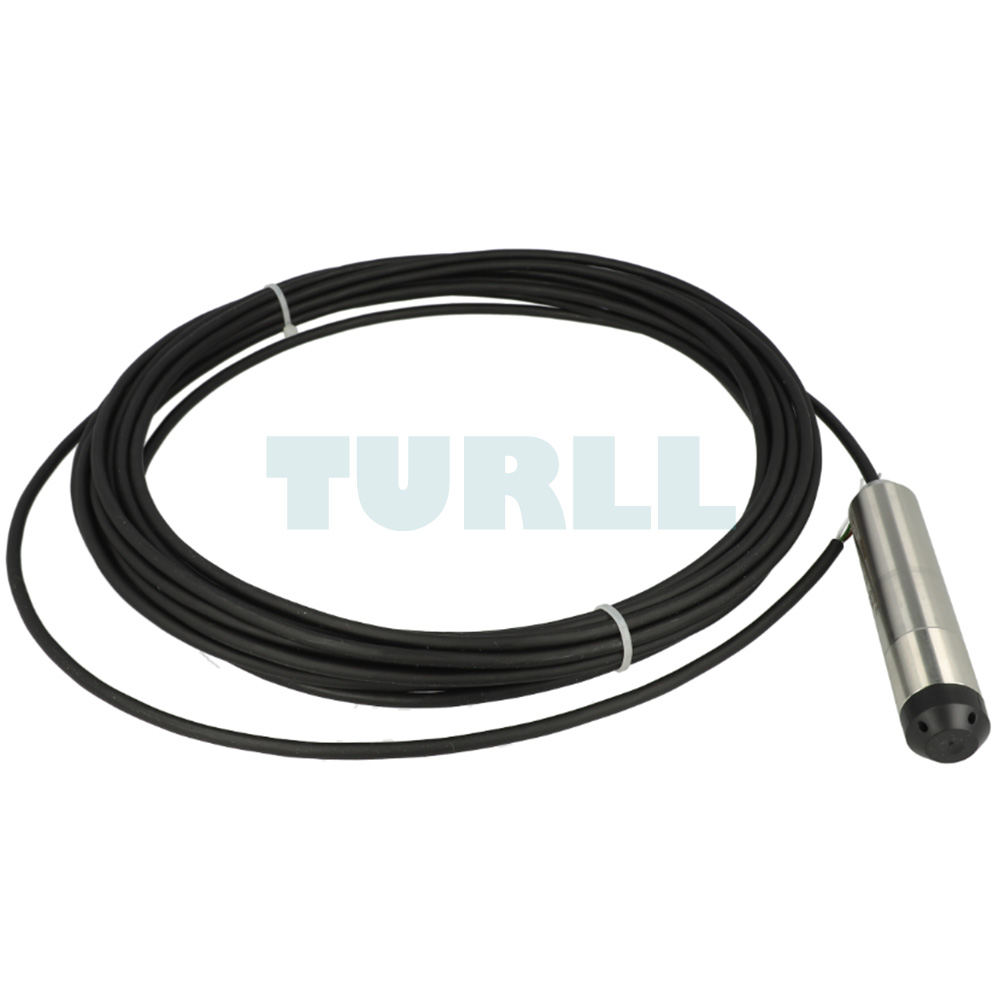

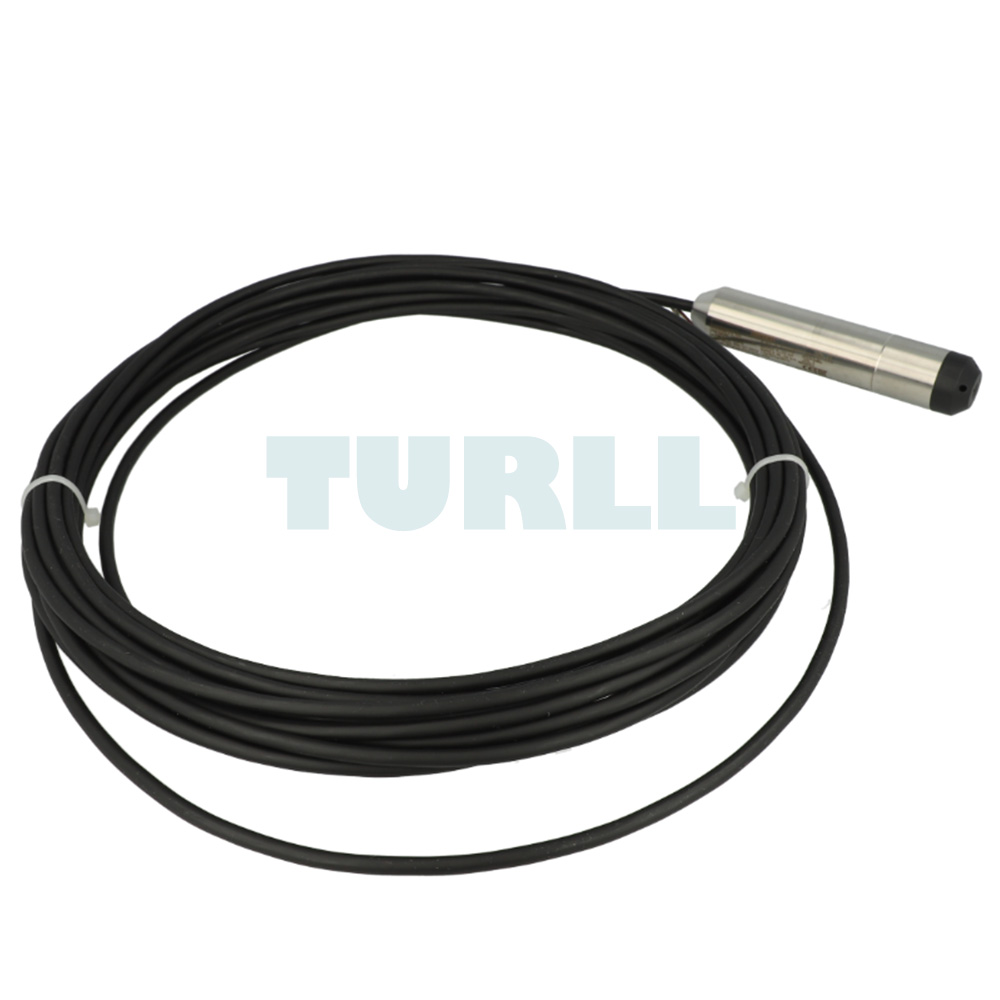

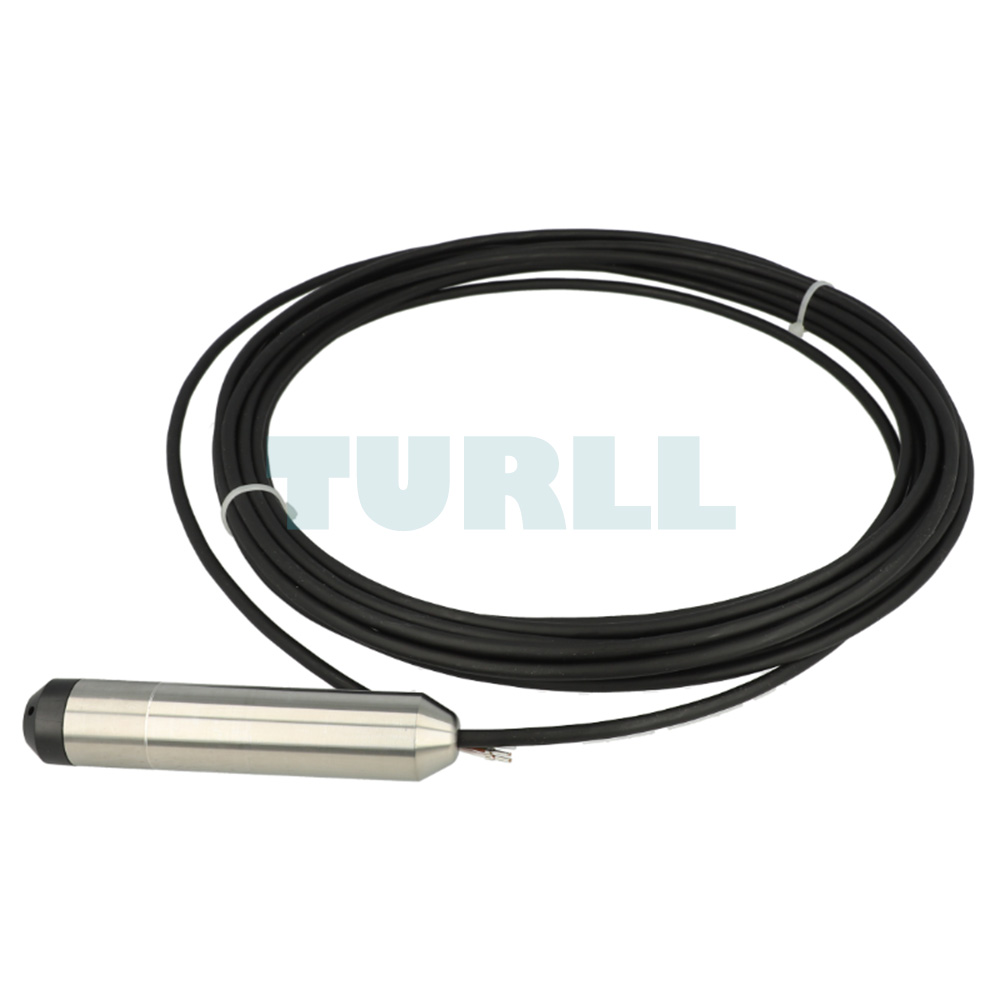

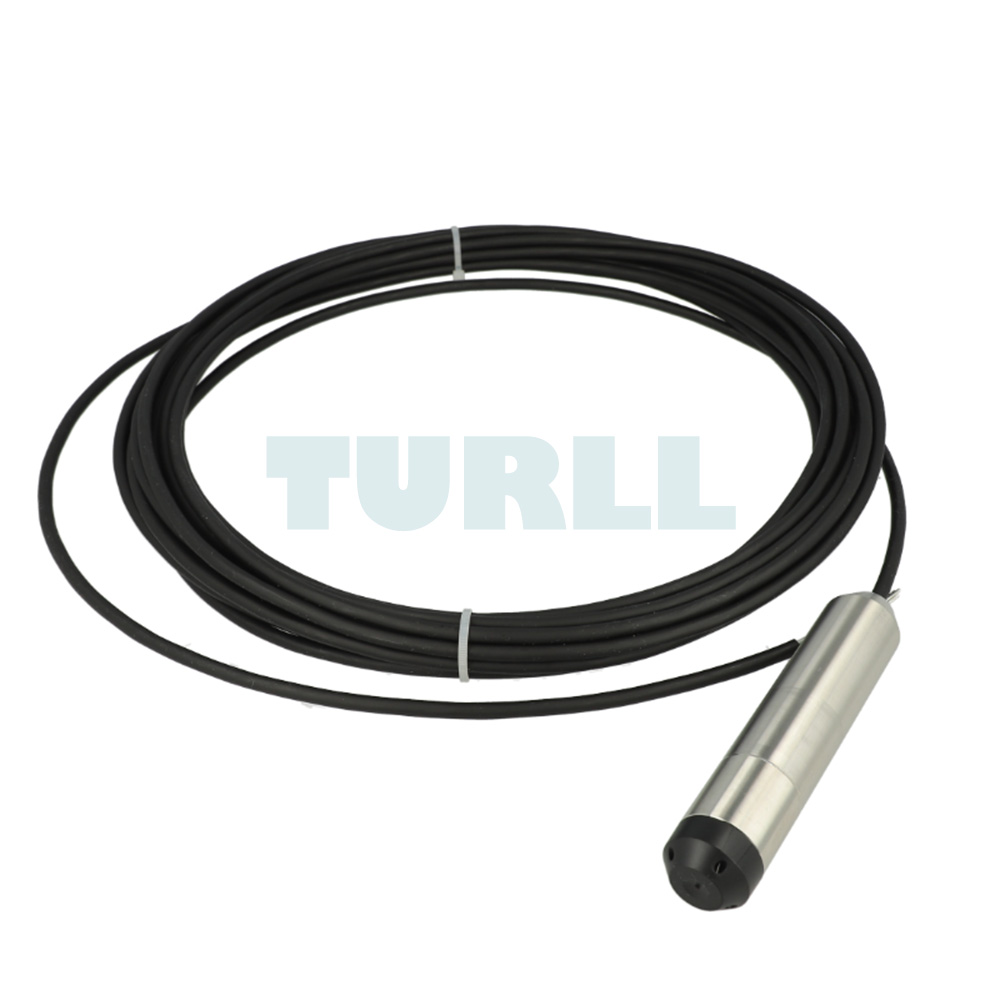

The SIEMENS 7MF1572-1EA10 SITRANS LH100 is a reliable submersible transmitter designed for hydrostatic level measurement in a wide variety of liquid applications. Built with a robust stainless steel 316L housing and a highly durable ceramic sensor, this instrument ensures accurate readings in tanks, reservoirs, channels, and dams. It operates with a two-wire 4…20 mA connection and is supplied with a fixed LD-PE cable, making it convenient and straightforward to install in both industrial and utility environments. With a measuring range of 0 to 5 mH₂O and a cable length of 10 meters, it provides dependable performance for continuous monitoring of liquid levels.

The SITRANS LH100 is designed to handle challenging conditions while maintaining precision. Its sensor is protected with an FPM sealing material and a robust protective cap that shields the diaphragm against external damage, dirt, or particles in the process medium. This ensures consistent and long-lasting operation even in demanding water treatment plants, irrigation systems, or industrial processes where continuous liquid monitoring is required. Temperature compensation across a wide range further enhances stability and measurement reliability, reducing the need for frequent recalibration.

Overview

The transmitter offers a compact and cost-effective solution for hydrostatic level monitoring. It is available in multiple measuring ranges and can also be ordered with explosion-proof versions to meet safety-critical requirements. Accessories such as a cable box and anchoring clamp simplify installation, ensuring flexible integration into existing infrastructure. By combining straightforward setup with accurate performance, the SITRANS LH100 provides excellent value for applications that require dependable level detection.

Design

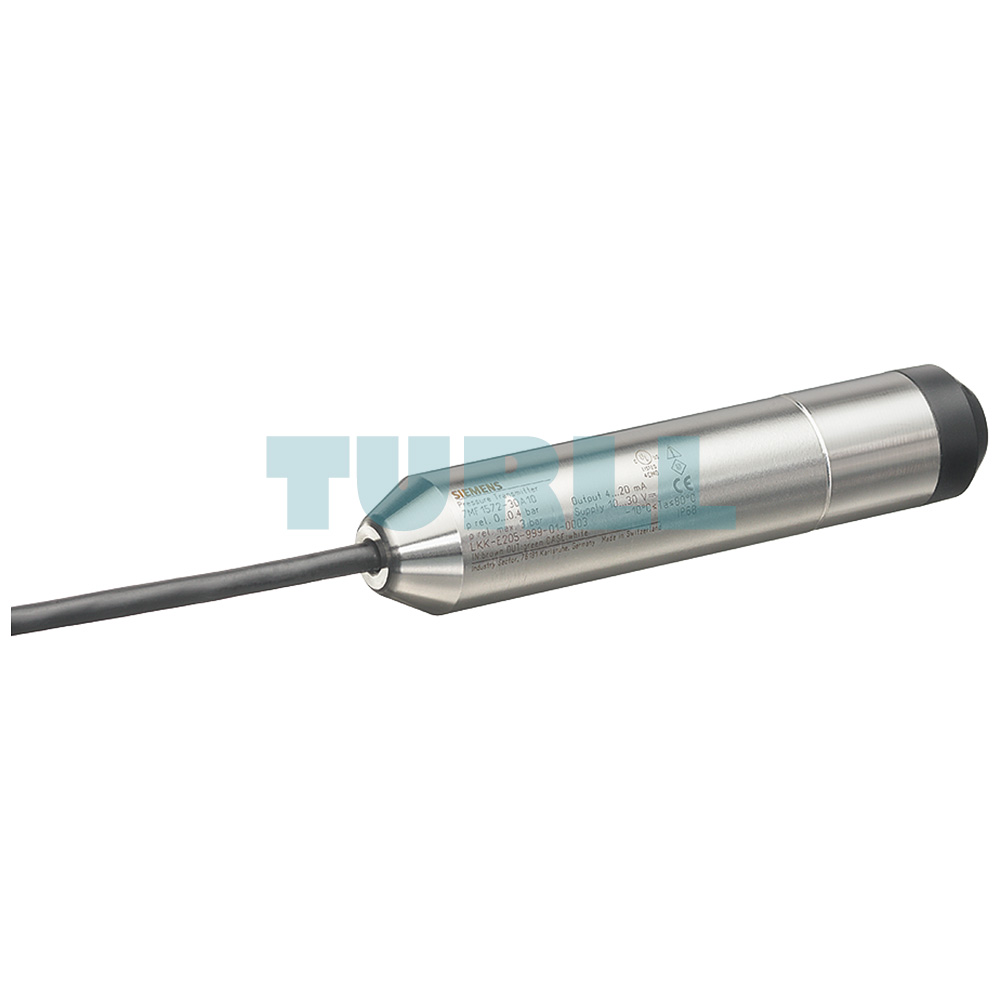

The device incorporates a ceramic sensor based on a Wheatstone resistance bridge, integrated into a small stainless steel enclosure together with the electronics. The vented cable includes a humidity filter to eliminate condensation, ensuring accurate pressure transfer and stable readings. Its streamlined design makes it easy to position while maintaining high resistance against environmental influences. These construction features highlight the durability and engineering precision that SIEMENS products are known for, making the SITRANS LH100 a preferred solution for continuous liquid level measurement.

Product Code: 7MF1572-1EA10
