7MH5106-3LD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA Load Cell 350kg Original Brand New
$578.73
High-accuracy SIEMENS load cell 7MH5106-3LD00, rated for 350kg, stainless steel construction, IP68 protection, suitable for platform and hopper scale applications.
7MH5106-3LD00 SIEMENS Exclusive SIWAREX WL230 BB-S SA Load Cell 350kg Original Brand New
The SIEMENS SIWAREX WL230 BB-S SA is a premium-quality load cell engineered to deliver highly precise and consistent weight measurements in industrial weighing applications. Built with a robust stainless steel body (EN 1.4542) and featuring a rated load capacity of 350 kg, this load cell is designed to withstand harsh environments and ensure long-lasting reliability.
As part of the SIWAREX family, this bending beam / multi-point strain gauge load cell belongs to accuracy class C3, making it ideal for applications requiring high precision such as platform scales, small hopper systems, and multi-point load measuring installations. The integrated strain gauge technology ensures accurate signal output based on elastic deformation under load, delivering a voltage signal that correlates proportionally to the applied weight.
Its compact and durable design includes a 3-meter cable with 4-wire configuration, offering convenient integration into existing systems. With a protection rating of IP68, this load cell is fully dust-tight and resistant to long-term submersion in water, making it suitable for indoor and outdoor installations in challenging industrial settings.
Overview
The WL230 BB-S SA bending beam load cell is ideally suited for small hopper and platform scale applications. It offers excellent measurement stability, repeatability, and long-term performance, ensuring that operations requiring accurate material measurement can rely on consistent results.
Design
This load cell utilizes a double bending beam as the measuring element. Four strain gauges are applied to the stainless steel body—two in tension and two in compression—providing balanced signal detection. As load is applied, the elastic deformation of the beam alters the electrical signal output, producing a precise and linear voltage response directly related to the measured weight.
Product Code: 7MH5106-3LD00
More Siemens products at Turll.com
| Weight | 0.6 kg |
|---|---|

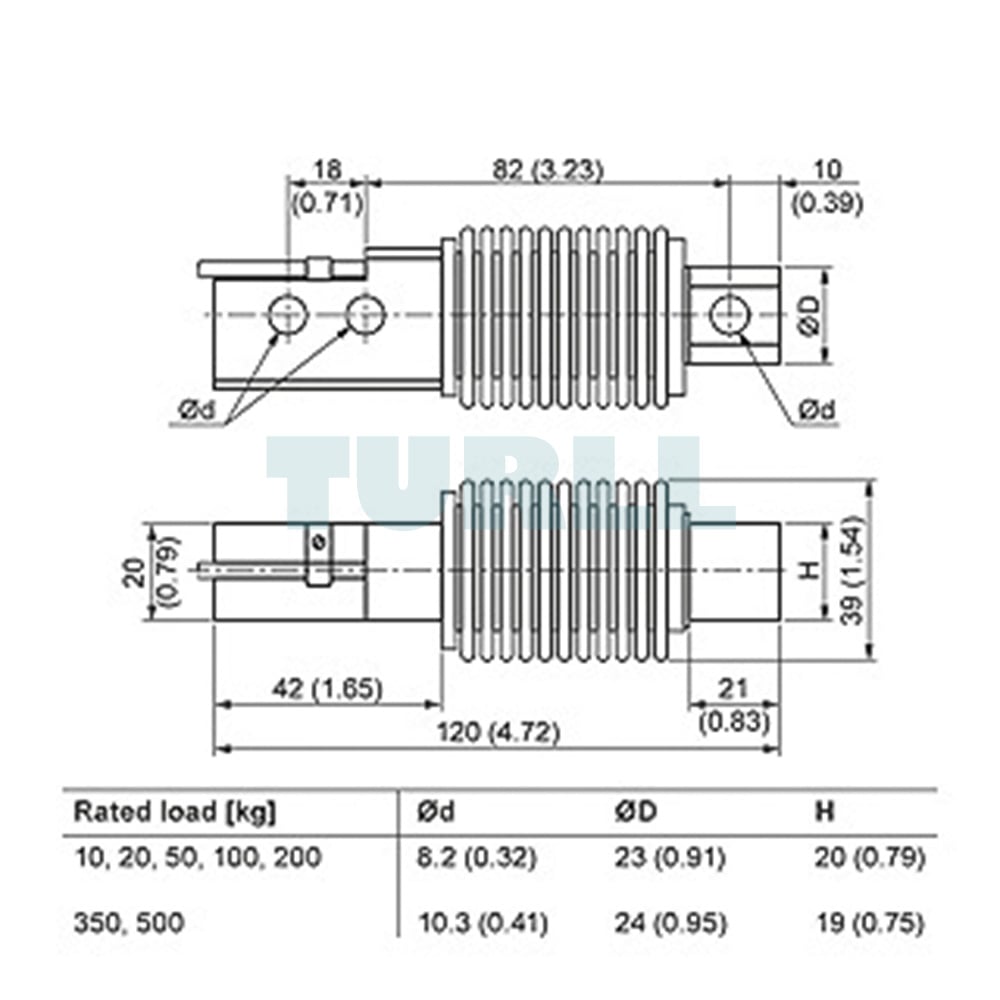

| Dimensions | 186 × 87 × 95 mm |
