7MH5106-3PD00 SIEMENS Exclusive Load Cell WL230 BB-S SA 500kg C3 Original Brand New

7MH5106-3PD00 SIEMENS Exclusive Load Cell WL230 BB-S SA 500kg C3 Original Brand New

The SIEMENS load cell WL230 BB-S SA is a high-precision weighing component engineered for industrial use where reliability and durability are essential. Designed with strain gauge technology on a stainless steel bending beam, this load cell offers consistent performance in environments that require stable measurement and resistance to harsh conditions. With a rated load capacity of 500kg and certified in the C3 accuracy class, it delivers the precision needed for applications such as hopper and platform scales.

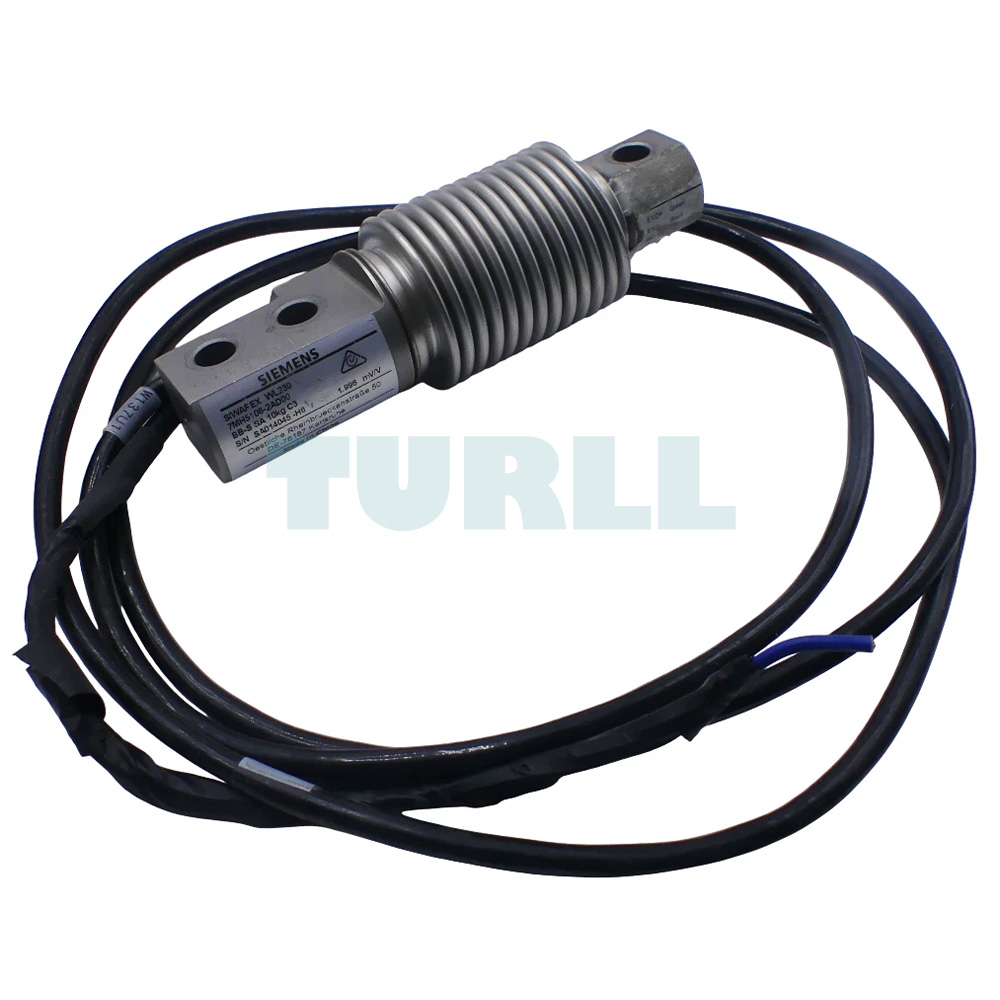

This model is made from stainless steel EN 1.4542 and has an IP68 protection rating, making it exceptionally suitable for wet or dusty industrial environments. The load cell operates using a 4-wire system and comes with a pre-installed 3-meter cable, simplifying installation. The design features a multi-point structure with double bending beams, allowing deformation under mechanical stress to be accurately measured via the integrated strain gauges. These strain gauges are arranged in such a way that two are under tension and two under compression when a load is applied.

Overview

This bending beam load cell is optimized for precise weight detection in compact industrial scale systems. It is especially well-suited for small hopper scales and platform scales where space and accuracy are critical.

Design

The internal design consists of a double bending beam with strain gauges bonded directly to it. When force is applied along the measuring direction, the spring bodies flex, causing elastic deformation. The strain gauges then convert this deformation into a proportional voltage signal for precise load measurement.

Product Code: 7MH5106-3PD00
