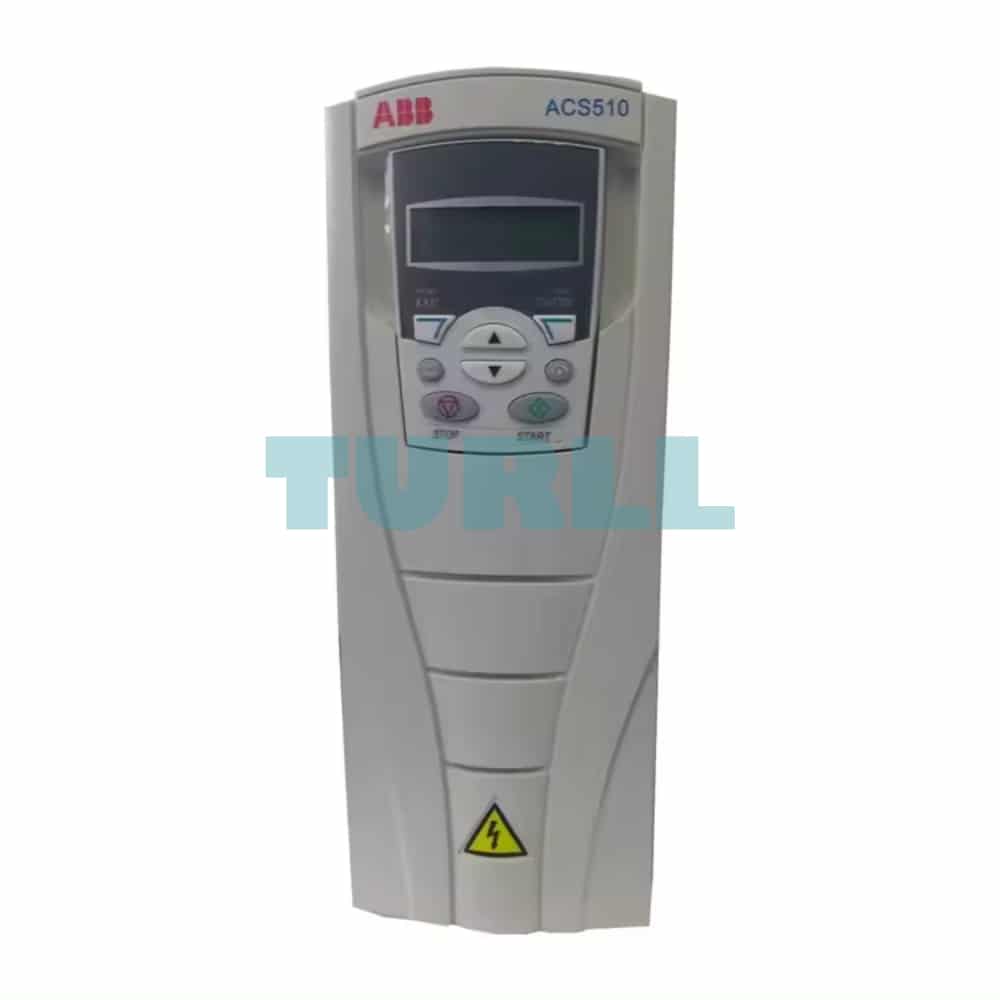

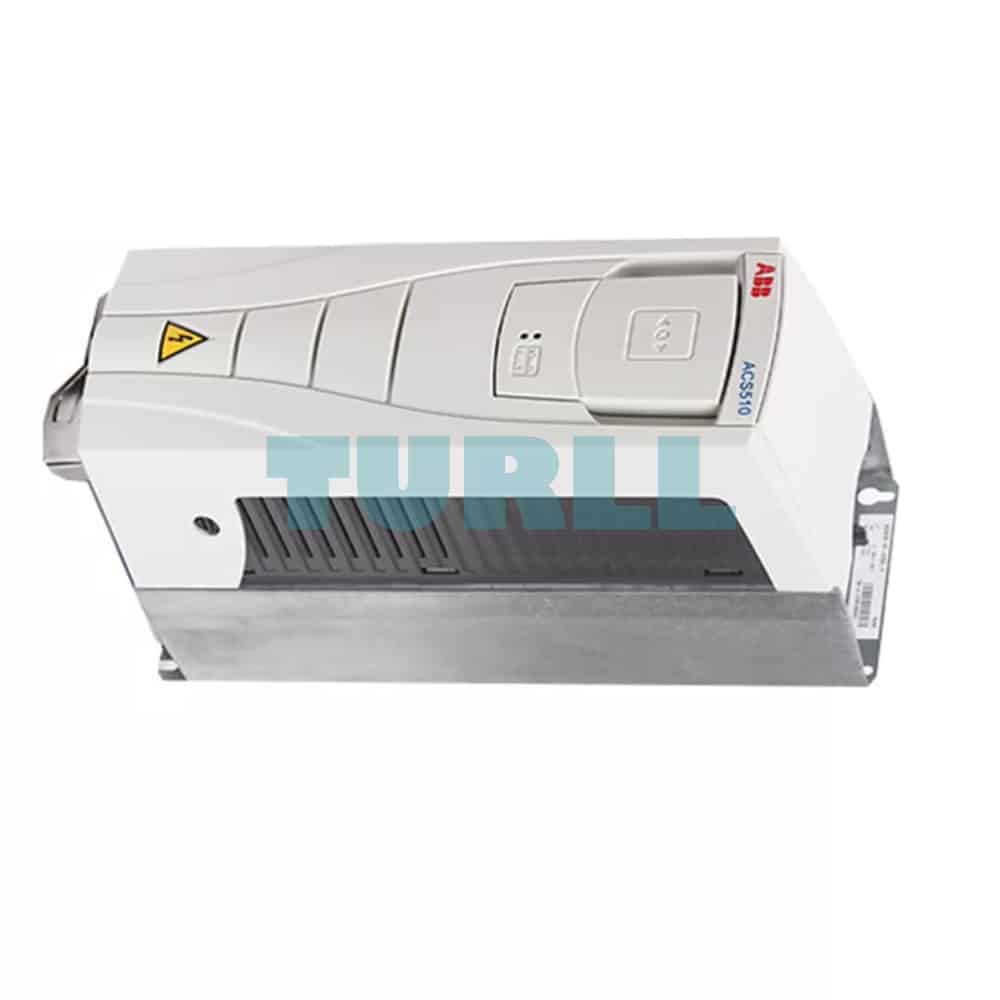

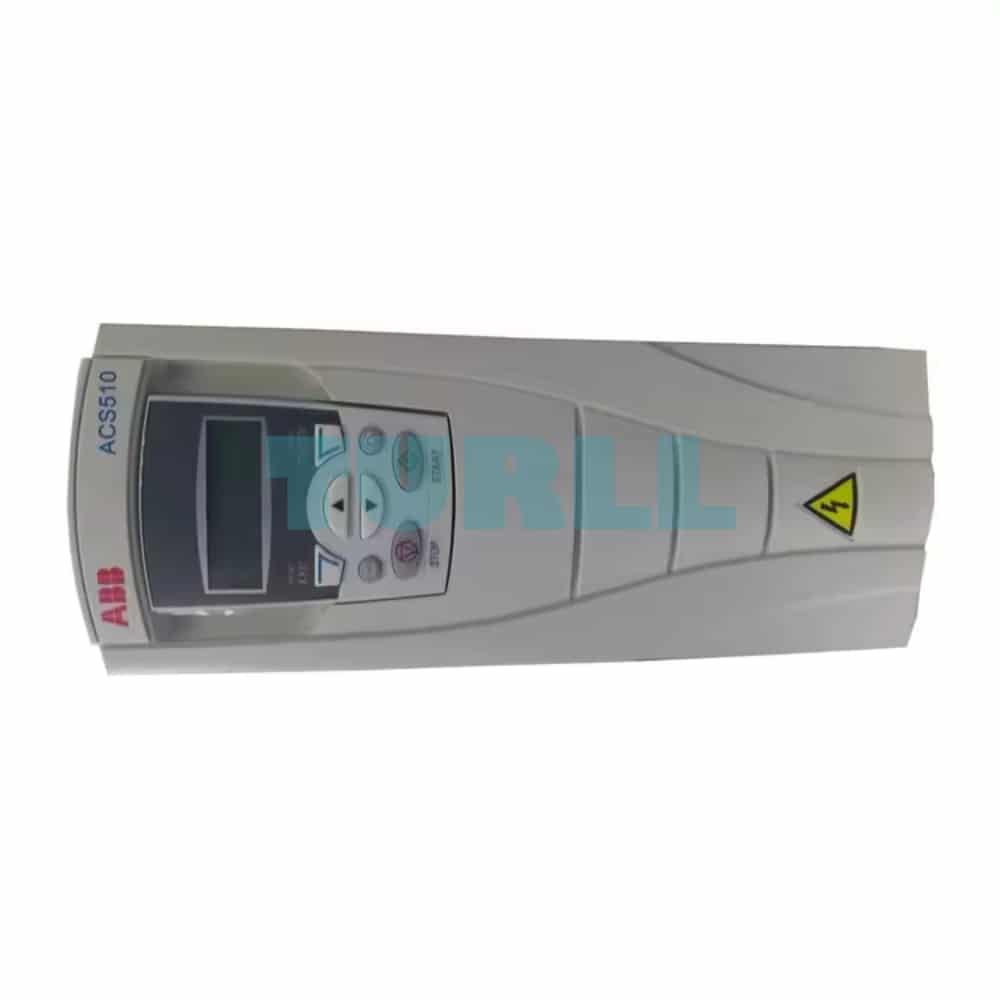

ACS510-01-05A6-4 PN: 2.2, IN: 5.6 3ABD00015743-D Brand New Original
$190.25
ACS510-01-05A6-4
ACS510-01-05A6-4,5.6A,380V,IP21
Global Express Shipping
DHL / FedEx / UPS
100% Original & Brand New
Factory Sealed Box with 1-Year Warranty
Secure Payment
SSL ENCRYPTED
[ez-toc]
General Information
Global Commercial Alias: ACS510-01-05A6-4
Product ID: 3ABD00015743-D
ABB Type Designation: ACS510-01-05A6-4
Catalog Description: ACS510-01-05A6-4,5.6A,380V,IP21
Long Description: ACS510-01-05A6-4,5.6A,380V,IP21
Ordering
Country of Origin: China (CN)
Customs Tariff Number: 85044099
Invoice Description: ACS510-01-05A6-4,5.6A,380V,IP21
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Product Net Weight: 6.1 kg
Product Net Depth / Length: 465 mm
Product Net Height: 365 mm
Product Net Width: 225 mm
Package Level 1 Depth / Length: 490 mm
Package Level 1 Height: 400 mm
Package Level 1 Width: 240 mm
Package Level 1 Units: 1 carton
Technical
Number of Phases: 3
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Frequency (f): 47.5 … 63 Hz
Frame Size: R1
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted_NO UNIT$
Output Current, Normal Use (In): 5.6 A
Output Power, Normal Use (Pn): 2.2 kW
Apparent Power Output: 3.9 kV·A
Efficiency Level: IE2
Standby Loss: 11 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
42 W
|
1.1 %
|
83.1 %
|
|
0 / 50 %
|
46 W
|
1.2 %
|
89.6 %
|
|
0 / 100 %
|
57 W
|
1.5 %
|
92.8 %
|
|
50 / 25 %
|
43 W
|
1.1 %
|
90.8 %
|
|
50 / 50 %
|
49 W
|
1.3 %
|
94.4 %
|
|
50 / 100 %
|
63 W
|
1.6 %
|
96 %
|
|
90 / 50 %
|
52 W
|
1.4 %
|
96.6 %
|
|
90 / 100 %
|
69 W
|
1.8 %
|
97.5 %
|
Temperature Rating: 40 °C
Classifications
UNSPSC: 39122001
Environmental
WEEE Category: Product Not in WEEE Scope
Additional Information
| Weight | 6.1 kg |
|---|---|
| Dimensions | 490 × 400 × 240 mm |
