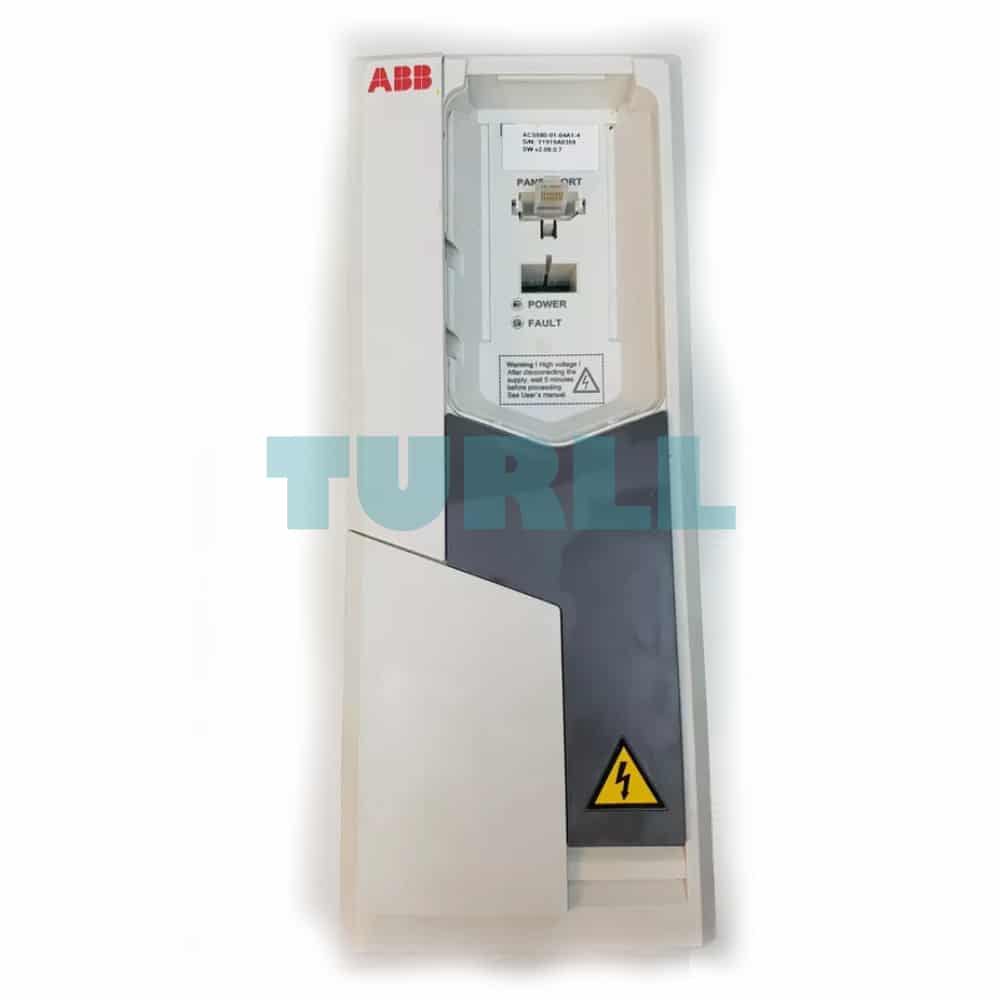

ACS580-01-04A1-4 PN: 15 kW, IN: 4 A 3ABD50000038939 Original Brand New

Model / SKUACS580-01-04A1-4

ACS580-01-04A1-4

LV AC general purpose wall-mounted drive, IEC: Pn 1.5 kW, 4 A (ACS580-01-04A1-4)

$238.99
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

[ez-toc]

General Information

Global Commercial Alias: ACS580-01-04A1-4
Product ID: 3ABD50000038939
ABB Type Designation: ACS580-01-04A1-4
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 1.5 kW, 4 A (ACS580-01-04A1-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.

Ordering

Country of Origin: China (CN)
Customs Tariff Number: 85044099
Invoice Description: ACS580-01-04A1-4 PN: 1.5kW, IN: 4.0A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 6.5 kg
Product Net Depth / Length: 210 mm
Product Net Height: 303 mm
Product Net Width: 125 mm
Package Level 1 Units: 0 carton

Technical

Number of Phases: 3
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Frequency (f): 47.5 ... 63 Hz
Frame Size: R1
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted_NO UNIT$
Output Current, Heavy-Duty Use (IHD): 3.3 A
Output Current, Light-Overload Use (ILD): 3.8 A
Output Current, Normal Use (In): 4 A
Output Power, Heavy-Duty Use (PHD): 1.1 kW
Output Power, Light-Overload Use (PLD): 1.5 kW
Output Power, Normal Use (Pn): 1.5 kW
Efficiency Level: IE2
Complete Drive Module Efficiency (61800-9-2):

Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %
34 W
1.2 %
81.0 %
0 / 50 %
38 W
1.4 %
88.2 %
0 / 100 %
47 W
1.7 %
91.8 %
50 / 25 %
36 W
1.3 %
89.6 %
50 / 50 %
40 W
1.5 %
93.6 %
50 / 100 %
52 W
1.9 %
95.5 %
90 / 50 %
44 W
1.6 %
96.0 %
90 / 100 %
60 W
2.2 %
97.0 %

Classifications

UNSPSC: 39122001

Environmental

WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Additional Information

Product Name: Frequency Converter
For more our products visit turll.com

Specifications

SKU / ModelACS580-01-04A1-4
Weight6.5 kg
Dimensions210 × 303 × 125 mm
