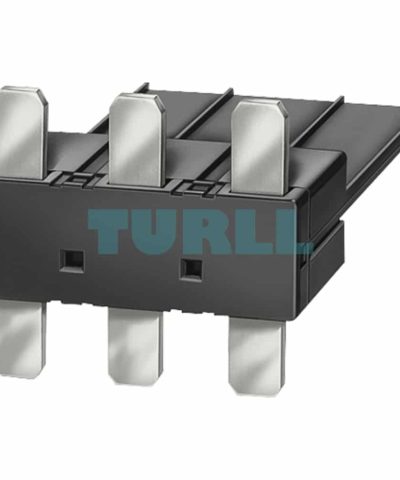

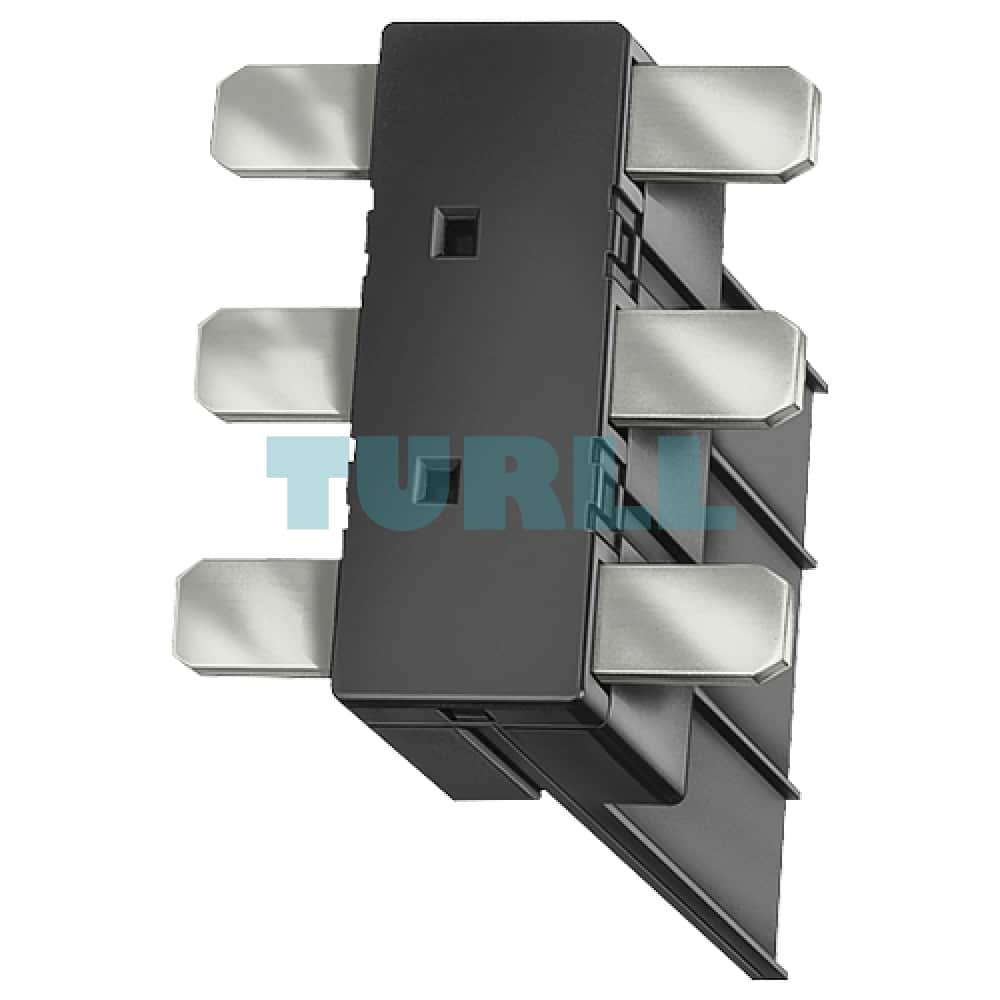

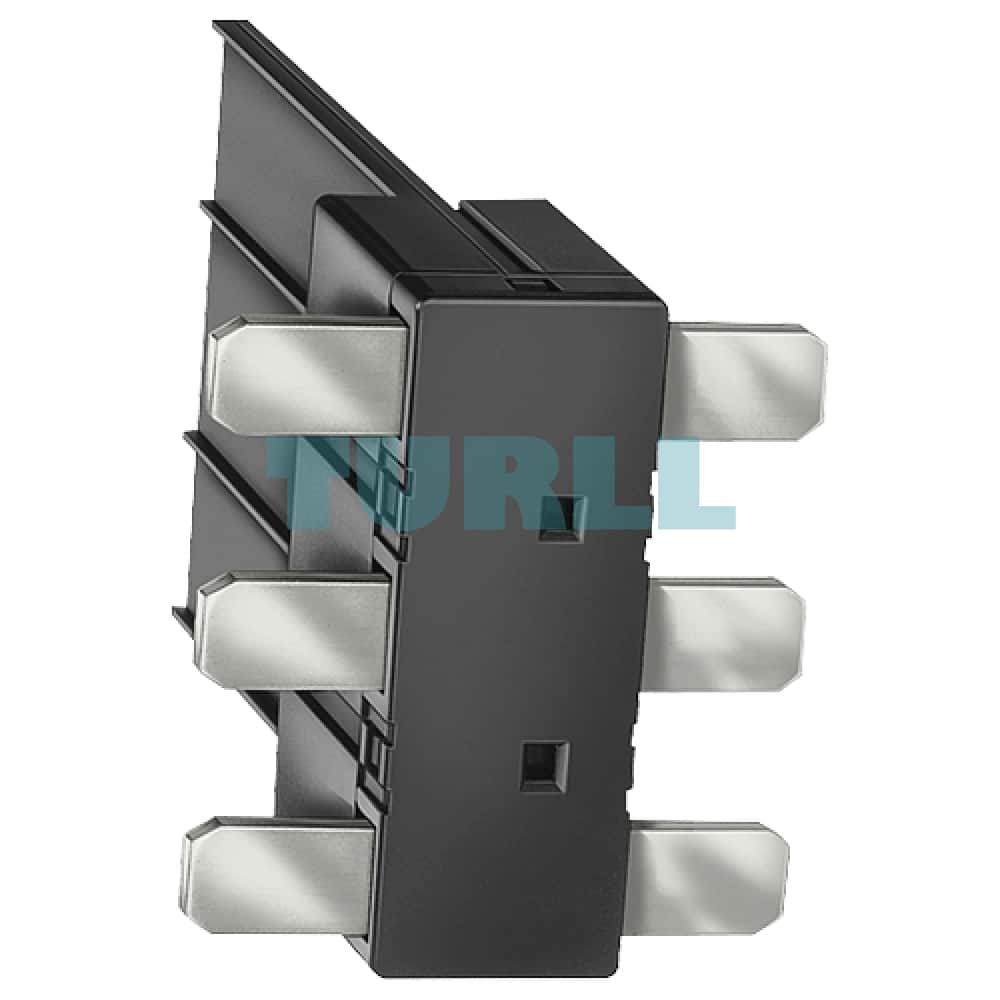

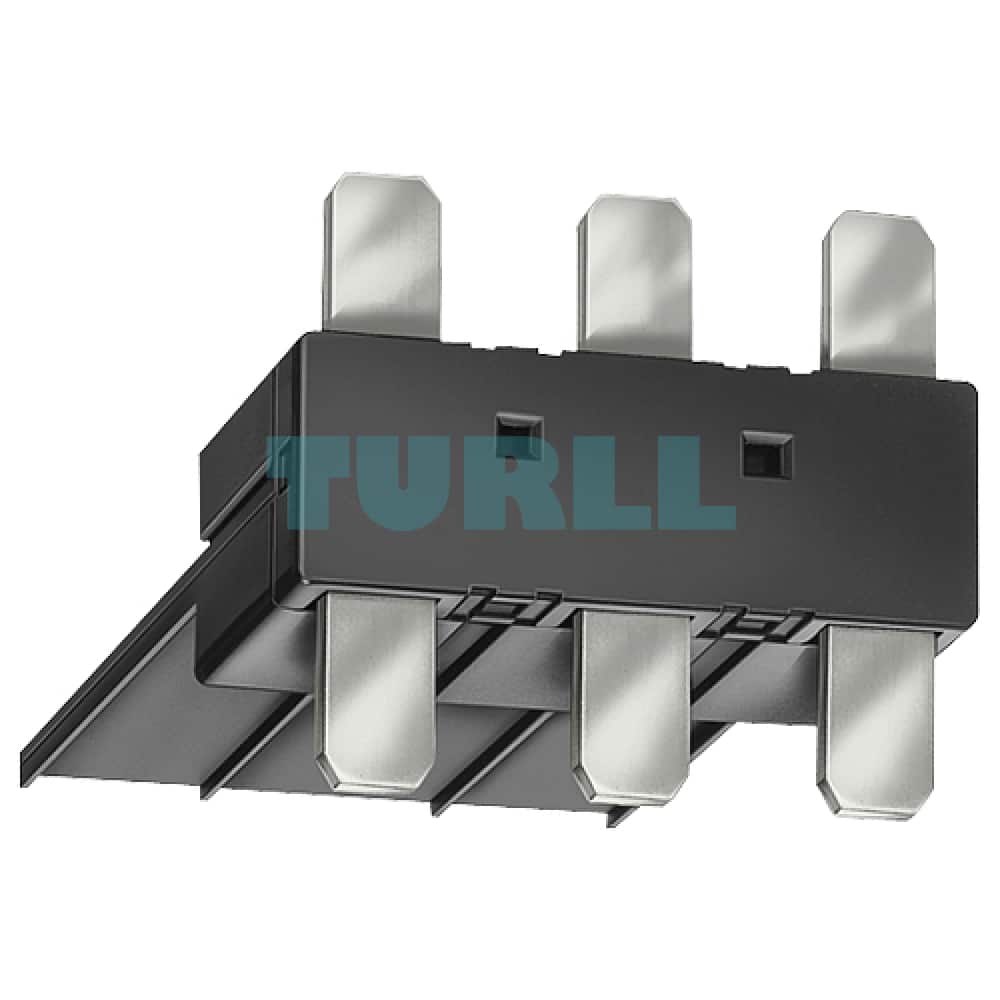

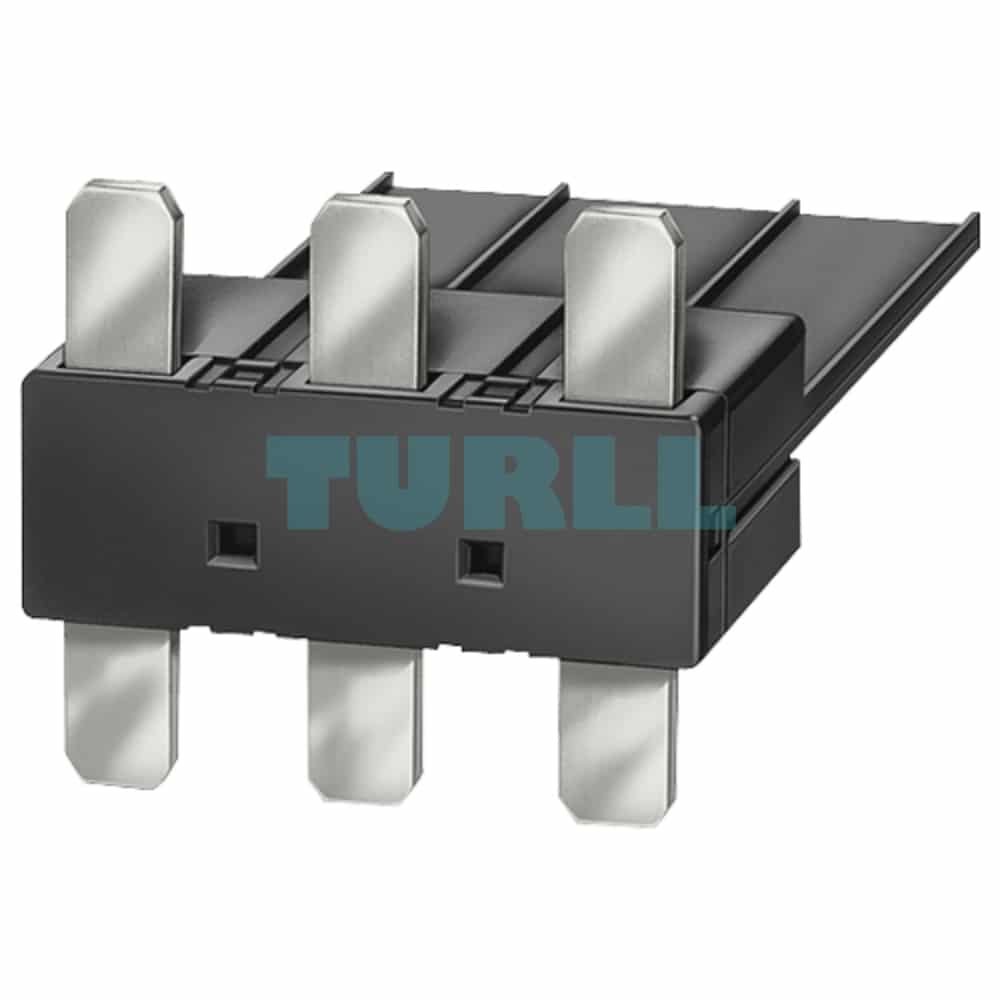

Siemens 3RA1941-1B Link Module for 3RV1.4 and 3RT1.4 – DC Operation (Multi-Unit Pack) Original Brand New

Overview

The Siemens 3RA1941-1B is a specialized link module designed for the electrical and mechanical connection of Siemens 3RV1.4 circuit breakers and 3RT1.4 contactors. This component is essential for creating a compact, efficient, and reliable combination starter or a load feeder. It's particularly configured for DC operation, ensuring seamless integration within direct current systems. The 3RA1941-1B comes in multi-unit packaging, making it a cost-effective solution for bulk installations and larger projects.

Key Benefit

• Enhanced Reliability: Provides a secure and stable connection, reducing the risk of wiring errors and potential failures.
• Space Optimization: Integrates components compactly, saving valuable panel space and simplifying installation.
• Quick Installation: The plug-and-play design allows for fast, tool-free assembly, significantly reducing labor time and costs.
• System Integrity: Ensures the electrical and mechanical integrity of the combination starter, which is crucial for safety and performance.
• Cost-Effective: Offered in multi-unit packaging, it provides better value for large-scale projects and installations.

Functionality

The 3RA1941-1B link module acts as an electrical and mechanical bridge. Mechanically, it securely connects the 3RV1.4 circuit breaker and the 3RT1.4 contactor, ensuring they are perfectly aligned. Electrically, it creates the necessary conductive path between the two devices, simplifying the wiring process and providing a clean, professional finish. This integration is vital for the proper function of a motor starter, where the circuit breaker provides short-circuit and overload protection, and the contactor controls the motor's power supply.
