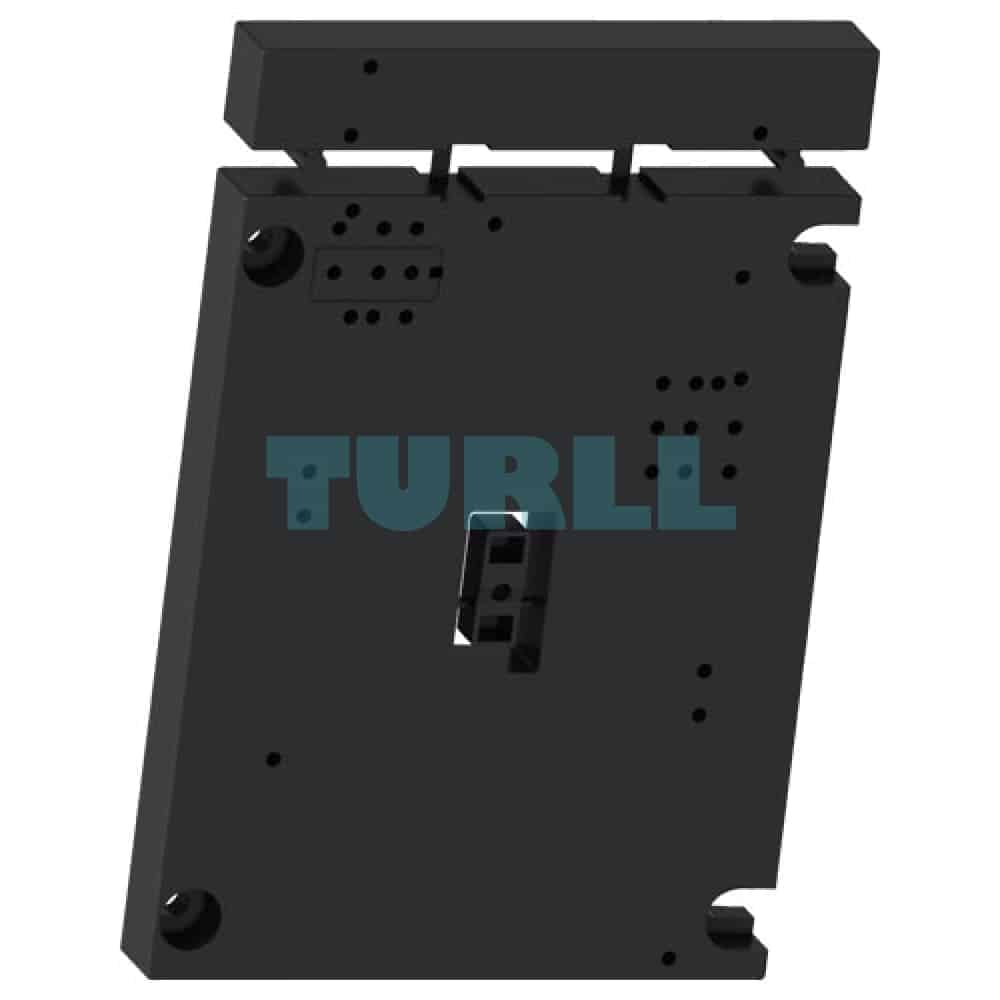

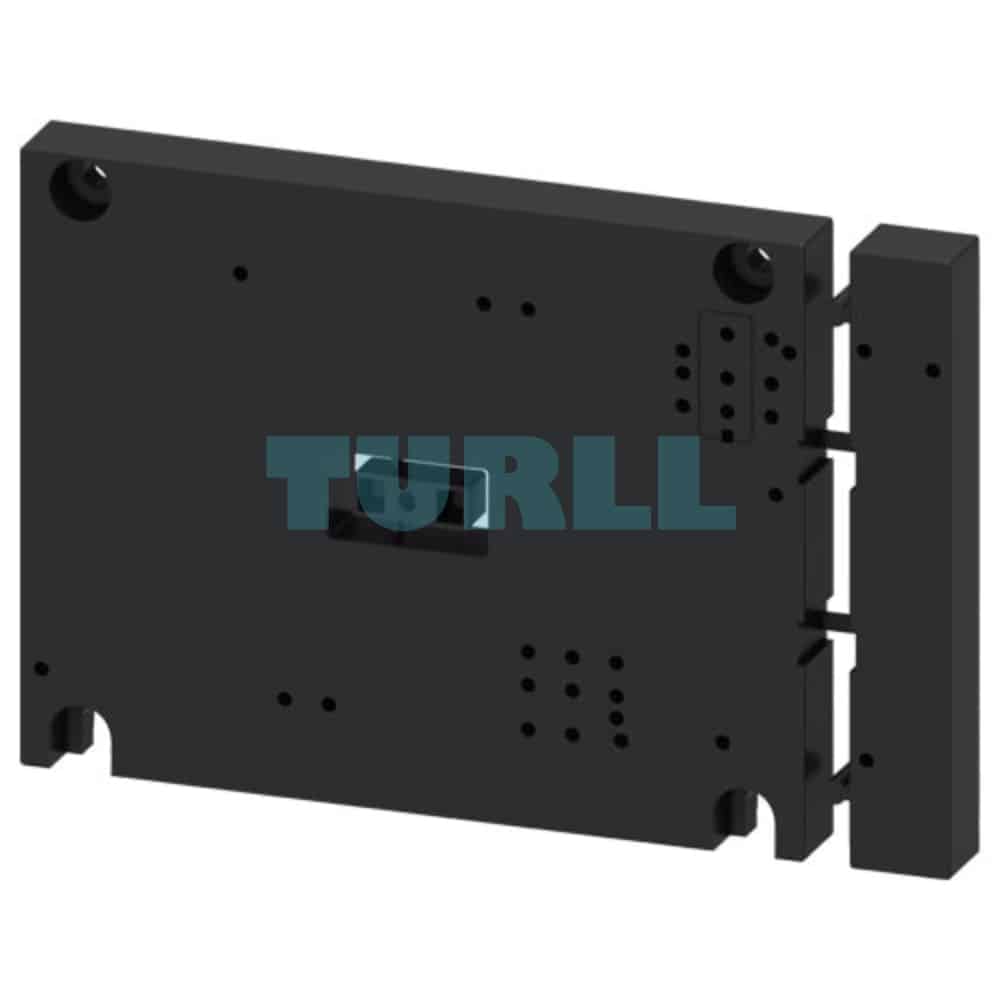

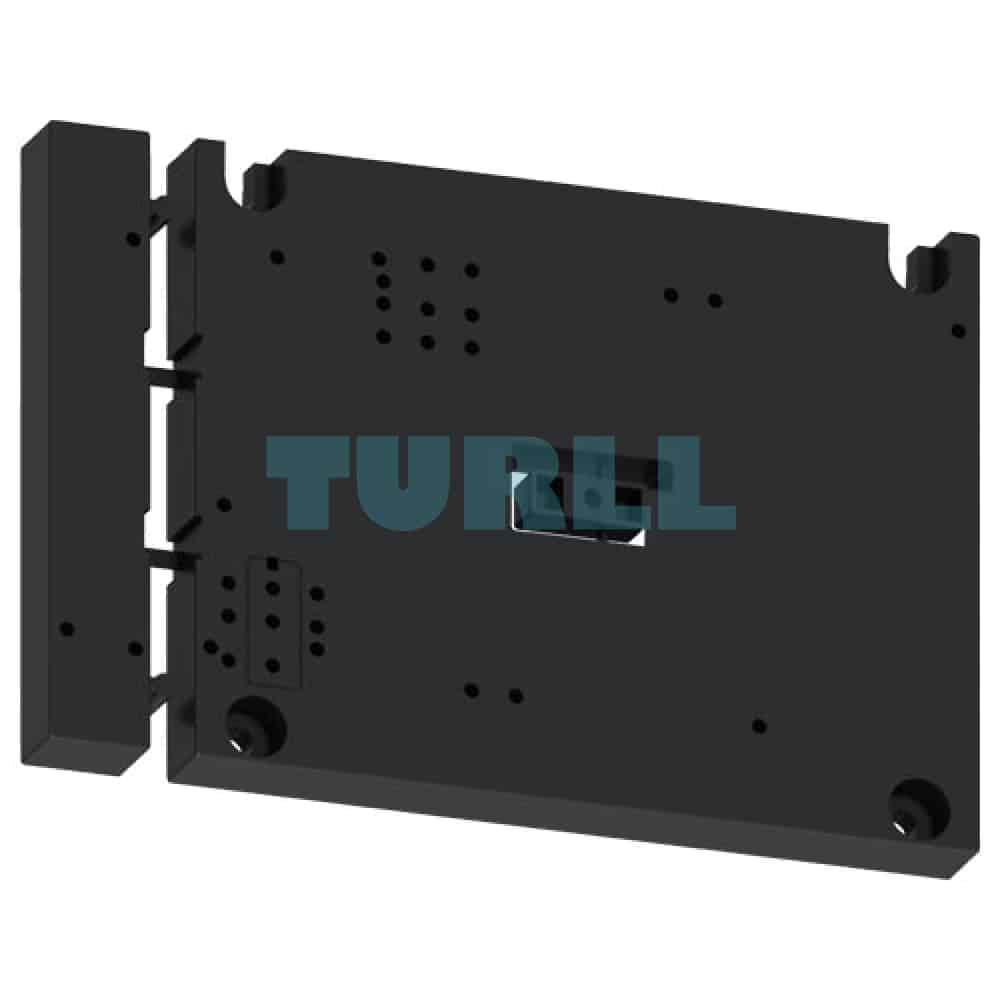

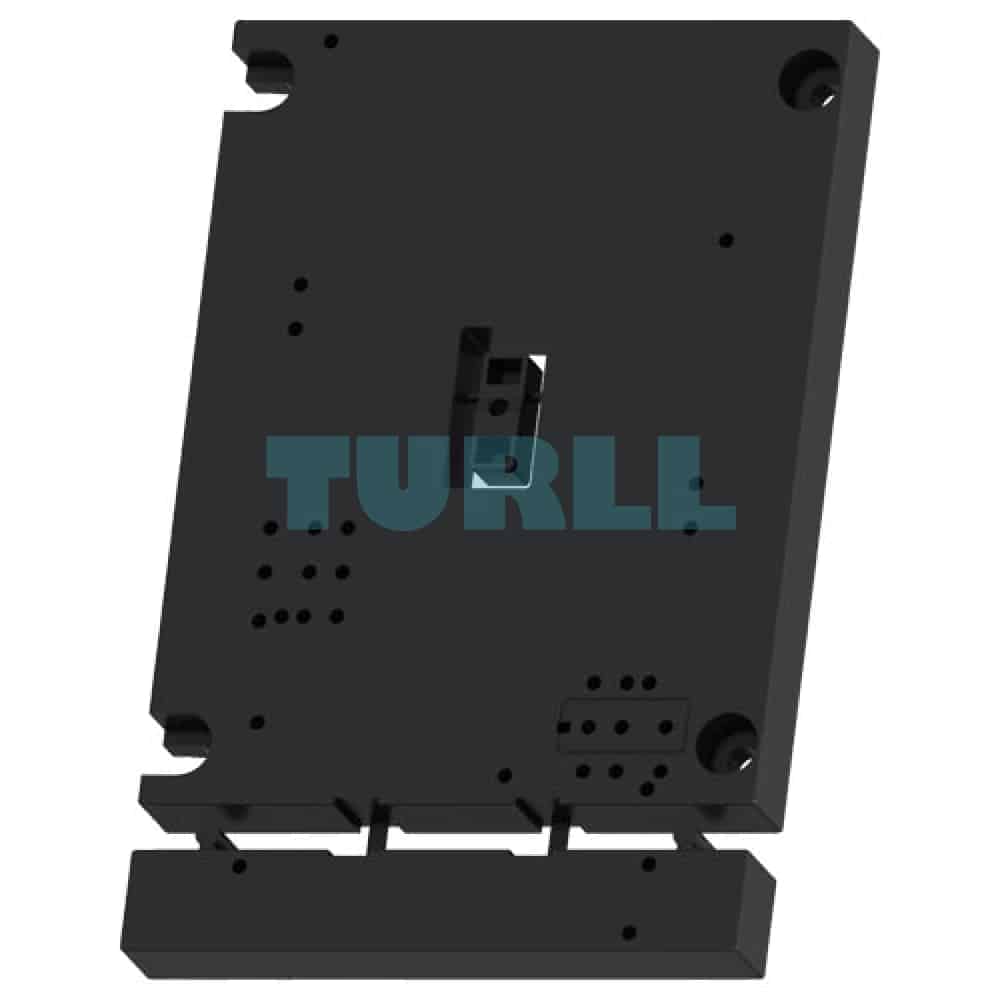

Siemens 3RA2932-2F SIRIUS Base Plate, Size S2, for Star-Delta (Wye-Delta) Contactor Assemblies Original Brand New

Overview

The Siemens 3RA2932-2F Base Plate is an essential accessory from the SIRIUS modular system designed for the professional and safe assembly of three contactors for star-delta (wye-delta) motor starting circuits. This sturdy base plate ensures correct spacing and reliable mounting for a compact and efficient motor starter solution. Specifically engineered for use with a combination of Siemens SIRIUS 3RT2 power contactors in size S2.

Key Features & Technical Detail

• Product Number: 3RA2932-2F
• Manufacturer: Siemens
• Series: SIRIUS
• Product Type: Base Plate / Mounting Plate
• Frame Size: S2 (Size 2)
• Application: For setting up 3-contactor assemblies for star-delta (wye-delta) starting.
• Compatible Contactor Configurations:
  • Three contactors of size 3RT2.3 ($3\times 3\text{RT2.3}$)
  • Two contactors of size 3RT2.3 and one contactor of size 3RT2.2 ($2\times 3\text{RT2.3}\text{ and }1\times 3\text{RT2.2}$)
• Installation: Provides a fixed, standardized mounting point for quick and easy assembly.
• Net Weight (Approx.): 0.217 Kg (Check latest datasheet for confirmation)
• Country of Origin: Germany

Benefit

1. Simplified Assembly: Reduces installation time by providing pre-engineered mounting positions for the three contactors required in a star-delta starter setup.
2. Increased Reliability: Ensures consistent and precise alignment of the contactors, which is crucial for the correct operation of interlocks and wiring.
3. Space Efficiency: Allows for a compact arrangement of contactors, optimizing panel space within the control cabinet.
4. SIRIUS System Compatibility: Seamlessly integrates with the wide range of Siemens SIRIUS industrial controls, ensuring high-quality performance and longevity.
5. Versatile Use: Accommodates common contactor size combinations ($3\times \text{S}2$ or $2\times \text{S}2+1\times \text{S}2$ equivalents within the specified 3RT2 series) for various motor power ratings.

Function

The primary function of the 3RA2932-2F base plate is to serve as a robust mechanical foundation for a star-delta contactor assembly. It secures the Main, Delta, and Star contactors (3RT2 series) in the correct relative positions and distance, facilitating the installation of pre-wired components or short-circuiting links required for the motor starter wiring.
