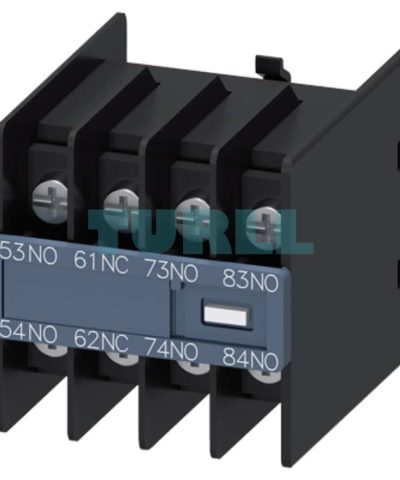

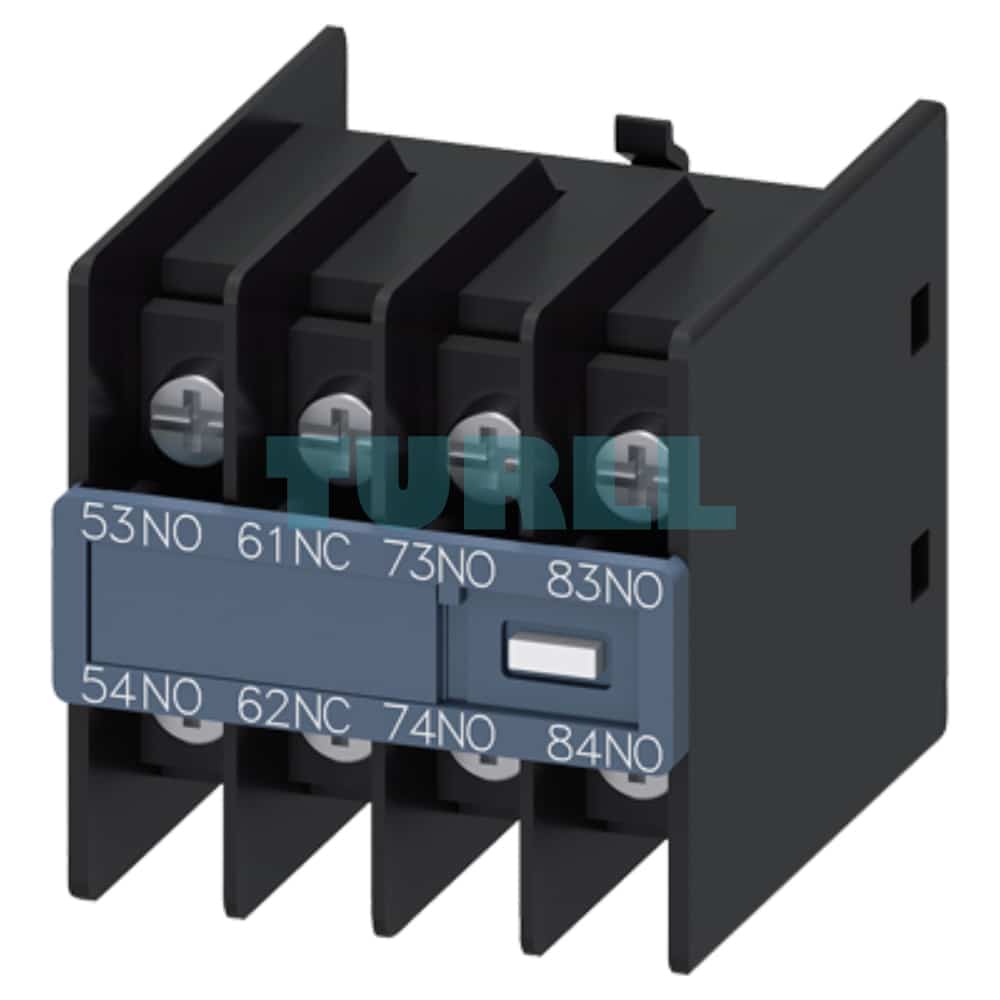

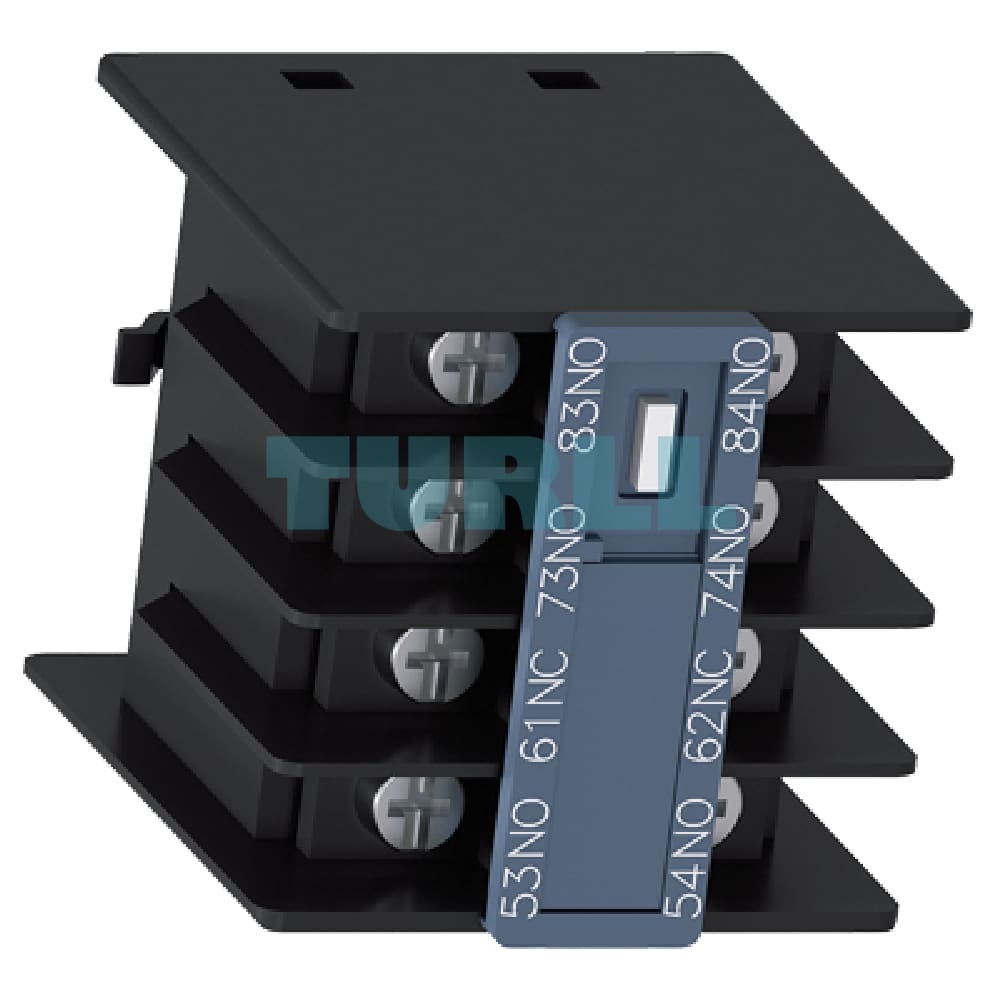

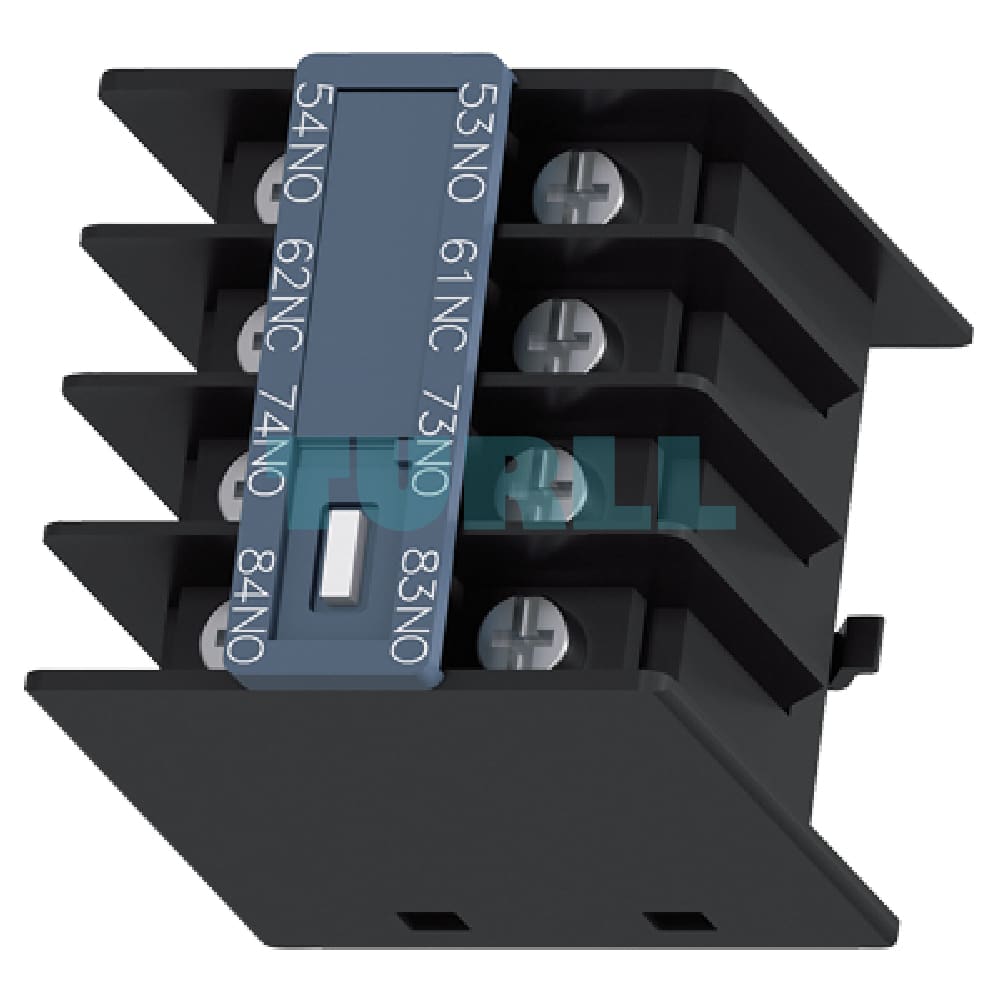

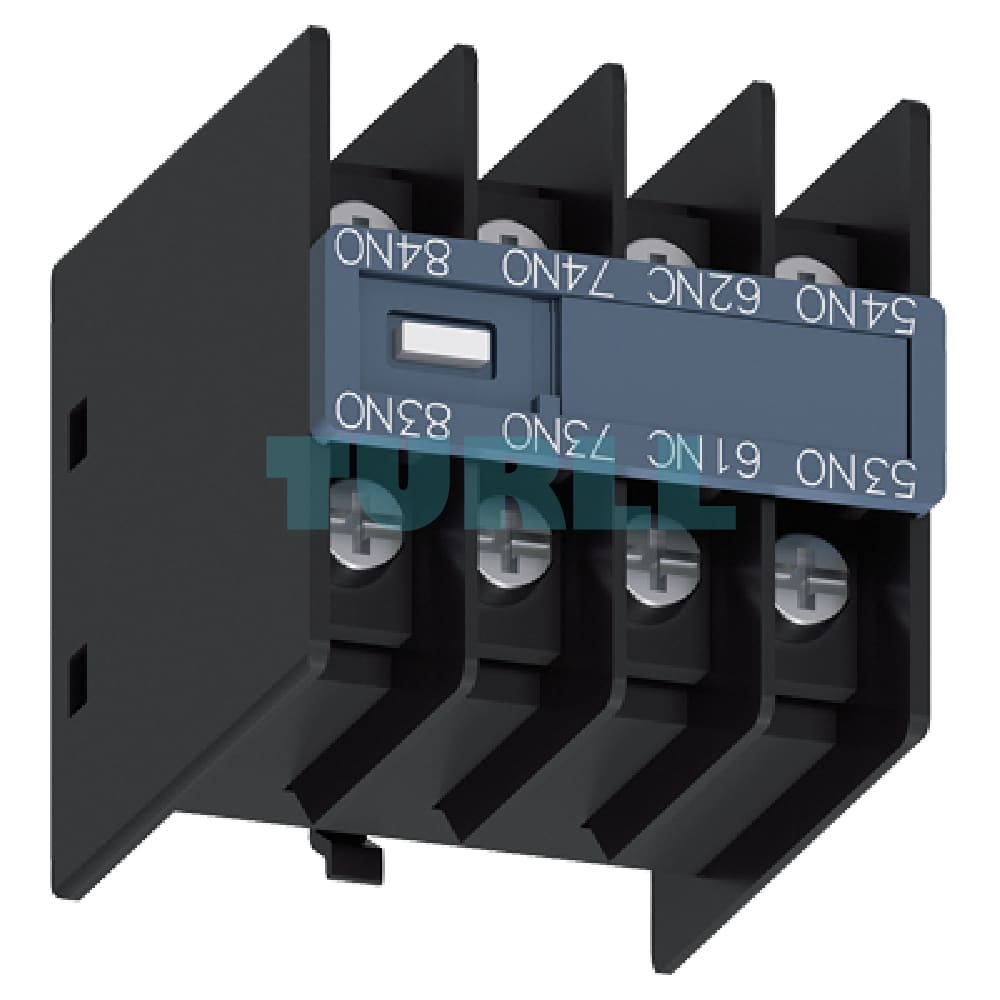

Siemens SIRIUS 3RH2911-4GA31 Front Auxiliary Switch Block, 3 NO + 1 NC, Ring Cable Lug Original Brand New

Overview

The Siemens SIRIUS 3RH2911-4GA31 is a high-quality, front-mountable auxiliary switch block designed for expanding the control circuit capabilities of specific Siemens contactor relays. Part of the reliable SIRIUS modular system, this auxiliary switch provides an additional 3 Normally Open (NO) and 1 Normally Closed (NC) contact configuration for monitoring and signaling functions within industrial control applications. It features a ring cable lug connection for robust and secure wiring and is physically coded to ensure correct installation.

Function

This auxiliary switch block serves to increase the number of available auxiliary contacts on compatible contactor relays. It translates the movement of the main contactor’s armature into a reliable signal, enabling complex control circuit logic, interlocking, status feedback, and signaling in automation and control systems. The specific $3\text{ NO}+1\text{ NC}$ configuration provides both closed-on-start (NO) and open-on-start (NC) signals simultaneously.

Benefit

• Enhanced Control Circuit Flexibility: Easily expands the number of auxiliary contacts for advanced control and monitoring.
• Reliable Performance: Part of the trusted Siemens SIRIUS modular system, ensuring high mechanical and electrical endurance.
• Secure Connection: Ring cable lug connection provides a highly robust and reliable wiring solution, ideal for environments subject to vibration.
• Simple Installation: Quick and easy tool-free snap-on mounting to the front of the base unit.
• Safety Compliance: Designed to meet international standards like EN 50011.

Application

The 3RH2911-4GA31 is essential for industrial control applications requiring:

• Status Indication and Signaling: Providing signals to PLCs, indicating contactor coil status.
• Interlocking Circuits: Ensuring safe operation by preventing simultaneous activation of conflicting devices (e.g., motor reversing circuits).
• Control Circuit Logic: Implementing complex relay logic sequences.
• Motor Control: Used in conjunction with 3RH2 Contactor Relays for reliable control of motors and loads.
