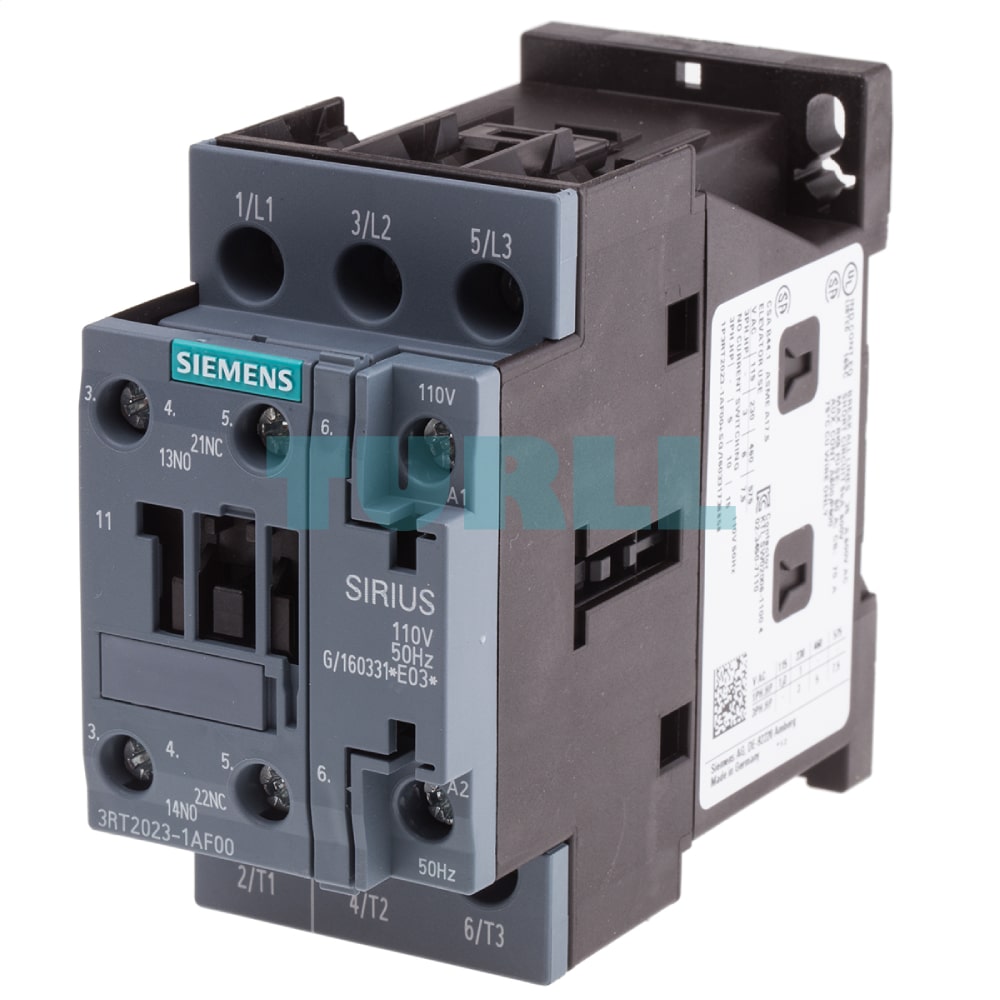

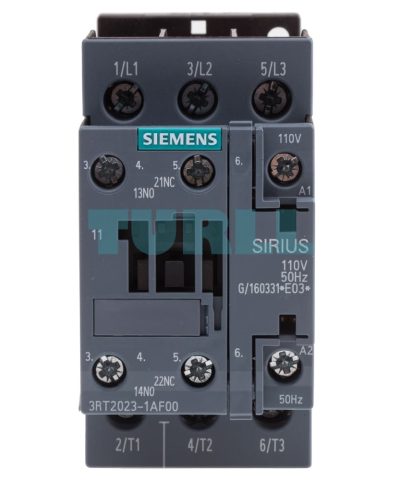

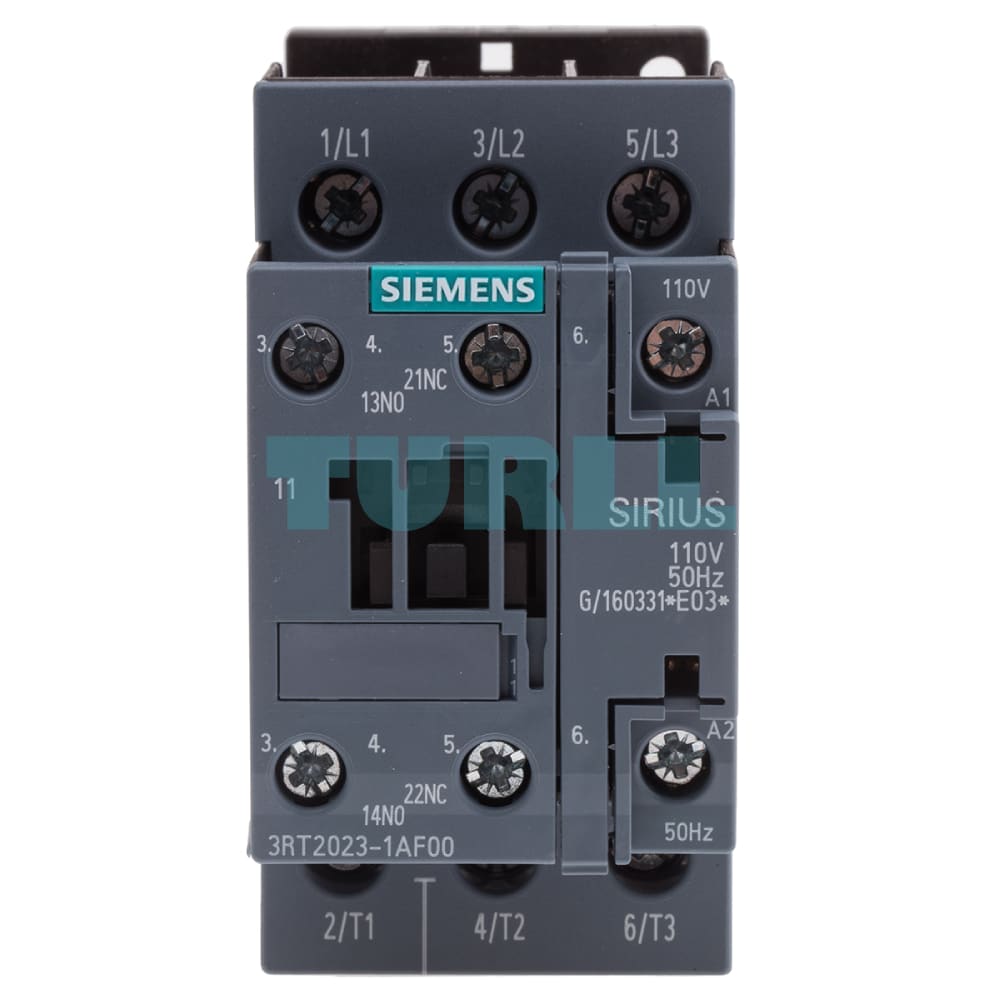

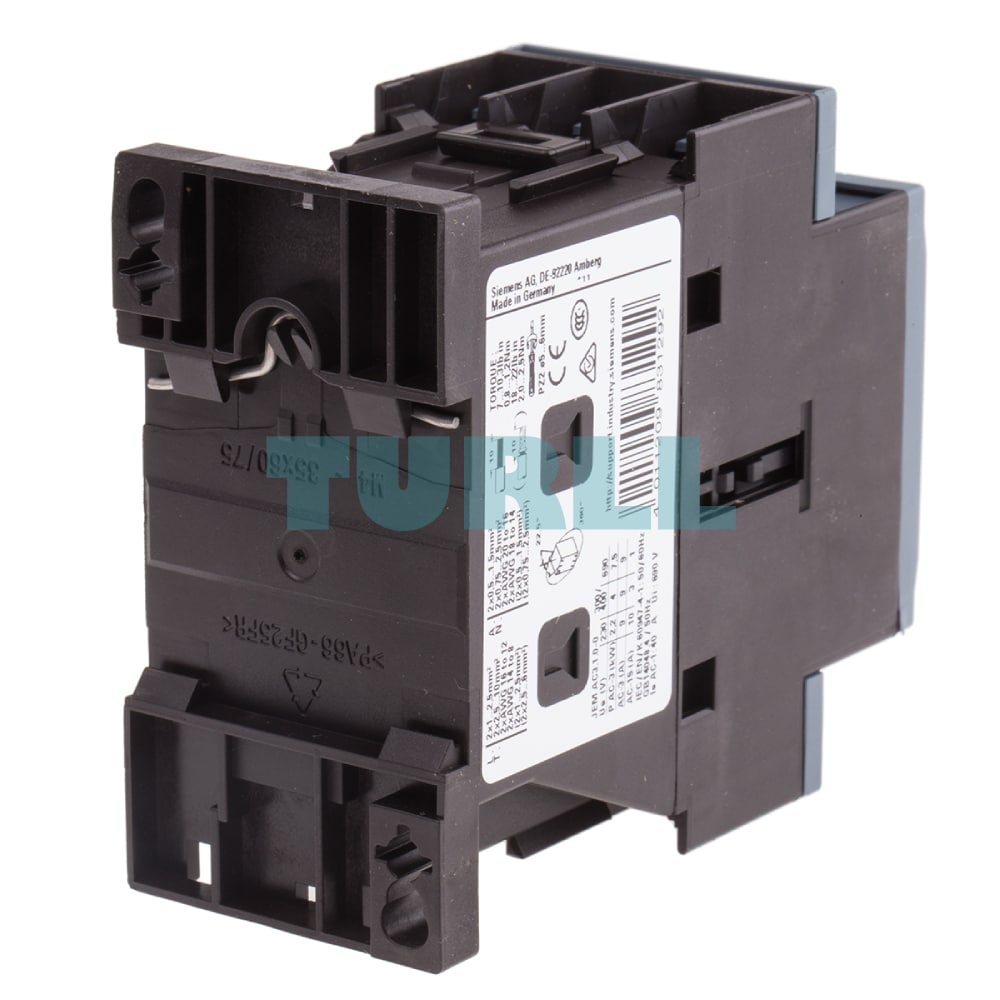

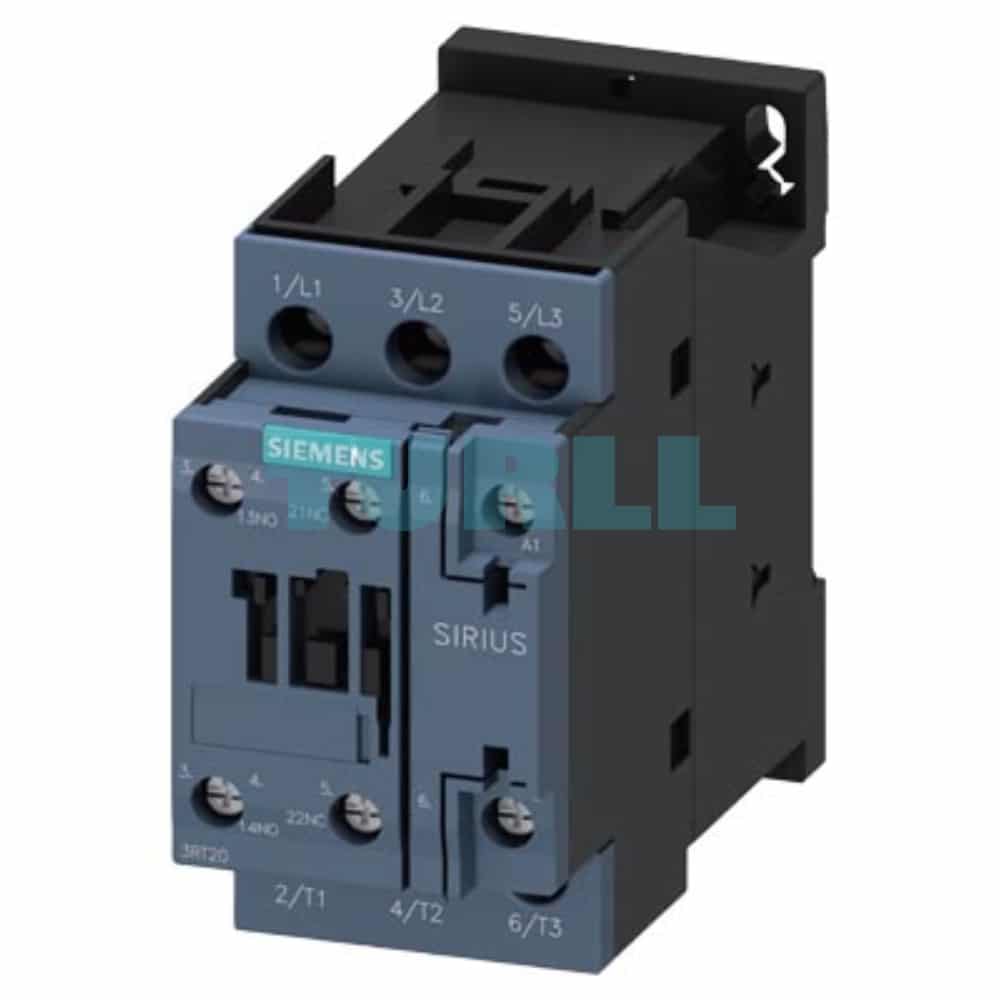

Siemens 3RT2023-1AF00 Power Contactor 9A, 4kW, 110V AC, Size S0 Original Brand New

Overview

The Siemens 3RT2023-1AF00 is a high-performance power contactor designed for reliable switching of motors and other electrical loads. As part of the SIRIUS 3RT2 series, this robust 3-pole contactor is engineered for AC-3e/AC-3 applications, offering a rated operational current of 9 A at 400 V and a rated power of 4 kW.

Its compact Size S0 design makes it ideal for space-constrained industrial panels and systems. Featuring a 110 V AC, 50 Hz coil and integrated 1 NO + 1 NC auxiliary contacts, it provides both switching power and control feedback in a single, convenient unit. The secure and reliable screw terminals ensure easy and durable wiring.

Key Features & Benefit

• High Performance & Reliability: Engineered for AC-3e/AC-3 applications, ensuring stable and reliable motor switching up to 9 A and 4 kW.
• Integrated Auxiliary Contacts: The built-in 1 NO (Normally Open) and 1 NC (Normally Closed) auxiliary contacts simplify wiring and provide essential status feedback for control circuits, reducing the need for separate components.
• Compact & Space-Saving Design: The Size S0 form factor is optimized for efficient use of panel space, allowing for higher density installations.
• Effortless Installation: Features intuitive screw terminals that provide a secure and robust connection, making installation and maintenance straightforward.
• Versatile Application: Suitable for a wide range of industrial applications including motor control, lighting, heating, and general-purpose switching.
• Global Standard Compliance: Meets global safety and performance standards, including IEC and EN, ensuring it can be used in diverse industrial environments worldwide.

Function

The Siemens 3RT2023-1AF00 power contactor functions as an electromechanical switch. When the 110 V AC control coil is energized, it closes the main power contacts, allowing current to flow to the connected load (e.g., an electric motor). Simultaneously, the integrated auxiliary contacts change state—the NO contact closes and the NC contact opens—to provide feedback to a PLC (Programmable Logic Controller), control relay, or other circuit, indicating the status of the main contacts. When the coil is de-energized, the main contacts open, cutting off power to the load, and the auxiliary contacts return to their original state.

Technical Specification

• Product Type: Power Contactor
• Product Number: 3RT2023-1AF00
• Rated Operational Current: 9 A (for AC-3e/AC-3 at 400 V)
• Rated Power: 4 kW (at 400 V)
• Number of Poles: 3
• Control Coil Voltage: 110 V AC, 50 Hz
• Auxiliary Contacts: 1 NO + 1 NC (Normally Open + Normally Closed)
• Terminal Type: Screw Terminal
• Frame Size: S0
• Series: SIRIUS 3RT2
