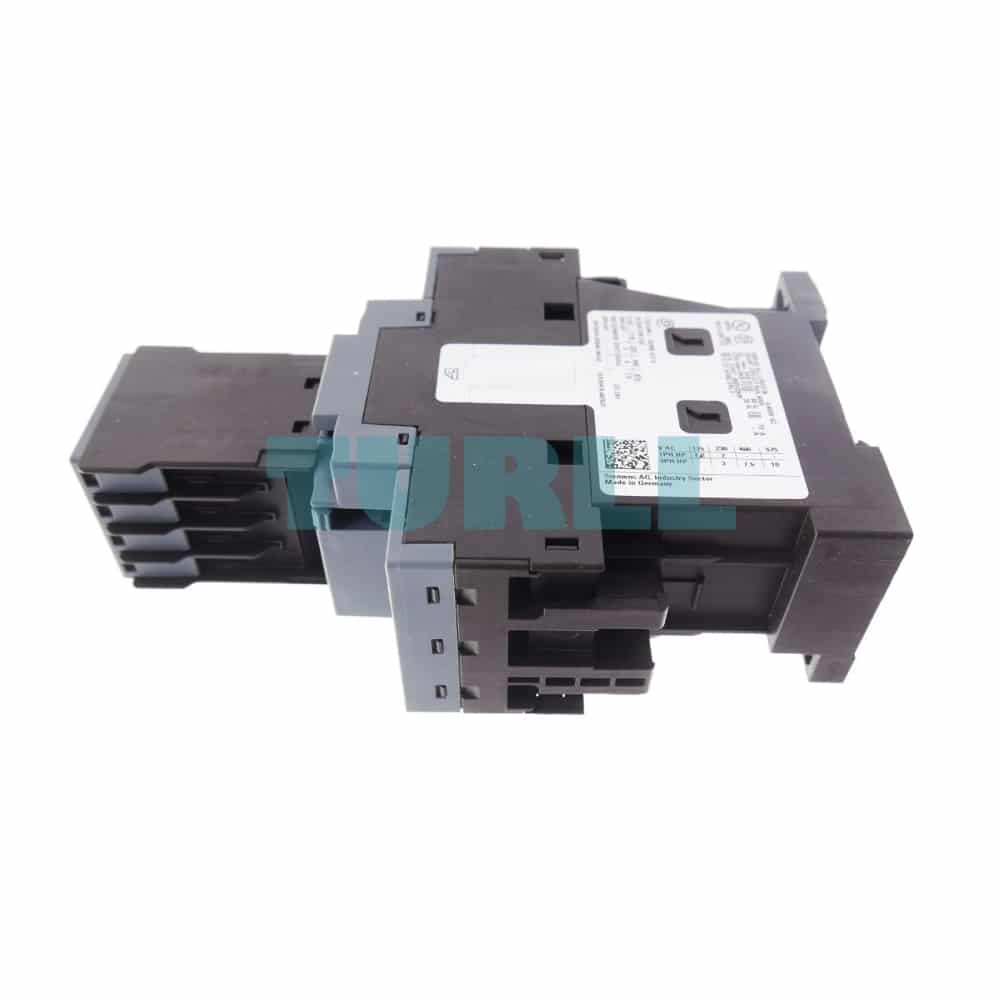

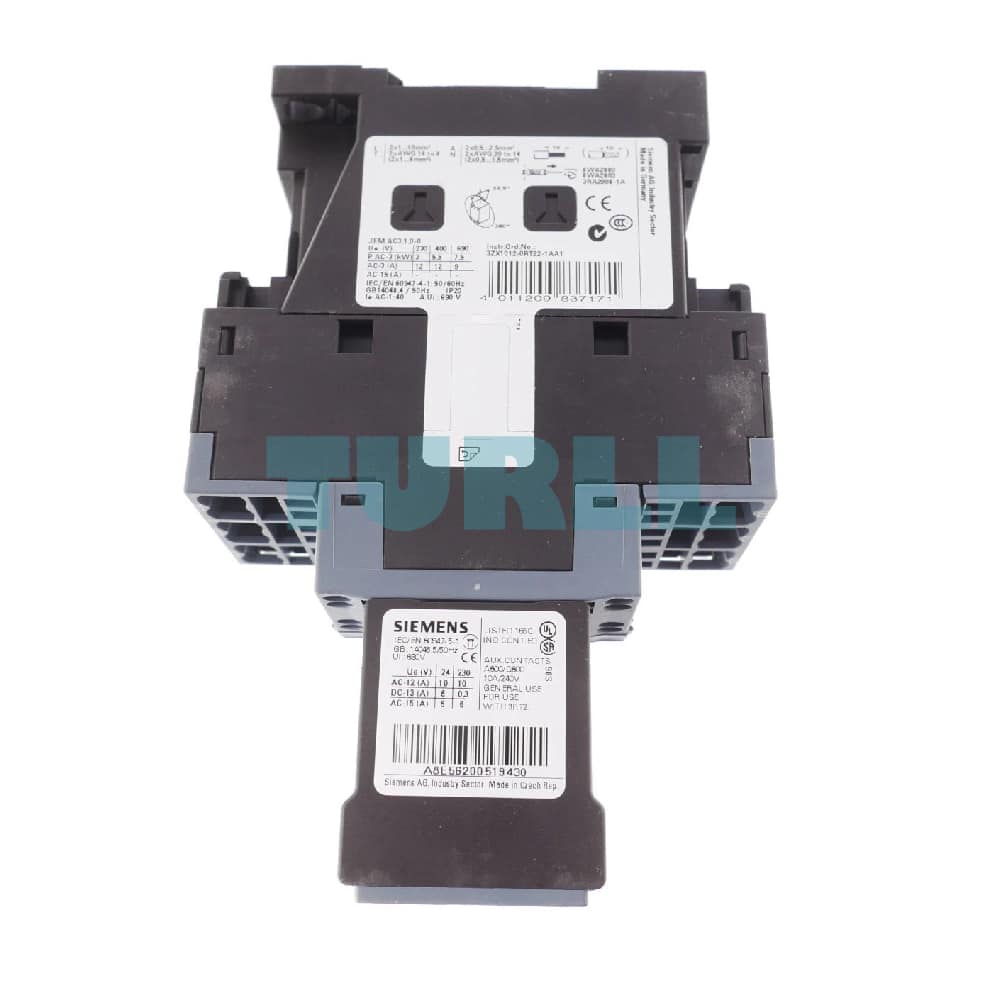

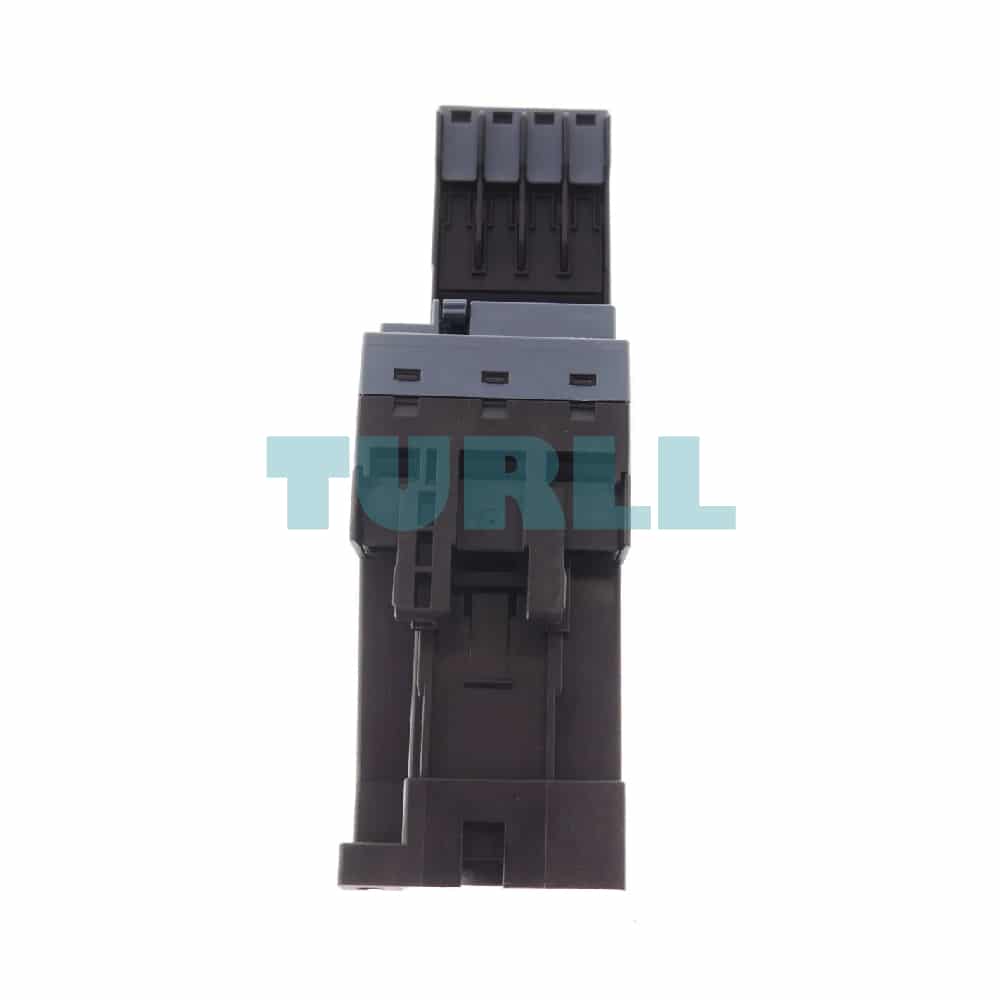

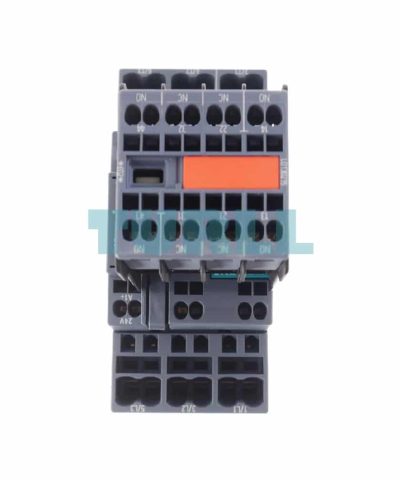

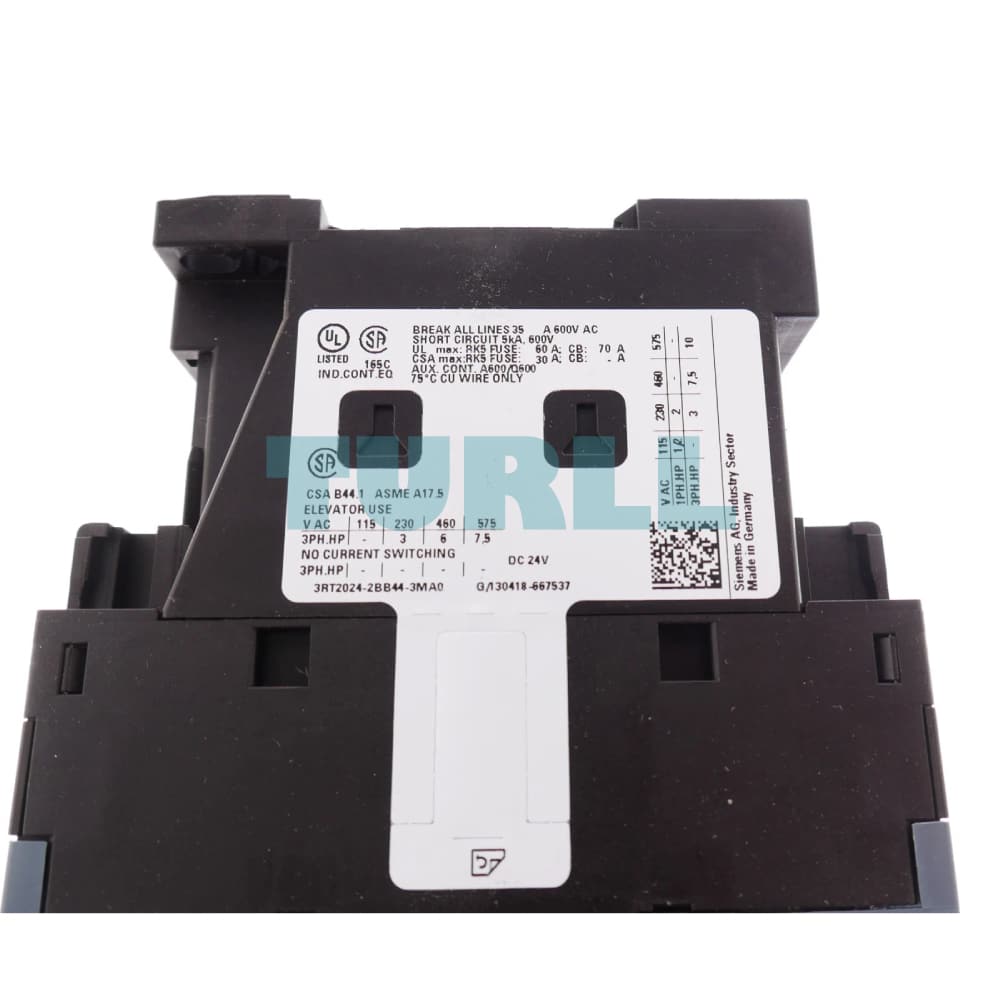

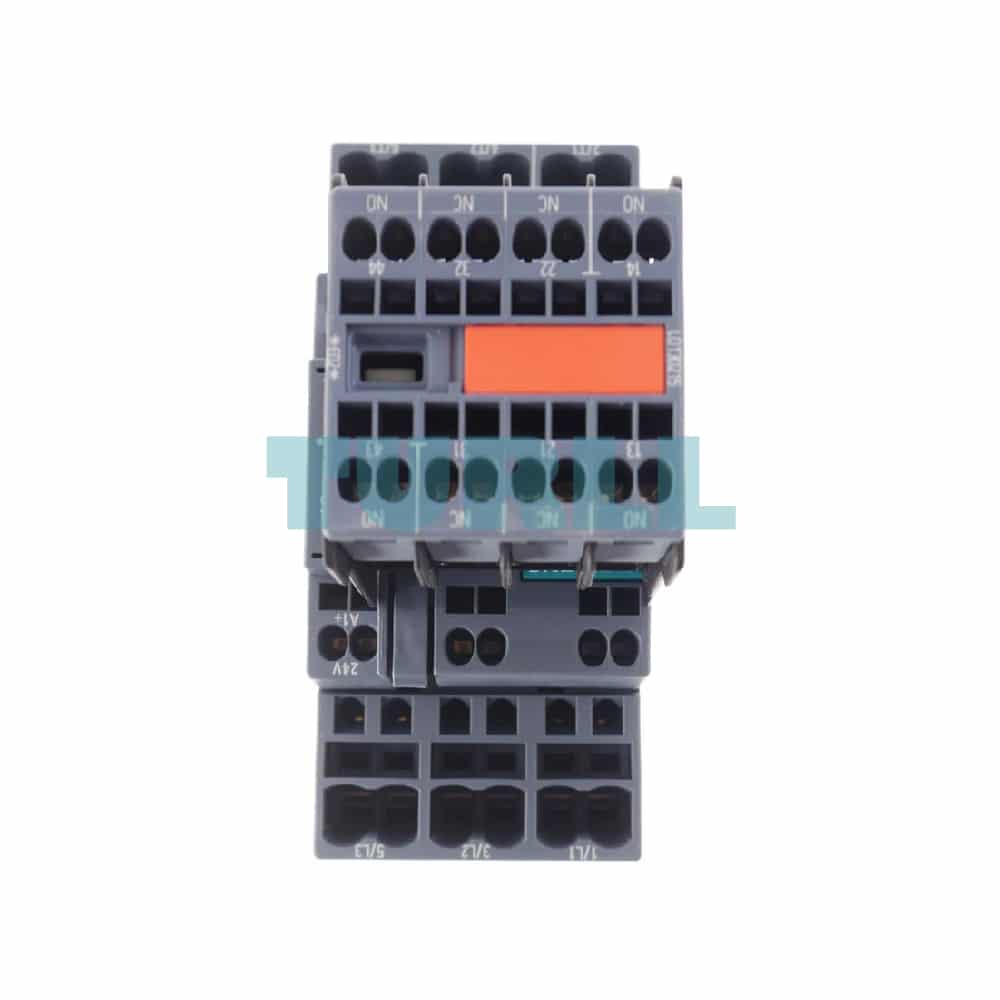

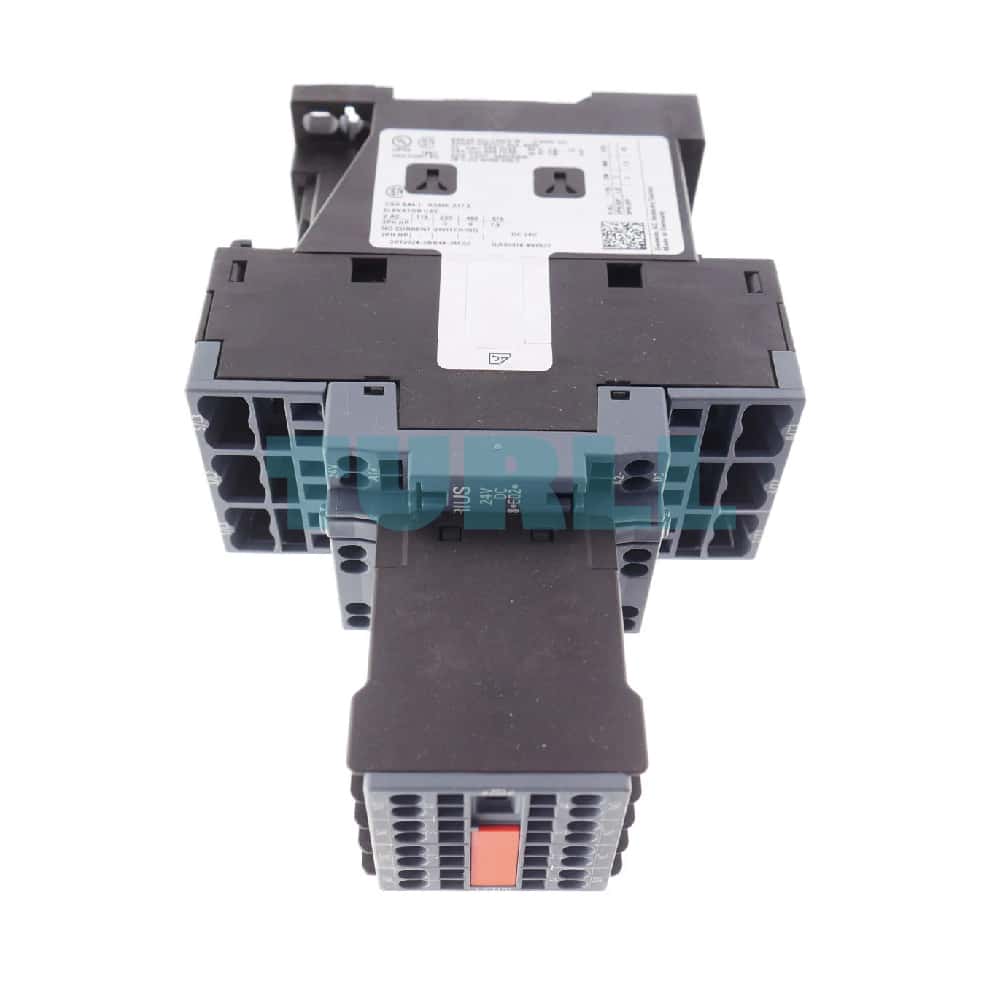

Siemens 3RT2024-2BB44-3MA0 Contactor 12A, 5.5kW, 24V DC, S0, Spring Original Brand New

Overview

The Siemens SIRIUS 3RT2024-2BB44-3MA0 Power Contactor is a high-quality, 3-pole switching device designed for reliable control of standard AC loads, particularly 3-phase motors up to 5.5 kW / 400 V (AC-3e/AC-3). Part of the compact and versatile SIRIUS 3RT2 series, this contactor is engineered for performance in industrial control applications. It features a robust 24 V DC operating coil and spring-loaded terminals for fast, reliable, and vibration-proof wiring.

Key Specification

• Product Number: 3RT2024-2BB44-3MA0
• Brand/Series: Siemens SIRIUS 3RT2
• Type: Power Contactor (Motor Contactor)
• Current Rating (AC-3e/AC-3): 12 A
• Power Rating: 5.5 kW at 400 V
• Coil Voltage: 24 V DC
• Auxiliary Contacts: 2 NO + 2 NC (Captive/Permanently Mounted)
• Size: S0
• Connection Type: Spring-loaded Terminal (Spring-type terminal)

Benefit

• Fast, Secure Wiring: Spring-loaded terminals offer a quick, maintenance-free, and highly vibration-proof connection, reducing installation time and increasing operational reliability compared to screw terminals.
• High Performance: Rated for switching motors up to 5.5 kW (400V) in accordance with the latest IEC standards (AC-3e/AC-3).
• Integrated Auxiliary Contacts: Features a captive auxiliary switch block with 2 Normally Open (NO) + 2 Normally Closed (NC) contacts, simplifying ordering and setup for common control circuit requirements.
• Compact Design (Size S0): Optimized dimensions for space-saving installation in control cabinets and panels.
• Global Standard Compliance: Approved worldwide (e.g., IEC, UL/CSA) and IE3/IE4-ready, ensuring suitability for global projects.

Function & Application

The Siemens 3RT2024-2BB44-3MA0 functions primarily as a dependable switch for electrical loads. Its main purpose is the frequent switching of 3-phase motors and other resistive or highly inductive loads (load class AC-3e/AC-3).

Application

• Switching and control of industrial 3-phase motors.
• Controlling heating, ventilation, and air conditioning (HVAC) systems.
• Operating pumps, fans, and conveyor systems.
• Use in motor starter combinations (reversing starters, star-delta starters) within the SIRIUS modular system.

Compatibility and Notes

• Coil Type: The 24 V DC coil provides precise and reliable operation.
• Surge Protection: This specific model features a captive auxiliary switch but cannot be retrofitted with an external surge suppressor (e.g., varistor, diode) due to its specific configuration. If surge suppression is required, a different model from the 3RT2 series should be selected or external suppression implemented.
• Accessories: Compatible with the extensive range of SIRIUS 3RT2 series accessories for overload protection (thermal relays), auxiliary switching, and function modules (except for surge suppressors on this specific part).
