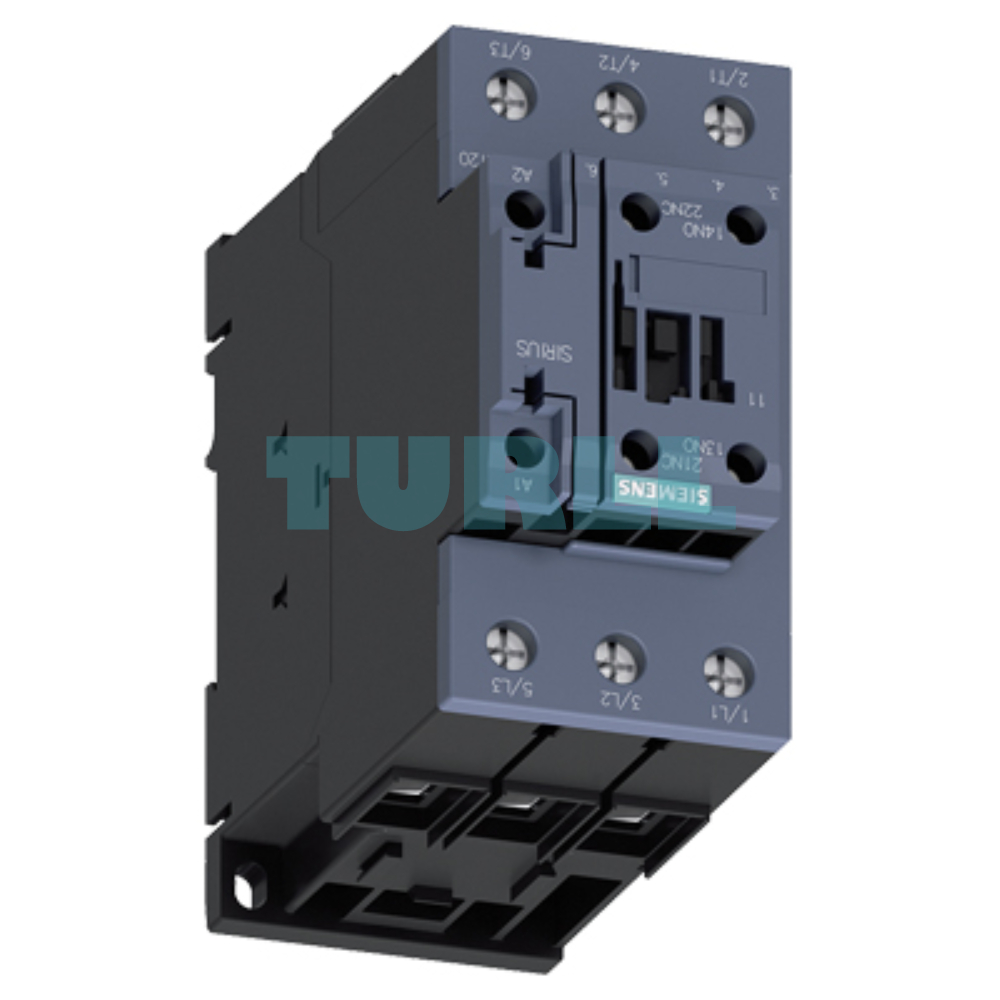

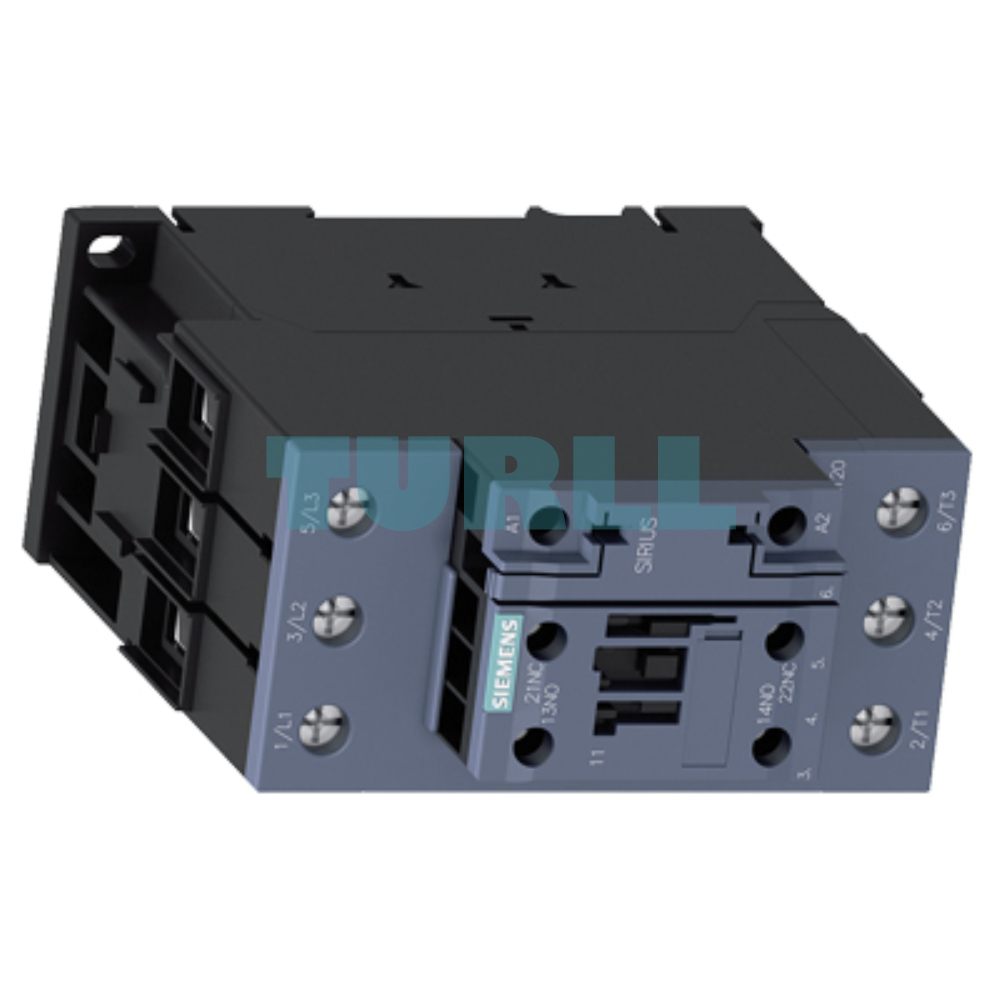

Siemens 3RT2035-1AP00-1AA0 Power Contactor AC-3e/AC-3, 41A, 18.5kW, 230V AC, Size S2 Original Brand New

Overview

The Siemens 3RT2035-1AP00-1AA0 is a high-performance industrial power contactor designed for reliable motor control applications in demanding environments. Belonging to the renowned Siemens SIRIUS series, this 3-pole contactor supports AC-3e/AC-3 switching categories, making it ideal for switching and controlling three-phase motors up to 18.5 kW at 400 V.
Engineered for durability, safety, and efficiency, it features 41 A rated operational current, built-in 1 NO + 1 NC auxiliary contacts, and a 230 V AC, 50 Hz coil, ensuring dependable operation in various automation and industrial systems.

Key Technical Specifications

• Product Number: 3RT2035-1AP00-1AA0

• Series: SIRIUS 3RT2

• Type: Power Contactor (Motor Starter)

• Operating Current (Ie): 41 A (AC-3e/AC-3)

• Operating Power (Pe): 18.5 kW at 400 V

• Poles: 3-pole main circuit

• Coil Voltage (Control Supply): 230 V AC, 50 Hz

• Auxiliary Contacts: Integrated 1 NO (Normally Open) + 1 NC (Normally Closed)

• Connection Type: Screw Terminal

• Size: S2

• Mounting Position: Upright

Benefit

• High Switching Reliability – Designed to ensure long-lasting, stable motor control operations under AC-3e/AC-3 loads.

• Energy-Efficient Operation – Optimized coil design reduces energy consumption and operating temperature.

• Flexible Installation – Upright mounting position and compact S2 size fit seamlessly into control panels.

• Enhanced Safety – Included auxiliary contacts (1 NO + 1 NC) support additional signaling and protection functions.

• Robust Build Quality – Made from premium Siemens components for extended service life in harsh industrial conditions.
