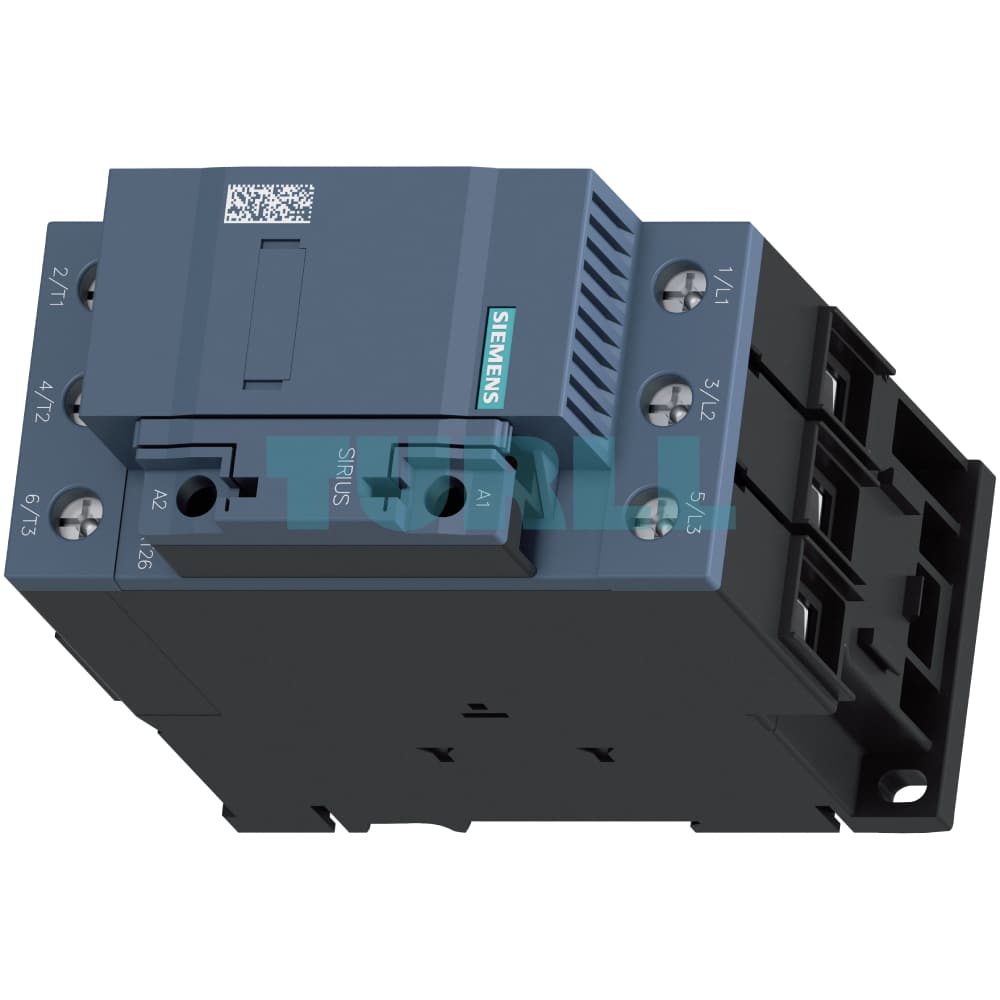

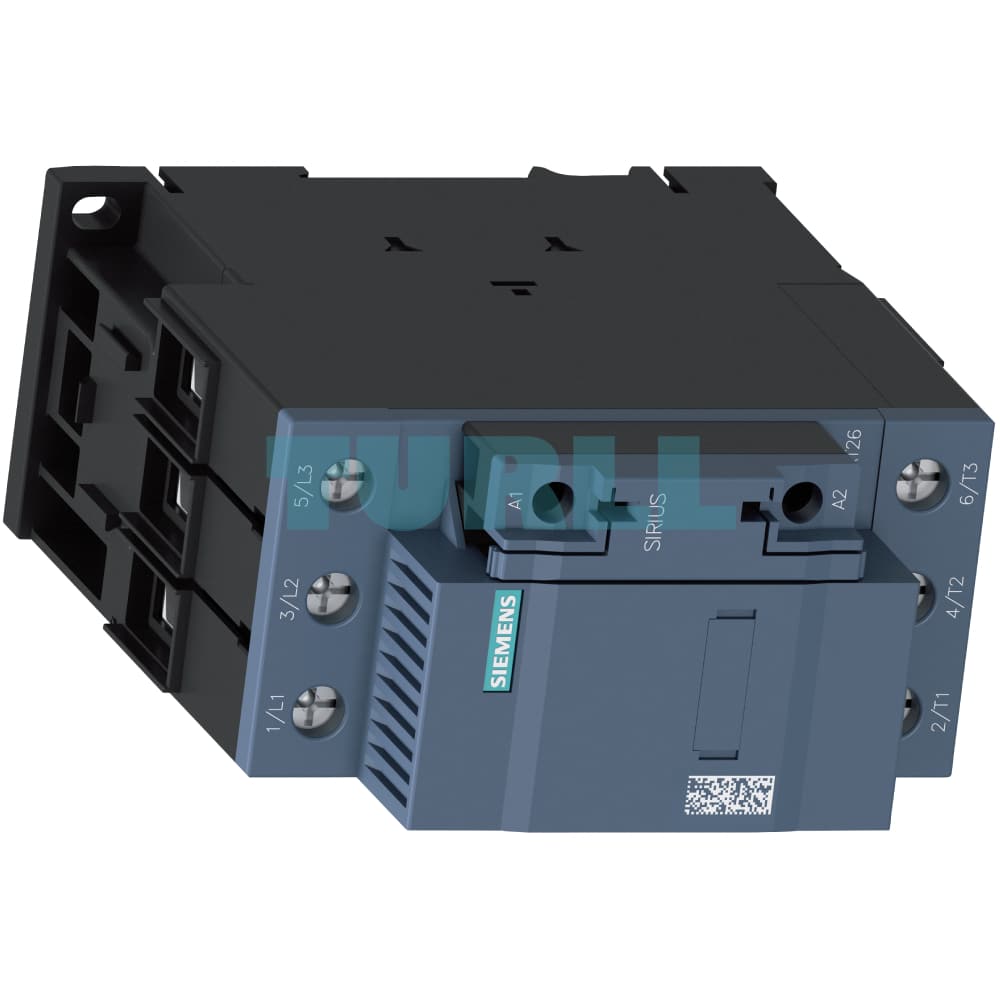

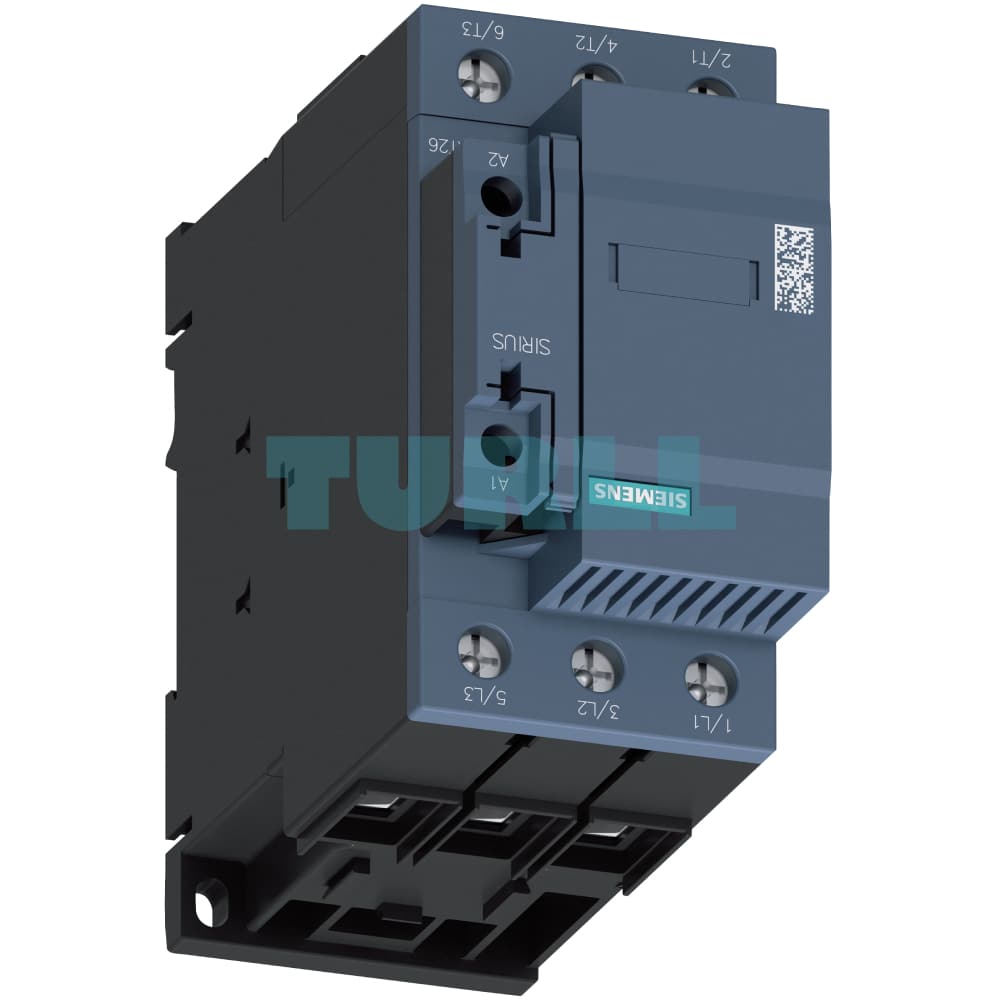

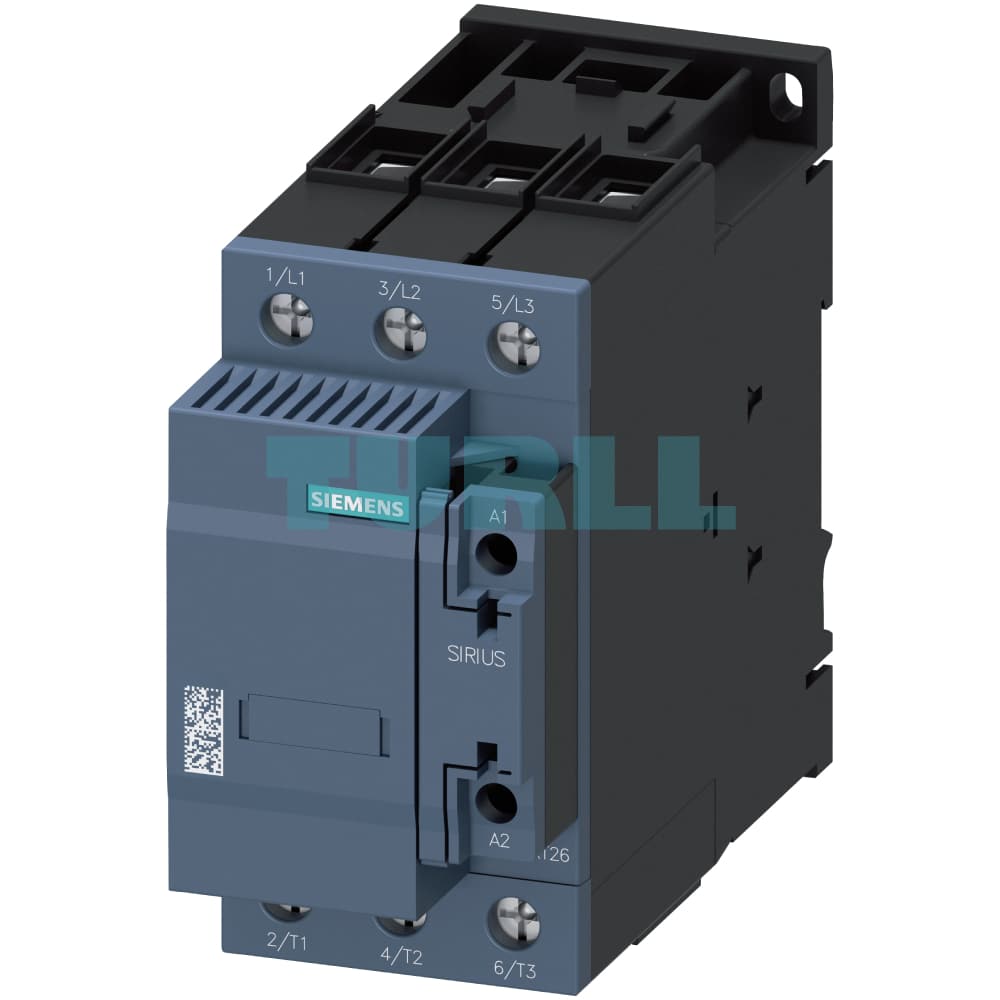

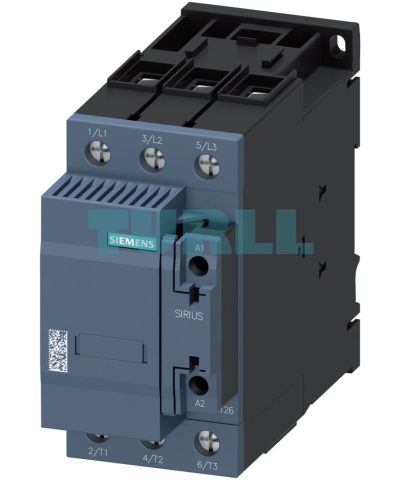

Siemens 3RT2637-1AL23 SIRIUS Capacitor Contactor for 75 kVAr, 400V S2 Size with 1 NO + 1 NC Auxiliary Contact Original Brand New

Overview

The Siemens 3RT2637-1AL23 is a high-performance SIRIUS capacitor contactor, specifically designed for switching capacitive loads up to 75 kVAr at 400 V. This robust 3-pole contactor, size S2, is engineered for reliable operation in reactive current compensation systems and for switching converters.

It operates with a 230 V AC, 50/60 Hz control supply voltage and features integrated precharging resistors to mitigate inrush current peaks, ensuring the longevity of your equipment and the stability of your power network. The unit comes equipped with a 1 NO + 1 NC auxiliary contact configuration and features convenient screw terminals for secure wiring.

Key Benefits

• Optimized for Capacitive Loads: The built-in precharging resistors effectively limit peak charging currents (AC-6b), minimizing stress on capacitors and the power grid.
• Enhanced System Stability: By reducing inrush currents, the contactor helps prevent voltage sags and harmonics, contributing to a more stable and reliable power supply.
• Durable and Reliable: Built to IEC standards, this contactor offers a long service life and dependable performance in demanding industrial applications.
• Easy Integration: The compact size S2 and screw terminal connections facilitate straightforward installation into existing control panels and systems.
• Versatile Application: Ideal for use in reactive power compensation panels, power factor correction systems, and for switching various types of converters.

Key Functions

• Capacitive Load Switching (AC-6b): Designed to handle the unique challenges of switching capacitors, ensuring smooth and safe operation.
• Precharging Resistor Function: Leading auxiliary contacts engage precharging resistors before the main contacts close, limiting inrush currents and protecting components.
• Auxiliary Contacts: The 1 NO + 1 NC auxiliary contacts provide flexibility for signaling, interlocking, and control circuit integration.
• Short-Circuit and Overload Protection: While the contactor itself is robust, proper external protection measures are crucial. The product is designed to be paired with suitable fuses or circuit breakers for comprehensive short-circuit and overload protection of all connections (main, auxiliary, and control).
• Overvoltage Protection: The control circuit can be retrofitted with optional surge suppressors (RC elements, varistors, diodes) to dampen opening surges and protect the coil.

Standards and Compliance

The Siemens 3RT2637-1AL23 capacitor contactor meets the stringent requirements of international standards, including:

• IEC 60947-1
• IEC 60947-4-1
• IEC 60947-5-1
• IEC 60831-1
• IEC 61921

Installation and Safety

For safe and reliable operation, all connections must be protected against overload and short circuits. Refer to the technical product data sheet and configuration manuals for detailed information on how to select and dimension suitable protection devices.

The device is designed to be compatible with a range of surge suppressors and auxiliary switches, which can be ordered separately to enhance its functionality.
