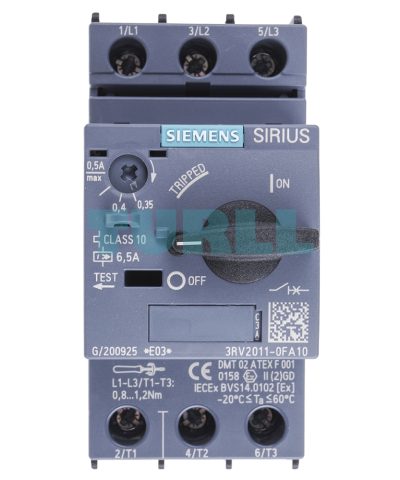

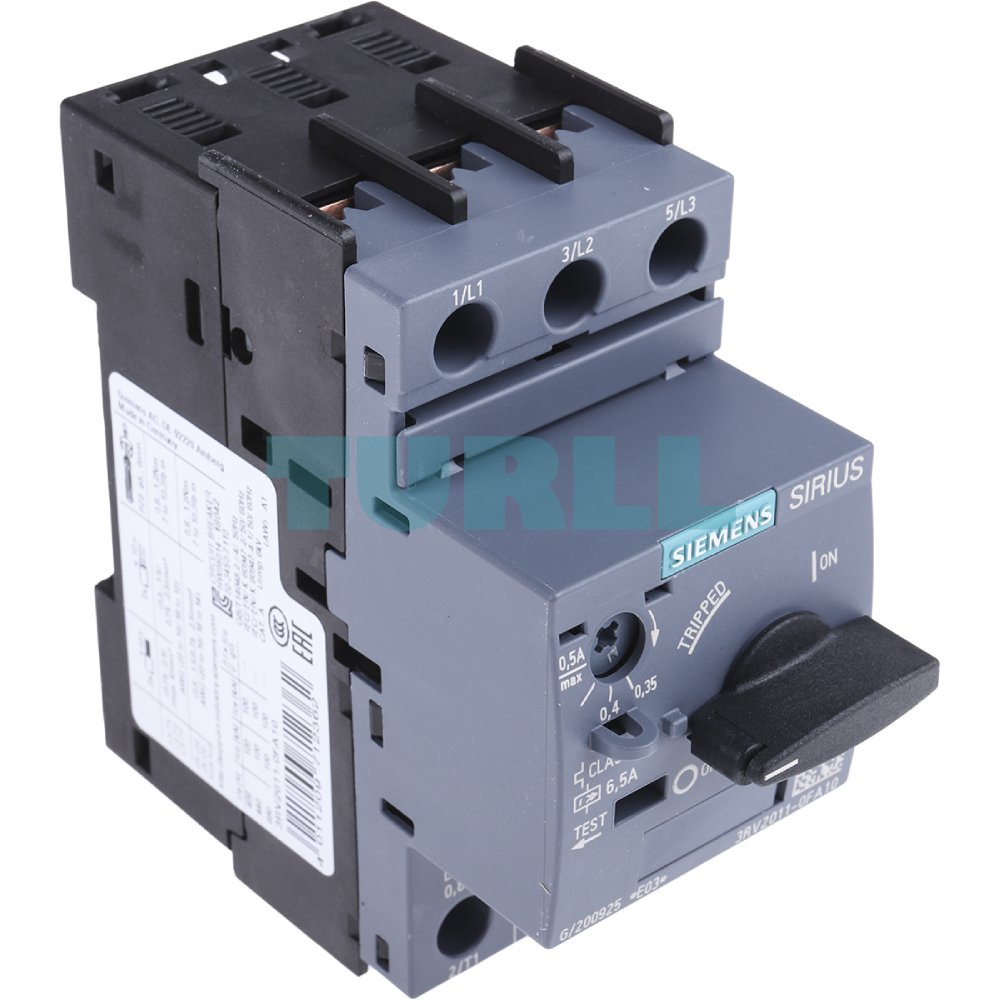

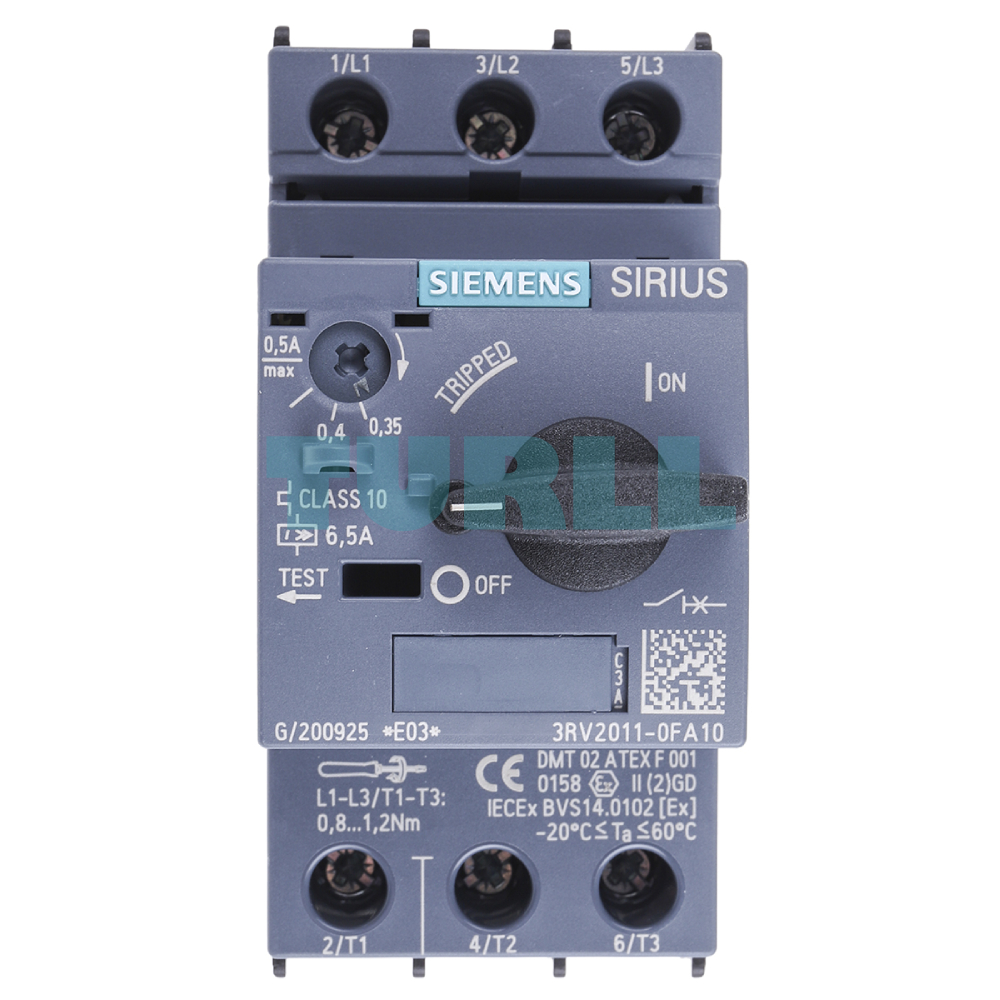

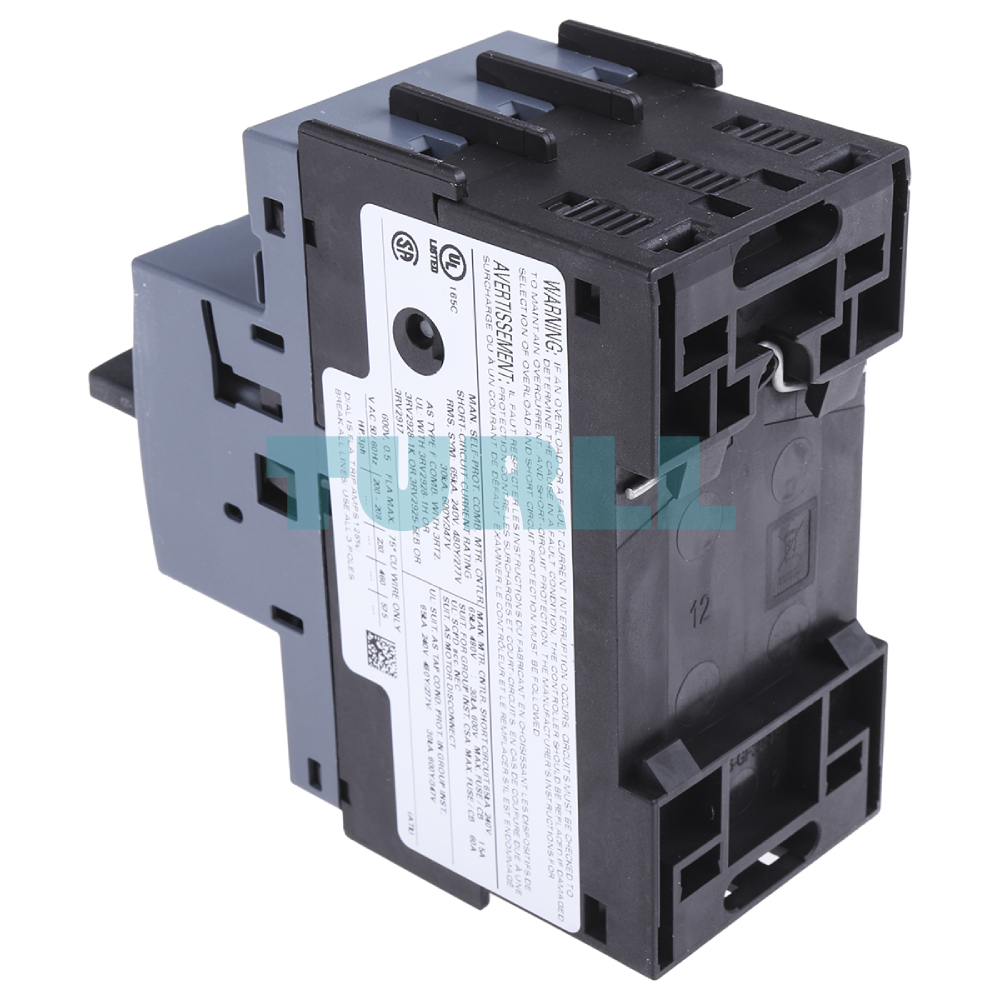

Siemens 3RV2011-0FA10 is a compact SIRIUS Motor Protection Circuit Breaker (MPCB) in size S00. It offers reliable, Class 10 thermal protection for motors up to 0.5 A, featuring an adjustable 0.35 to 0.5 A overload release and a fixed 6.5 A magnetic short-circuit release, all with standard screw terminals.
The Siemens 3RV2011-0FA10 motor protection circuit breaker is engineered for precision control and dependable protection of small motors across industrial, commercial, and automated applications. As part of the well-established Siemens 3RV2 series, this device provides comprehensive protection against overloads and short circuits while ensuring the smooth operation of motors.
Its CLASS 10 characteristic allows quick tripping under overload, preventing motor damage and minimizing downtime. The compact S00 frame size offers flexibility in control panel layouts, while the screw terminal connection ensures secure and simple wiring. With a thermal overload range of 0.35…0.5 A and magnetic trip at 6.5 A, the 3RV2011-0FA10 is optimized for precise performance in a wide range of industrial systems.
Reliable Motor Protection – Protects motors from overload, short circuits, and phase failures.
High Durability – Engineered with Siemens’ robust components for long service life.
Accurate Thermal Release (CLASS 10) – Ensures fast response to overload conditions.
Space-Saving S00 Size – Compact design suitable for tight industrial panels.
Easy Installation – Screw terminal design simplifies wiring and reduces installation time.
Stable Performance – Standard switching capacity ensures consistent operation in demanding environments.
A-Release (Thermal Overload): 0.35…0.5 A
N-Release (Magnetic Short-Circuit): 6.5 A
Size: S00
CLASS 10 tripping characteristic
Standard switching capacity
Screw terminal connections
Ideal for small motor loads and industrial control panels
Visit 3RV2011-0FA10 for more detail info
For more our products visit turll

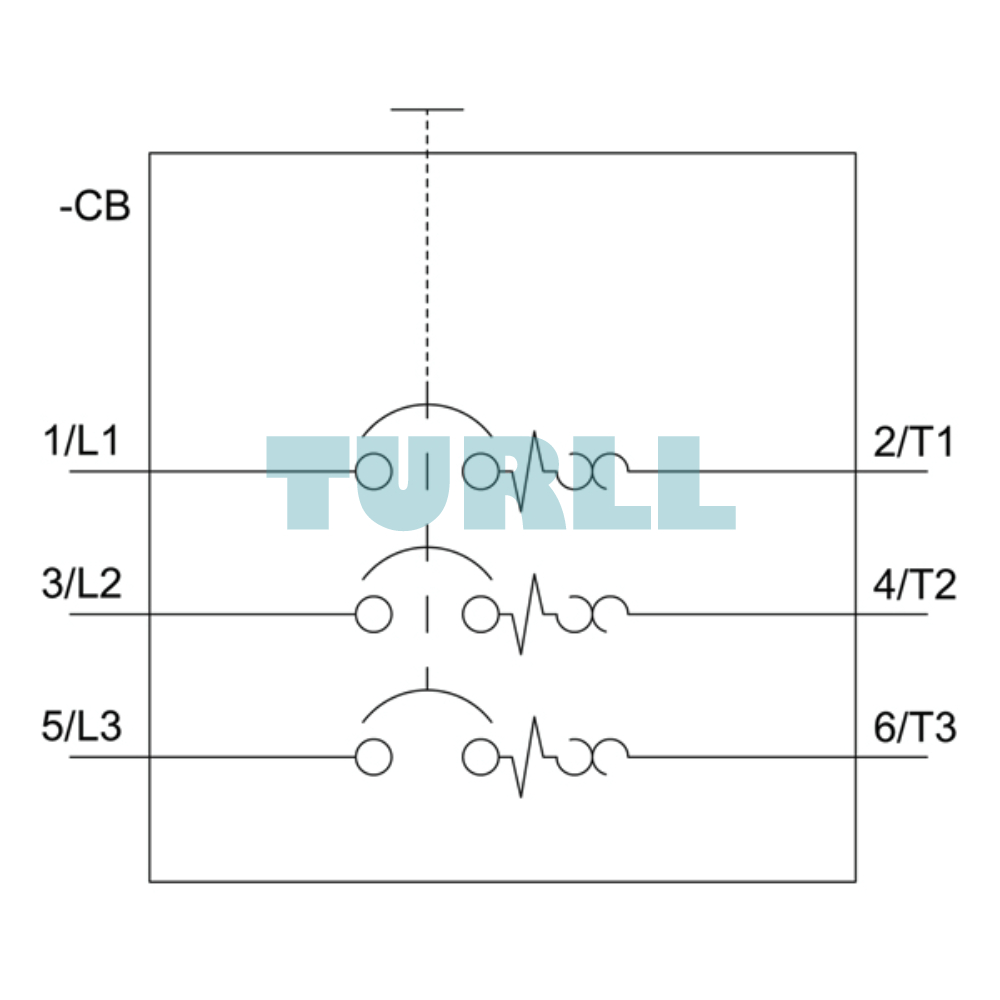

| SKU / Model | 3RV2011-0FA10 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS |
| product designation | Circuit breaker |
| design of the product | For motor protection |
| product type designation | 3RV2 |
| size of the circuit-breaker | S00 |
| size of contactor can be combined company-specific | S00, S0 |
| product extension auxiliary switch | Yes |
| power loss [W] for rated value of the current | - |
| ● at AC in hot operating state | 5.5 W |
| ● at AC in hot operating state per pole | 1.8 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for safe isolation in networks with grounded star point | - |
| ● between main and auxiliary circuit | 400 V |
| shock resistance acc. to IEC 60068-2-27 | 25g / 11 ms |
| mechanical service life (switching cycles) | - |
| ● of the main contacts typical | 100 000 |
| ● of auxiliary contacts typical | 100 000 |
| electrical endurance (switching cycles) typical | 100 000 |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| reference code acc. to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | - |
| ● during operation | -20 ... +60 °C |
| ● during storage | -50 ... +80 °C |
| ● during transport | -50 ... +80 °C |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 0.35 ... 0.5 A |
| operating voltage | - |
| ● rated value | 20 ... 690 V |
| ● at AC-3 rated value maximum | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 0.5 A |
| operational current at AC-3 at 400 V rated value | 0.5 A |
| operating power at AC-3 | - |
| ● at 230 V rated value | 0.1 kW |
| operating frequency at AC-3 maximum | 15 1/h |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| product function | - |
| ● ground fault detection | No |
| ● phase failure detection | Yes |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| breaking capacity operating short-circuit current (Ics) at AC | - |
| ● at 240 V rated value | 100 kA |
| ● at 400 V rated value | 100 kA |
| ● at 500 V rated value | 100 kA |
| ● at 690 V rated value | 100 kA |
| breaking capacity maximum short-circuit current (Icu) | - |
| ● at AC at 240 V rated value | 100 kA |
| ● at AC at 400 V rated value | 100 kA |
| ● at AC at 500 V rated value | 100 kA |
| ● at AC at 690 V rated value | 100 kA |
| response value current of instantaneous short-circuit trip unit | 6.5 A |
| full-load current (FLA) for 3-phase AC motor | - |
| ● at 480 V rated value | 0.5 A |
| ● at 600 V rated value | 0.5 A |
| product function short circuit protection | Yes |
| design of the short-circuit trip | magnetic |
| design of the fuse link for IT network for short-circuit protection of the main circuit | - |
| ● at 690 V | gL/gG 4 A |
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| required spacing | - |
| ● for grounded parts at 400 V | - |
| ● for live parts at 400 V | - |
| ● for grounded parts at 500 V | - |
| ● for live parts at 500 V | - |
| ● for grounded parts at 690 V | - |
| ● for live parts at 690 V | - |
| — downwards | 50 mm |
| — upwards | 50 mm |
| — backwards | 0 mm |
| — at the side | 30 mm |
| — forwards | 0 mm |
| product component removable terminal for auxiliary and control circuit | No |

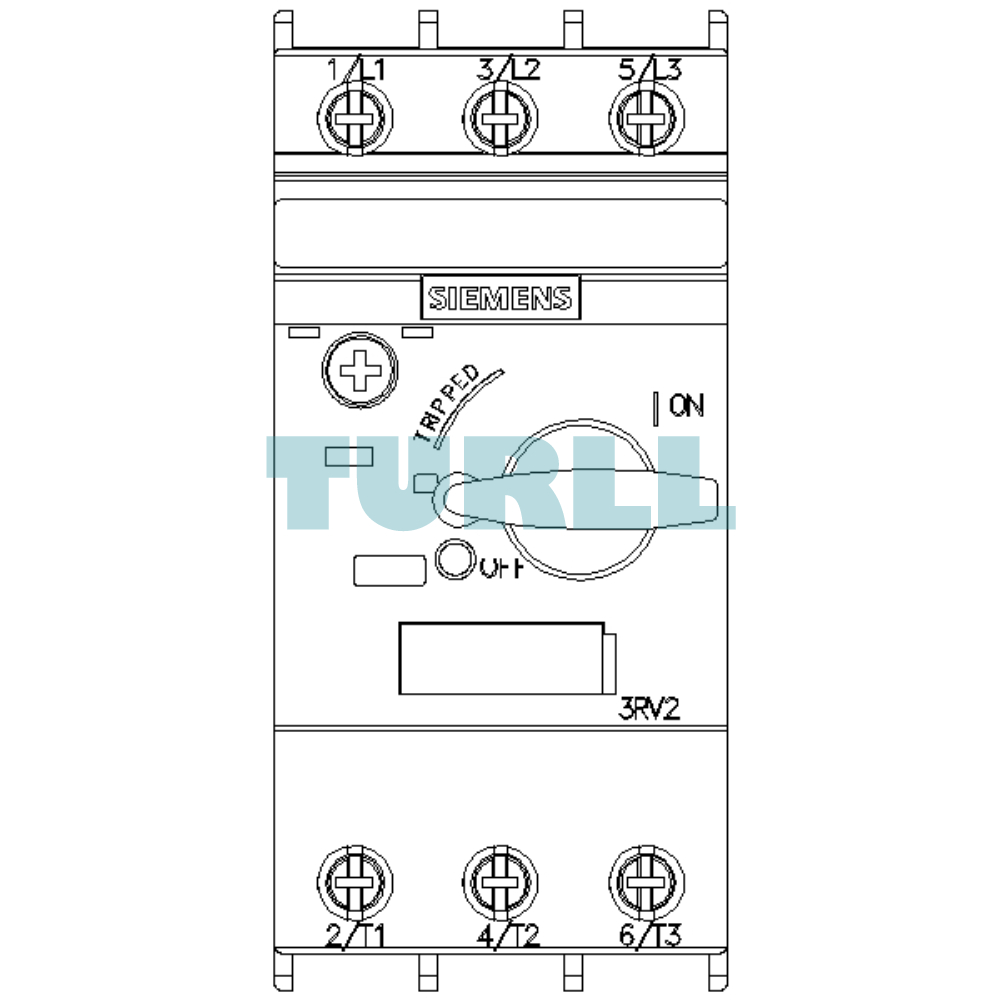

| type of electrical connection | - |
| ● for main current circuit | screw-type terminals |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| type of connectable conductor cross-sections | - |
| — solid or stranded | 2x (0,75 ... 2,5 mm²), 2x 4 mm² |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| ● at AWG cables for main contacts | 2x (18 ... 14), 2x 12 |
| tightening torque | - |
| ● for main contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| design of screwdriver shaft | Diameter 5 to 6 mm |
| size of the screwdriver tip | Pozidriv 2 |
| design of the thread of the connection screw | - |
| ● for main contacts | M3 |
| B10 value | - |
| proportion of dangerous failures | - |
| ● with high demand rate acc. to SN 31920 | 50 % |
| failure rate [FIT] | - |
| ● with low demand rate acc. to SN 31920 | 50 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 10 y |
| protection class IP on the front acc. to IEC 60529 | IP20 |
| touch protection on the front acc. to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Handle |
| For use in hazardous locations | Test Certificates Declaration of Conformity |
| last modified: | 11/16/2021 |
| Weight | 0.300 kg |
| Dimensions | 49.00 × 102.00 × 102.00 mm |
