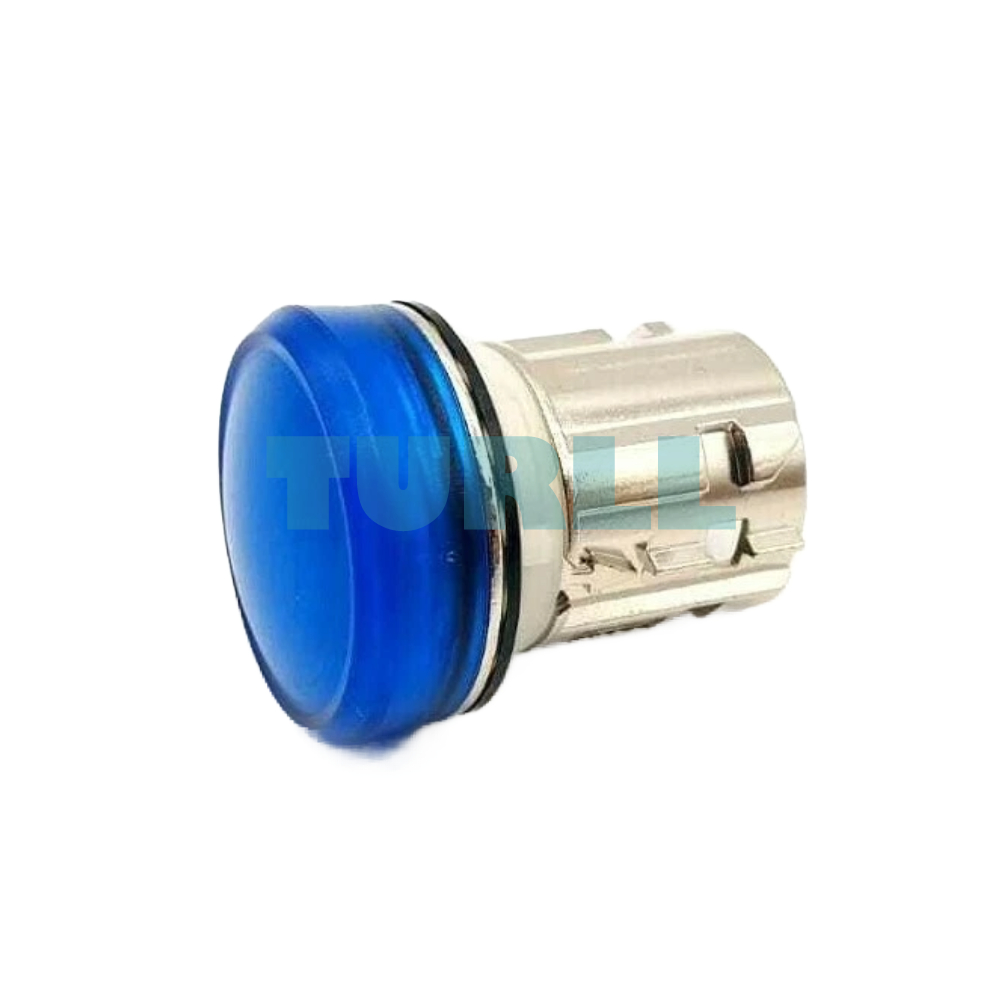

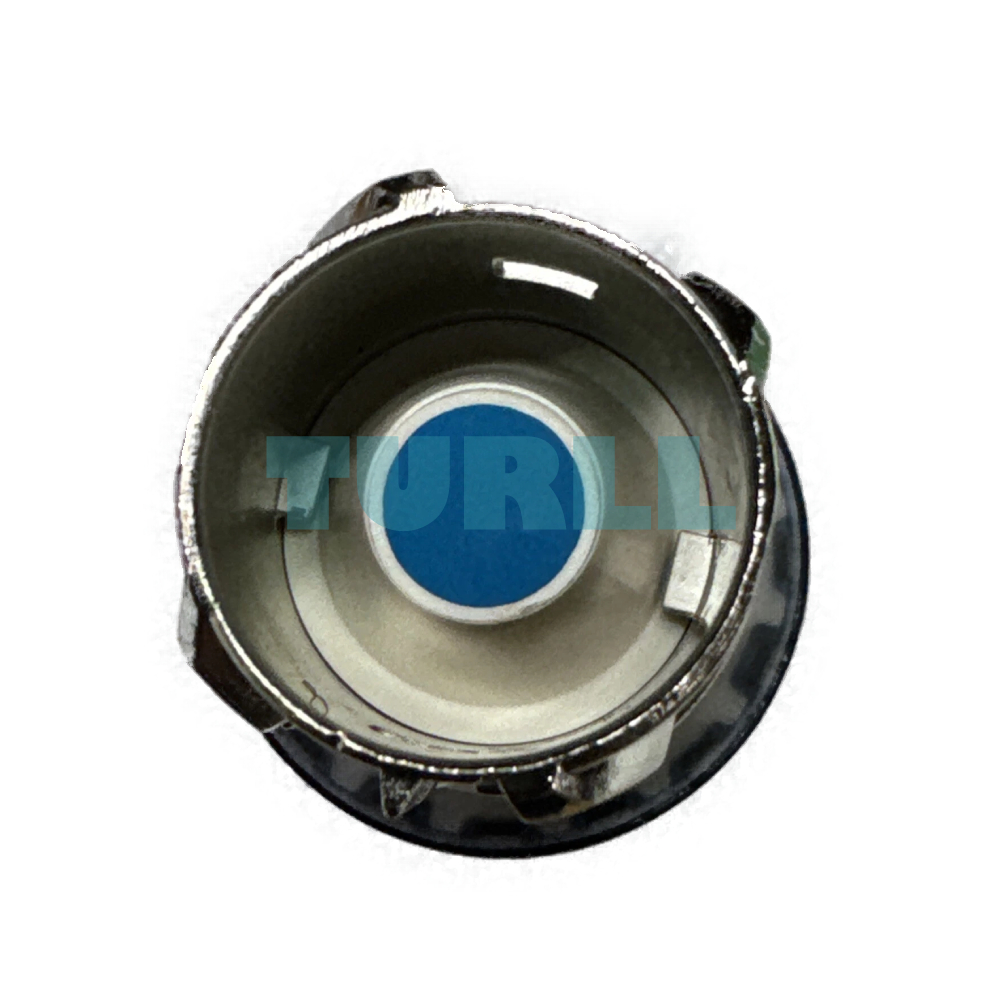

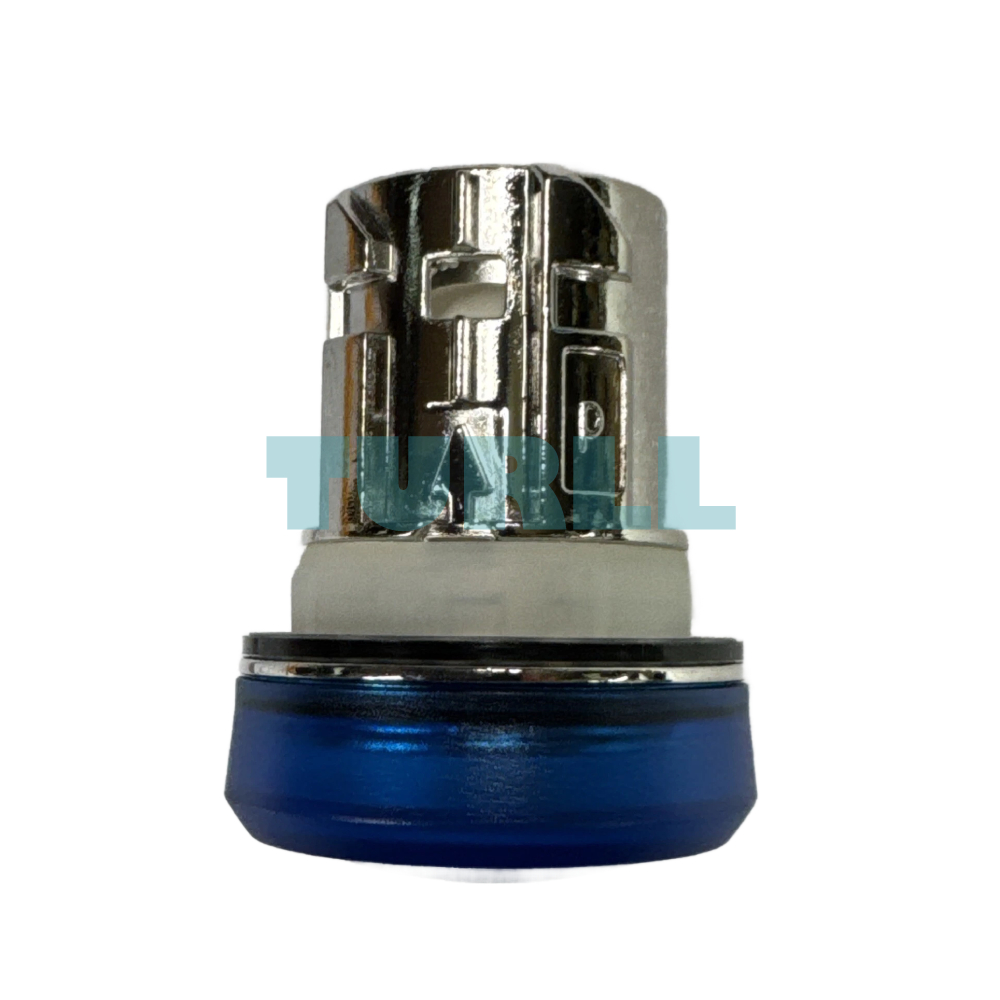

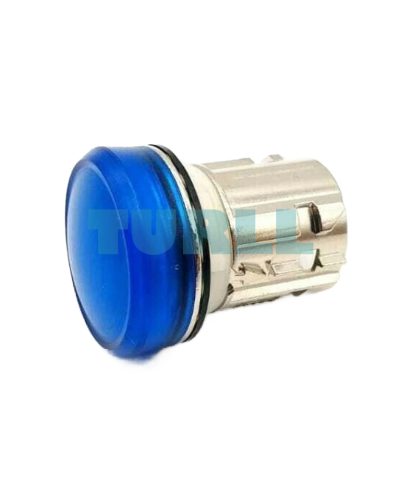

Siemens 3SU1051-6AA50-0AA0 Indicator Light, 22 mm, Round Metal Blue Lens Smooth Finish Original Brand New
$3.85
A premium SIRIUS ACT indicator light featuring a 22mm round, shiny metal design. Equipped with a smooth blue lens, this rugged signaling device is engineered for high-visibility status indication in demanding industrial environments.
Availability: In stock
Overview
The Siemens 3SU1051-6AA50-0AA0 Indicator Light is a high-quality signaling device designed for industrial and control panel applications. Featuring a 22 mm mounting diameter, round metal body, and a shiny blue smooth lens, this indicator light ensures reliable visual signaling and long-lasting performance. Built with Siemens’ trusted engineering standards, it is ideal for control cabinets, machinery panels, and automation systems.
Benefit
-
Extreme Durability: Constructed with a high-grade shiny metal finish to withstand harsh industrial conditions and vibrations.
-
High Visibility: The smooth blue lens ensures clear signaling, even in high-ambient light settings.
-
Quick Installation: Part of the modular SIRIUS ACT system, allowing for rapid, one-handed assembly without specialized tools.
-
Modern Aesthetics: The polished metal ring provides a premium look for high-end control panels and machinery.
Function
-
Provides visual indication of machine or system status
-
Enhances operator awareness and safety
-
Suitable for industrial automation and control panels
-
Compatible with standard 22 mm panel cutouts
Technical Features
-
Product Number: 3SU1051-6AA50-0AA0
-
Brand: Siemens
-
Type: Indicator Light
-
Mounting Diameter: 22 mm
-
Shape: Round
-
Material: Metal
-
Finish: Shiny
-
Lens Color: Blue
-
Lens Type: Smooth
Visit 3SU1051-6AA50-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.026 kg |
|---|---|
| Dimensions | 35.00 × 45.00 × 35.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Indicator lights |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | No |
| color | – |
| ● of the actuating element | blue |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
| product component front ring | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| reference code acc. to IEC 81346-2 | P |
| tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |
| shape of the installation opening | round |

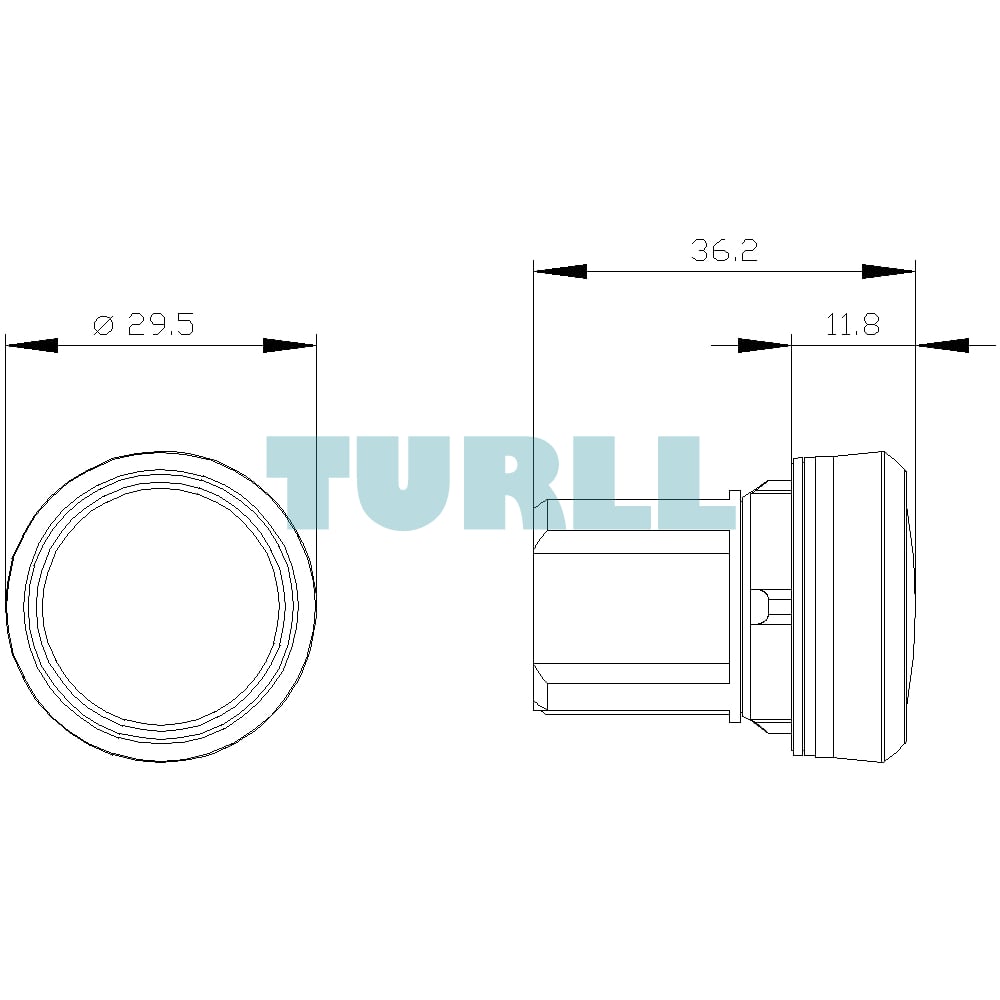

| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 24.4 mm |
| last modified: | 10/6/2021 |
