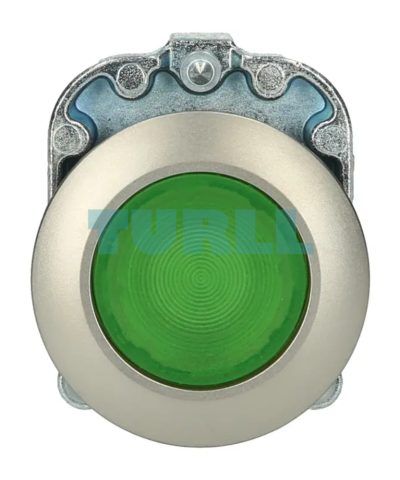

Siemens 3SU1061-0JA40-0AA0 Illuminated Pushbutton, 30mm, Round Green Metal Original Brand New
$19.91
Illuminated green 30 mm round pushbutton from Siemens featuring a durable metal matte front ring, flush installation design, and a latching mechanism with push-to-release operation.
Availability: In stock
Overview
The Siemens 3SU1061-0JA40-0AA0 is a high-quality 30 mm illuminated pushbutton engineered for reliable operation in industrial control applications. Designed with a metal, matte-finish front ring and a green illuminated actuator, this pushbutton ensures excellent visibility, durability, and long-term stability. Its latching mechanism with push-to-release functionality provides safe and controlled operation in complex automation environments. Ideal for machinery, panels, and equipment requiring a high-performing operator control device.
Benefit
-
Enhanced Visibility: Green illumination offers clear status indication in all lighting conditions.
-
Durable Metal Construction: Built with robust materials to withstand industrial environments.
-
Reliable Latching Function: Ensures safe operation with precise push-to-release control.
-
Ergonomic Round Design: Supports comfortable, efficient user interaction.
-
Flush Installation: Provides a sleek, modern, and space-saving panel appearance.
Key Features & Functionality
-
30 mm round illuminated pushbutton
-
Metal, matte finish for high durability
-
Green LED illumination for clear operating status
-
Latching mechanism with push-to-release operation
-
Flush mounting front ring for seamless installation
-
Ideal for industrial control systems, machinery, automation panels, and operator stations
-
Part of the Siemens SIRIUS ACT range known for reliability and premium design
Function & Application
This pushbutton is primarily used as an Actuating/Signaling Element in control systems. Its latching and push-to-release function is perfect for applications requiring a maintained state, such as:
-
Machine Start/Stop (Maintained Operation)
-
Mode Selection Switches
-
System Reset/Hold Functions
-
General Industrial Command and Control
It requires separate mounting of an LED module (for illumination) and contact blocks (e.g., normally open/normally closed) onto the holder behind the panel.
Visit 3SU1061-0JA40-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.064 kg |
|---|---|
| Dimensions | 78.00 × 94.00 × 42.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Illuminated pushbuttons |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Flat button |
| principle of operation of the actuating element | latching |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 38 mm |
| type of unlocking device | push-to-unlatch mechanism |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 500 000 |
| reference code acc. to IEC 81346-2 | S |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

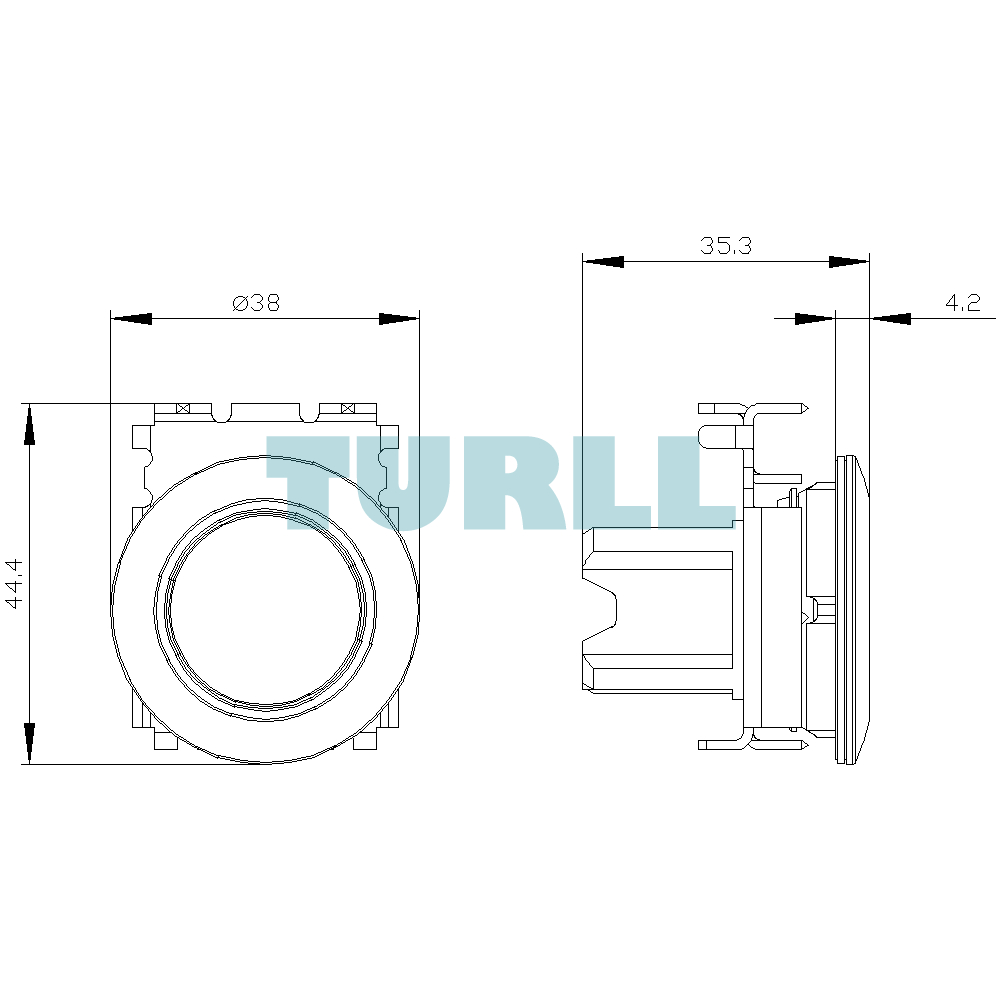

| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 4.2 mm |
| installation width | 38 mm |
| installation depth | 31.1 mm |
| Test Certificates | Marine / Shipping |
| last modified: | 10/6/2021 |
