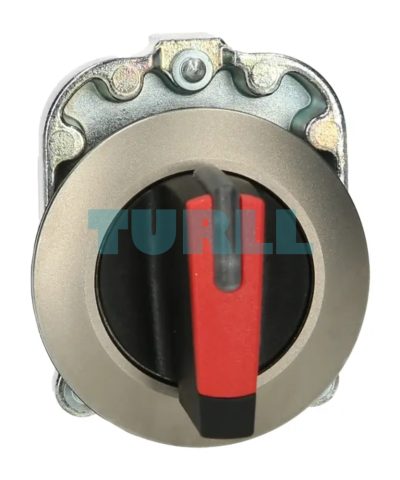

Siemens 3SU1062-2DF20-0AA0 Illuminable, 30mm, Round, Selector Switch, Red, Metal, Matte Original Brand New
$17.27
This type is a 30mm round, illuminable selector switch with a red matte metal finish, designed for flush installation. Features 2 switch positions (O-I), latching mechanism, and 90° actuating angle. Perfect for industrial control panels.
Availability: In stock
Overview
The Siemens 3SU1062-2DF20-0AA0 is a high-performance, flush-mounted illuminated selector switch designed for the most demanding industrial control applications. Part of the SIRIUS ACT line, this component combines robust construction with intuitive functionality. The matte metal design and 30mm round profile offer a premium, space-saving appearance when installed flush in a control panel. This 2-position (O-I) latching switch provides reliable, manual state selection with a 90° actuation angle.
Key Benefit
-
Enhanced Visibility: Illuminable design ensures clear indication of switch position even in low-light environments.
-
Durable Construction: Metal matte finish provides resistance to wear and corrosion.
-
User-Friendly Operation: 2 switch positions (O-I) with a latching mechanism and 90° actuating angle for precise control.
-
Easy Installation: Front ring allows flush mounting for sleek integration into control panels.
-
Reliable Performance: Engineered for long-lasting industrial use, meeting Siemens’ high-quality standards.
Functions & Features
-
Selector Switch Type: Illuminable, 30 mm round, short version
-
Material & Finish: Metal, matte finish, red color
-
Installation Type: Front ring for flush mounting
-
Switch Positions: 2 positions (O-I)
-
Actuating Mechanism: Latching, 90° actuating angle
-
Time Position Reference: 10:30h/13:30h
Application
-
Main power control for a single machine or zone.
-
Selecting between Automatic and Manual modes.
-
Activating or deactivating specific machine functions.
Visit 3SU1062-2DF20-0AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.020 kg |
|---|---|
| Dimensions | 90.00 × 90.00 × 40.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | – |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 38 mm |
| number of switching positions | 2 |
| actuating angle | – |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 300 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | – |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %) |

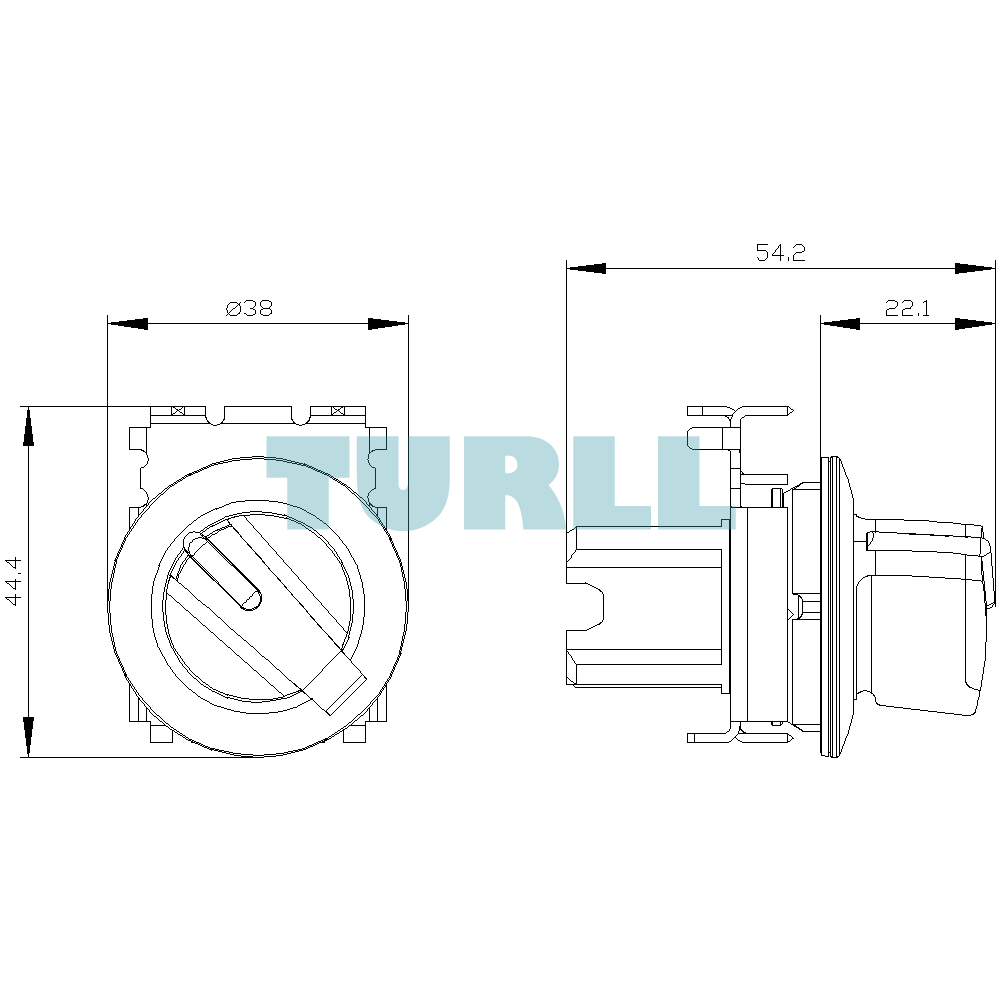

| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 22.1 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
| last modified: | 10/6/2021 |
