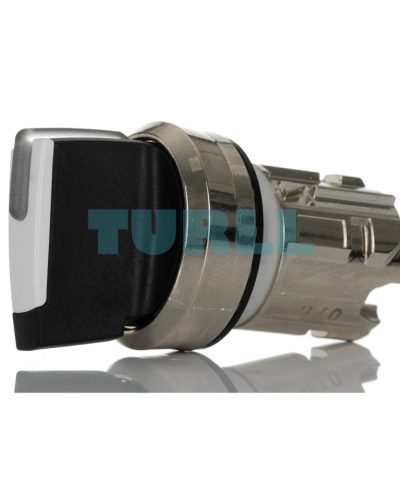

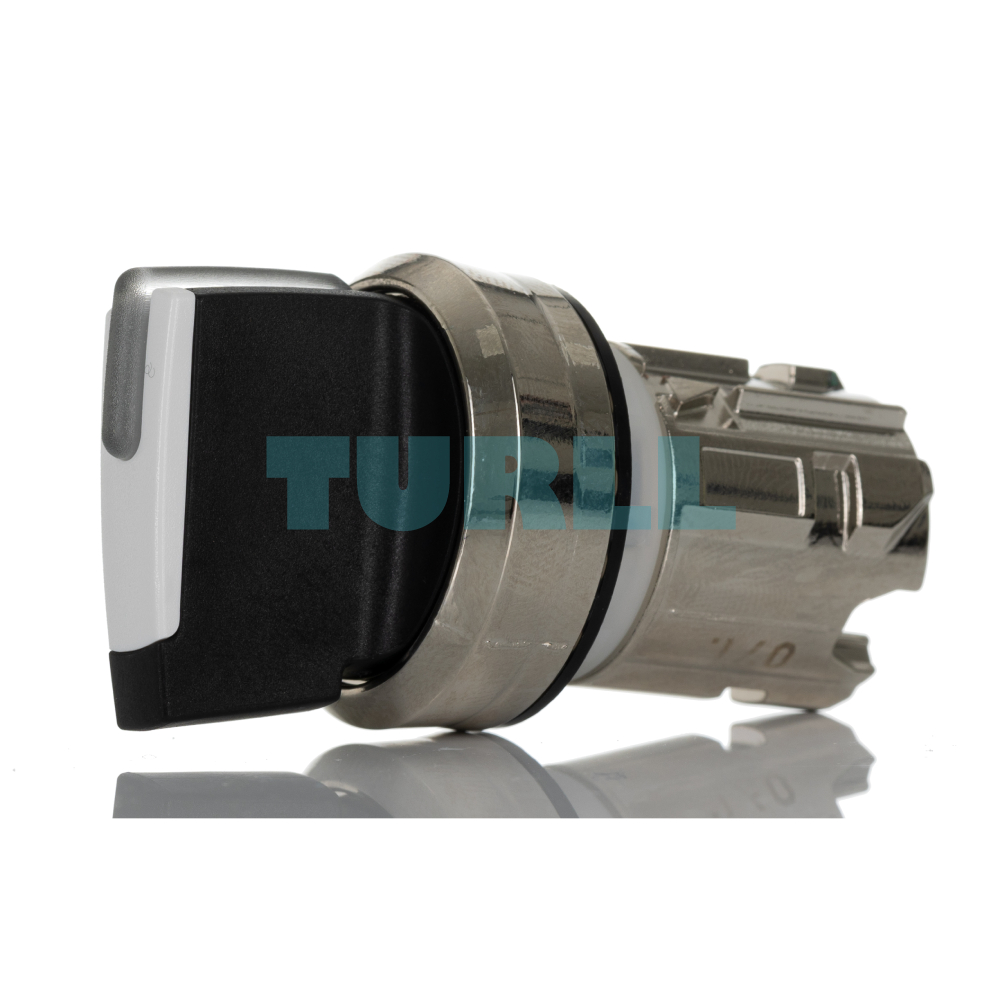

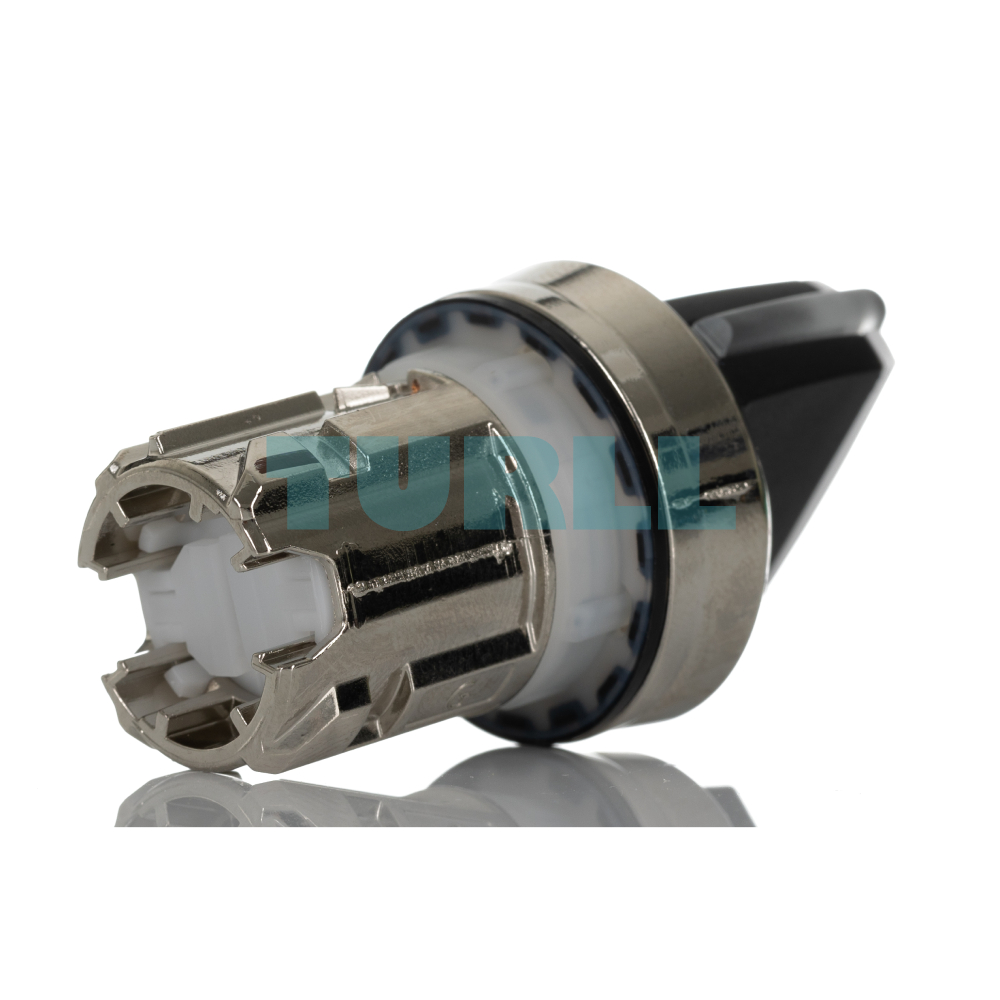

Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position
Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position
Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position
Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position
Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position
Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position

SIEMENS

Siemens 3SU1150-2BF60-1BA0 Illuminated Selector Switch, 22 mm, Metal, White, 2-Position Original Brand New

Model / SKU3SU1150-2BF60-1BA0

Illuminated 22 mm metal selector switch in shiny white with 2 positions (O-I), latching mechanism, 90° angle, holder included, 1 NO contact, and screw terminal connection.

Original price was: $22.35.Current price is: $10.23.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3SU1150-2BF60-1BA0 is a high-quality, illuminated 22 mm selector switch designed for reliable operation in industrial control panels and automation systems. Featuring a durable metal, shiny white finish, this selector switch provides outstanding visibility and user-friendly operation. With two switch positions (O-I), a 90° actuating angle, and latching mechanism, it ensures precise switching and secure control in demanding environments.

Engineered as part of the Siemens SIRIUS ACT family, this selector switch offers robust performance, long service life, and easy installation via a screw terminal connection. Supplied with a holder and equipped with 1 NO (normally open) contact, it is ideal for machinery, equipment, and control panel applications where reliability and clarity matter.

Benefit

  • High durability: Metal front ring ensures long-lasting performance

  • Enhanced visibility: Illuminable design with shiny white finish

  • Easy operation: 2-position switch (O-I) with clear mechanical feedback

  • Reliable switching: 1 NO contact for consistent signal output

  • Secure installation: Screw terminal connection for stable wiring

  • Flexible use: Ideal for automation, control panels, and machinery operation

Features / Functions

  • 22 mm round selector switch

  • Illuminable for improved operator indication

  • Metal construction, robust and vibration-resistant

  • Shiny white actuator for clean and visible appearance

  • Short selector switch design—space-efficient in control panels

  • 2 switch positions: O-I

  • Latching mechanism—switch stays in selected position

  • Actuating angle: 90° (positions at 10:30h / 13:30h)

  • Includes holder for quick installation

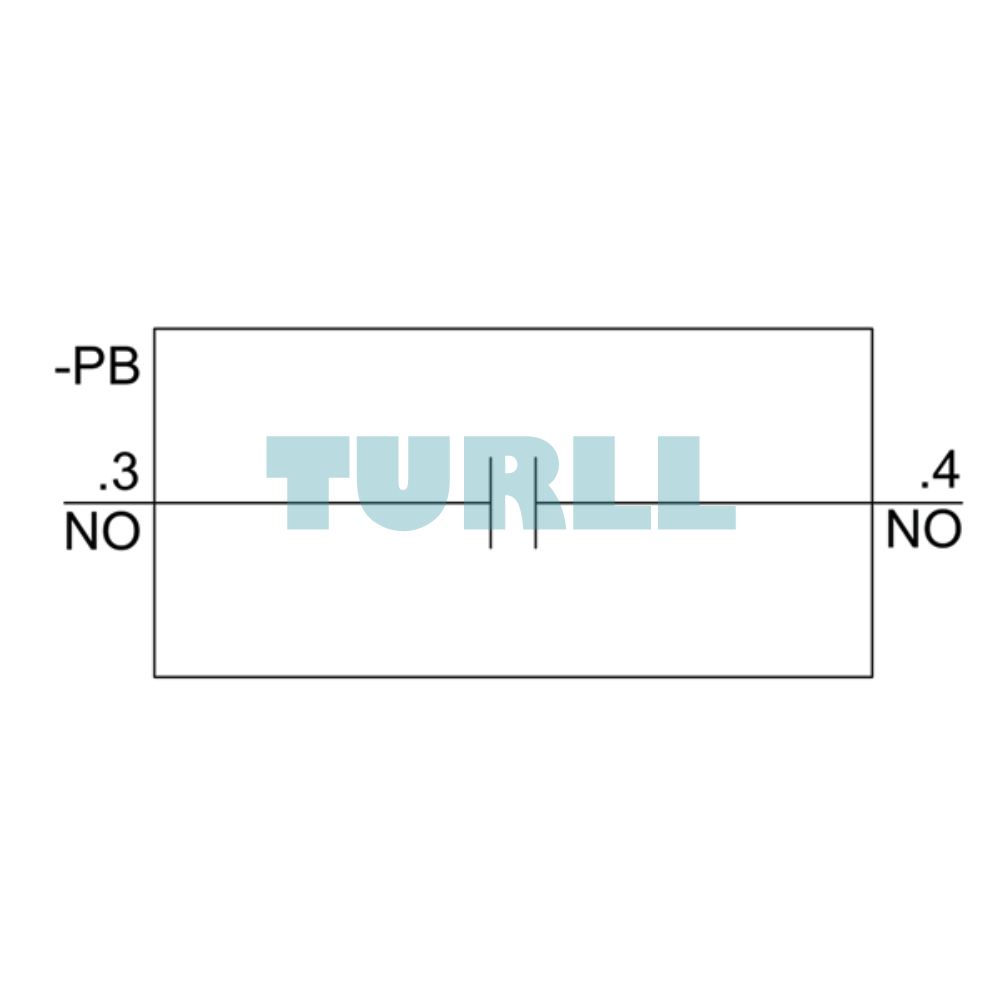

  • 1 NO (normally open) contact

  • Screw terminal connection

Download

Datasheet in PDF

Visit 3SU1150-2BF60-1BA0 for more detail info

For more our products visit turll



Specifications

SKU / Model3SU1150-2BF60-1BA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationSelector switches
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
manufacturer's article number-

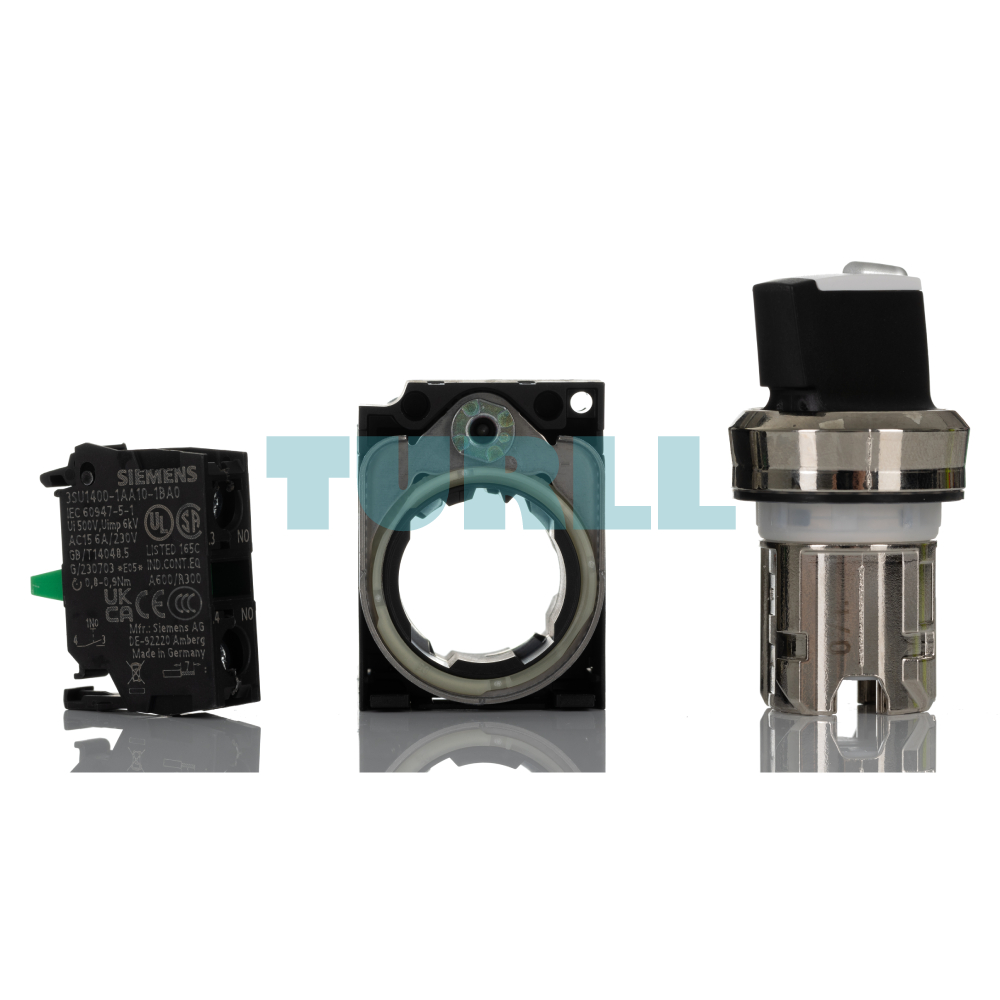

● of supplied contact module at position 13SU1400-1AA10-1BA0
● of the supplied holder3SU1550-0AA10-0AA0
● of the supplied actuator3SU1052-2BF60-0AA0
number of command points1
design of the actuating elementSelector, short
principle of operation of the actuating elementlatching, 90° (10:30 h/13:30 h)
product extension optional light sourceYes
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element32.3 mm
number of contact modules1
number of switching positions2
actuating angle-
● clockwise90°
product component front ringYes
design of the front ringstandard
material of the front ringMetal, high gloss
color of the front ringsilver
material of the holderPlastic
number of LED modules0
product function positive openingNo
product component light sourceNo
insulation voltage rated value500 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value6 kV
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
operating frequency maximum1 800 1/h
mechanical service life (switching cycles) typical1 000 000
electrical endurance (switching cycles) typical10 000 000
thermal current10 A
reference code acc. to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
operating voltage-
● at AC-
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC rated value5 ... 500 V
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections-
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque with screw-type terminals0.8 ... 0.9 N·m
B10 value with high demand rate acc. to SN 31920100 000
proportion of dangerous failures-
● with low demand rate acc. to SN 3192020 %
● with high demand rate acc. to SN 3192020 %
failure rate [FIT] with low demand rate acc. to SN 31920100 FIT
T1 value for proof test interval or service life acc. to IEC 6150820 y
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
fastening method-
● of modules and accessoriesFront plate mounting
shape of the installation openinground

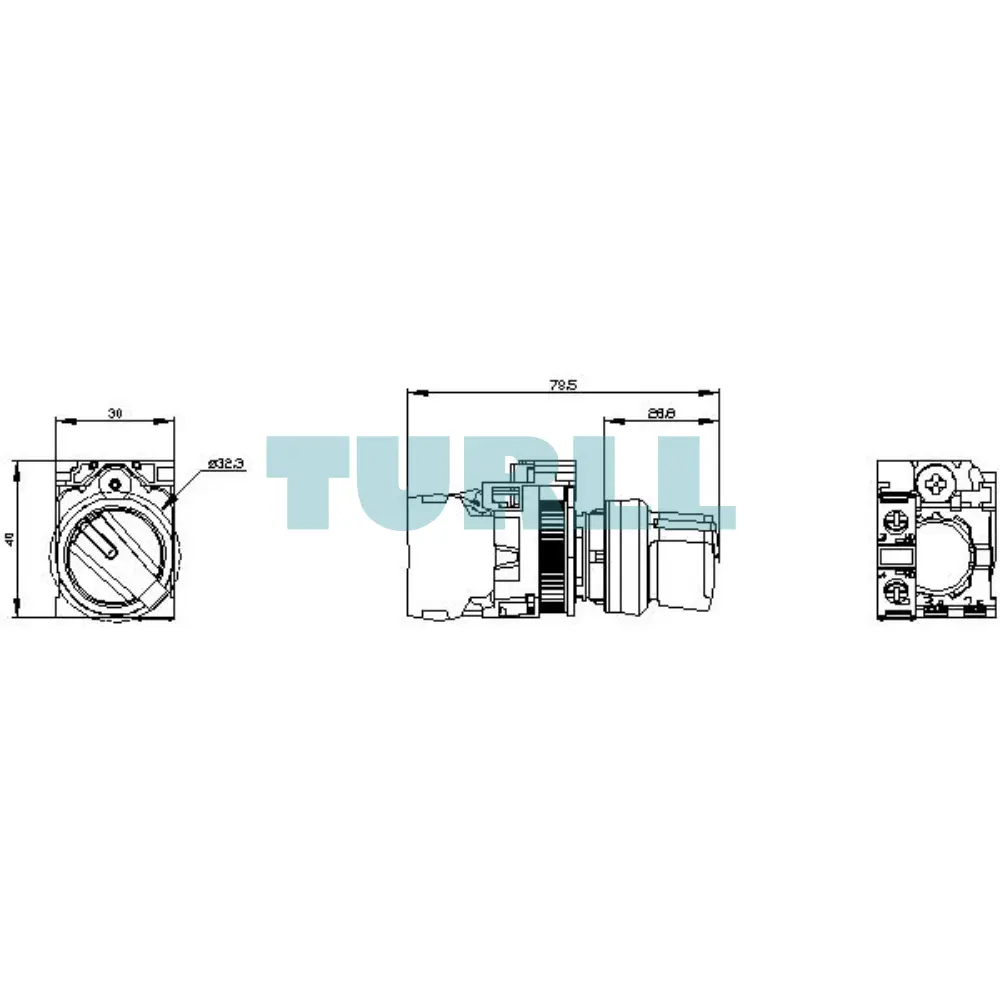

mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height28.8 mm
installation width32.3 mm
installation depth49.7 mm
Test CertificatesMarine / Shipping
last modified:10/1/2021
Weight0.104 kg
