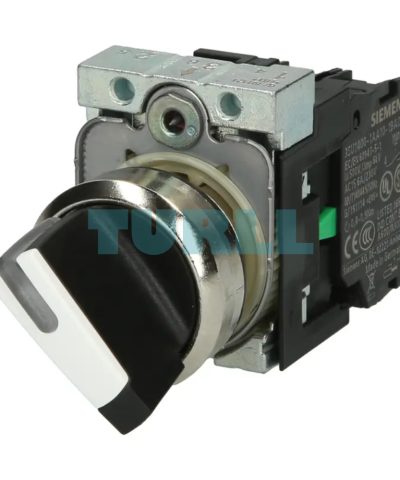

Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White
Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White
Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White
Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White
Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White
Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White

SIEMENS

Siemens 3SU1150-2BF60-1MA0 Illuminable, 22mm, Round Metal, Selector Switch, White Original Brand New

Model / SKU3SU1150-2BF60-1MA0

High-quality Siemens 22mm illuminable selector switch, round metal design in shiny white, featuring 2 switch positions (O-I), latching function, 90° actuating angle, and screw terminal connections. Ideal for industrial control panels.

Original price was: $26.42.Current price is: $12.09.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 3SU1150-2BF60-1MA0 is a high-performance selector switch from the renowned SIRIUS ACT series. Designed for demanding industrial environments, this 22mm round switch features a sleek, shiny metal finish and a white illuminable actuator. With its latching 2-position (O-I) functionality and a 90° actuating angle, it provides clear tactile feedback and reliable performance for control panels and machinery.

Key Features & Function

  • Type: Illuminable selector switch

  • Size: 22 mm, round

  • Material: Metal, shiny white

  • Switch Positions: 2 positions (O-I)

  • Functionality: Latching mechanism

  • Actuating Angle: 90°

  • Mounting Time: 10:30h / 13:30h

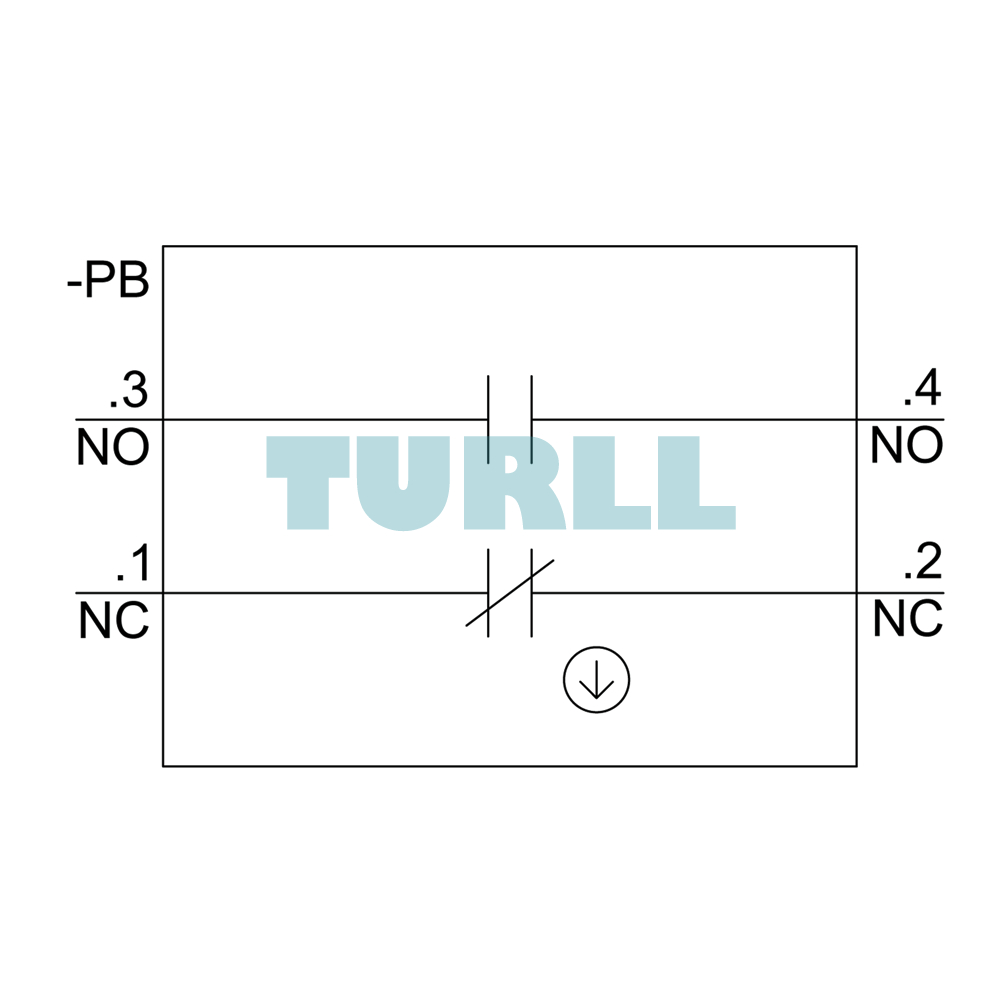

  • Contact Configuration: 1 NO (Normally Open), 1 NC (Normally Closed)

  • Connection: Screw terminals

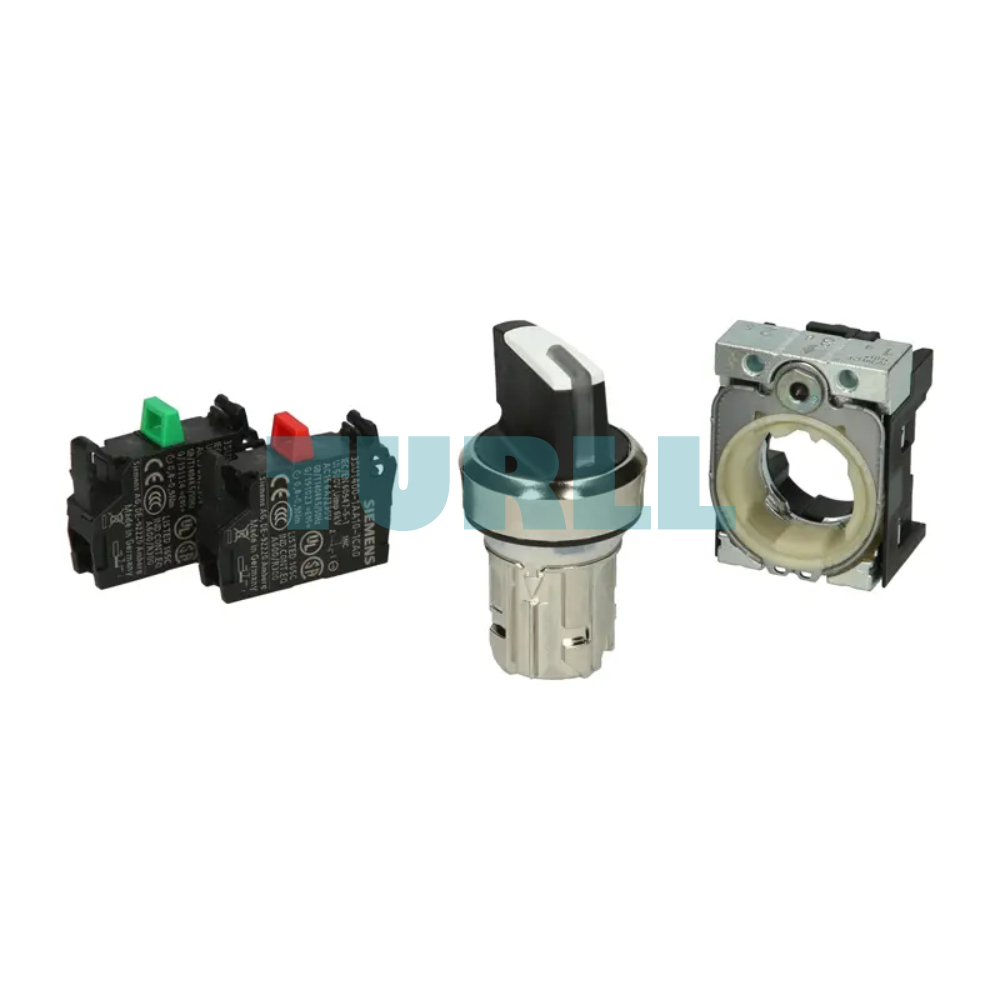

  • Accessories: Comes with holder for secure installation

Benefit

  • Extreme Durability: Constructed with high-grade shiny metal for superior mechanical strength and corrosion resistance.

  • Enhanced Visibility: The illuminable white selector ensures easy status identification even in low-light industrial settings.

  • Easy Installation: Comes as a complete unit with a holder and screw terminals, significantly reducing assembly time.

  • Versatile Control: Equipped with both 1 NO (Normally Open) and 1 NC (Normally Closed) contacts for flexible wiring configurations.

Application

  • Industrial control panels

  • Automation systems

  • Machine operator interfaces

  • Electrical control systems requiring reliable switching with visual feedback

Download

Datasheet in PDF

Visit 3SU1150-2BF60-1MA0 for more detail info

For more our products visit turll



Specifications

SKU / Model3SU1150-2BF60-1MA0
BrandSIEMENS
product brand nameSIRIUS ACT
product designationSelector switches
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
manufacturer's article number-
● of supplied contact module at position 13SU1400-1AA10-1BA0
● of supplied contact module at position 23SU1400-1AA10-1CA0
● of the supplied holder3SU1550-0AA10-0AA0
● of the supplied actuator3SU1052-2BF60-0AA0
number of command points1
design of the actuating elementSelector, short
principle of operation of the actuating elementlatching, 90° (10:30 h/13:30 h)
product extension optional light sourceYes
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element32.3 mm
number of contact modules2
number of switching positions2
actuating angle-
● clockwise90°
product component front ringYes
design of the front ringstandard
material of the front ringMetal, high gloss
color of the front ringsilver
material of the holderPlastic
number of LED modules0
product function positive openingYes
product component light sourceNo
insulation voltage rated value500 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value6 kV
protection class IPIP66, IP67, IP69(IP69K)
● of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance-
● acc. to IEC 60068-2-27Sinusoidal half-wave 50g / 11 ms
vibration resistance-
● acc. to IEC 60068-2-610 ... 500 Hz: 5g
operating frequency maximum1 800 1/h
mechanical service life (switching cycles) typical1 000 000
electrical endurance (switching cycles) typical10 000 000
thermal current10 A
reference code acc. to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
operating voltage-
● at AC-
— at 50 Hz rated value5 ... 500 V
— at 60 Hz rated value5 ... 500 V
● at DC rated value5 ... 500 V
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
type of electrical connectionscrew-type terminals
type of connectable conductor cross-sections-
● solid with core end processing2x (0.5 ... 0.75 mm²)
● solid without core end processing2x (1.0 ... 1.5 mm²)
● finely stranded with core end processing2x (0.5 ... 1.5 mm²)
● finely stranded without core end processing2x (1,0 ... 1,5 mm²)
● at AWG cables2x (18 ... 14)
tightening torque of the screws in the bracket1 ... 1.2 N·m
tightening torque with screw-type terminals0.8 ... 0.9 N·m
B10 value with high demand rate acc. to SN 31920100 000
proportion of dangerous failures-
● with low demand rate acc. to SN 3192020 %
● with high demand rate acc. to SN 3192020 %
failure rate [FIT] with low demand rate acc. to SN 31920100 FIT
T1 value for proof test interval or service life acc. to IEC 6150820 y
ambient temperature-
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted for all devices behind front panel)
fastening method-
● of modules and accessoriesFront plate mounting
shape of the installation openinground

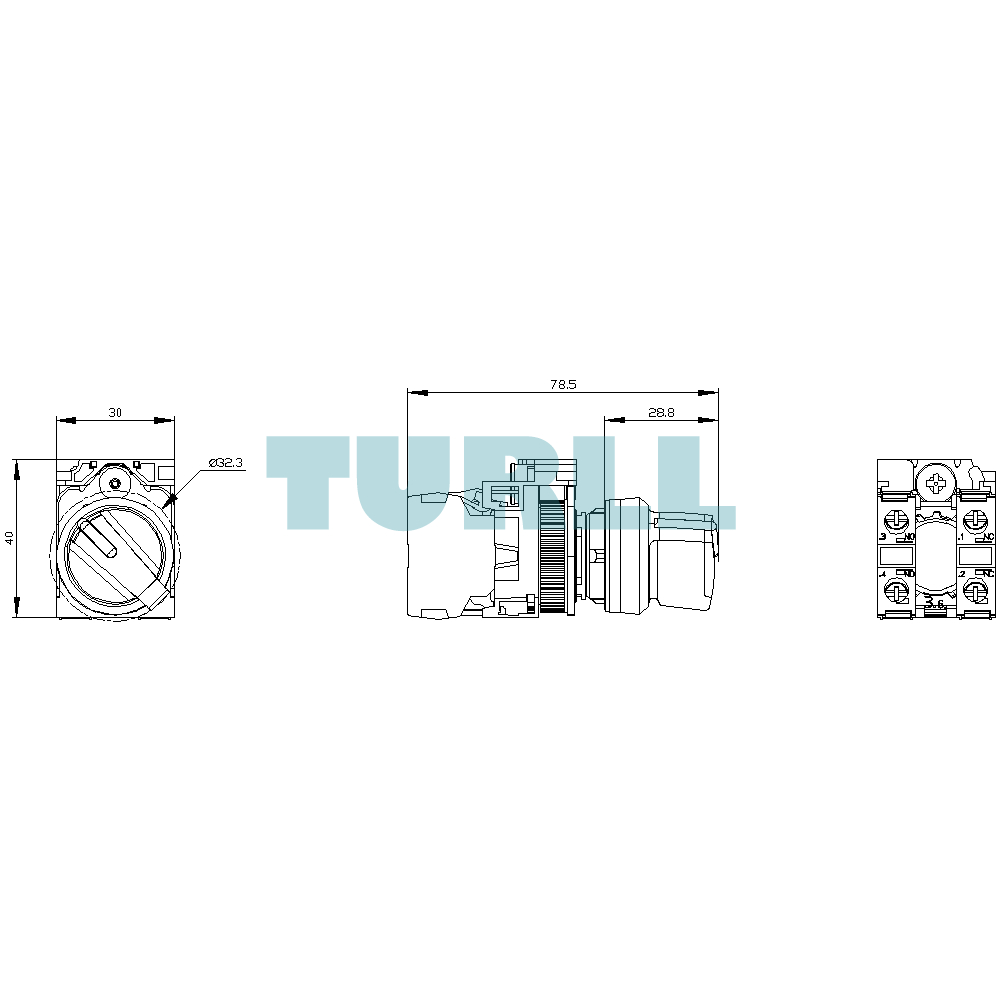

mounting diameter22.3 mm
positive tolerance of installation diameter0.4 mm
mounting height28.8 mm
installation width32.3 mm
installation depth49.7 mm
Test CertificatesMarine / Shipping
last modified:10/1/2021
Weight0.115 kg
