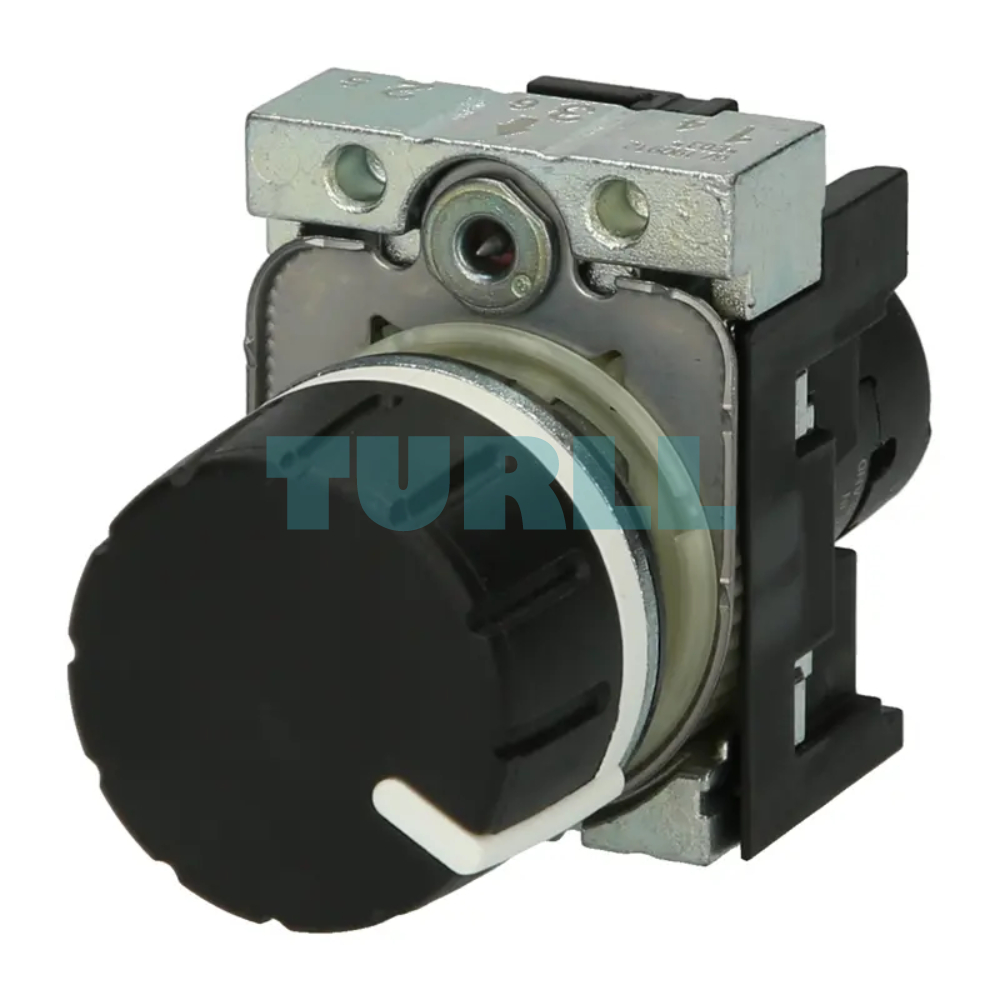

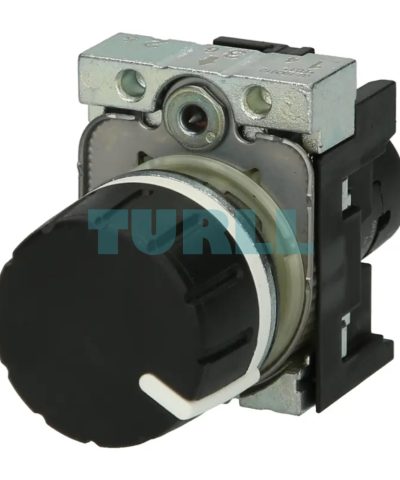

Siemens 3SU1250-2PV10-1AA0 Potentiometer 22 mm, Compact Metal Black, 470kΩ, Holder Original Brand New
$46.53
Compact 22 mm Siemens potentiometer made of durable metal with black knob, 470 kΩ resistance, screw terminal connection, and included holder—ideal for precise industrial control applications.
Availability: In stock
Overview
The Siemens 3SU1250-2PV10-1AA0 is a high-quality compact potentiometer designed for precise control applications in industrial automation. Featuring a 22 mm round metal housing, a black control knob, and a 470 kΩ resistance, this potentiometer ensures durability, stability, and precision in demanding environments. It includes a holder and screw terminal connection, making installation fast, secure, and reliable.
Engineered by Siemens, a global leader in industrial components, this potentiometer delivers outstanding performance for operator control and signal adjustment tasks in electrical panels, machinery, and automation systems.
Benefit
-
High durability thanks to robust metal construction
-
Precise signal adjustment with 470 kΩ resistance
-
Fast & secure installation using screw terminal connectors
-
Compact 22 mm design fits seamlessly into control panels
-
Reliable performance for industrial automation applications
-
Comes with holder for simplified mounting
Function
-
Adjusts and regulates electrical resistance in control circuits
-
Provides manual input for automation systems
-
Suitable for panel-mounted operator control elements
-
Enables fine tuning of speed, voltage, or signal output in machinery
Technical Features
-
Product Number: Siemens 3SU1250-2PV10-1AA0
-
Type: Potentiometer
-
Design: Compact, round
-
Diameter: 22 mm
-
Material: Metal
-
Color: Black
-

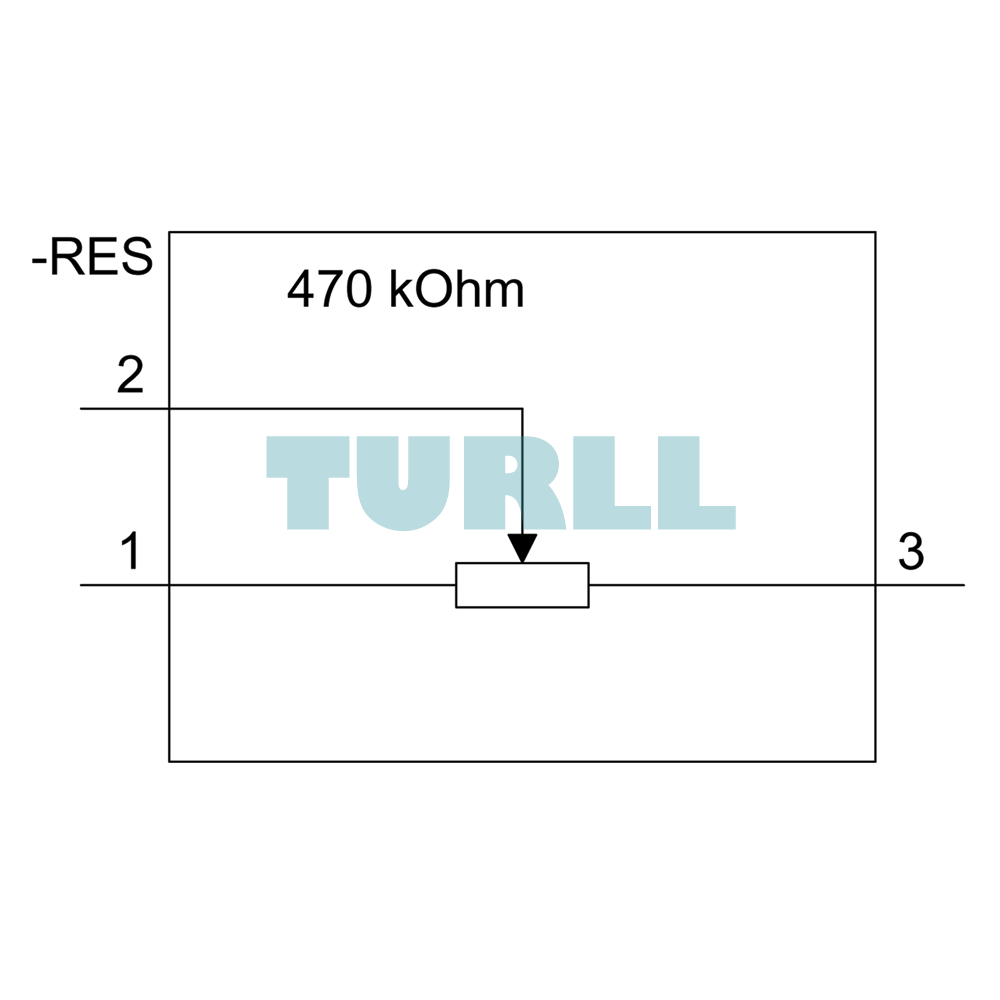

Resistance Value: 470 kΩ
-
Connection Type: Screw terminal
-

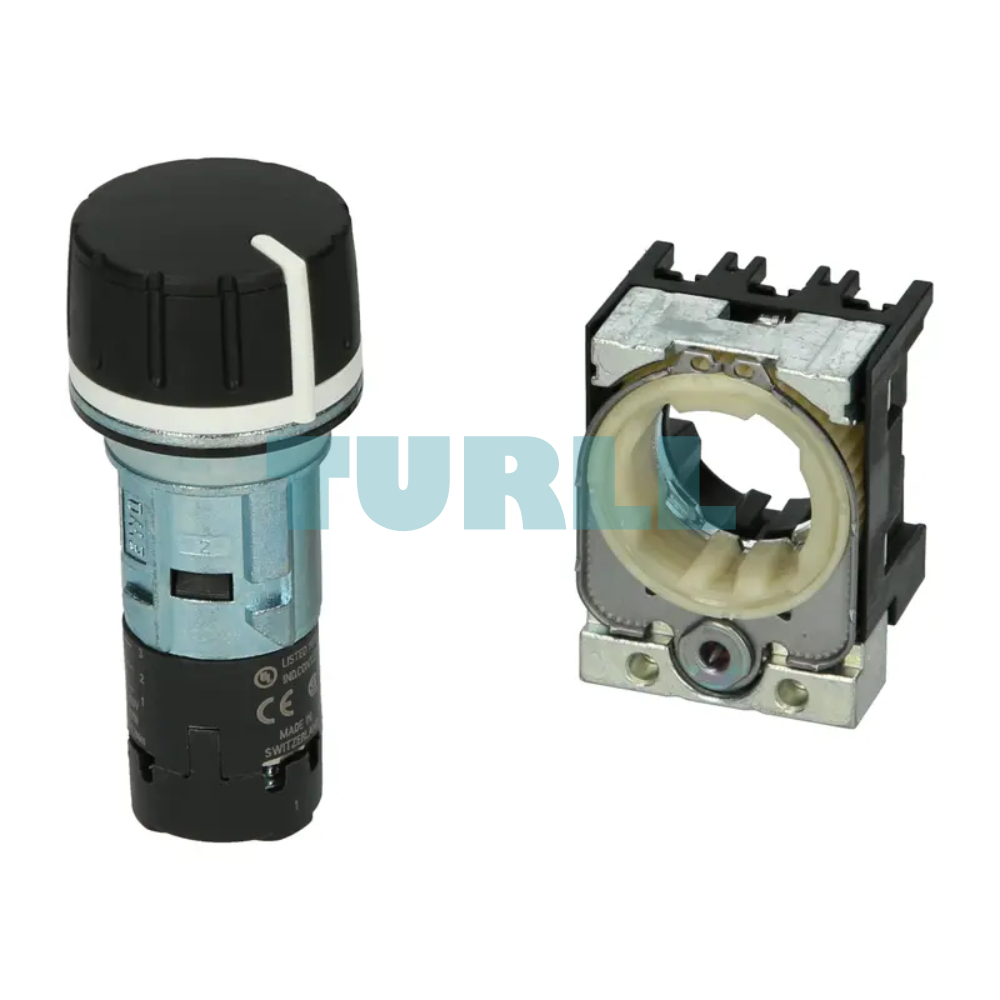

Accessories Included: Holder
Visit 3SU1250-2PV10-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.106 kg |
|---|---|
| Dimensions | 95.00 × 124.00 × 40.00 mm |
| Brand | SIEMENS |
| Product brand name | SIRIUS ACT |
| Product designation | Potentiometers |
| Design of the product | Compact unit |
| Product type designation | 3SU1 |
| Manufacturer's article number | – |
| ● of the supplied holder | 3SU1550-0AA10-0AA0 |
| Number of command points | 1 |
| Design of the operating mechanism | Rotary knob |
| Manner of function of the actuating element | Infinitely variable adjustment, angle of rotation 280° |
| Color | – |
| ● of the actuating element | black |
| Material of the actuating element | plastic |
| Shape of the actuating element | round |
| Outer diameter of the actuating element | 30 mm |
| Marking of the actuating element | Any inscription, symbol compliant with ISO7000 and IEC60417 |
| Maximum deflection angle [°] | 280° |
| Product component front ring | No |
| Material of the holder | Metal |
| Insulation voltage | – |
| ● rated value | 500 V |
| Degree of pollution | 3 |
| Protection class IP | IP66, IP67, IP69(IP69K) |
| ● of the terminal | IP20 |
| Degree of protection NEMA rating | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50 g / 11 ms |
| Vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| Mechanical service life (switching cycles) | – |
| ● typical | 25 000 |
| Reference code acc. to DIN EN 81346-2 | S |
| Reference code acc. to DIN EN 61346-2 | S |

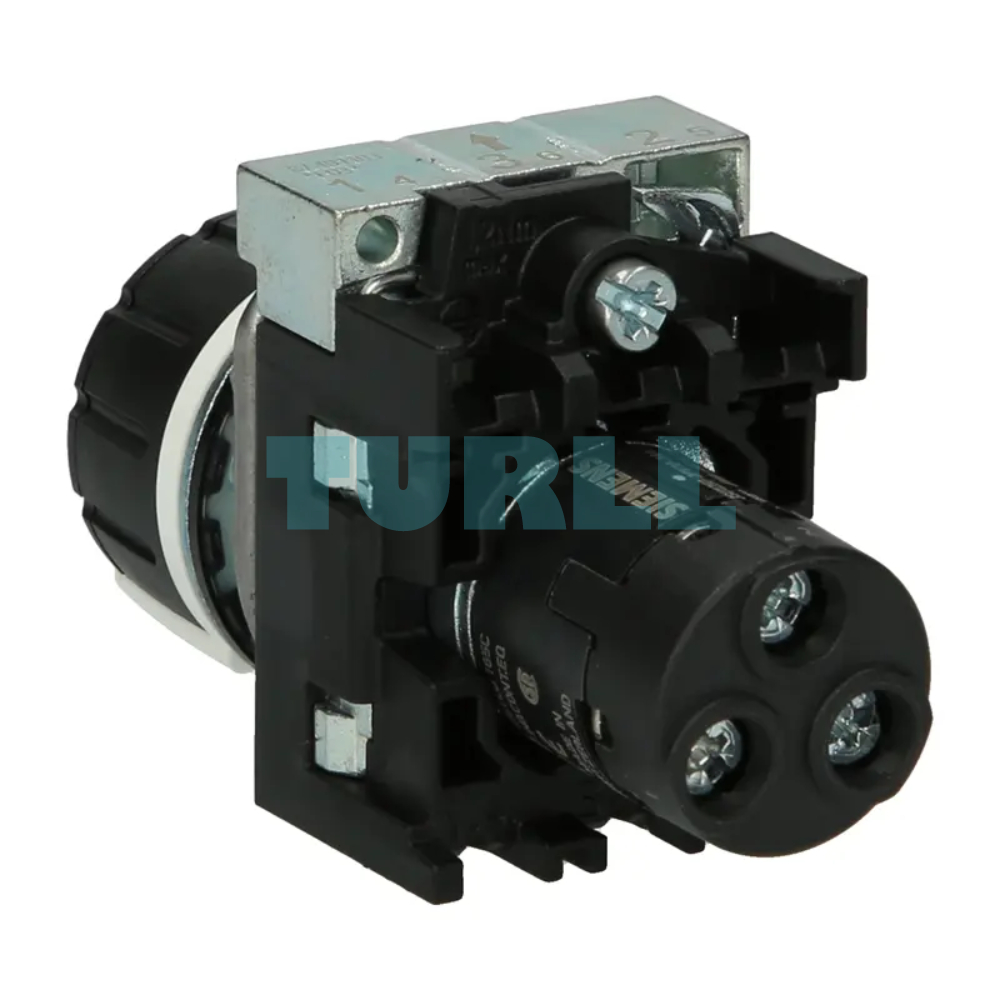

| Type of electrical connection | screw-type terminals |
| Type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG conductors | 2x (18 … 14) |
| Tightening torque of the screws in the bracket | 1 … 1.2 N·m |
| Tightening torque | – |
| ● with screw-type terminals | 0.8 … 1 N·m |
| Ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| Environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted for all devices behind front panel) |

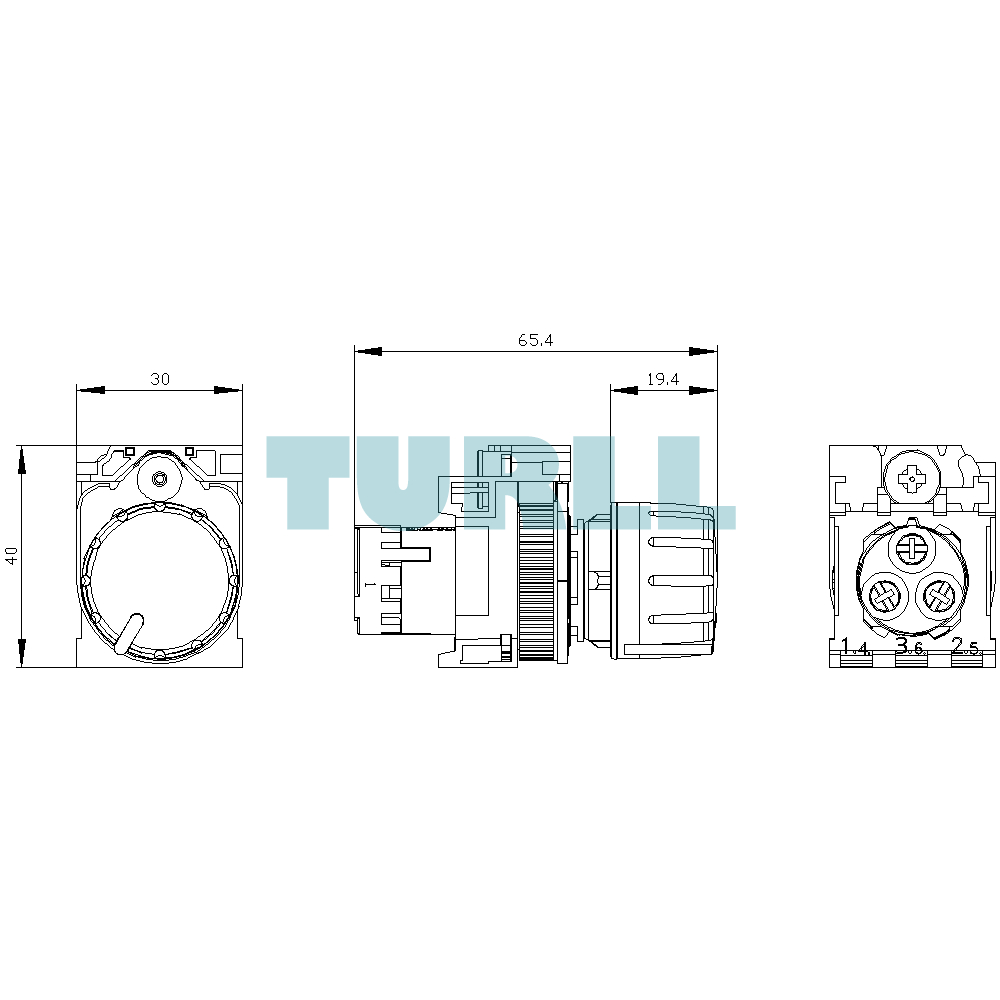

| Height | 40 mm |
| Width | 30 mm |
| Shape of the installation opening | round |
| Mounting diameter | 22.3 mm |
| Positive tolerance of installation diameter | 0.4 mm |
| Mounting height | 19.4 mm |
| Installation width | 30 mm |
| Installation depth | 46 mm |
| last modified: | 11/13/2019 |
