Read shipping & delivery →SIEMENS
3SU1401-1BF60-3AA0

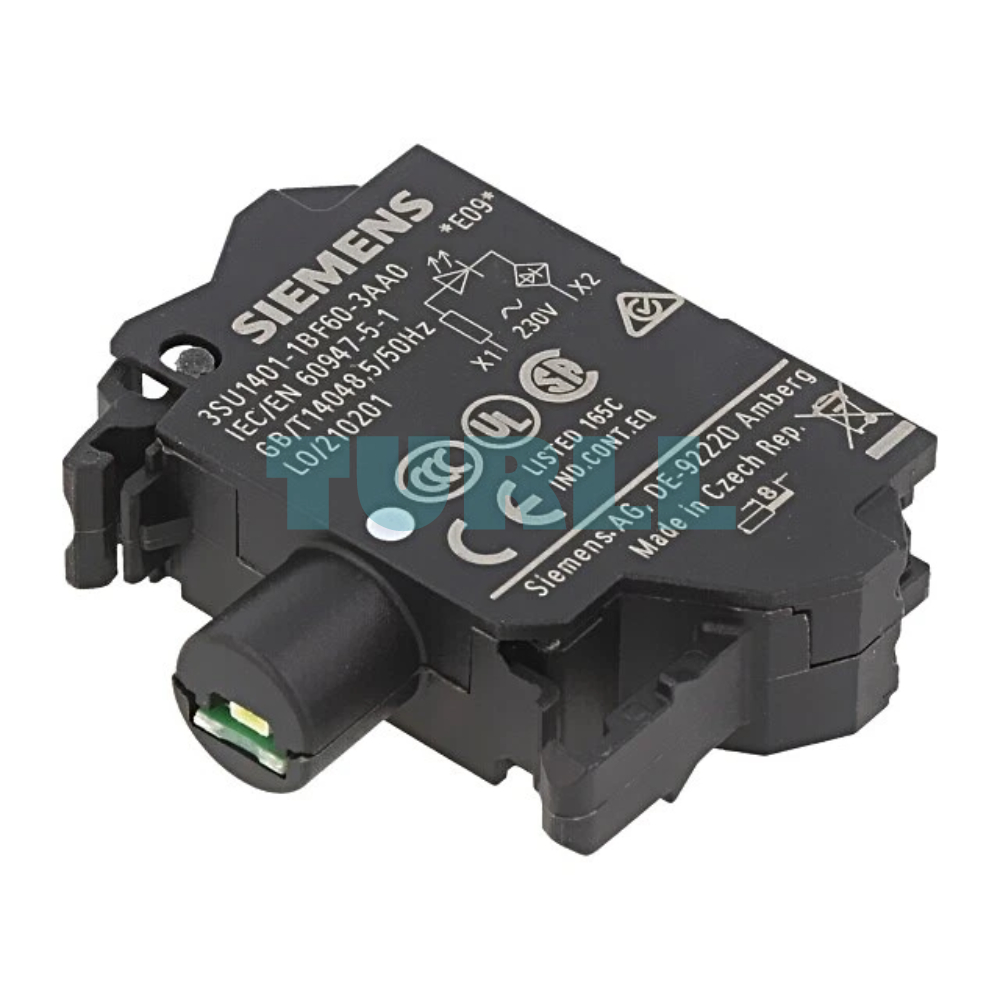

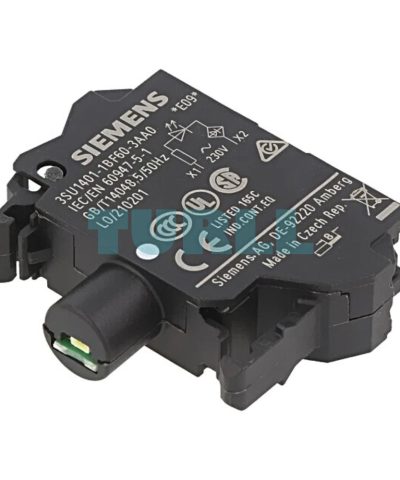

Siemens 3SU1401-1BF60-3AA0 LED Module 230 V AC, White, Spring‑Terminal, Front Plate Mounting Original Brand New
Original price was: $16.18.$6.55Current price is: $6.55.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1401-1BF60-3AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | - |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | - |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | - |
| ● at AC | - |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections | - |
| ● solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| ● finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| ● at AWG cables | 2x (24 ... 16) |
| type of light source | LED |
| color of the light source | white |
| light intensity | 900 ... 1 400 mcd |
| certificate of suitability | - |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %, no condensation in operation permitted) |
| fastening method | - |
| ● of modules and accessories | Front plate mounting |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.009 kg |
| Dimensions for shipping | 350.00 × 350.00 × 10.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens SIRIUS ACT 3SU1401-1BF60-3AA0 is a crucial component in the SIRIUS ACT command and signaling device portfolio. This compact LED module is designed to provide clear, bright status indication within industrial control and automation systems. Its integrated LED simplifies installation, and the choice of spring-type terminals significantly reduces wiring time and complexity compared to traditional screw terminals, ensuring high contact reliability. It is specifically built for installation behind pushbuttons and indicator lights that mount to the front plate.
Benefit
-
Fast & Secure Wiring: The spring-type terminal technology allows for rapid, tool-free wiring after stripping the wire, providing a gas-tight and vibration-proof connection.
-
Longevity & Reliability: Integrated LED technology ensures extremely long service life and low power consumption, minimizing maintenance and replacement costs.
-
High Visibility: Emits a clear, bright white light, ensuring operators can easily and quickly identify the machine or process status.
-
Industrial Standard: Part of the globally recognized Siemens SIRIUS ACT range, guaranteeing compatibility and quality for industrial applications.
Function

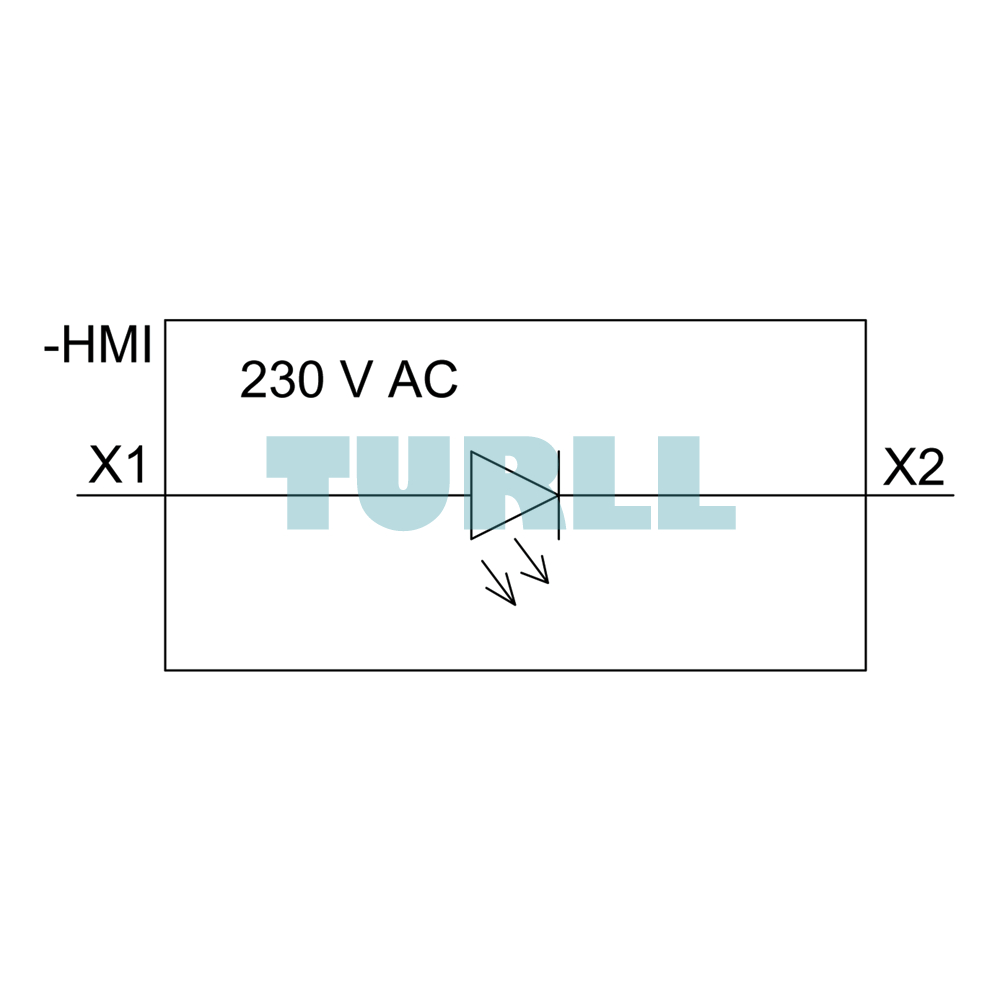

The primary function of the 3SU1401-1BF60-3AA0 LED module is to convert an electrical signal (230V AC) into a visual signal (white light) for status and fault indication. When power is applied across the terminals, the internal integrated LED illuminates. It is used in conjunction with a holder and lens/diffuser (sold separately, typically) to serve as a complete indicator light or pilot lamp on a control panel, providing feedback on the operational state of a system (e.g., “Power On,” “System Ready”).
Download
Visit 3SU1401-1BF60-3AA0 for more detail info
