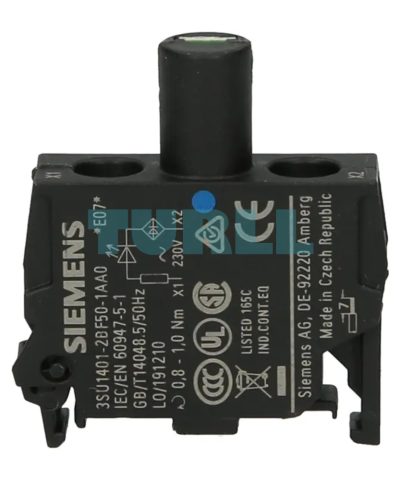

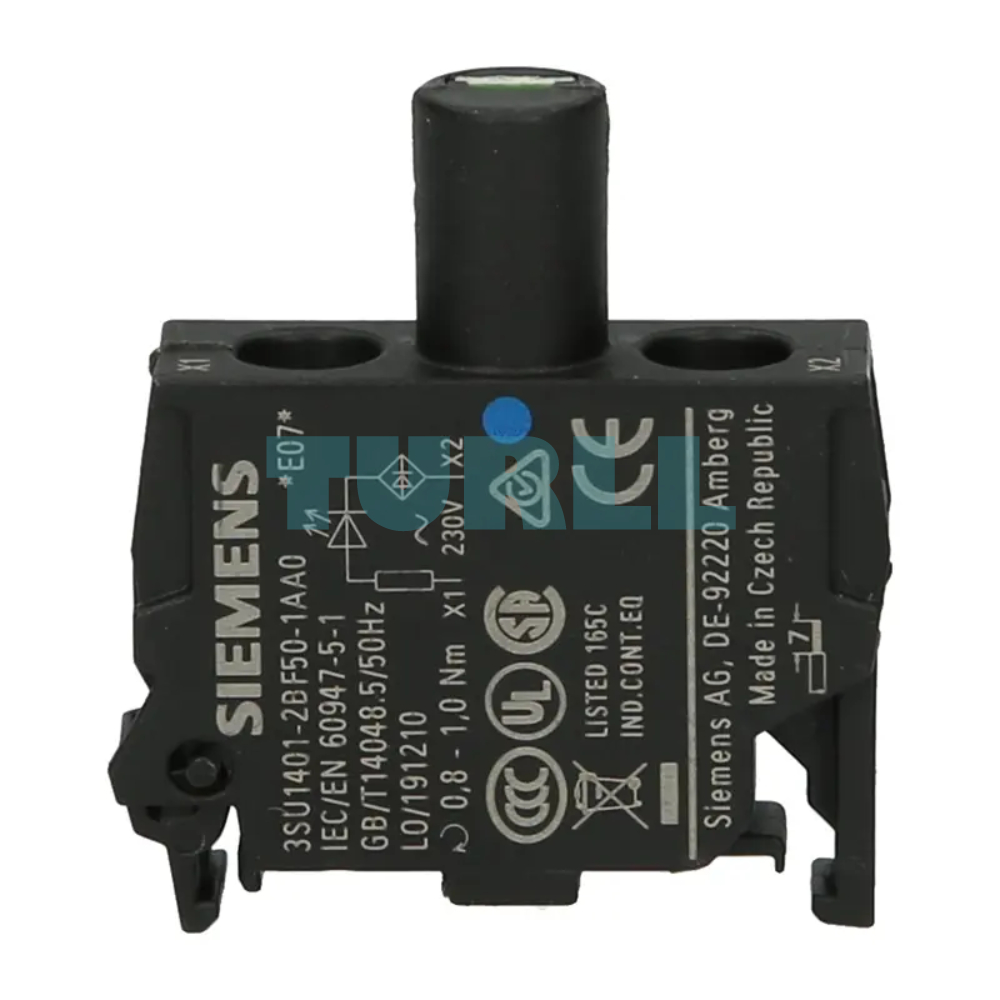

Siemens 3SU1401-2BF50-1AA0 LED Module 230V AC, Blue, Screw Terminal, Floor Mounting Original Brand New
$12.98
Siemens SIRIUS ACT 3SU1401-2BF50-1AA0 is a durable LED module providing brilliant blue indication with a 230 V AC operating voltage. It features secure screw terminals for base fixing/floor mounting in 22 mm SIRIUS ACT control stations
Availability: In stock
Overview
The Siemens 3SU1401-2BF50-1AA0 is a high-quality LED module with integrated LED technology designed for reliable signaling in industrial control systems. Engineered for durability and long operating life, this module operates on 230V AC and delivers a bright blue illumination ideal for clear status indication in machinery and automation panels. Featuring a screw terminal connection and floor-mounting design, it ensures secure installation, easy wiring, and compatibility with the Siemens SIRIUS ACT series.
Benefit
-
Bright LED Blue Indicator – Enhances visibility and clear signaling in industrial environments.
-
Integrated 230V AC LED – No external LED needed; efficient, long-lasting illumination.
-
Reliable Siemens Quality – Engineered to withstand demanding industrial conditions.
-
Easy Installation – Screw terminals allow secure and simple wiring.
-
Long Service Life – Maintenance-free operation thanks to LED technology.
-
Versatile Use – Ideal for control panels, machines, and automation systems.
Functions / Key Features
-
Operating voltage: 230V AC
-
Integrated LED module
-
Blue illumination
-
Screw terminal connection
-
Suitable for floor mounting
-
Part of Siemens SIRIUS ACT modular system
-
Rugged industrial design
-
Stable signaling for control and automation applications
Installation & Use
The 3SU1401-2BF50-1AA0 module is designed for floor mounting (or base fixing), meaning it connects to the holder of the 22 mm SIRIUS ACT operating elements directly behind the mounting surface. The screw terminals provide a robust connection point, making it a dependable choice for electrical engineers and panel builders needing a fixed, durable wiring solution for control cabinet applications.
Visit 3SU1401-2BF50-1AA0 for more detail info
For more our products visit turll
Download
| Weight | 0.008 kg |
|---|---|

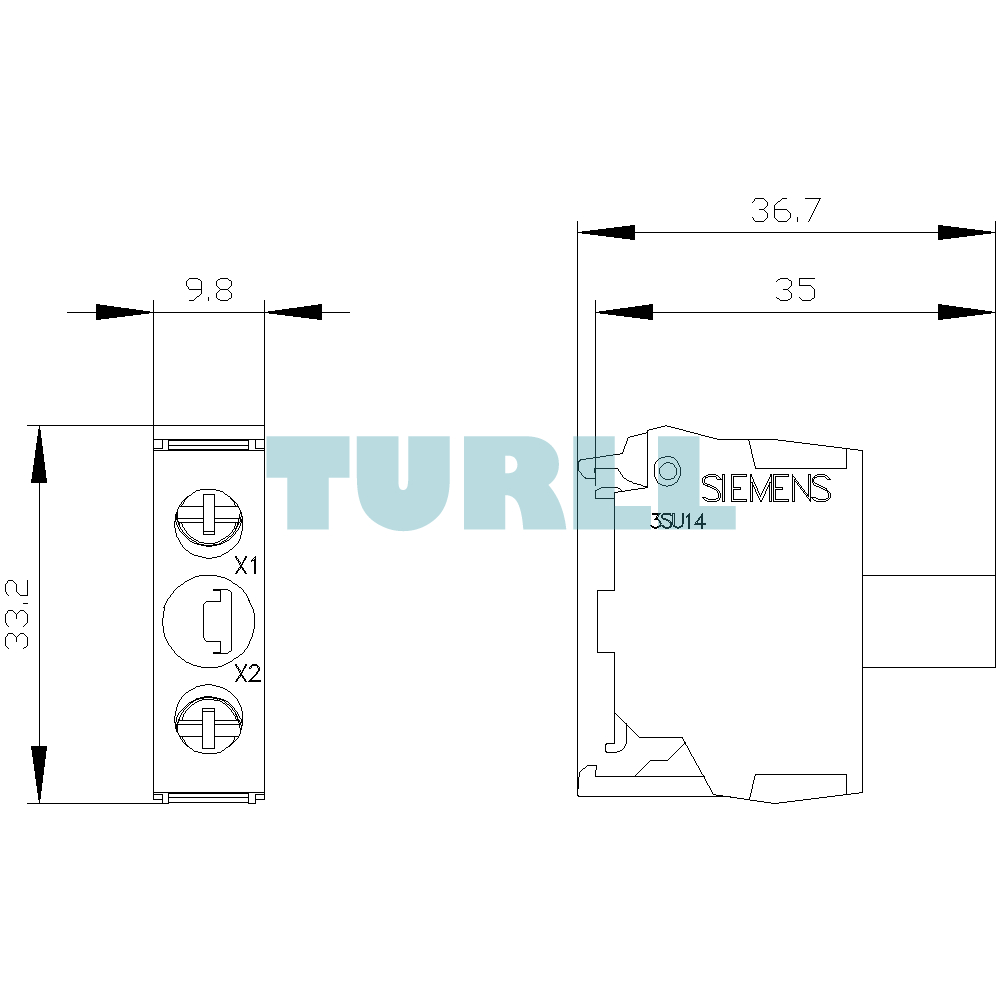

| Dimensions | 35.00 × 35.00 × 10.00 mm |
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
| product component | – |
| ● diode | Yes |
| ● lamp transformer | No |
| ● light source | Yes |
| ● series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| ● for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP | – |
| ● of the enclosure | IP40 |
| ● of the terminal | IP20 |
| shock resistance | – |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | – |
| ● acc. to IEC 60068-2-6 | 10 … 500 Hz: 5g |
| ● for railway applications acc. to DIN EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code acc. to IEC 81346-2 | P |
| operating voltage 1 | – |
| ● at AC | – |
| — at 50 Hz rated value | 230 V |
| — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
| inrush current maximum | 3 A |
| type of electrical connection | screw-type terminals |
| type of connectable conductor cross-sections | – |
| ● solid with core end processing | 2x (0.5 … 0.75 mm²) |
| ● solid without core end processing | 2x (1.0 … 1.5 mm²) |
| ● finely stranded with core end processing | 2x (0.5 … 1.5 mm²) |
| ● finely stranded without core end processing | 2x (1,0 … 1,5 mm²) |
| ● at AWG cables | 2x (18 … 14) |
| tightening torque with screw-type terminals | 0.8 … 0.9 N·m |
| type of light source | LED |
| color of the light source | blue |
| light intensity | 280 … 710 mcd |
| certificate of suitability | – |
| ● ATEX | No |
| ● IECEx | No |
| ambient temperature | – |
| ● during operation | -25 … +70 °C |
| ● during storage | -40 … +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 … 95 %, no condensation in operation permitted) |
| fastening method | – |
| ● of modules and accessories | Floor mounting |
| last modified: | 10/6/2021 |
