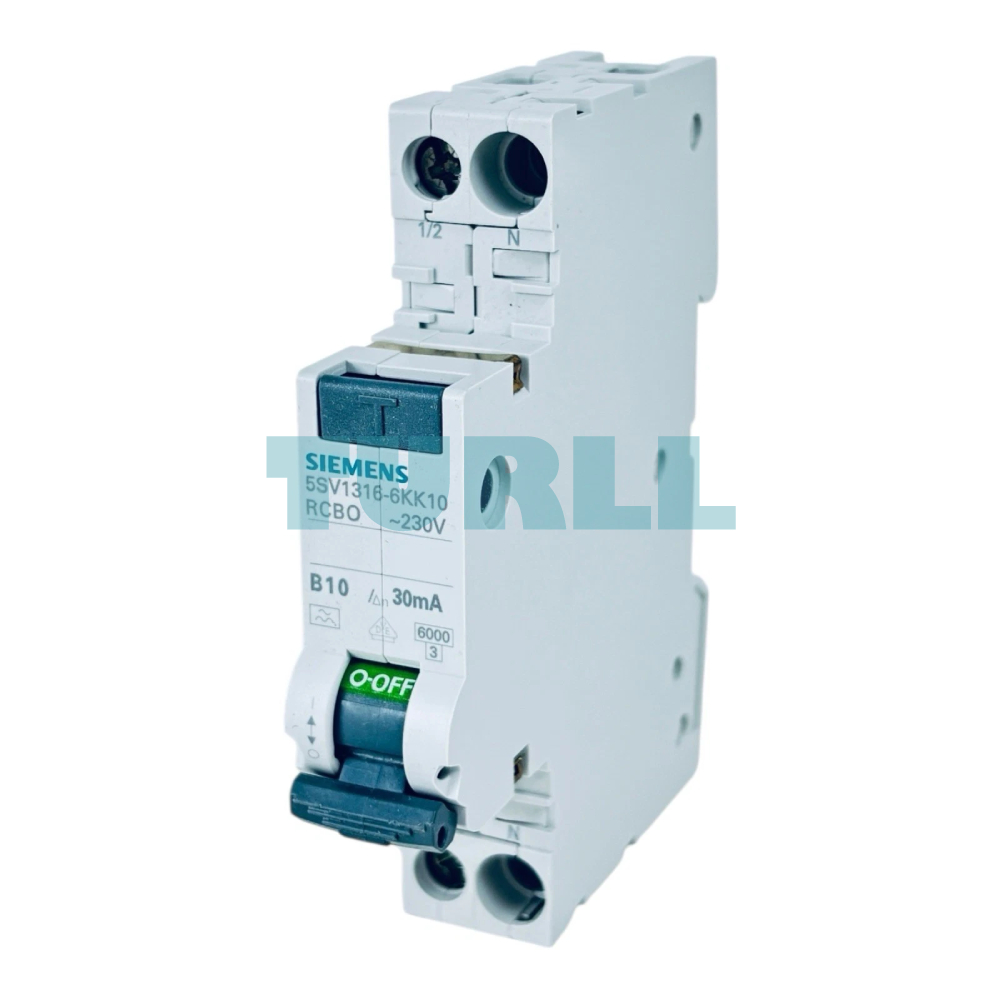

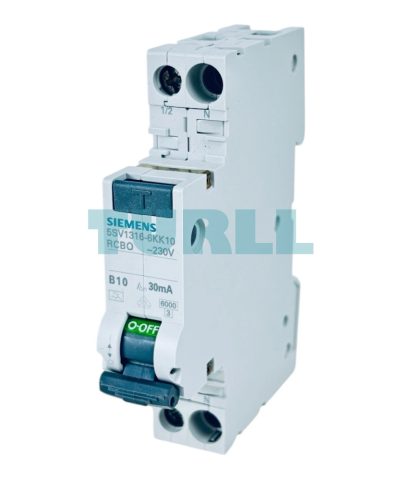

Space-saving, 1-module width Siemens SENTRON RCBO (5SV1316-6KK10) providing combined 10A overcurrent and 30mA Type A residual current protection for household and industrial applications. 6kA short-circuit breaking capacity with B characteristic.
The Siemens SENTRON 5SV1316-6KK10 is a state-of-the-art Residual Current Circuit Breaker with Overcurrent Protection (RCBO), uniquely combining the functions of an RCCB (for earth fault) and an MCB (for overload/short-circuit) into a single, highly compact 1-module width (1 MW) device. This innovation saves 50% of space compared to traditional setups, making it the ideal choice for modern, space-constrained distribution boards and consumer units. It is part of the robust SENTRON series, ensuring reliable and precise circuit protection.
Exceptional Space Saving: The innovative 1-module width design (18mm) saves 50% of the space in your distribution board, allowing for more protective devices.
Combined Protection: Offers comprehensive safety against overload current, short-circuit current, and dangerous earth-leakage fault currents (residual current) in one device.
Enhanced Safety (30mA Type A): The 30 mA trip sensitivity provides crucial personnel protection (protection against direct contact) and fire protection. Type A offers superior protection against pulsating DC faults common in modern electronics.
Easy Installation: Designed for DIN rail mounting with screw-type terminals for simple and secure wiring. Can be supplied from either the top or the bottom.
Compact 1 MW design for space-saving installation
1 Pole + Neutral configuration
Rated residual current: 30 mA (Type A)
Breaking capacity: 6 kA for reliable protection
B10 trip characteristic for overload protection
Compliant with international safety standards

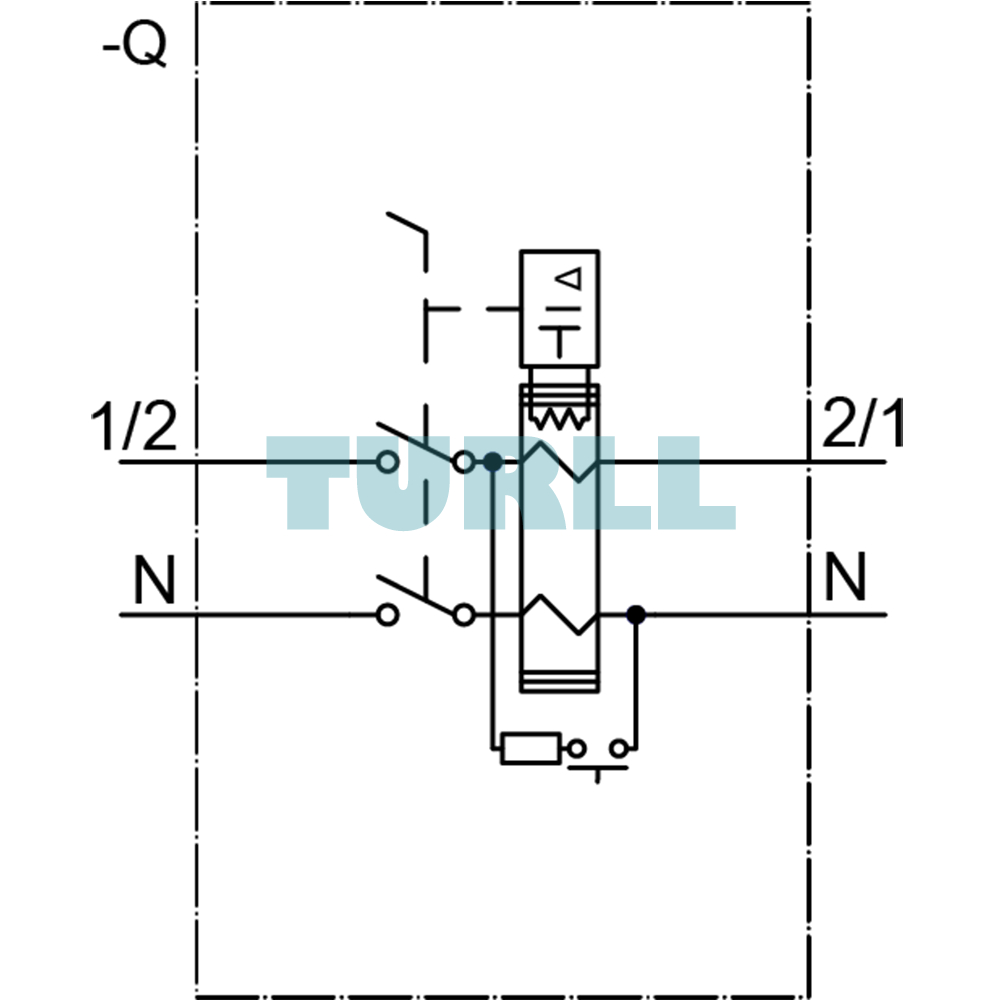

The RCBO combines the functions of a miniature circuit breaker (MCB) and residual current device (RCD) in a single unit. It automatically switches off power in the event of an overload or earth leakage, preventing electrical fires and equipment damage.
Visit 5SV1316-6KK10 for more detail info
For more our products visit turll
| SKU / Model | 5SV1316-6KK10 |
|---|---|
| Weight | 0.132 kg |

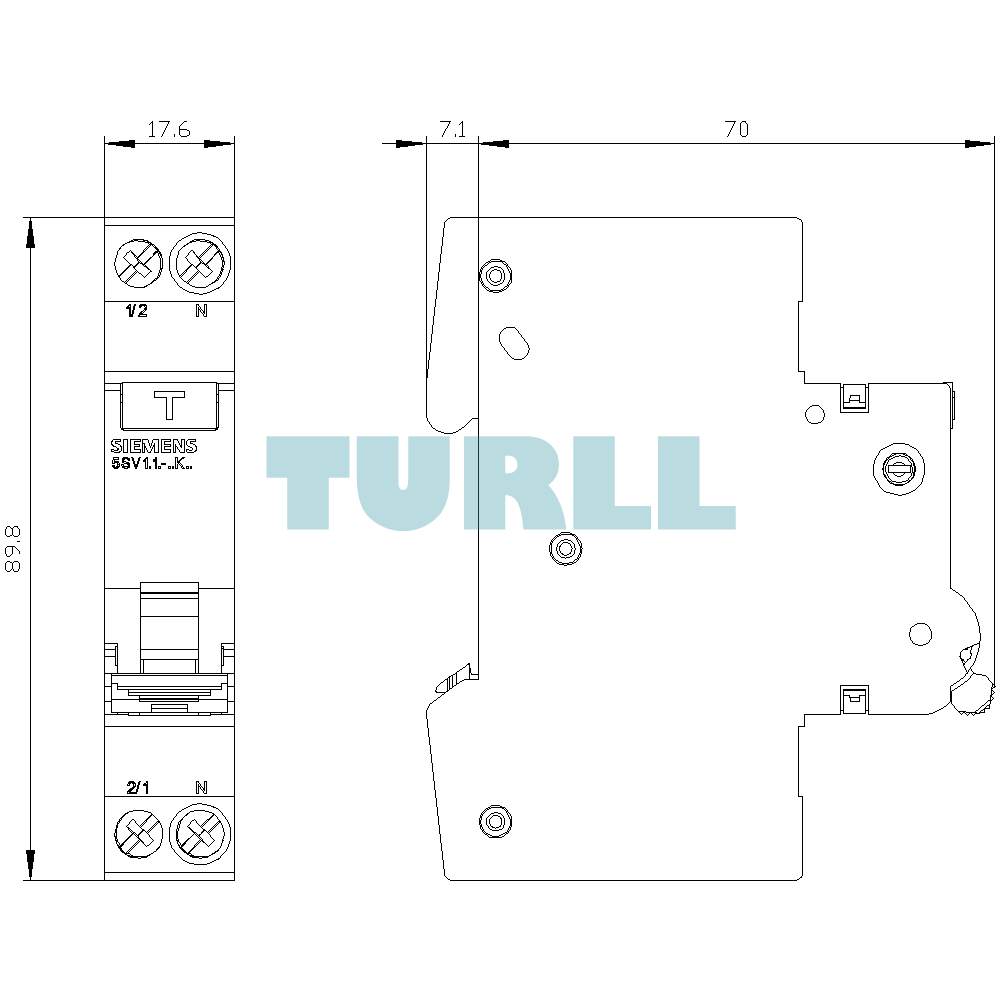

| Dimensions | 21.00 × 93.00 × 83.00 mm |
