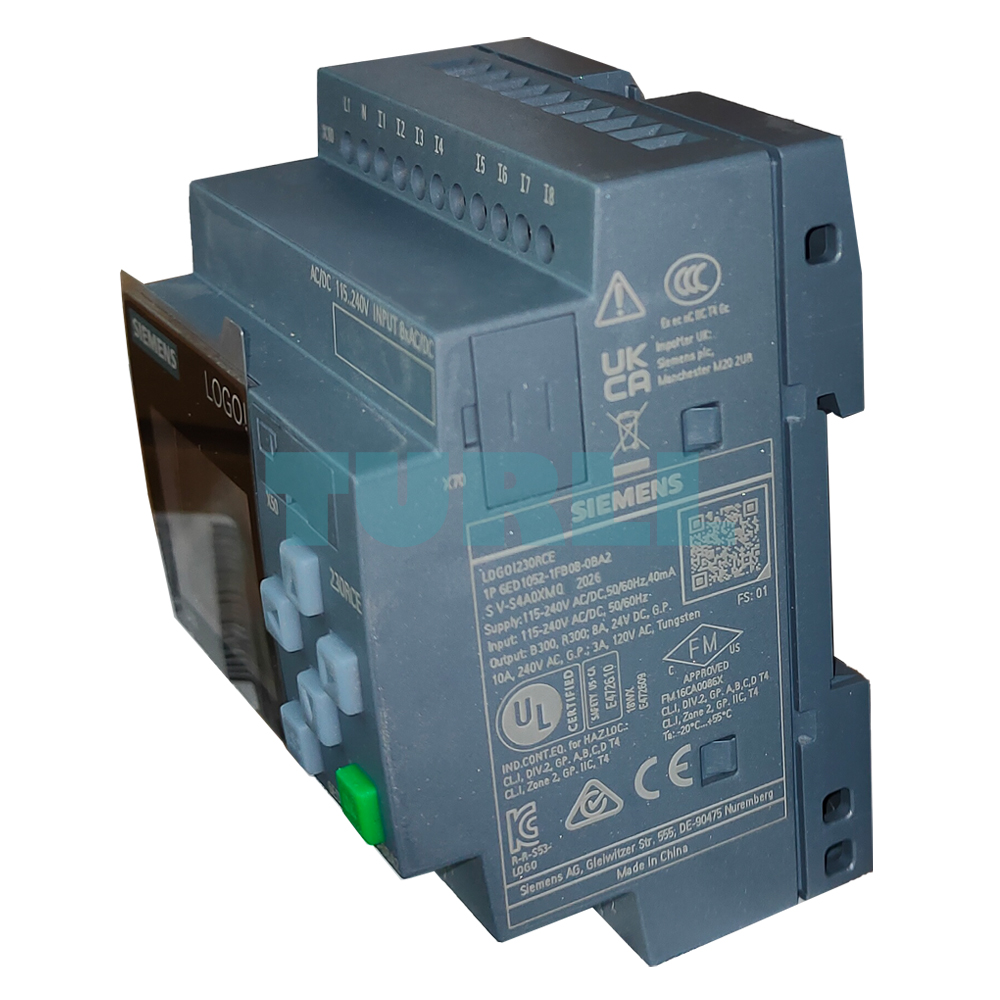

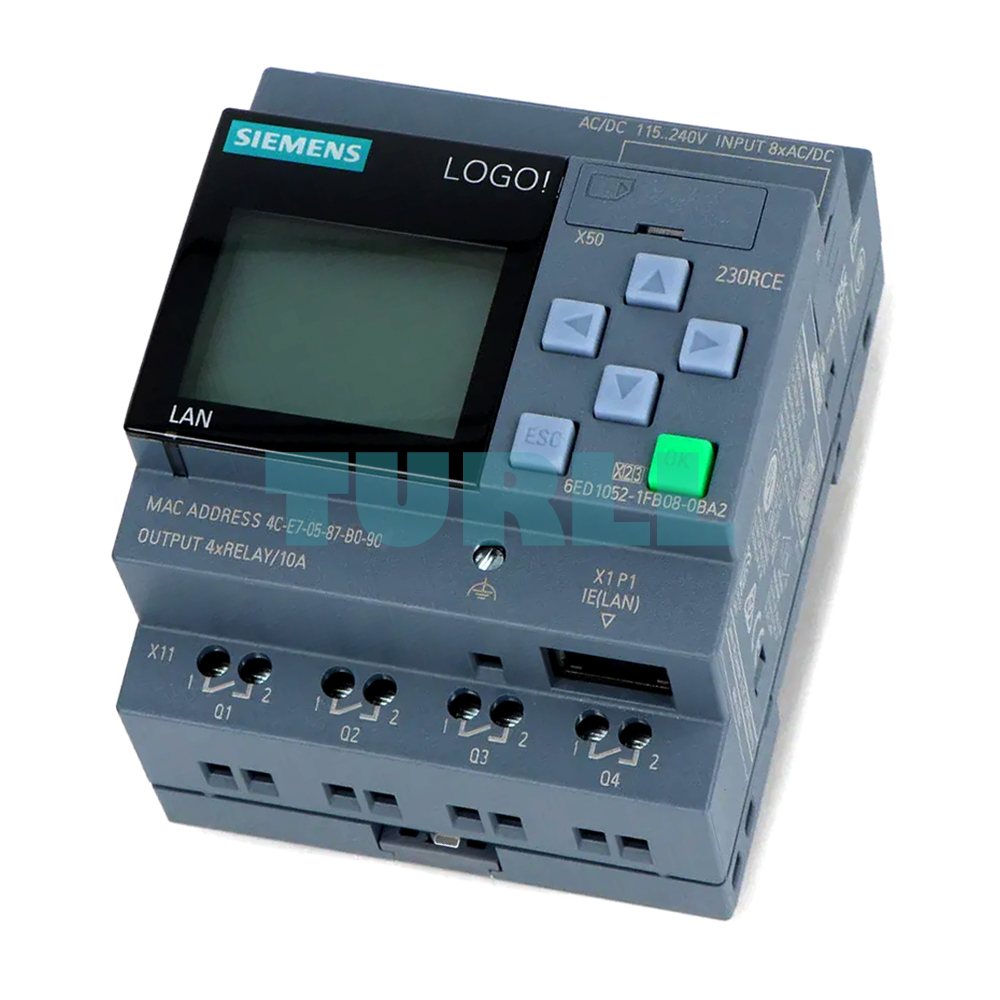

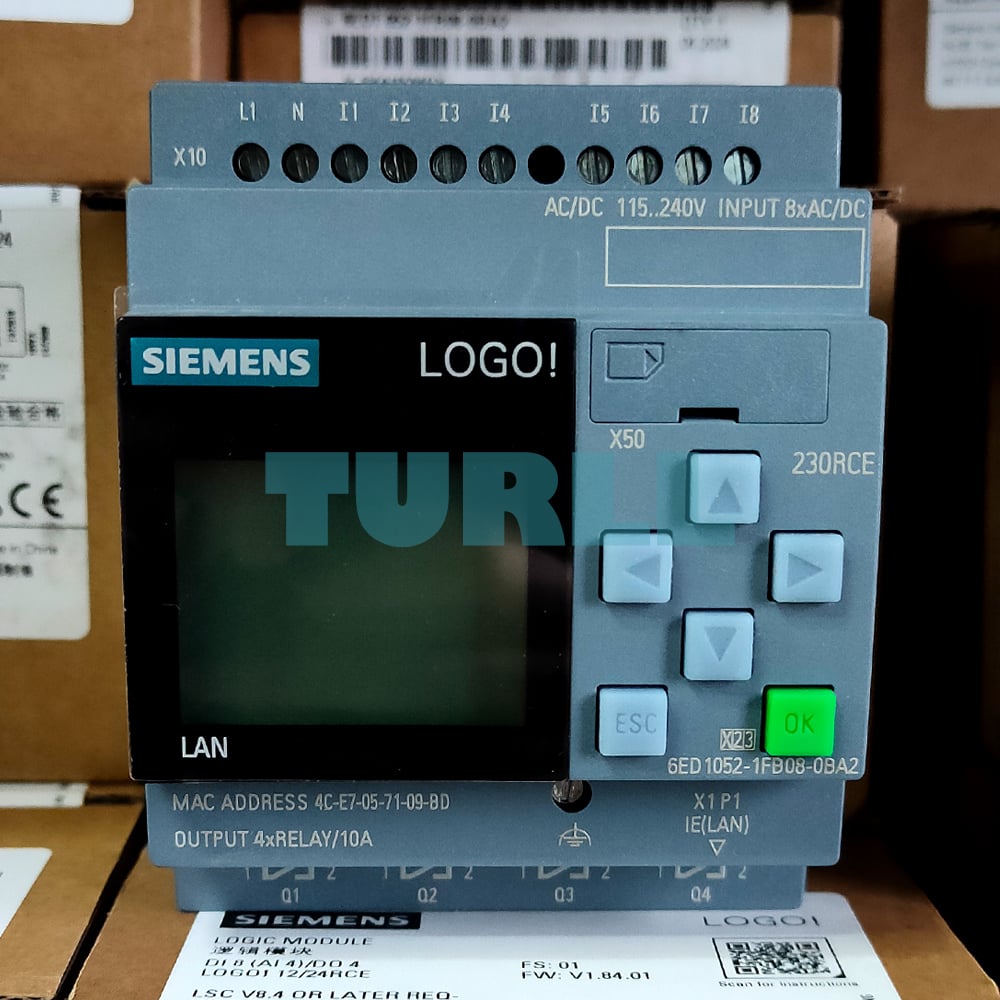

Siemens 6ED1052-1FB08-0BA2 LOGO! 230RCE Logic Module with Display (8 DI/4 DO) Original Brand New
$104.43
High-performance logic module designed for versatile automation tasks. It features an integrated display, 115V/230V power supply, 8 digital inputs, and 4 relay outputs. With built-in Ethernet, Web Server, and MQTT cloud connectivity, this module is ready for modern IoT applications and smart building automation.
Availability: In stock
Overview
The LOGO! 230RCE is part of the latest generation of Siemens logic modules (LOGO! 8.4). This compact yet powerful controller bridges the gap between simple switching and complex PLC systems. It is engineered for reliability, offering 400 memory blocks and modular expandability. The 6ED1052-1FB08-0BA2 model is specifically designed for 230V environments, making it ideal for HVAC, lighting, and industrial machinery control without the need for additional DC power supplies.
Key Benefit & Features
-
IoT & Cloud Ready: Native MQTT support in all LOGO! 8.4 units allows for seamless connection to AWS, Azure, or private clouds.
-
Integrated Web Server: Monitor and control your processes remotely via custom-designed web pages—no programming skills required.
-
Legacy Compatibility: Fully compatible with older projects; easily migrate your LOGO! Soft Comfort projects to the latest hardware.
-
Modular Expandability: Scale your system effortlessly with additional digital and analog modules to meet evolving project needs.
-
Advanced Data Logging: Use a standard microSD card to log critical process data for performance analysis and troubleshooting.
Technical Function
-
Power Supply: 115V / 230V AC/DC.
-
I/O Configuration: 8 Digital Inputs / 4 Digital Outputs (Relay).
-
Memory Capacity: Up to 400 functional blocks.
-
Connectivity: Ethernet interface for RJ45 communication.
-
Programming: Supported by LOGO! Soft Comfort V8.4 or higher.
-
Hardware: Integrated display with backlight and operator keypad.
Download
Visit 6ED1052-1FB08-0BA2 for more detail info
For more our products visit turll
| Weight | 0.274 kg |
|---|---|
| Dimensions | 93 × 81 × 73 mm |
| with display | Yes |
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
| Rated value (DC) | – |
| ● 115 V DC | Yes |
| ● 230 V DC | Yes; 240 V DC |
| permissible range, lower limit (DC) | 100 V |
| permissible range, upper limit (DC) | 253 V |
| Rated value (AC) | – |
| ● 115 V AC | Yes |
| ● 230 V AC | Yes; 240 V AC |
| ● permissible range, lower limit | 47 Hz |
| ● permissible range, upper limit | 63 Hz |
| ● Number | 400; Max. 400, function-specific |
| ● Power reserve | 480 h |
| Number of digital inputs | 8 |
| Number of digital outputs | 4; Relays |
| Short-circuit protection | No; external fusing necessary |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 10 A |
| ● Limit class B, for use in residential areas | Yes; Radio interference suppression according to EN55011, Limit Value Class B |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Ambient air temperature-barometric pressure-altitude | Tmin … Tmax at 1 080 hPa … 795 hPa (-1 000 m … +2 000 m) |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 60 mm |
| last modified: | 12/18/2020 |
