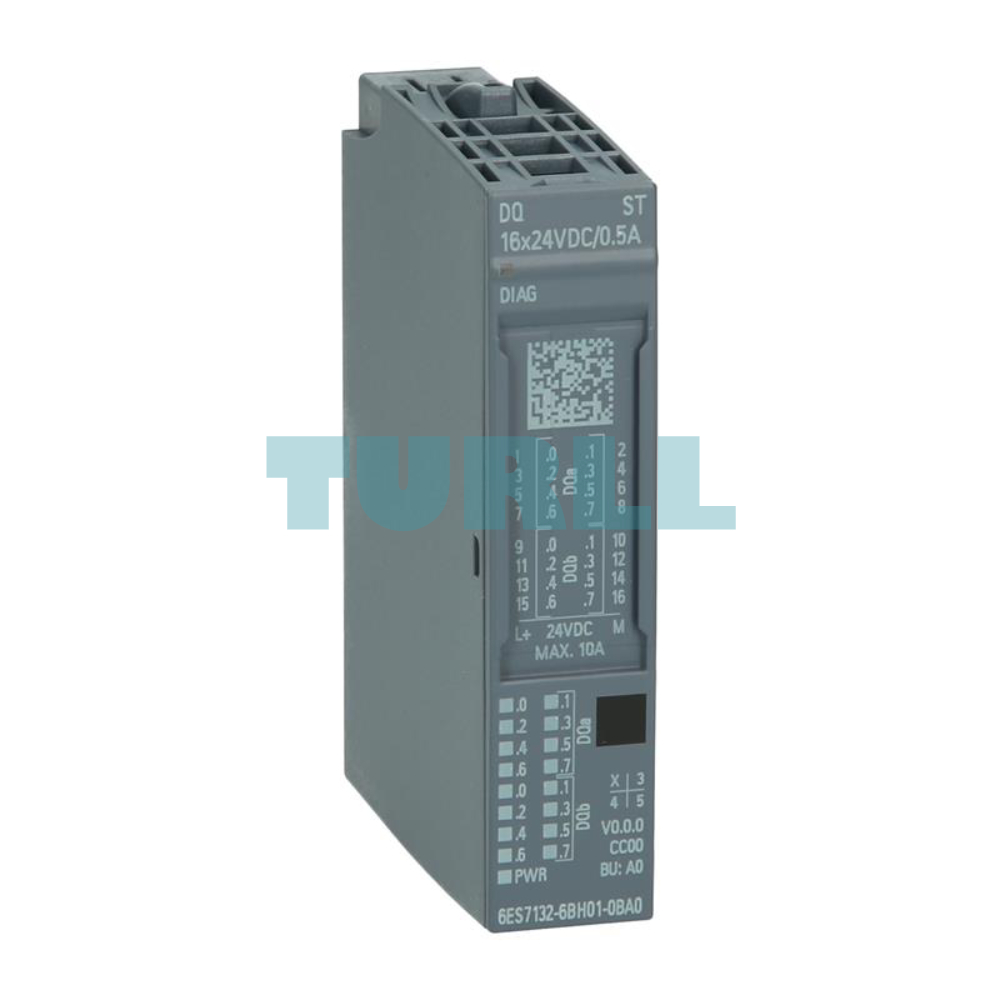

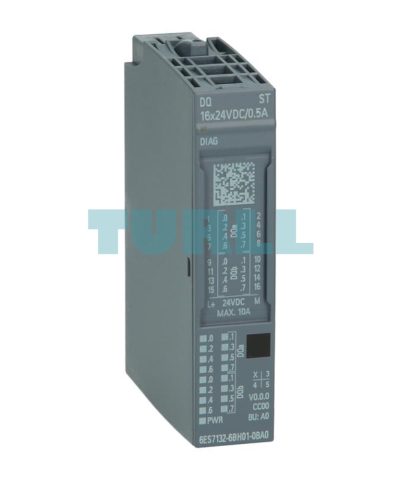

Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A
Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A
Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A
Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A
Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A
Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A

SIEMENS

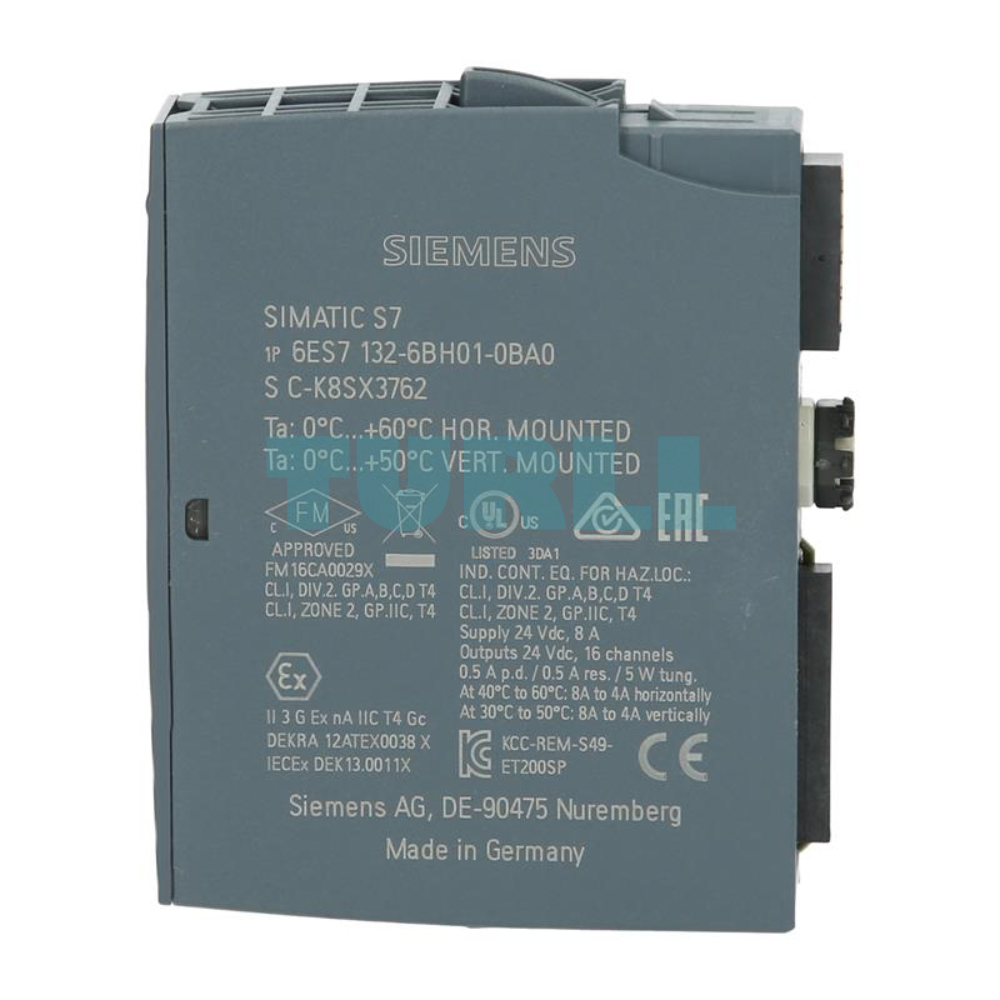

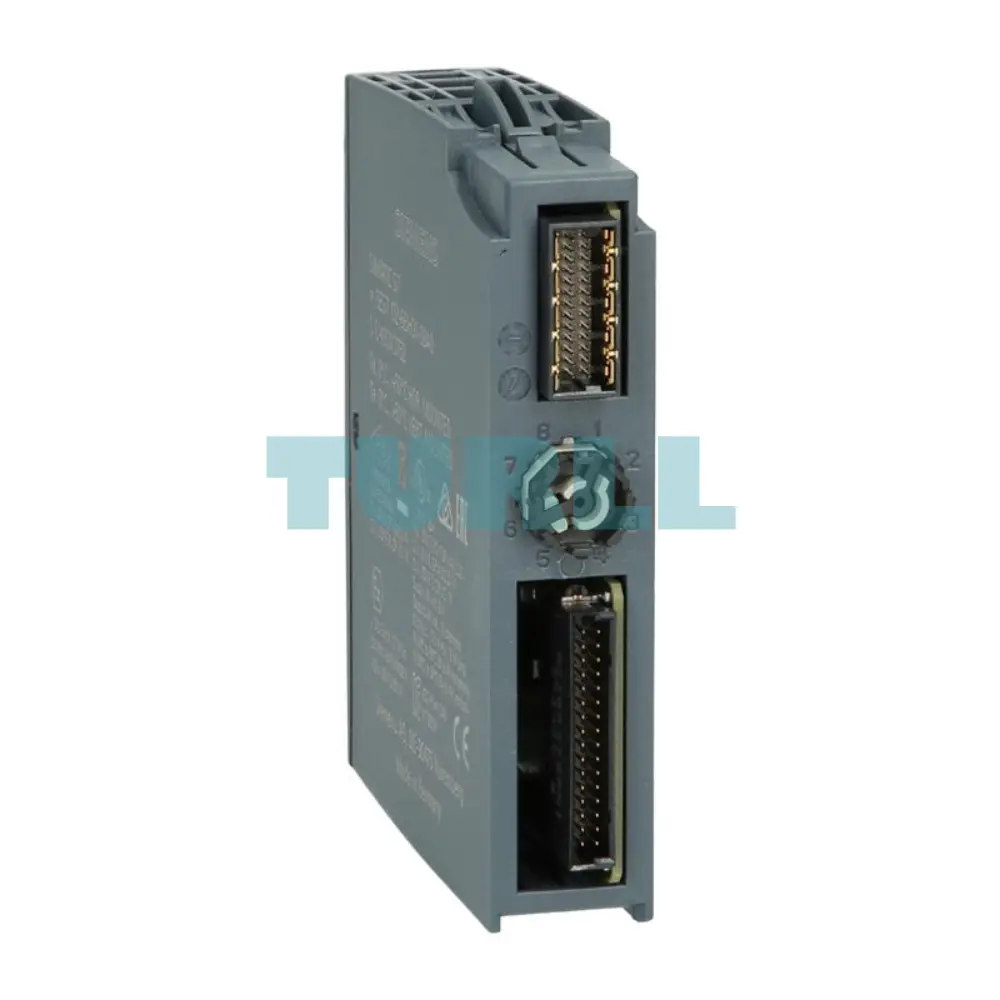

Siemens 6ES7132-6BH01-0BA0 SIMATIC ET 200SP, Digital Output Module, DQ 16x 24V DC/0.5A Original Brand New

Model / SKU6ES7132-6BH01-0BA0

SIMATIC ET 200SP digital output module, 16x DQ 24V DC/0.5A (PNP), with substitute value output, BU-type A0 compatibility, Colour Code CC00, and full module diagnostics, including short-circuit, ground faults, wire break, and supply voltage monitoring.

Original price was: $181.06.Current price is: $81.26.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7132-6BH01-0BA0 is a high-performance SIMATIC ET 200SP digital output module designed for precise and reliable control within distributed automation systems. With 16 digital outputs (DQ) of 24V DC / 0.5A, this module offers dependable PNP (source) switching, making it ideal for industrial applications requiring fast response and robust signal handling.

Engineered for seamless integration into the ET 200SP I/O system, this module fits perfectly with BaseUnit type A0 and provides enhanced diagnostics for efficient troubleshooting. Its compact design, Colour Code CC00, and smart substitute value functionality ensure minimal downtime and optimal system performance.

Benefit

  • High-output reliability with 16 channels at 24V DC/0.5A

  • PNP (source) output design for safe and industry-standard wiring

  • Compact ET 200SP format for space-saving installations

  • Advanced module diagnostics reduce downtime and simplify maintenance

  • Compatible with BU-type A0, ensuring flexible system setup

  • Substitute value output for fail-safe operations during communication interruptions

  • Designed for high industrial durability and stable long-term operation

Functions & Features

  • 16 Digital Outputs (DQ) – 24V DC / 0.5A per channel

  • PNP Source Output – P-switching

  • Short-circuit detection (to L+ and ground)

  • Wire break diagnostics for increased system monitoring

  • Supply voltage monitoring for stable system health

  • Colour Code: CC00 for easy module identification

  • Packing unit: 1 piece

  • Designed for the SIMATIC ET 200SP distributed I/O system

Download

Datasheet in PDF

Visit 6ES7132-6BH01-0BA0 for more detail info

For more our products visit turll

Specifications

SKU / Model6ES7132-6BH01-0BA0
BrandSIEMENS
Product type designationDQ 16x24VDC/0.5A ST
HW functional statusFrom FS03
Firmware versionV0.0
● FW update possibleNo
usable BaseUnitsBU type A0
Color code for module-specific color identification plateCC00
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● STEP 7 TIA Portal configurable/integrated from versionV14
● STEP 7 configurable/integrated from versionV5.5 SP3
● PCS 7 configurable/integrated from versionV8.1 SP1
● PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher
● PROFINET from GSD version/GSD revisionGSDML V2.3
● DQYes
● DQ with energy-saving functionNo
● PWMNo
● OversamplingNo
● MSONo
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Current consumption, max.60 mA; without load
Rated value (DC)24 V
Power loss, typ.1 W
● Address space per module, max.2 byte; + 2 bytes for QI information
Automatic encodingYes
● Mechanical coding elementYes
● Type of mechanical coding elementType A
● 1-wire connectionBU type A0
● 2-wire connectionBU type A0 + Potential distributor module
● 3-wire connectionBU type A0 + Potential distributor module
● 4-wire connectionBU type A0 + Potential distributor module

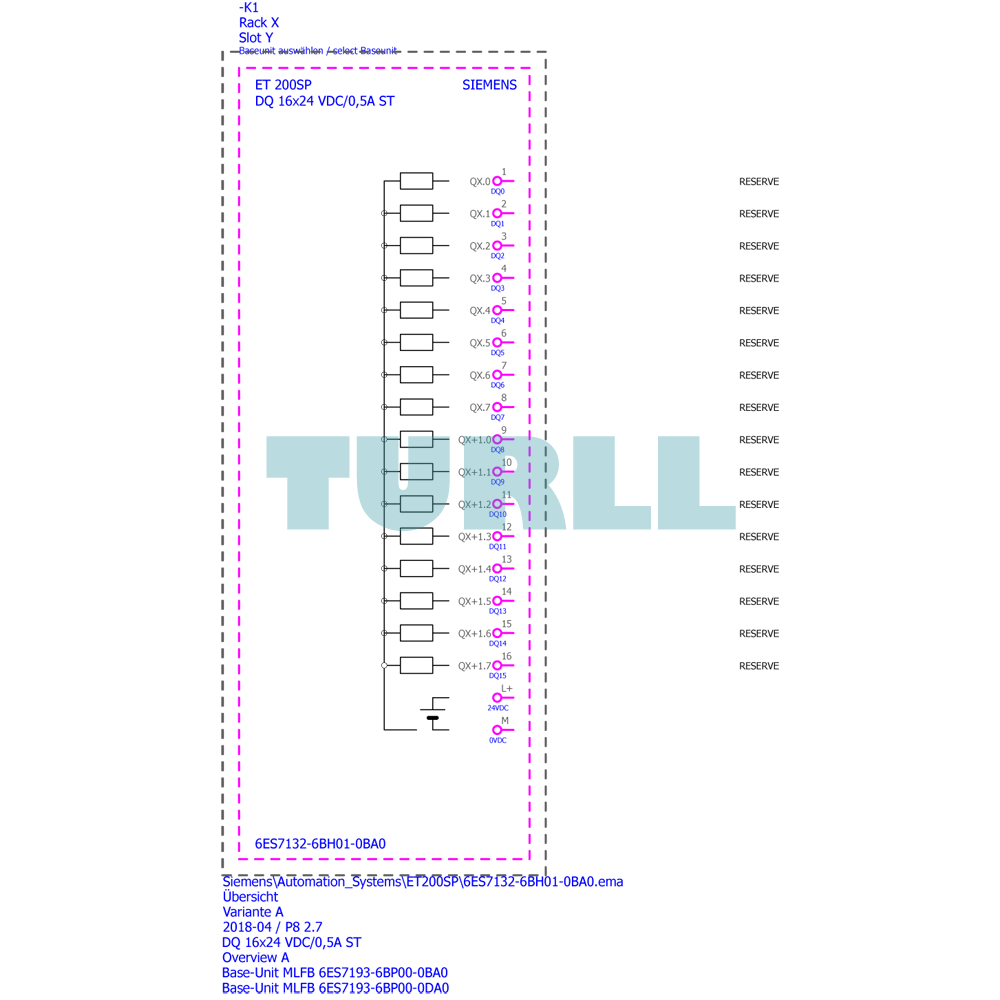

Type of digital outputSource output (PNP, current-sourcing)
Number of digital outputs16
Current-sinkingNo
Current-sourcingYes
Digital outputs, parameterizableYes
Short-circuit protectionYes
● Response threshold, typ.1 A; 0.7 to 1.3 A
Open-circuit detectionYes
Limitation of inductive shutdown voltage toTyp. L+ (-50 V)
Controlling a digital inputYes
● lower limit48 Ω
● upper limit12 kΩ
● for signal "1" rated value0.5 A
● for signal "0" residual current, max.0.1 mA
● "0" to "1", typ.50 µs
● "1" to "0", typ.100 µs
● for upratingNo
● for redundant control of a loadYes
● with resistive load, max.100 Hz
● with inductive load, max.2 Hz
● on lamp load, max.10 Hz
● Current per channel, max.0.5 A
● Current per module, max.8 A
— up to 60 °C, max.4 A
— up to 30 °C, max.8 A
— up to 40 °C, max.6 A
— up to 50 °C, max.4 A
● shielded, max.1 000 m
● unshielded, max.600 m
Diagnostics functionYes
Substitute values connectableYes
● Diagnostic alarmYes
● Monitoring the supply voltageYes
● Wire-breakYes; Module-wise
● Short-circuit to MYes; Module-wise
● Short-circuit to L+Yes; Module-wise
● Group errorYes
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
Isolation tested with707 V DC (type test)
Suitable for safety functionsNo
Suitable for safety-related tripping of standard modulesYes; see FAQ Entry ID: 39198632
● Performance level according to ISO 13849-1PL d
● SIL acc. to IEC 61508SIL 2
● horizontal installation, min.-30 °C; < 0 °C as of FS03
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C; < 0 °C as of FS03
● vertical installation, max.50 °C
● Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

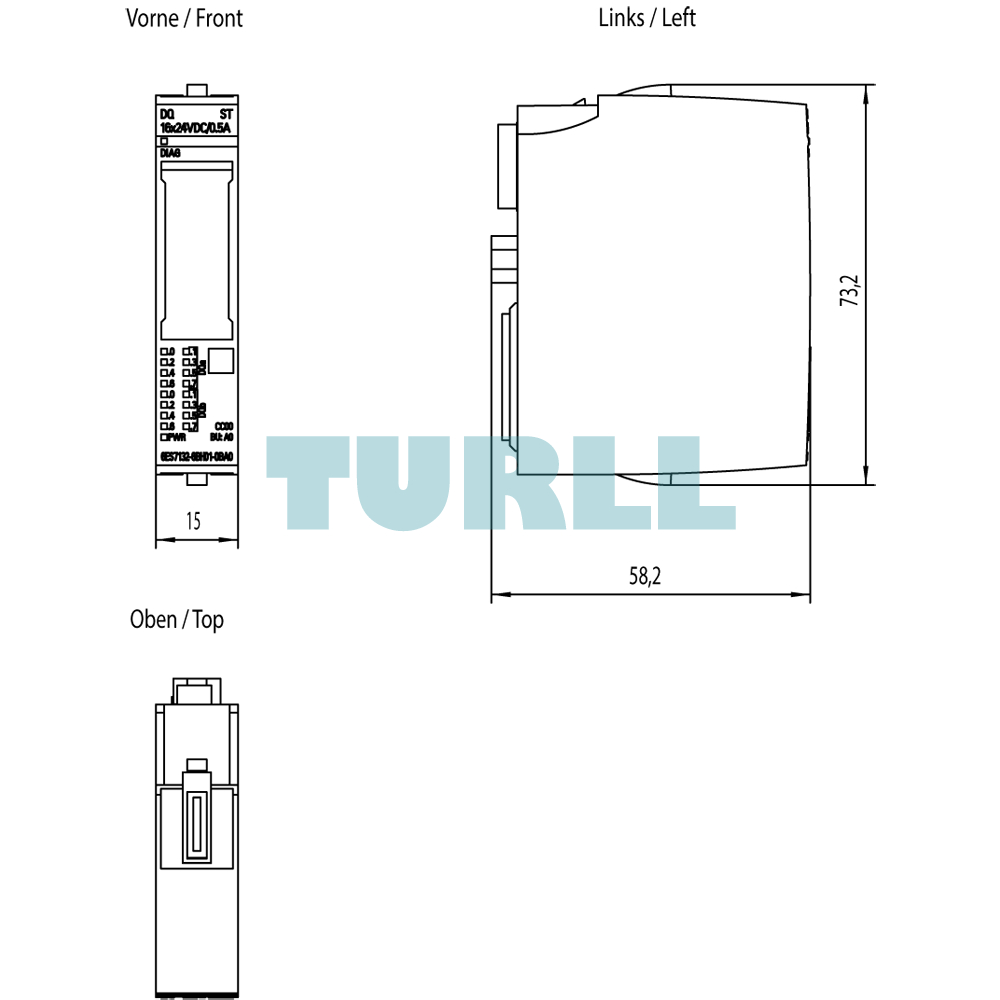

Width15 mm
Height73 mm
Depth58 mm
Weight, approx.30 g
last modified:9/27/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.036 kg
Dimensions6.50 × 7.60 × 2.30 mm
