6ES7972-0DA60-0XA0 SIEMENS Exclusive SIMATIC DP PROFIBUS Bus Connection Plug Original Brand New

6ES7972-0DA60-0XA0 SIEMENS Exclusive SIMATIC DP PROFIBUS Bus Connection Plug Original Brand New

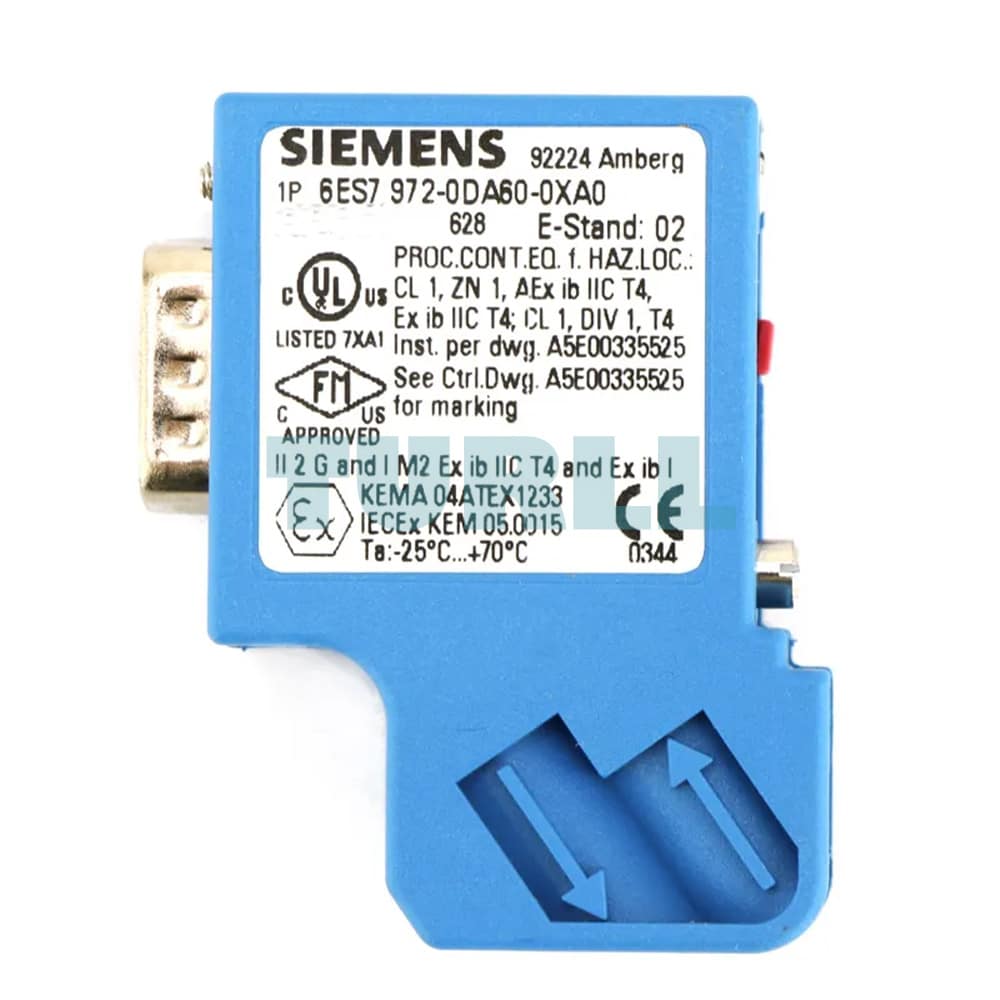

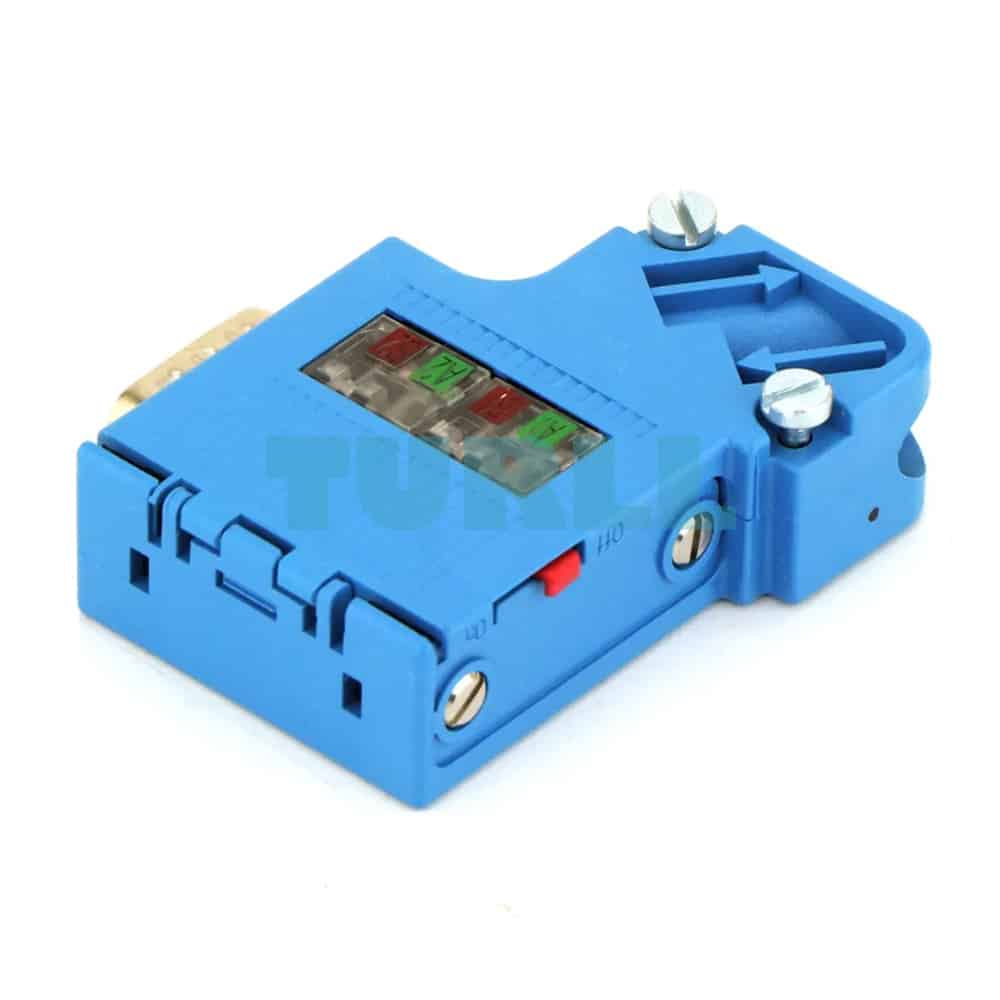

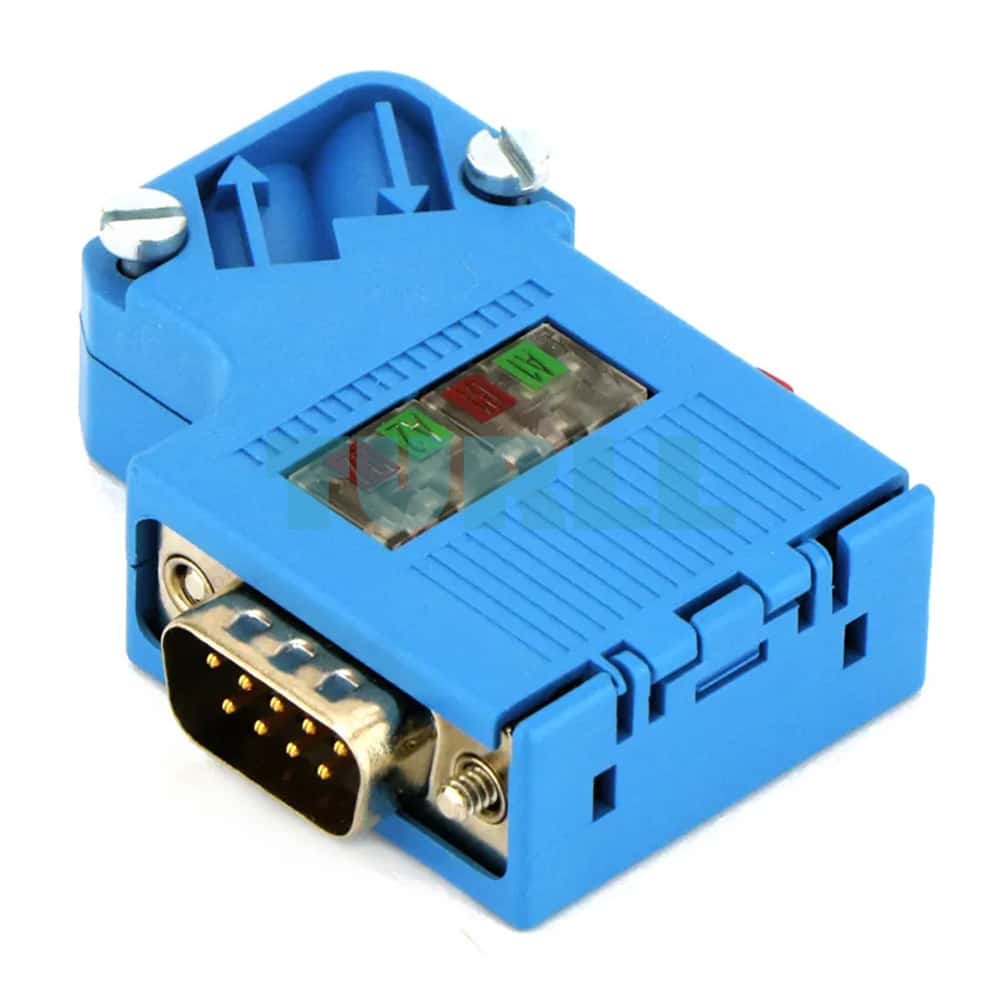

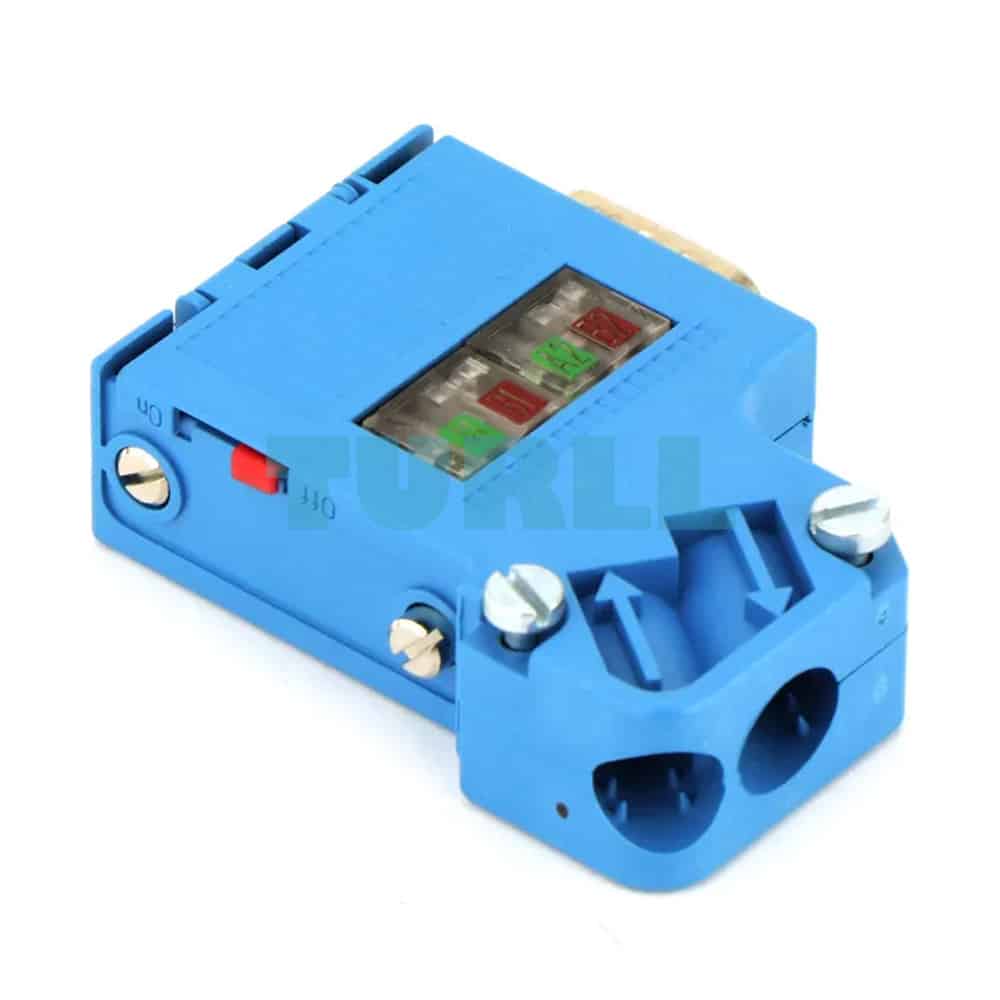

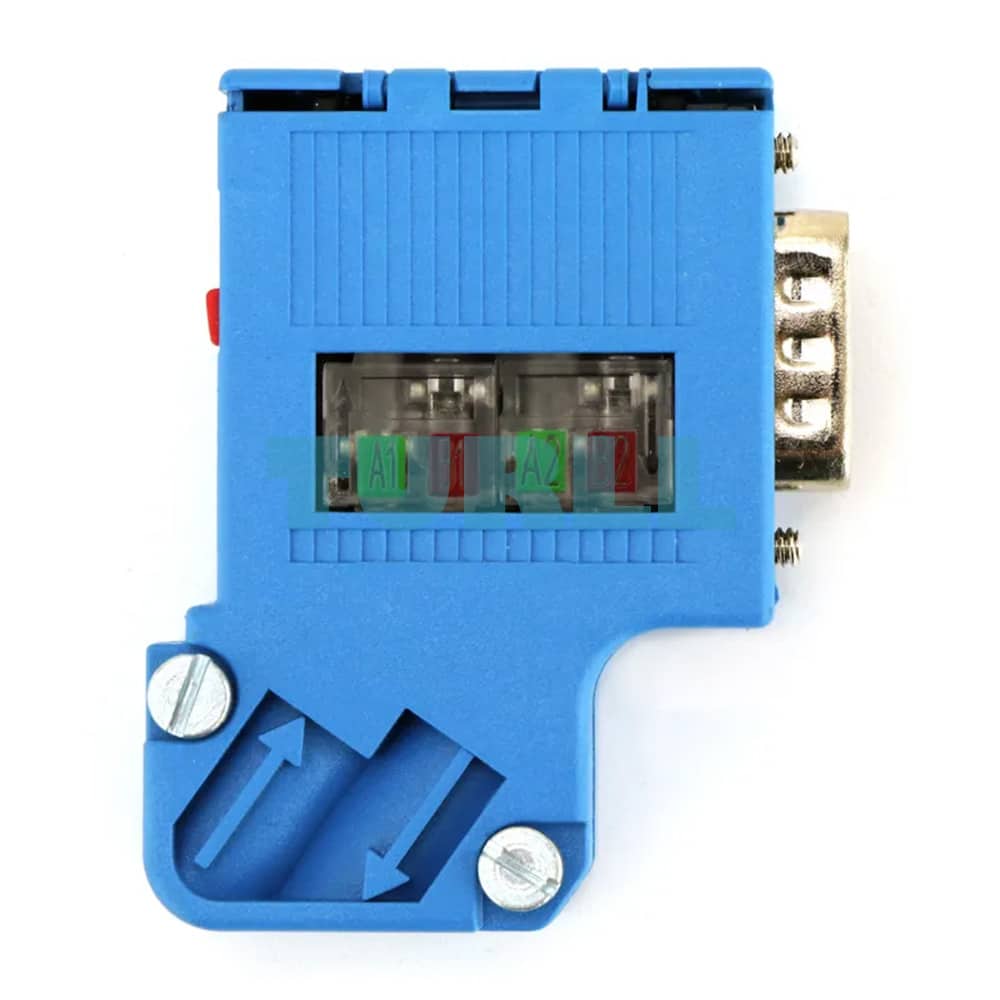

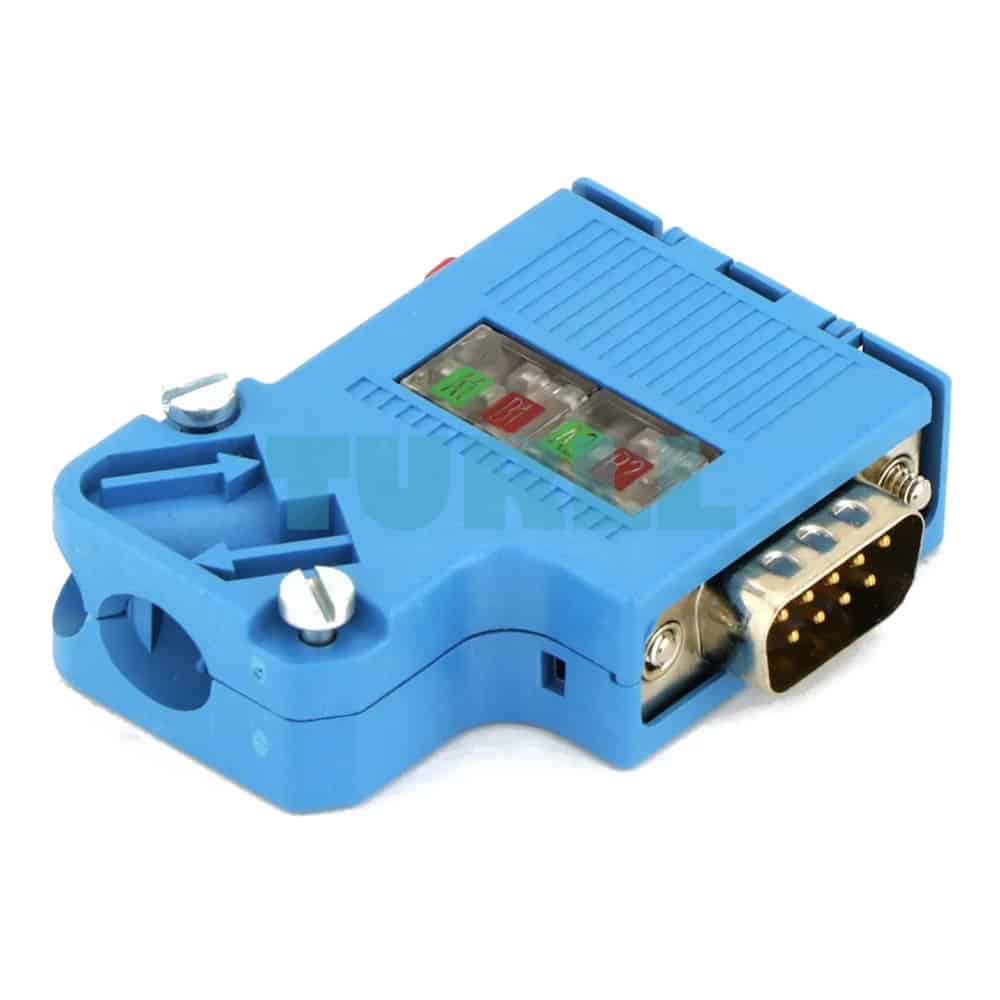

The 6ES7972-0DA60-0XA0 is a high-quality bus connection plug developed for PROFIBUS systems, offering exceptional reliability and compatibility for industrial automation applications. Designed with a slanted cable outlet, it is optimized for use with Ex I PROFIBUS devices and supports data transfer rates up to 1.5 Mbaud. This connector is compact in size (16 x 72.7 x 34 mm) and features insulation displacement terminations, allowing quick and secure wiring. The unit includes a connectible passive bus termination for the RS485-IS circuit, ensuring stable and interference-free communication.

Overview

This connection plug is part of the PROFIBUS DP ecosystem, providing an efficient solution for linking nodes in linear or tree network structures. PROFIBUS utilizes a shielded twisted pair cable as the transmission medium, enabling high-speed and stable data exchange. The connector enables seamless integration of multiple devices into the network, supporting complex automation structures.

Design

The device is engineered to work within RS 485 networks, supporting segment lengths up to 1 km at higher speeds, and up to 10 km at lower transmission rates when combined with repeaters. A single segment can host up to 32 devices, while the overall network can accommodate up to 126. The termination system is critical for signal integrity, and this connector ensures proper segment closure. It is compatible with the FastConnect system for quick assembly and supports integration with repeaters, active RS 485 terminating elements, and RS 485-iS couplers for hazardous areas.

Download

Data Sheet (PDF)

Product Code: 6ES7972-0DA60-0XA0
