3SU1052-2BF30-0AA0

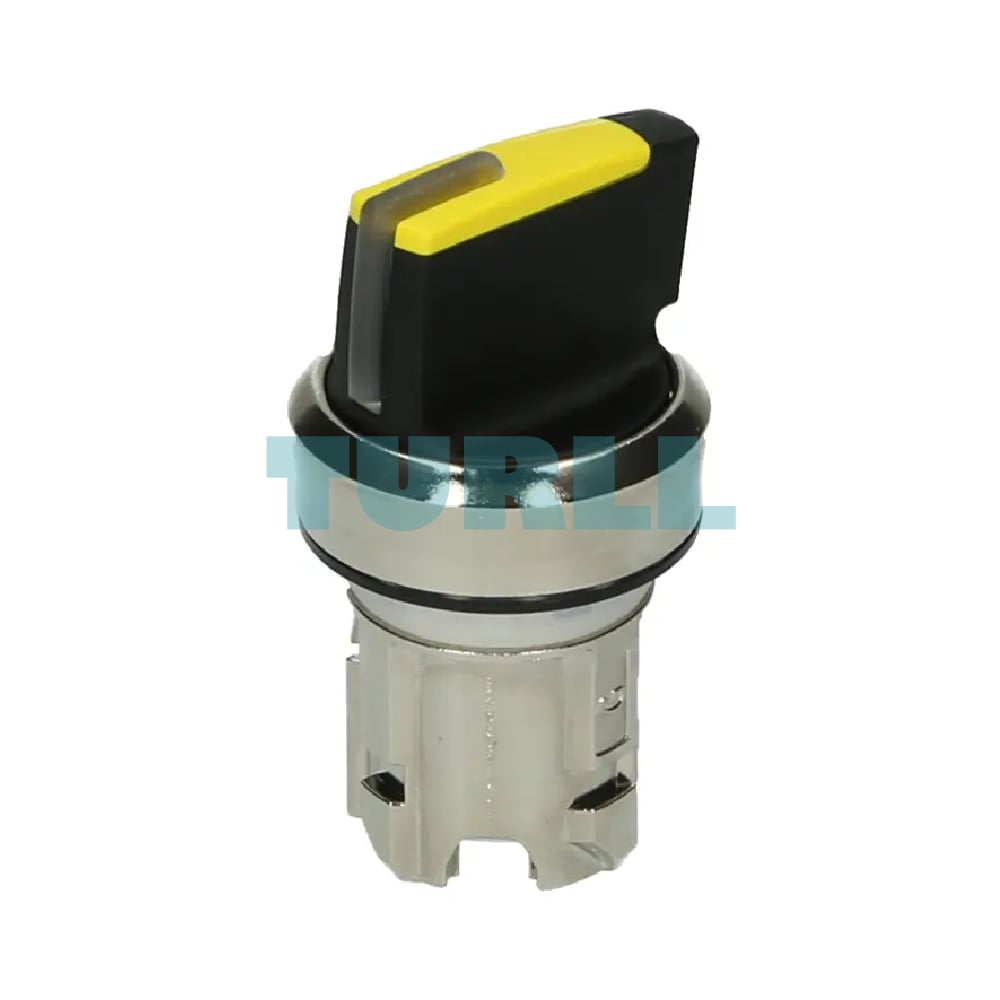

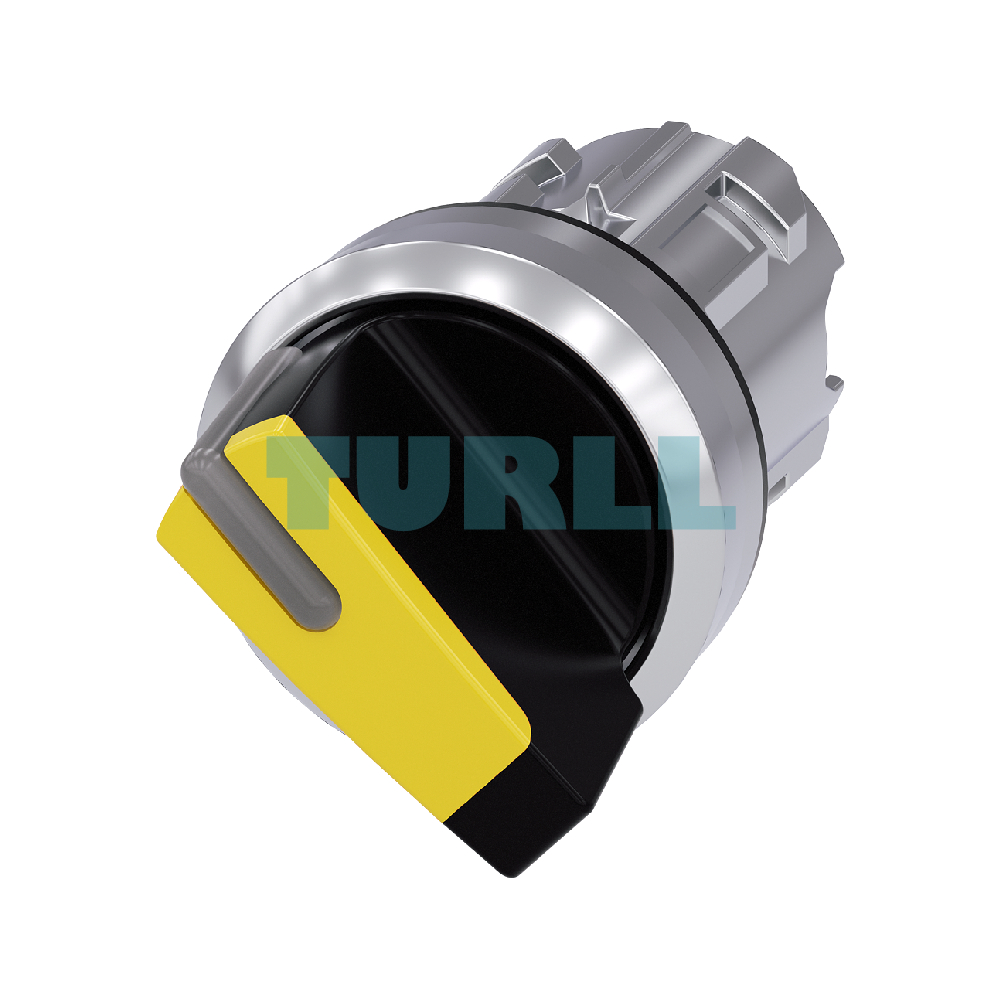

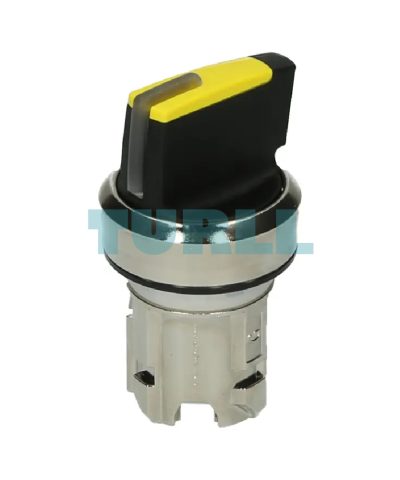

Siemens 3SU1052-2BF30-0AA0 Illuminable Selector Switch, 22mm, Metal, Yellow, 2 Positions O-I Original Brand New
Original price was: $17.66.$7.16Current price is: $7.16.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 3SU1052-2BF30-0AA0 |
|---|---|
| Brand | SIEMENS |
| product brand name | SIRIUS ACT |
| product designation | Selector switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
| product extension optional | - |
| ● light source | Yes |
| ● contact module | Yes |
| color of the actuating element | yellow |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 32.3 mm |
| number of switching positions | 2 |
| actuating angle | - |
| ● clockwise | 90° |
| product component front ring | Yes |
| design of the front ring | standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance | - |
| ● acc. to IEC 60068-2-27 | Sinusoidal half-wave 50g / 11 ms |
| vibration resistance | - |
| ● acc. to IEC 60068-2-6 | 10 ... 500 Hz: 5g |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (switching cycles) typical | 1 000 000 |
| reference code acc. to IEC 81346-2 | S |
| B10 value with high demand rate acc. to SN 31920 | 100 000 |
| proportion of dangerous failures | - |
| ● with low demand rate acc. to SN 31920 | 20 % |
| ● with high demand rate acc. to SN 31920 | 20 % |
| failure rate [FIT] with low demand rate acc. to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ambient temperature | - |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| environmental category during operation acc. to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %) |

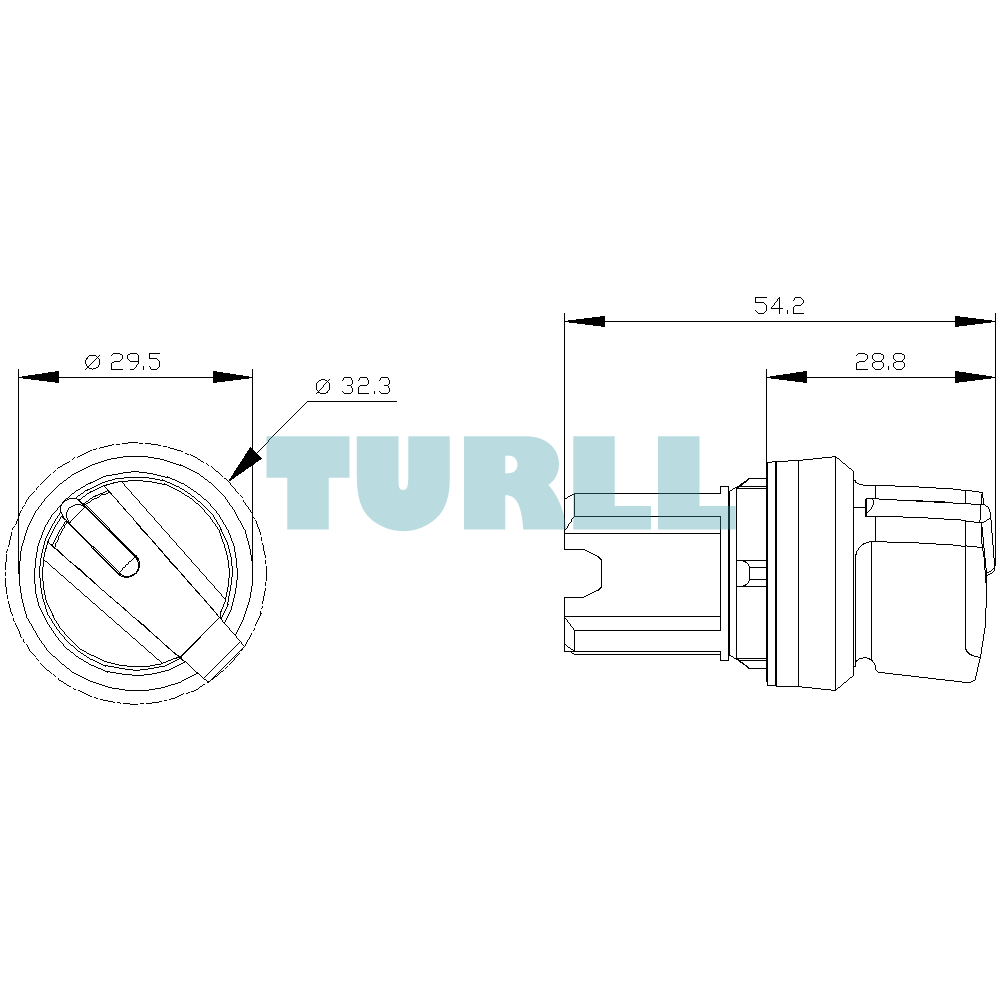

| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 28.8 mm |
| installation width | 32.3 mm |
| installation depth | 25.4 mm |
| last modified: | 10/6/2021 |
| Weight for shipping | 0.052 kg |
| Dimensions for shipping | 30.00 × 100.00 × 30.00 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The Siemens SIRIUS ACT 3SU1052-2BF30-0AA0 represents the pinnacle of design and functionality in command and signaling devices. This illuminable selector switch is engineered for durability in harsh environments, combining a sleek, polished metal appearance with rugged mechanical reliability. Its 90° throw (10:30h/13:30h positions) ensures clear visual confirmation of the switch state, making it ideal for critical machine interfaces.
Key Features & Benefit
-
Illuminable design: Easy visibility in low-light conditions to enhance safety and control.
-
Compact 22 mm round size: Ideal for space-constrained control panels.
-
Robust metal construction: Durable, long-lasting, and resistant to wear.
-
Bright yellow color: Quickly identifiable for safety and operational efficiency.
-
Two switch positions (O-I): Provides simple, clear ON/OFF control.
-
Latching mechanism: Maintains position for reliable operation.
-
Precise actuating angle of 90°: Ensures accurate control movements.
-
Easy installation: Fits standard industrial panels with minimal setup.
Function
-
Controls electrical circuits in industrial machinery.
-
Provides visual feedback via illumination to indicate switch status.
-
Supports secure latching for consistent operation.
-
Simplifies user interface with clear ON/OFF positions.
Visit 3SU1052-2BF30-0AA0 for more detail info
